2015 Hanse 575

Hull and Keel

HULL

• Custom Midnight Blue Awlgrip
• Laminated in a female mold to ensure excellent external finish
• 12 Hull windows on either side of saloon, aft cabins and forward cabin
• Hydraulically operated transom door doubles as a bathing/diving platform
• Vinylester for all outer laminates
• Polyester inner laminate (Orthophtalic or DCPD)
• Bulkheads laminated to hull and deck

KEEL

• High Performance L shape iron keel draft: 9.2 ft
• Stainless steel keel bolts

Deck Equipment

STEERING SYSTEM

• Redundant Jeffa twin wheel steering system Carbon Fiber steering wheels Steering pedestals with instrument consoles Semi-balanced, profiled rudder with alloy shaft and self-aligning needle bearings
• Emergency steering system in lazarette
• Compass at each steering station
• Engine control at helm station both port and stb
• Bow Thruster Controls at helm station both port and stb
• Auto Pilot Controls at helm station both port and stb
• Chart Plotter/Radar screen at helm station both port and stb

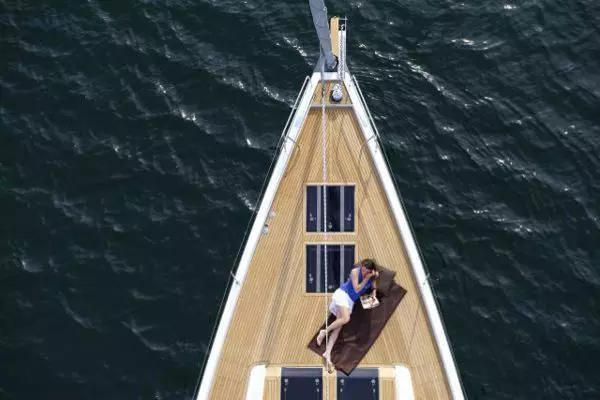

DECK

• Full Teak Deck Package
• Corner seats built into aft pulpit
• Teak on cockpit benches
• Teak on cockpit floor
• Teak on the coach roof and side decks
• Lifting entrance door with lock
• 4 Additional mooring cleats for a total of 10 heavy duty retractable mooring cleats
• 8 additional chocks
• Self-draining chain locker with electrical windlass on deck
• Fixed anchor arm with anchor roller and integrated teak step with padeye for genakker
• 2 electric teak cockpit tables
• 2 storage lockers in cockpit
• Foredeck sail storage with ladder and big hatch
• Custom line hangers in forward storage
• Hot & cold shower on aft deck
• Self-draining cockpit
• Halyard storage boxes in the cockpit
• Storage for gas bottle, selfdraining in dinghy garage
• Stainless steel swim ladder
• Hinged cockpit floor hatch on transom
• Longitudinal dinghy garage
• Self-tacking jib track, fully integrated in the foredeck
• Upgraded Midboom sheeting with 2 stand-up blocks
• Custom Built 2 x 5 sheave deck organizers
• 11 deck jammers
• 6 padeyes for gennaker, jib
• 16 Flush hatches
• 2 portholes for aft cabins
• 2 opening portholes

MOORING/ANCHORING

• Stainless Steel Main Anchor
• 168 Lb, 350 ft - 10mm stainless chain
• Stainless Steel Spare/Second Anchor
• 168 Lb, 300 ft - 10mm stainless chain plus 300 ft line
• 6 Panama Canal transit lines spliced
• Multiple fenders of varying sizes
• 12 Dock lines plus spares

Rigs and Sails

RIGGING

• 3 spreader Selden silver anodized keel stepped mast, tapered
• Selden silver anodized Boom with 2 reefing lines
• Custom designed 3rd reef system, led to cockpit
• Port and stbd mast steps to 10 feet
• Furling system for jib under deck
• All new, upgraded running rigging
• Upgraded cars for self-tacking jib
• Upgraded sheeting system for Main Sail
• Mid-boom main sheeting with 2 upgraded stand-up blocks
• Vang system upgraded
• Hydraulic Backstay adjuster rebuilt and upgraded

 SAILS

 New 2016:

• Ullman Full batten main
• Upgraded to three reefs
• Ullman 90% self-tacking jib
• Ullman 115% Genoa
• Ullman Cruising Gennaker with sock

Cockpit

• Large cockpit providing safe access to the interior, designed for comfort both under sail and at anchor
• Manually sliding companionway hatch and drop down washboard
• Removable teak foot chocks for helmsman
• Wheel and pedestal covers

• Dodger w/non-scratch wind screen,

• Full height side and top covers

• Heavy duty, custom collapsible bimini sun cover

• Custom wind and rain/sun bimini side panels with weights to keep in place

• Custom scuba tank storage below floor in cockpit
• 2 full tables, electric, can be positioned to create 2 full size sun beds/sleeping areas
• Full cockpit cushion set

Safety Upgrades

• Added stainless stanchions and custom stainless steel double rails all around
• Custom stainless steel davits that rotate parallel to stern when not in use
• Stainless steel man over board crane/outboard lift
• Pad eyes and Jackline running fore and aft and across the cockpit
• Jacklines custom designed and made with dyneema and sheathed for protection
• All additional and stock padeyes have been bolted through deck.
• Additional Custom Stainless Steel hand holds thought out the interior
• Spare anchor stainless steel with 300 feet of 10mm stainless chains and anchor line
• Three EPIRBS, two in two separate life rafts and one on stern rail
• Two eight man self righting life rafts
• Self elevating Bosun’s chair with appropriate lines
• Fiorentino parachute Sea anchor with 700feet of line plus chafe protectors
• Fiorentino drogue  with anchor and line
• AIS
• 12 lifevests all with MOB gps locators .....water activated and radio transmitters
• Two MOB throws with lights

Systems Management

Fresh Water System

• Fresh water tanks, capacity approx. 214 Gallons
• Water infill on deck
• 30 GPH watermaker upgraded and updated

Hot water System

• 10.5 Gallon water heater, running from engine
• Immersion heater 230 V

Bilge pumps

• 1 manual bilge pump
• 1 upgraded 3,000 GPH electric bilge pump with hose for compartments
• 1 upgraded 3,000 electric bilge pump on manual switch
• 1 upgraded bilge pump in forward sail locker
• 2 electric bilge pump with automatic switch

Heads

• 2 Upgraded Electric marine toilets
• Holding tank with sea and deck discharge for each toilet

Fuel Polishing/Distribution System

• Installed custom designed fuel polishing system and transfer pumps allowing fuel to be cleaned before use and cleaned in idle tank as well as tank being used.
• Upgraded ability to transfer of fuel between tanks is fast and simplified

On Deck Delivery Fuel Bladders

• Professional Quality on deck 2 x 50 gallons and 1 by 25 gallon.
• Upgraded through deck mounting padeyes and fuel transfer components

Navigation Station

Chart table with opening top and drawers is forward facing and located on the starboard aft side of saloon.

Instrument panels outboard with recessed mounting of instruments and controls

Separate Heavy duty battery installed for Navigation and Sailing instruments only

• Isolated charging system

Monitoring System

The following alarms are displayed on the touch screen

• Low battery voltage, service battery bank
• Low battery voltage, handling system battery bank
• Navigation light failure (side, stern and motoring lights)
• LPG leakage
• Generator overload
• Level metering:
• Water tanks
• Fuel tanks
• Bow Thruster Shut Off

Sailing instruments

B&G H5000 instrument system. System includes the following components:

• H5000 CPU Performance
• H5000 Graphic displays, 2 pcs, positioned on each steering console
• B&G 10/10 displays, 2 pcs
• H5000 Pilot Controller positioned on stbd steering console
• H5000 Analogue Interface, 2 pcs
• H5000 Serial Interface, 2 pieces
• H5000, 3D Motion Sensor
• Vertical Masthead unit 1450mm
• 213 Mast Cable, 36 m Lightweight
• Speed Sensor Plastic Flush mount
• N2K Depth Sensor Plastic Flush mount
• B&G Halcyon Gyro Stabilised Compass
• H5000 Pilot Computer

Navigation System

B&G Zeus2 navigation system. System includes the following components:

• One multifunction display 9 inch, B&G Zeus2 W9 on port steering console
• One multifunction display 9 inch, B&G Zeus2 W9 on starboard steering console
• One multifunction display 12 inch, B&G Zeus2 W12 at the navigation station
• GPS antenna, B&G ZG100
• Broadband 4G Radar antenna
• GoFree Wi-Fi wireless modules
• NEP-2 Network Expansion Ports, 2 pcs
• Navionics Gold charts for B&G Zeus2 including
• 1XG USA
• 3XG Central and South America

 Autopilot System

• B&G H5000 autopilot with one GPD control at helm
• Autopilot pump and cylinder removable,
• 2 pcs quick connection on hydraulic hoses

Communications Systems

• Fleet Broadband 250 satellite communications system with antenna on pushpit
• B&G VHF/DSC with additional B&G handset and speaker in cockpit
• Lightweight VHF antenna AC Marine CELmar VHF on masthead
• Class B AIS transponder, B&G VHF including GPS and VHF antenna splitter

Interior

High quality marine plywood, American Cherry Style, satin varnish

Wooden door frames

Leather Trim

Wood / Sandwich doors

Teak and Holly non-skid laminate flooring

Upholstery is durable Sunbrella in light grey

Forward cabin

• Owner cabin with island berth
• Significant storage below island berht
• Extensive hanging lockers and drawers
• Separate head and separate shower unit
• Upgraded Stereo and TV
• Custom mount B&G Nav Screen in forward cabin
• Additional AC and USB outlets

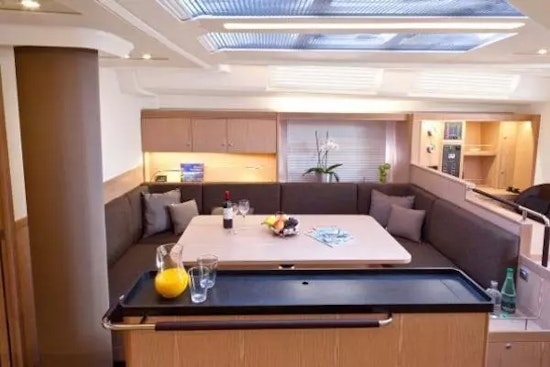

Main Saloon

• Large saloon table
• Abundant Lockers
• U-shaped sofa on starboard side
• Generous galley along the hull on port
• Multi-function centerpiece with storage and double seats
• Upgraded TV and stereo system
• Additional AC and USB outlets

Navigation area

• Comfortable navigators seat with armrests (turnable)
• Locker next to chart table for instruments and books

Mid-Ship port Shop/Storage

• Owner replaced the bunk cabin to port with a multi-use storage space and work shop.
• Equipped with heating and cooling for drying gear
• Upper Shelf converts to bunk
• Room for tools, fishing and diving gear
• Serves as extra pantry
• Built in floor drain

Aft cabins

• 2 double aft cabins with locker space
• Custom built lee boards installed in both aft cabins for offshore comfort
• Ample storage below berths
• Port side head and shower unit with big separate shower

Galley

• Solid Coriean surface, black quartz with integrated double sink
• 3-burner LPG stove with oven, gimbled
• Ventilation hood
• LPG Gas system
• 2 x gas bottle storage in garage
• Double drawer fridge
• Significant lockers and drawers
• Waste bin
• Microwave
• Freezer/ice maker
• Coffee maker

Engine Room

Volvo D3-110, 78 kW / 107 HP, diesel engine

• Direct shaft drive
• 3 bladed folding propeller
• Fuel filter / Water separator
• Engine room sound insulated and illuminated

Panda 8K generator

• Mounted above engine
• Panda Sound Shield

Electrical System

Batteries

• Main battery switches
• Engine battery: 12 V / 90 Ah AGM
• Service battery: 2 x 12 V / 2 x 165 Ah AGM

Battery charger / Shore power

• Shore supply protected with differential breaker and distribution system
• Battery charge 50 A

 Electric switch panel 110 V

• Differential breaker
• Control gauges
• Voltmeter

 Electric switch panel 12 V

• Switches for all onboard electrics
• Voltmeter
• Water / fuel gauges / waste water

 12 V Electric equipment

• Electrical anchor windlass
• Pumps
• Navigation lights LED
• Interior lights
• Refrigerator

 Outlet

• 3 at chart table twin outlet
• USB outlets at chart table
• 2 in fwd. cabin one each
• 1 in aft. cabin one each
• 1 in galley twin outlet
• 2 in saloon twin outlet
• 1 in heads

 Outlets 12 V

• at chart table
• at helm station

 Interior lighting

• Overhead lighting in cabins, saloon, galley and heads
• Lighting in engine compartment
• Reading lights in saloon and cabins
• Courtesy light on companion way

 Navigation lights

• Navigation lights LED on pulpit and pushpit
• Steaming light LED
• Anchor light LED

 Navigation instruments

• 2 illuminated compasses at each helm

Aft Garage

• 6 person Zodiac inflatable
• Custom Tie Downs
• Custom built outboard Storage Box
• 8hp Yamaha 4 stroke
• Custom hatch installed to utilize additional storage below garage deck
• Separated storage from steering system
• 2 paddle boards with paddles
• 8 scuba tanks and valves
• 2 kite boards
• 4 kite board sails
