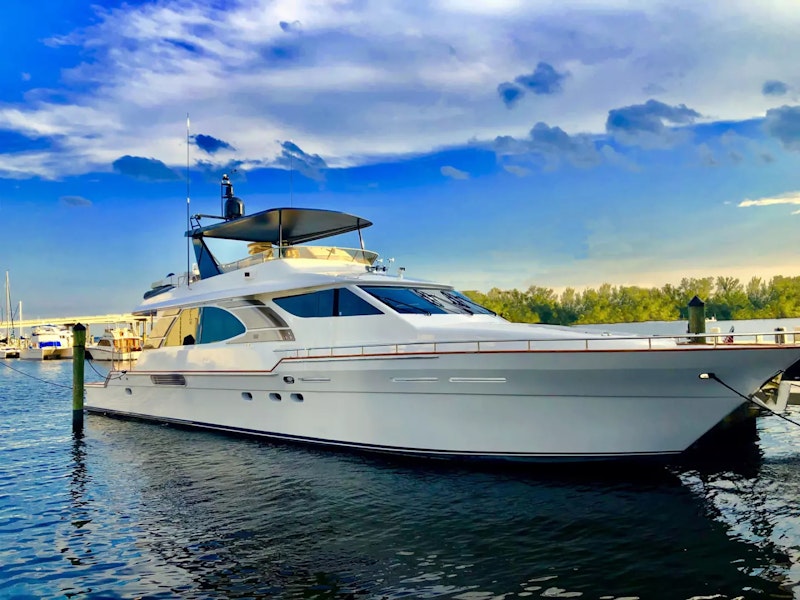

76' Queenship Barretta 76 2004

Boarding SEA MYSTIC is either from the port or starboard side decks or from a floating dock access and is easy via the Integral swim platform and walk through transom door.

The teak soled Cockpit has a centerline watertight door to the Crew/Engine Room area and curved port and starboard steps to the Aft Deck.

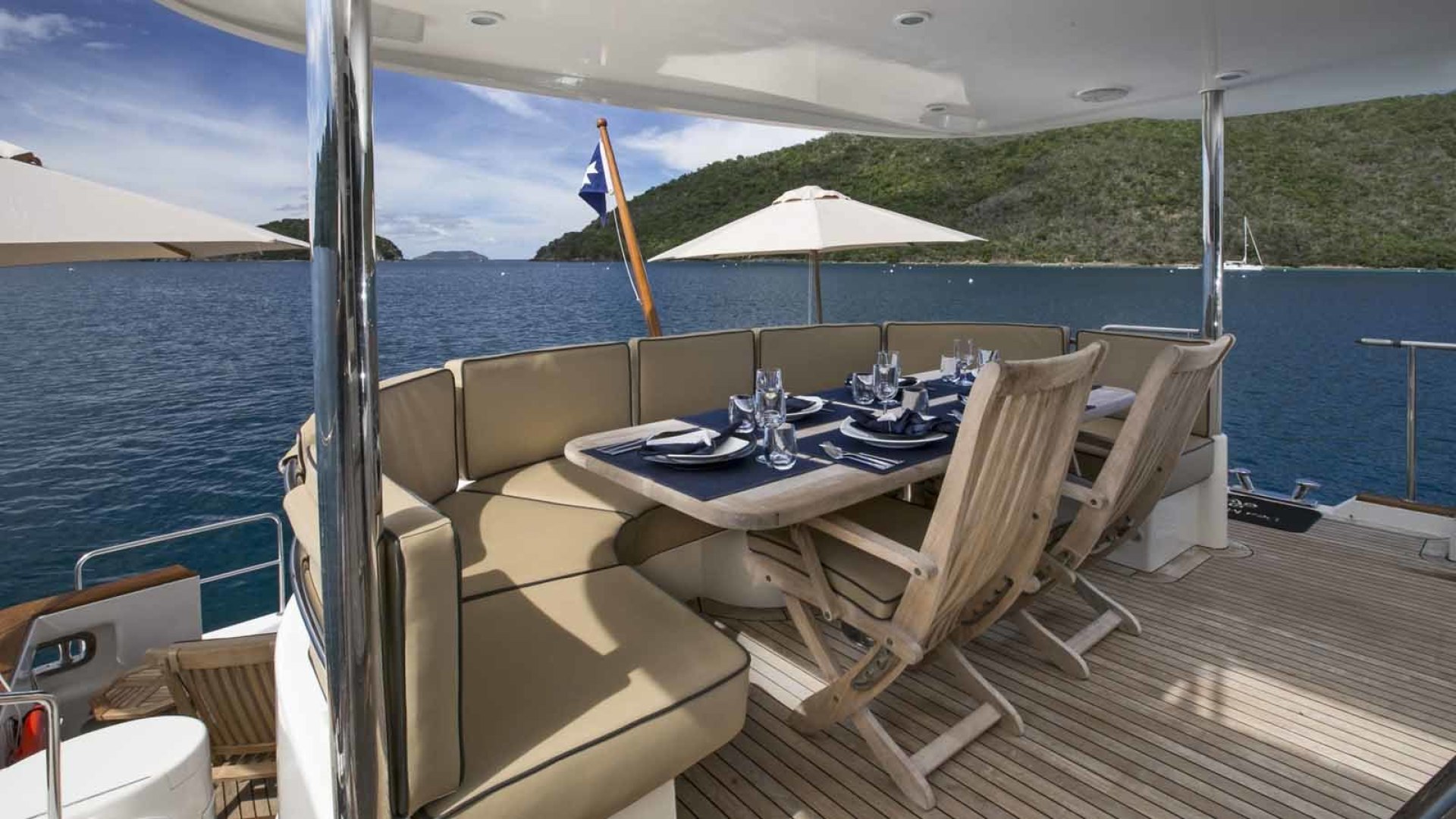

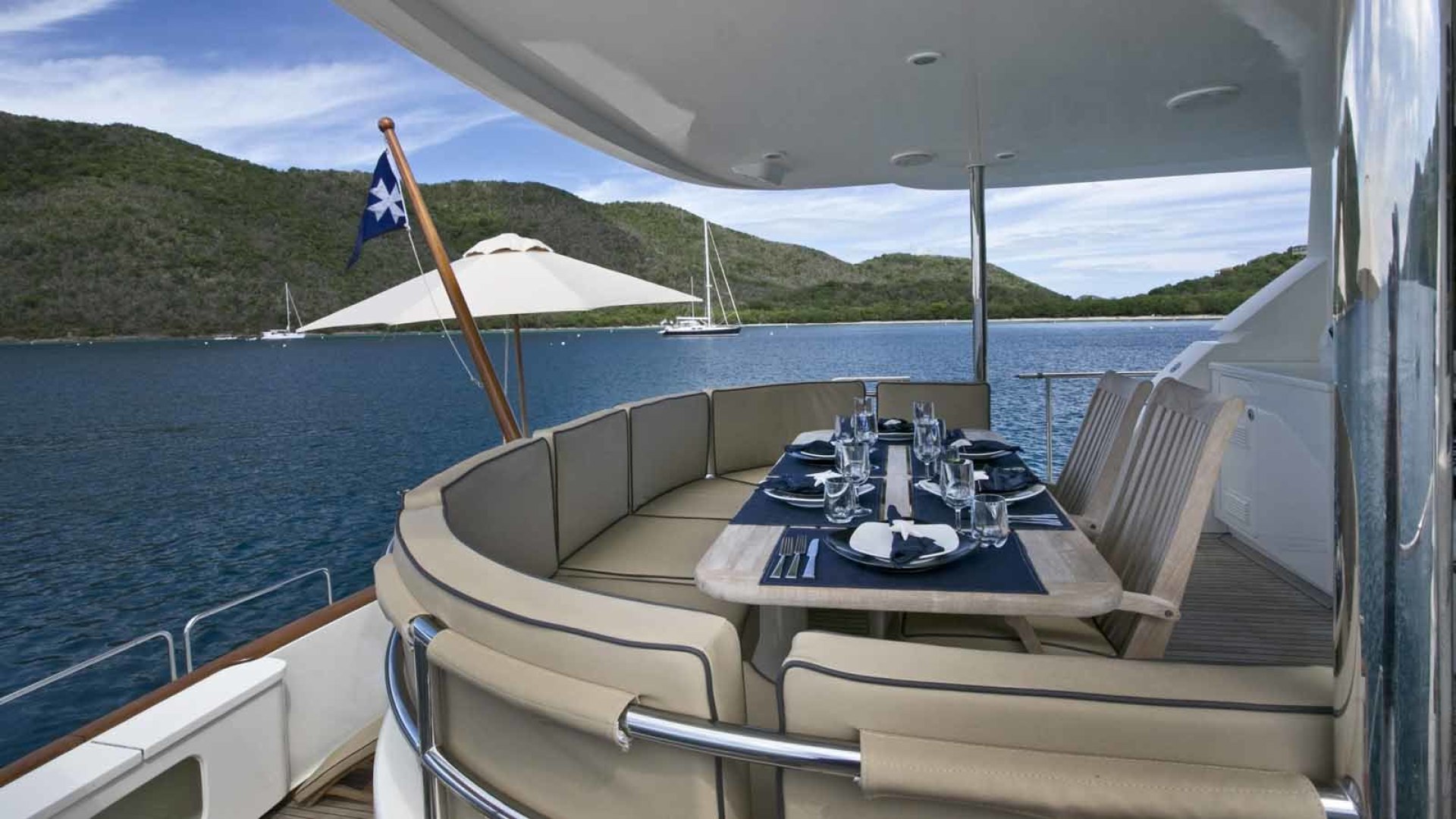

The Aft Deck has a large C shaped settee and table for alfresco dining and ladder steps to the Boat Deck.

The Salon entrance is via the sliding door slightly to starboard.

To port is a four cushion settee with storage below.  To starboard are several cabinets and a popup TV.  An adjustable height table is in front of the settee.

One step up are curved steps to the Flybridge on the portside and large open Galley on the starboard side.

Next forward is a two person settee and table for an excellent view facing forward.

The centerline helm has an expansive array of electronics, a Pompanette International Series helm seat and a three panel windshield.

Steps to starboard lead below.  A separate new washer and dryer is behind a gloss cherry door at the bottom of the first landing.

All the way forward is the VIP Cabin with an island queen size berth and a private head and shower.

Aft to port is a twin lower berth Cabin with a private head and shower.

All the way aft is a queen size centerline master berth.  Twin doors flank the berth giving access to His and Her Heads with a large Jacuzzi tub between.  There is a small settee, a vanity and ample storage in the Master Cabin.

The Flybridge has interior access, a centerline helm, and ample seating under a fiberglass hardtop.

The Boat Deck aft has a grill, rebuilt 2500 lb. davit, sink and ample storage as well as a 15’ RIB tender.

The Crew area is three steps down from the watertight Aft Cockpit door.

There is a double berth to port, a head and locker area to starboard and a centerline shower that gives access to the fully equipped Engine Room.

A centerline two panel sliding aluminum door provides the entryway to the yacht’s Salon, fixed sidelights are both port and starboard.  Starting at the starboard side aft is a three shelf fiddled open bookcase.  A chest high, gloss cherry countertop is next forward and has four drawers followed by two cabinet doors concealing a portion of the yacht’s entertainment equipment.  This includes a Yamaha AV/stereo receiver, a Dish Sat TV receiver with HD DVR and a Sony Blue Ray player, built into a rack system.  Next forward are two storage cabinets with a digital safe within.

Further forward are two more cabinet doors concealing the balance of the yacht’s entertainment equipment, a Denon 6 zone receiver, an APC power conditioner with battery backup and the Tracvision control center.

Furthest forward are four more drawers to create a symmetrical grouping of cabinets/drawers.

Outboard of the cabinets is a new popup 50” Samsung Smart Lift HD TV.  The lift has a remote control.

There are new pleated shades for the side windows as well as the aft doors and sidelights. Above the windows is a curved soffit delivering cool air.  Dimmable LED accent lights face downward.

Forward in the Salon is a curved granite countertop with an area for two barstools facing the Galley.  A sliding Soji screen can close off the Galley as needed.  It raises electrically from below.  To port starting aft is an upholstered occasional chair facing forward, a cabinet with three drawers and three fiddled bookshelves above.

Next forward is a four person upholstered settee with storage below.  Lying in front of the settee is an adjustable height coffee table that raises and expands in size, suitable as a dining table for six persons.

On the forward end of the settee is a built in end table with three drawers that matches the one aft.

Also in the Salon are two dining stools that can be pulled up to the dining/coffee table, eight overhead mini spots on a dimmer, two stereo speakers, a table lamp, a carpeted sole with a carpet runner and digital AC controls.

Up one step from the Salon is a stainless and wood spiral staircase that leads to the primary Flybridge access.

To starboard is a large pantry cabinet with two doors and multiple shelves within.

The Galley is next forward to starboard, is C shaped and contains the following equipment:

(2) Kitchen Aid refrigerator drawers w/cherry fronts, new 1/21

Second Kitchen Aid fridge/freezer drawers w/icemaker, new 1/21

Miele Ceran top 4 burner cook top

Miele built in glass front oven

Panasonic stainless steel microwave

Silhouette exhaust fan w/work light

Broan cherry front trash compactor

Garbage disposal

Miele dishwasher w/cherry wood front & stainless steel interior

Franke stainless steel under mount sink

Grohe pullout spray faucet

(9) Cherry cabinet doors

(5) Cherry drawers

Maple planked sole

(6) Overhead halogen mini spots

Small deadlight w/Silhouette shade

The Pilothouse is open to the Galley and just forward.

To port is a two person leather raised settee with a cherry countertop with an ebony inlay.  There are four storage drawers below.

The sole of this area is maple plank with a padded carpet runner throughout.  Centerline is a black leather Pompanette electrically adjustable leather helm seat.  The helm itself is very well equipped and includes the following equipment:

(2) KEP 15” color monitors for radar/plotter/chart/depth

Furuno Nav Net 3D w/secondary radar & GPS

Furuno radar

(2) Cat LCD engine monitors

Simrad AP 20 autopilot

Icom 604 VHF w/DSC

Naiad stabilizer Multisea II digital stabilizer controls

(10) Auto/manual bilge pump controls

RCL 100 Point Pad spotlight control

Main engine start/stop switches

Sidepower joystick bow thruster control

Glendinning electronic engine controls new 2017

Older style Glendinning controls are now a cable operated backup “ready to take control”

Video selector allowing Nav Net, ship’s PC, Nobletec charting software or radar to be displayed on either KEP display

Furuno FI 50 depth/speed digital indicator

Furuno FI 70 apparent wind/direction indicator (multi meter with depth/speed, etc.)

(2) Dual Pyrometer (reads exhaust temperature)

(2) Wireless mouses

Bennett trim tab controls

Fireboy monitor panel

(3) Windshield wiper/washer controls

6” Ritchie magnetic compass

Village Marine water maker panel

Yacht schematic w/fire/bilge pump & holding tank alarms

Tank Sentry for main waste tank system

Tank catch (1) for aft waste tank system

Spill Free 3 position fuel fill monitor

Xantrex Sine Wave inverter voltage display

32” Custom wood six spoke helm wheel

HP Navigation computer w/Nobel Tec software

HP laser jet printer

Router for whole boat wireless system

Heart tank tender for freshwater tank

Start/stop switches for generators

Shore supply indicator light

(2) Kilo Pak generator full gauge panels

Also in the Pilothouse are five storage drawers, six storage cabinets & three red/white overhead lights.  Facing forward from the Galley but within the Pilothouse are six drawers, many fiddled for glassware, a tambour sliding cabinet for stemware and silverware, seven bottle wine storage and a black granite countertop above.  Also in the Pilothouse are two overhead stereo speakers, four LED mini spots, digital AC controls and an innovative AC delivery vent facing forward.

To starboard from the Pilothouse are seven curved steps with step lights leading below.  At the base of the step heading forward is a full size cherry door concealing newly installed front loading separate GE washer and dryer.

Forward to port is the twin bed Guest Suite.  All the way forward is the VIP Suite.

Aft of the main landing and down four more steps is the Master Cabin with His and Her Heads separated by a large Jacuzzi tub.

A centerline island berth low enough to easily get in, is on centerline.  There are four drawers under the berth facing aft.  The berth has a “four poster” design but with a subtle execution.

There are twin dimmable sconce lights above the berth on the forward bulkhead for accent.

Shelves to both port and starboard serve as nightstands.  They run aft and terminate into two cabinets and a drawer each side below the countertop.  Above are opening stainless steel portholes set into cherry panels with Duette shades as needed.  Continuing aft on both sides are bifold cherry closet doors with cedar lining and cedar shelves within.

Aft to starboard is the private Head entrance.  Aft to port is an LG 26” LCD TV mounted on the wall, centerline is the cherry entry door.

Also in this cabin is a carpeted sole, six overhead LED mini spots, two stereo speakers and a smoke alarm.

The VIP Head has a one piece marble sole, a curved two door cherry vanity and a glass vessel style sink mounted into a marble countertop floating on stainless pegs above the cherry vanity.

The toilet is a Raritan Atlantis model.  The stall shower has round multi panel doors that form a cylindrical shower.  The fixture is wall mountable or handheld.  There is both a light and an exhaust fan for the shower.

Also in the Head are plenty of high gloss cherry joinery, four additional LED mini spots, an opening stainless steel porthole and a mirrored overhead and side panel.

New soft goods including carpeting give the cabin an updated look and feel.

To port just aft of the VIP is the Guest Cabin.  Entering from forward there are two single berths going aft.  Each berth has four drawers below as well as a three drawer cherry nightstand between.

Above the nightstand is a 21” LG LCD TV.

Above the outboard berth is an opening stainless steel porthole with a Duette shade.

At the head of the berths are two cabinets accessing technical equipment associated with the Pilothouse.

Forward of the outboard berth is a full size cedar lined auto lit hanging locker followed by the entrance to the en suite Head.

Also in this cabin are two stereo speakers, four halogen mini spots, digital AC controls and a carpeted sole.

New soft goods including carpeting give the cabin an updated look and feel.

The Guest Head has a one piece marble sole, a curved two door cherry vanity and a glass vessel style sink mounted into a marble countertop floating on stainless pegs above the cherry vanity.

The toilet is a Raritan Atlantis model.  The stall shower has round multi panel doors that form a cylindrical shower.  The fixture is wall mountable or handheld.  There is both a light and an exhaust fan for the shower.

Also in the Head are plenty of high gloss cherry joinery, four additional halogen mini spots, an opening stainless steel porthole and a mirrored overhead and side panel.

The Master Cabin has a queen size island berth facing forward.

Twin sconce lights are over the built in port and starboard nightstands with one drawer and one cabinet each.  A cherry framed headboard has cross cut cherry paneling for a very attractive design.

To port starting forward is a two door cedar lined auto lit hanging locker followed by a vanity with a lift up top with dressing mirror and lights and a hinged fold away stool.  Next aft are six cherry drawers and a countertop above.

Sliding Soji screens conceal two stainless steel opening portholes.

Aft is the entrance to the His/Her Head.

At the foot of the berth is a 32” LCD LG TV mounted on the forward bulkhead. Below is a bank of six storage drawers.  Behind the entry door is the cabin’s AV entertainment locker including a Yamaha AV/receiver, Sony Blue Ray player, a Panamax voltage regulator and an APC power conditioner with battery backup, all expertly mounted into a rack system.  Like all TV’s aboard one can select TV/plotter/radar/CCTV on the screen.  Below are two more storage cabinets.

To starboard is an auto lit cedar lined two door hanging locker followed by an upholstered settee with additional reading light above.

Next aft is a chest of four drawers with a wood countertop above with sliding Soji screens above concealing two opening stainless steel portholes, matching that to port

Next aft is an entrance to the His/Her Head.

Also in this cabin is a central vacuum outlet, digital AC controls, a five channel stereo speaker system, four overhead mini spots, two dedicated reading lights over the berth and a smoke alarm.

The soft goods and carpet of this cabin has been recently replaced giving an updated look and feel to the cabin.

The starboard side Head has a clear glass vessel sink mounted above a black granite countertop.  There are two curved front cabinet doors in the vanity below the sink, there are two additional cabinet doors and a drawer going aft.

A bifold mirror panel above the sink opens to reveal an opening stainless steel porthole.  The aft bulkhead and overhead are mirrored.

Inboard the clear enclosure to the Jacuzzi tub and shower opens outward giving access to the shared tub/shower with a three level shower fixture and a handheld wand.

The portside Head has all the same features (sink, cabinets, portholes) plus a black Raritan Atlantis head.  The tub/shower is also accessible from this side as well.

The granite sole of both the His and Her Heads match the countertop.

Teak laid decks over fiberglass

Raised bulwarks w/fairleads for lines

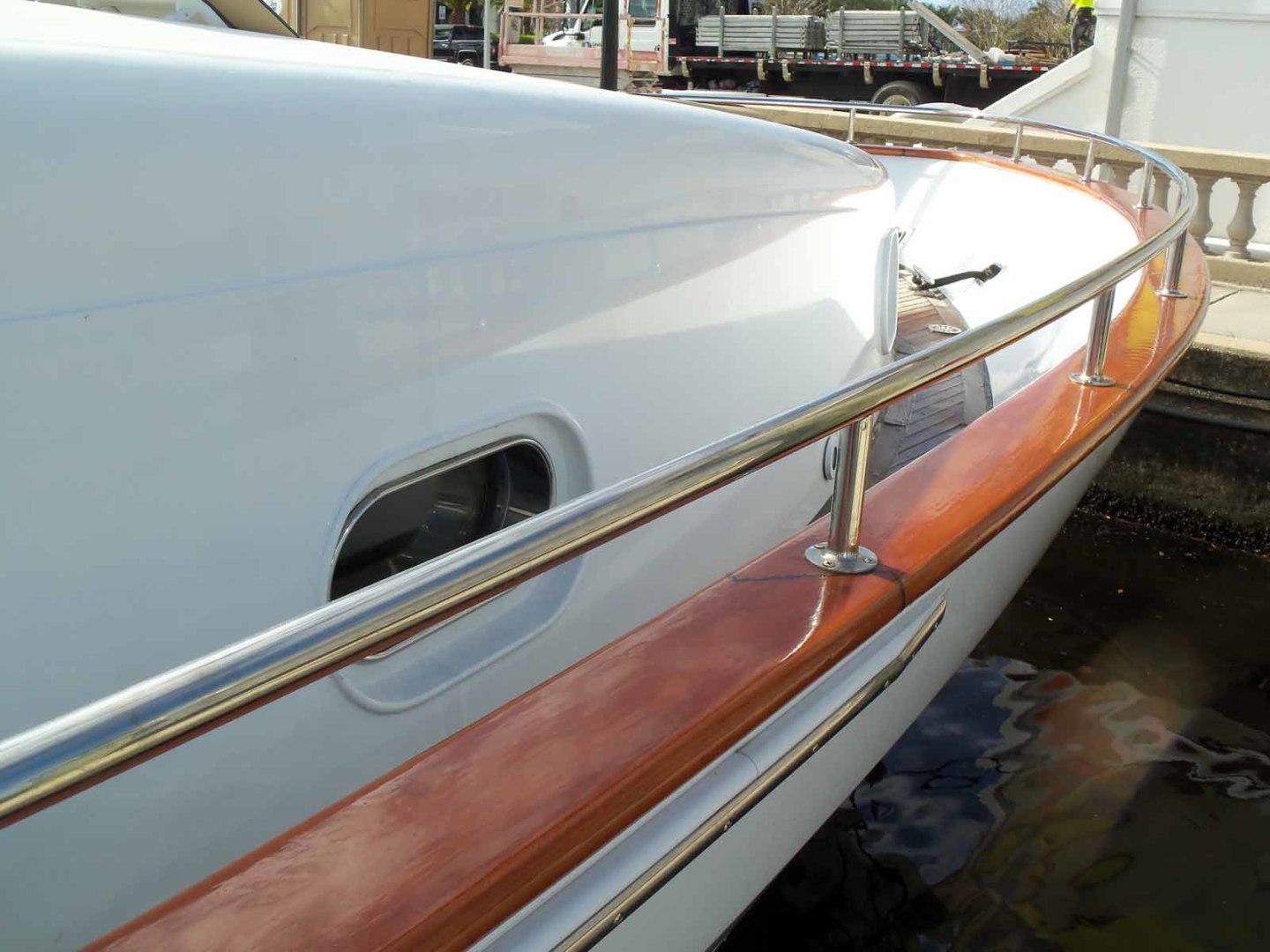

Teak cap rail

Stainless steel handrail above cap rail

Quick Disconnect raw water wash down

Quick Disconnect freshwater wash down

DC powered Muir all chain windlass

Chain stripper

Up & down foot switches for windlass

80 Kg Bruce anchor w/300’ of ½” BBB chain

Courtesy lights at deck level

Sun pad w/removable cushions & cover

Adjustable backrest at sun pad

(3) Double arm windshield wipers & washers

Black Textulene windshield cover

Dual air trumpet horns

ACR remote spotlight

Hinged bulwark boarding door at port & starboard Pilothouse doors

Sliding port & starboard Pilothouse doors

100 Amp shore cord inlet portside amidship

Ample freeing ports on side deck

Midships spring line cleats

Teak laid decks over fiberglass

Aft Deck length 11’1”

Full hardtop to cover aft seating

(6) Overhead halogen mini spots

(4) Stereo speakers, JL Audio

(2) Stainless steel support poles to Boat Deck

Portside fiberglass cabinet w/storage & Dometic stainless steel drink refrigerator

Starboard side fiberglass cabinet w/storage & Vitrifrigo stainless steel icemaker

8 Step stainless steel ladder w/teak treads to Boat Deck

GFCI outlet

(2) Aft facing Quartz lights

Teak toe rails

Aft spring line cleats

Stainless steel safety rail w/rail break at entrance

U shaped seating across the transom w/a solid center section for crew access w/removable cushions & cover, cushions new 2015

Teak table can be set fore & aft or port to starboard w/Sunbrella cover

(2) Teak deck chairs w/removable cushions

Teak laid sole over fiberglass

7’ Cockpit

(6) Curved teak steps port & starboard to Aft Deck w/step lights

Quick Disconnect freshwater wash down

Quick Disconnect salt water wash down

Fiberglass cabinet portside w/stainless steel sink under hinged top

Hot & cold shower

Heavy Duty stern cleats w/roller fairleads (ideal for towing)

Large in deck storage well

Watertight hinged door to crew/machinery space

Built in live well w/viewing window

Deck level courtesy lights

Hinged walk through transom door

2’8” Integral fiberglass swim platform w/(4) stainless steel hoop rails

Tracey six step boarding ladder (Tide Ride style)

(5) Stainless steel rod holders aft of Aft Deck seating rocket launcher style

(2) Stainless steel flush mount rod holders

Nonskid fiberglass decks

Radar arch w/Integral hardtop

Centerline helm

Sliding access door from below portside w/Sunbrella cover

Port & starboard L shaped seating w/walk through center section, seats have removable cushions, storage below, recovered 2015

Twin teak round tables in front of seats on s stainless steel bases w/Sunbrella cover

(2) Pompanette Platinum Series helm chairs w/folding footrests, recovered 2015

(4) JL Audio 10” speakers

Deck level courtesy lights

Centerline 30” stainless steel Destroyer wheel

KEP 15” color monitor for chart plotting

Furuno Nav Net 3 12” plotter/radar/depth monitor

(2) Cat LCD engine monitors

Icom IC-M426 VHF w/DSC

Main engine start/stop buttons

Glendinning electronic engine controls, new 2017

Sidepower thruster w/joystick controls

Robertson/Simrad AP 20 auto pilot

Furuno FI 50 apparent wind indicator

Furuno FI 50 digital depth/speed/log

ACR RCL 100 searchlight control

Remote panel for Naiad stabilizers

Bennett trim tab controls

Ritchie 5” magnetic compass

12V DC outlet

Yacht Controller JCS w/handheld remote

Yacht Controller joystick control

Helm cover

Portside fiberglass cabinet w/Force 10 stainless steel grill under hinged fiberglass panel, (2) cabinets below for storage

Starboard side fiberglass cabinets w/stainless steel sink under hinged fiberglass panel, (2) storage cabinets below includes a Magic Chef drink refrigerator

EPIRB w/hydrostatic release

Removable stainless steel hoop rails

Steelhead Marine 2500 lb. davit (rebuilt 2018)

Aluminum tender cradle

Deck level courtesy lights

Hinged hatch access to Aft Deck ladder

Viking 6 person life raft chalked on deck, next inspection 10/21

Removable aft flag pole

Hailer horn

Furuno Radome UHD 24", 4 KW

Aluminum arch to hold KVH Sat dome over radar, black powder coated

(2) Quartz aft facing Cockpit lights

Furuno weather/wind antenna

Furuno GPS antenna

(2) VHF antennas

International Navigation lights

Sky Watch booster for wifi also Web Watch (cell cord for data and number)

Shakespeare HDTV antenna

(2) Aft facing LED lights for Boat Deck

Entered via a watertight door aft is the full beam Crew Cabin.  To port is a double berth with a custom Tempurpedic mattress and two storage drawers below.

At the foot of the berth is a 21” LG LCD TV, a Sony Blue Ray player and an HD SAT TV receiver.  Furthest aft is a hanging locker.

To port aft is a cabinet housing the main DC distribution panel, to starboard the main switchboard and AC distribution panel.

To starboard is the Crew Galley with a stainless steel countertop, a stainless steel sink, a Norcold under counter refrigerator, three drawers and above the stainless steel countertop, a cabinet and an opening stainless steel porthole.

Next forward is the access to the private Head with a stainless steel countertop and sink, mirrored medicine cabinet and Raritan Atlantic toilet.

The stall shower is centerline behind a curtain and is also the access to the Engine Room.

Above are stereo speakers, seven halogen mini spots and digital AC controls.

Air sep crankcase ventilation system

Naiad 254 stabilizer system recently rebuilt 2018 ($12,000)

Dual Racor 1000 fuel filters w/vacuum gauges

Fuel transfer pump & transfer system

GFCI 110V outlets

Full CAT gauge package for engines

6 Point Reverso oil change system

Integral fiberglass mufflers

Hard wrapped exhaust systems

(4) Stainless steel handrails overhead

ZF transmissions, BW 195A 2.4:1 ratio

Fire alarm strobe

Marine Air chiller system, (2) chillers, both new (2 x 48,000 BTU)

Freshwater house pump w/expansion tank

Air compressor for household systems

Five step stainless steel swim ladder

Coolant recovery bottles for main engines

(4) Delta T Engine Room blowers (new 2018)

Telephone

(2) Stainless steel workbench over generators

(9) Bilge pumps

Protectowire fire system (new)

Air conditioned Engine Room, new evaporator

(8) Fluorescent overhead lights

(3) Underwater lights, Ocean LED

3.5” Aquamet 22 HS prop shafts

S&S 38” x 45” High Skew Series 5 blade Nibral propellers

Head Hunter 220 volt water pump

24 Volt backup water pump

Hynautic hydraulic steering

Vickers V10F hydraulic pump for steering

Village Marine XX GPD water maker

Optional 488 gallon aft fuel tank

New Fireboy fire system for Engine Room (2) bottles

Hot water circulation pump

Stainless steel trim tabs

12V/24V DC system

110V/220 Volt AC system

Kilo Pak 20 KW generator, 6032 hrs. in sound shield port

Kilo Pak 20 KW generator, 4060 hrs. in sound shield starboard (reported to be 6030 hrs.)

(2) Kilo Pak remote start panels

Newmar 20 amp battery charger 24V

Samlex 15 amp generator battery charger 12V

(2) Toshiba soft starts for chillers (new)

Mastervolt Mass 24 volt 100 amp charger

Mastervolt Mass 24 volt 100 amp charger

Mastervolt Mass 24 volt 100 amp charger

100 Amp Charles iso boost transformer 240V 50/60 HZ

(2) Group 27 batteries for generators (new 2018)

12 Volt electronics battery (new 2018)

920 8D House batteries (new 2018)

(2) 8D Batteries to start each engine (new 2019)

8D Thruster batteries gel (new 2018)

8D Windlass batteries gel (new 2018)

DC electrical panel w/(56) breaker protected circuits in Lower Companionway w/3 position analog voltmeter

DC electrical panel w/(56) breaker protected circuits in Lower Companionway w/3 position analog voltmeter

AC electrical panel w/(40) 110 volt breaker protected circuits, in Lower Companionway

AC electrical panel w/(7) 220 volt breaker protected circuits, in Lower Companionway

(2) Analog 110V volt & amp meters, in Lower Companionway

Full repaint of hull, topsides & hardtop

New radar dome, 24’ UHD digital 4 KW

New Trac Vision dome TV 6 – works in Virgin Islands

New VHF antennas

New LED Boat Deck lights

Crane upgraded w/motor, cylinder, hoses & controls

New Fireboy system

Bottom paint Jan 2019 incl. prop speed, prop service

(2) New AC chillers

(4) New air handlers

Stabilizer system rebuilt w/seals & bearings

(2) New depth transducers

(4) New Delta T Engine Room blowers

New steering pump, autopilot system serviced

(2) New macerator pumps

New 110 volt house water pump

New Crew grey water pump

New 24 volt Sure Flow wash down pump

New Salon TV & lift

New powder coated Engine Room air conditioning system

New exterior door locks

New LED lights inside

New 40 gal. water heater

New Instahot on Galley hot water tap

New Fireboy manual/auto alarm against fire system

New clothes washer

New clothes dryer

Bilge pumps & float switches

Glendinning “New Style” engine controls leaving old Glendinning system as a cable backup system

All exterior teak cap rails have been sanded smooth and coated with Seatol Force Fresh Look (12/19)

SEA MYSTIC represents a refit classic style Queenship motor yacht with a rare Cockpit option. She has been updated to include a more modern paint scheme with a full page of recent updates.

She offers three en suite cabins, a proper Crew Area and all the options to make island cruising both easy and inviting!

While every effort was made to list all pertinent included equipment aboard SEA MYSTIC, there are some personal belongings aboard.  Prospective purchasers should assume any item not specifically mentioned herein will not convey at closing.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Please note some exterior photos are older showing the boat prior to the full repaint with the new black hardtop and bronze house accents.
