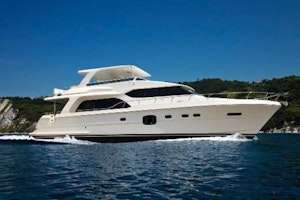

65' Hampton 650 Pilothouse 2020

Hull, Superstructure, and Deck

Hand-laid solid fiberglass hull with Cymax (Kevlar)
Vinylester resin for first 5 layers of hull lay-up
2 layers of Kevlar from chine to chine and 3 layers of Kevlar in the fwd collision zone
Hand-laid fiberglass deck, deckhouse & flybridge cored w/ high strength Divinycell foam
Hull/deck joint through-bolted every 6”, sealed w/3M 5200 sealant, glassed over w/ 3 layers of fiberglass Longitudinal and transverse stringer system
Molded F.R.P. rub rails capped with solid stainless steel trim rails
Molded non-skid F.R.P. decks
Interior structural components all properly bonded to the hull
Stainless steel 316L Oval hand rails
Stainless steel oval Bow Rail 316L fitted with mid rail
   Flybridge / Deck
3 x S/S hatches for hardtop (center one is larger)
AC outlets installed at the helm station & mid deck; USB charge ports at helm station
Chart locker - Install a drain in the aft port corner of locker to drain to the flybride deck
Compass - magnetic 6" backlit
Complete engine & instrumentation displays - Caterpillar engine monitors
Davit - Brower with Power rotation 1200lb capacity
Twin Disc electronic engine controls
Electronic horn remote control
Flybridge F.R.P. hardtop with non-glare texture and LED lights
Flybridge to pilothouse access hatch with S.S. oval safety handrail
Flybridge food center. Corian countertop w/S.S. grab rail, uncounter sink with faucet, U-line refrigerator w/icemaker DCS SS BBQ
Freshwater F/B deck washdown
Helm station with (2) Pompanette helm chairs
Custom helm steering wheel - S.S. & cherry
Hydraulic power steering
LED lighting - F/B hardtop & deck courtesy lights - switches located at helm station
Luxury L-settee with designer cushions and hi-lo FRP table
Navigation electronics - See navigation section below
 Non-skid decking
Search light remote control
Stereo FM/DVD/MP3 player, system with 4 speakers
Stairway "molded fiberglass" from cockpit to flybridge with teak steps treads
Tempered glass venturi screen with F.R.P. frame
TV - 32" LED mounted in a fold down cabinet built into the F/B hardtop
Windlass - Maxwell remote control

Aft Deck & Swim Platform

Aircraft style S.S & FRP transom door
Refrigerator in base of aft deck table pedestal
Boarding gates: Port & starboard side deck FRP gates & dual aft S.S. & safety glass transom gates
 Boarding ladder storage - portside under helm station
Camera - GARMIN or equivalent reverse image center mounted under hardtop
Cleats - 2 X cleats installed on the deck cap rail aft of the boarding gates
Cruising settee with cushions
Table - Cherry wood with a compass rose inlay design. (No warranty on exterior wood tables).
 Fresh and raw water washdown outlets - installed in the starboard side transom storage locker
Hot and cold shower unit (Attwood) installed in the starboard side transom storage locker
Lazarette deck access hatch - manual with hydraulic cylinder lift assist
LED overhead and deck courtesy lights
Port & stbd swim platform cleats with LED lighting mounted above for docking at night
Port & stbd transom storage compartments
Recessed cablemaster channels - port & stbd swim platform
Stainless steel swim ladder
Swim platform 2.5" diameter S.S. guard rails.
Teak decking on aft deck & steps leading to the F/B
TV - 32" LED installed in a fold down cabinet mounted into the aft deck hardtop
Port and Starboard wing helm stations with Twin Disc engine controls and Side Power thruster controls
   Foredeck & Side Decks
Anchor windlass: Maxwell 3500 single anchor with 3 station controls
Anchor & chain: 1 x 50kg Bruce polished S/S anchor with 300' 3/8" HT chain & 25' of anchor rode
 Deckhouse fuel fill & tank vents - designed to offer easy & safe fuel filling
Deck handrails - 316L large oval rails
Fore Deck custom sunbathing lounge pad- custom lounge pad - (decor)
Non-skid recessed decks with LED courtesy lights
Shore power inlets: starboard side of P/H - (2) 240/120V/50A, (1) 125V/30A
Storage lockers - port & starboard built into the foredeck
TV/Phone inlet: port side of P/H - Marinco brand

Salon
  Custom cherry diamond pattern cabinet panels with satin finish
Cherry cabinet with stone countertop and wine cooler
Cabinet for entertainment system starboard side
 Custom stainless steel & glass trifold door opening the salon to aft deck
Curtain box for salon door; Draw curtain for privacy
Custom coffee table - port side
Custom décor - sofa, chairs, carpeting, countertops - (décor)
Entertainment system - Bose "Life Style" surround sound system
Frameless windows in salon
2-Upholstered ottomans (decor package)
 Designer pull down pleated shades
LED overhead and indirect lighting
Starboard side upholstered chairs (décor package)
Salon overhead decorative ceiling treatment in Cherry with variable intensity LED lights
Stainless steel & safety glass tri-fold entry door
Port side upholstered L-settee (décor package)
TV - 42" LED recessed mounted in starboard side cabinet
 Custom fitted fabric wall panels
Galley

Open U-shaped design - offering unobstructed open view from the pilothouse helm to the aft deck settee
Custom cherry diamond pattern cabinet panels with satin finish Granite countertop with large sink
Heated Granite floor - (when hydronic diesel heat system is in operation)
GE trash compacter
SubZero refrigerator with (2) freezer drawers and icemaker
GE Profile electric glass 4 burner cook top
GE Profile Oven
GE Profile Convection Microwave
GE Dishwasher
Garbage disposal
Galley drawers & storage cabinets
GFCI outlets x 4 (Vimar)
Large undercounter S.S. sink with single lever faucet
Overhead variable intensity LED lights
Pots-n-Pans drawer
Storage next to the oven
 Frameless windows with designer pull down pleated shades
Pilothouse

2 X Pompanette Platinum Series helm chairs with stainless steel pedestals
3 x windshield wipers with washers (Exalto with Park Position)
 Air-conditioning outlet for pilothouse windshield defrost system
AC outlets at the helm station; USB charge ports at the helm station
Air-conditioning - reverse cycle, air chilled type
Aircraft style port & starboard pilothouse doors
Built-in forward facing dinette/cruising settee and cherry table with fold out leaf
 Storage below settee and chart drawers below table mount Charting desk with granite top; upholstered chair and storage drawers Centered helm station with custom designed helm console
Custom tongue & groove pilothouse floor
Complete engine & instrumentation displays - Caterpillar engine monitors
 Curtain box for the port & starboard aircraft style pilothouse doors
Curtain box with Hunter Douglas power blinds for pilothouse windshield - (décor)
 Custom cherry & S.S. helm steering wheel
Twin Disc electronic engine controls
Electric horn remote control
Sea Fire - fire suppression system remote override control
Frameless windows in pilothouse with designer pull down pleated shades
Hydraulic power steering
Interior stairway with S.S. hatch/door leading to the fly bridge
LED lighting
ABT - TRAC digital stabilizer system control
Search light remote control
Ships system indicator panel
Fusion stereo CD / AM-FM system with speakers for the pilothouse and cockpit
Trim tab remote control
Wema brand - fuel and water tank gauges
Maxwell windlass remote control

Foyer

Curved stairway with LED courtesy lights
Washer & separate Dryer - Bosch (or similar quality)
Utility storage cabinet
 Stone inlay flooring at landing of stairs
Master Stateroom
   Full Beam owners stateroom with walk-in head and closet behind the owners berth
Custom cherry diamond pattern doors & cabinet panels with satin finish Cedar lined hanging locker
32" LED TV
Air-conditioning reverse cycle
King size bed with storage drawers underneath
Custom S.S. dual port light design with extra wide design for more light inside
 Custom fitted fabric wall panels Diesel heat outlets
Dimmer control for LED lighting
Headboard reading lights
Designer pull down pleated shades
LED overhead & indirect lighting
Port side settee with custom fabric with storage - (décor)
Starboard side vanity with storage drawers
Fusion stereo CD/DVD AM-FM player, Polk speaker surround sound system
 USB charge ports
Master Head

Air-conditioning reverse cycle
Cherry vanity with undercounter sink and Grohe single lever faucet; storage below
Custom overhead ceiling treatment with accent lighting
 Diesel heat outlet
Granite countertop - choice of colors from manufacturer's samples
Granite floor - Heated floor (when hydronic diesel heating system is in operation)
Grohe faucets for vanity and shower
LED lighting
Large FRP shower stall lined with Corian - Granite accents that vanity countertop
Opening S/S port light
Shower faucet
Shower exhaust fan
Tecma toilet
Vimar GFCI Dual outlets

VIP Stateroom

Island berth with built-in storage drawers, hinged top with storage underneath
Custom cherry diamond pattern doors & cabinet panels with satin finish Custom fitted fabric wall panels Air-conditioning reverse cycle
32" LED TV
Carpeting with underlayment
Cedar lined hanging locker
Diesel heat outlet
Drawer storage built into the base of the island bed
Headboard reading lights
LED courtesy lights
LED overhead lighting with dimmer control
Opening S/S port lights w/screens; designer pulldown pleated shades
Skylight with Ocean-Air screen
Fusion stereo AM/FM/CD/DVD player
Wrap around storage cabinets - Port & Starboard cherry wood
 USB charge ports
Forward VIP/Day Head & Mid Guest Head (2 separate heads)
   Air-conditioning reverse cycle Cherry vanity with undercounter sink and Grohe faucet
Diesel heat outlet
F.R.P. molded Shower Stall with bench seat
Granite countertop - choice of colors from manufacturer's samples
Granite floor - heated when the hydronic diesel heating systemis in operation
Grohe faucets sink vanity & shower
LED overhead lighting
Opening S/S port light w/screen
Overhead mirror in head
Shower exhaust fan
Tecma toilet
Vimar GFCI Dual outlet

Mid Guest Stateroom / 3rd

Custom bed with reading lights
Custom cherry diamond pattern doors & cabinet panels with satin finish Custom fitted fabric wall panels 24" LED TV
Air-conditioning reverse cycle & diesel heat
Cedar lined hanging locker & storage compartments
LED overhead lighting with dimmer control
Night stand with drawer
 Fusion stereo AM/FM/CD/DVD player USB charge ports
Lazarette

Aircraft style transom door
C-Charles Iso transformers - Iso Boost
2 x Glendenning 250/125V/50A cable master systems with 75' power cords
In-deck access hatch on aft deck
Fender storage - S.S rails mounted in the lazarette overhead located under aft deck settee location
Finished lazarette with built-in cabinets - painted white
FRP decking with rubber treads
LED overhead lighting
Preparation for water maker - thru hull, sea strainer, wiring
Sidepower 15HP 24V stern thruster
   Engine Room & Bilge
Stand up headroom in the engine room
Caterpillar C-12.9 1000 HP diesel engines
Electronic engine controls - 4 stations electronic controls
Twin Disc transmissions
1210 gallons fuel capacity - athwartships fuel tanks
400 gallons water capacity
120 gallon holding tank capacity
20 gallon hot water tank
Sea Torque shaft system
Bilge pumps - 4 x automatic Johnson brand
Groco bronze seacocks and sea strainers on engine raw water intakes
Color coded water lines
Color coded hydraulic lines
Parker fuel lines
Engine oil changing system (Reverso or similar quality)
 Engine automatic shutdown system - Sea Fire system
Engine room 24VDC LED lights
Engine room LED lights beneath engines
Engine room bulkhead insulated with extra sound insulation
Engine room emergency bilge pumping system - S.S.mainifold system utilizes engine RW pumps
 Engine room fans - 24 volt x 4
Engine room fire suppression - Sea Fire system
Engine room sound reduction insulation (sound down)
Fiberglass exhaust mufflers
F.R.P. non-skid floors with rubber treads
Fresh water outlet
Fuel vent filters - Racor marine version MA filters
High water bilge alarm
Manual bilge pump
Pressured fresh water system with Head Hunter pump
Racor Dual 1000FG fuel filters for each engine - Crossover system
Racor fuel filters for the generators
S.S. engine mount bracket system
 S.S. rudders and rudder posts
S.S. safety grab rails around engines
S.S. rudders
Under water exhaust system with bypass to transom
Painted bilge

Electrical System

Northern Lights 20KW/240/120V/60Hz generator with sound shield
Northern Lights 16KW/240/120V/60Hz generator with sound shield
Air/water separators mufflers for the generators
Complete AC/DC breaker/distribution panel with lighting located at pilothouse starboard side
 1 x 24V - 12V converter
1 x Master Volt MV 24/60-3 battery charger - Engine start bank
1 x 24VDC battery charger
1 x Master Volt 12/35-3 battery charger - Generators
10 X 115AH AGM batteries w/box for house bank
4 X 200AH Cat batteries w/box 2 x per engine for start bank
 2 X 100AH Generator start batteries w/box
2 X 200AH CAT batteries w/box for windlass and bow & stern thruster
4 X Bilge pumps, automatic type - Johnson brand
4kw Magnasine Inverter/120A Charger with remote panel
120VAC outlets throughout -Vimar
2X 240/120V/50A Glendenning cablemaster systems
Aft high bilge water level alarm with warning panels in P/H and F/B
Battery selection switches for the House-Engine-Generator-Inverter battery banks w/emergency switch Bonded electrical system
Camera monitoring system (GARMIN) 2 - engine room, 1 - at aft deck under hardtop
 Color coded AC & DC wiring system
Dimmer switches for pilothouse, flybridge, salon, owners and VIP staterooms
Fuel & water level indicators - Wema brand
GFCI outlets - Vimar
 Holding tank level monitor
LED overhead, courtesy & task lighting throughout
Navigation lights (Aqua signal)
Starboard pilothouse shore power inlets - 2X 240/120V/50A & 1X 125V/30A
Shore power protection system - galvanic isolator
Shore power selection switch
USB charge ports throughout

General Equipment and Options

316L Grade S.S. oval handrails on the main and flybridge decks
316L Grade S.S. for mooring cleats, chocks & anchor roller
2 x line cutters installed in front of the stabilizer fins
Air-Conditioning reverse cycle system - chilled air type (Marine Air)
Aircraft style doors in the pilothouse
Bosch Washer and Dryer (or similar quality) - located in the foyer area
Canvas covers for the pilothouse windshield
Central vacuum system with 5 outlets
Detailed owners manual with drawings
Diesel heating system - Olympia brand or similar - hydronic system
 Dockside water pressure connection
Door locksets, drawer latches & overhead light fixtures - Chrome finish
Exterior main & flybridge deck and Cockpit LED Lighting
Frameless windows
Fresh water deck wash downs at forward, aft and flybridge
HDMI Cables pre-wire for satellite
Limited five year hull structure warranty
Manufacturer's limited one year warranty on machinery and equipment
Salt deck wash downs at forward anchor locker and aft (Head Hunter pump)
Search light with 2 x remote control stations - P/H & F/B
Ship lighting & bilge pump systems indicator panel located in the Pilothouse
Stabilizers: ABT Hydraulic 7.5' Fins
Stainless steel portholes with screens
Swim platform with removable 2.5"Dia S/S guard rails
Tecma toilets
Thrusters - Side Power - Electric 24VDC 15HP S-Link Proportional Control bow & stern thrusters
 Transom door - FRP covered stainless steel aircraft style door
Trim tabs - Hynautic brand
TV/Cable & Phone inlet - Marinco PH6594 TV-SS
Underwater lights - 5X total; 3X across the transom and 1X port & stbd aft hull sides
Water maker - Prep only. Includes thru-hull/sea trainer, panel break and wiring
Electronics: See Navigation equipment list
Custom Diamond Pattern on Cabinet & Interior Doors

Canvas Package

P/H windshield cover, F/B helm cover, aft deck wind screen clear panel installed between the two stainless steel bridge support posts.
   Décor
Furnishings, soft-goods (bedding, towels & carpeting), dinnerware and installation costs.

Navigation Equipment

Electronics - Garmin 7600 series - radar, chart plotter, touch screen monitors,  autopilot, Dpt/Speed/Temp, GPS, VHF radio X 2, AIS & Magnetic Compass.
   Specifications and Price Subject to Change Without Notice.

Price: --
Boat Name: For Order
Make: Hampton
Model: 650 Pilothouse
Year: 2020
Condition: New
Category: Pilothouse
Construction: Fiberglass
Length: 66 ft
Display Length: 65 ft
Beam: 17 ft
Max Draft: --
Fuel Capacity (Gallons): 1,200
Fuel Type: Diesel
Fresh Water Capacity (Gallons): 400
Waterline Measure: --
Max Speed: --
Displacement: --
Number of Engines: 2
City: Fort Lauderdale
State: Florida
Country: United States

Seattle Yachts provides access to thousands of boats and yachts available on the market today. These new and used yachts for sale around the world and on the MLS may or may not be listed with Seattle Yachts, however we have the expert team on staff to help you with the purchase of any brand or type of boat.

Hull, Superstructure, and Deck

Hand-laid solid fiberglass hull with Cymax (Kevlar)
Vinylester resin for first 5 layers of hull lay-up
2 layers of Kevlar from chine to chine and 3 layers of Kevlar in the fwd collision zone
Hand-laid fiberglass deck, deckhouse & flybridge cored w/ high strength Divinycell foam
Hull/deck joint through-bolted every 6”, sealed w/3M 5200 sealant, glassed over w/ 3 layers of fiberglass Longitudinal and transverse stringer system
Molded F.R.P. rub rails capped with solid stainless steel trim rails
Molded non-skid F.R.P. decks
Interior structural components all properly bonded to the hull
Stainless steel 316L Oval hand rails
Stainless steel oval Bow Rail 316L fitted with mid rail
   Flybridge / Deck
3 x S/S hatches for hardtop (center one is larger)
AC outlets installed at the helm station & mid deck; USB charge ports at helm station
Chart locker - Install a drain in the aft port corner of locker to drain to the flybride deck
Compass - magnetic 6" backlit
Complete engine & instrumentation displays - Caterpillar engine monitors
Davit - Brower with Power rotation 1200lb capacity
Twin Disc electronic engine controls
Electronic horn remote control
Flybridge F.R.P. hardtop with non-glare texture and LED lights
Flybridge to pilothouse access hatch with S.S. oval safety handrail
Flybridge food center. Corian countertop w/S.S. grab rail, uncounter sink with faucet, U-line refrigerator w/icemaker DCS SS BBQ
Freshwater F/B deck washdown
Helm station with (2) Pompanette helm chairs
Custom helm steering wheel - S.S. & cherry
Hydraulic power steering
LED lighting - F/B hardtop & deck courtesy lights - switches located at helm station
Luxury L-settee with designer cushions and hi-lo FRP table
Navigation electronics - See navigation section below
 Non-skid decking
Search light remote control
Stereo FM/DVD/MP3 player, system with 4 speakers
Stairway "molded fiberglass" from cockpit to flybridge with teak steps treads
Tempered glass venturi screen with F.R.P. frame
TV - 32" LED mounted in a fold down cabinet built into the F/B hardtop
Windlass - Maxwell remote control

Aft Deck & Swim Platform

Aircraft style S.S & FRP transom door
Refrigerator in base of aft deck table pedestal
Boarding gates: Port & starboard side deck FRP gates & dual aft S.S. & safety glass transom gates
 Boarding ladder storage - portside under helm station
Camera - GARMIN or equivalent reverse image center mounted under hardtop
Cleats - 2 X cleats installed on the deck cap rail aft of the boarding gates
Cruising settee with cushions
Table - Cherry wood with a compass rose inlay design. (No warranty on exterior wood tables).
 Fresh and raw water washdown outlets - installed in the starboard side transom storage locker
Hot and cold shower unit (Attwood) installed in the starboard side transom storage locker
Lazarette deck access hatch - manual with hydraulic cylinder lift assist
LED overhead and deck courtesy lights
Port & stbd swim platform cleats with LED lighting mounted above for docking at night
Port & stbd transom storage compartments
Recessed cablemaster channels - port & stbd swim platform
Stainless steel swim ladder
Swim platform 2.5" diameter S.S. guard rails.
Teak decking on aft deck & steps leading to the F/B
TV - 32" LED installed in a fold down cabinet mounted into the aft deck hardtop
Port and Starboard wing helm stations with Twin Disc engine controls and Side Power thruster controls
   Foredeck & Side Decks
Anchor windlass: Maxwell 3500 single anchor with 3 station controls
Anchor & chain: 1 x 50kg Bruce polished S/S anchor with 300' 3/8" HT chain & 25' of anchor rode
 Deckhouse fuel fill & tank vents - designed to offer easy & safe fuel filling
Deck handrails - 316L large oval rails
Fore Deck custom sunbathing lounge pad- custom lounge pad - (decor)
Non-skid recessed decks with LED courtesy lights
Shore power inlets: starboard side of P/H - (2) 240/120V/50A, (1) 125V/30A
Storage lockers - port & starboard built into the foredeck
TV/Phone inlet: port side of P/H - Marinco brand

Salon
  Custom cherry diamond pattern cabinet panels with satin finish
Cherry cabinet with stone countertop and wine cooler
Cabinet for entertainment system starboard side
 Custom stainless steel & glass trifold door opening the salon to aft deck
Curtain box for salon door; Draw curtain for privacy
Custom coffee table - port side
Custom décor - sofa, chairs, carpeting, countertops - (décor)
Entertainment system - Bose "Life Style" surround sound system
Frameless windows in salon
2-Upholstered ottomans (decor package)
 Designer pull down pleated shades
LED overhead and indirect lighting
Starboard side upholstered chairs (décor package)
Salon overhead decorative ceiling treatment in Cherry with variable intensity LED lights
Stainless steel & safety glass tri-fold entry door
Port side upholstered L-settee (décor package)
TV - 42" LED recessed mounted in starboard side cabinet
 Custom fitted fabric wall panels
Galley

Open U-shaped design - offering unobstructed open view from the pilothouse helm to the aft deck settee
Custom cherry diamond pattern cabinet panels with satin finish Granite countertop with large sink
Heated Granite floor - (when hydronic diesel heat system is in operation)
GE trash compacter
SubZero refrigerator with (2) freezer drawers and icemaker
GE Profile electric glass 4 burner cook top
GE Profile Oven
GE Profile Convection Microwave
GE Dishwasher
Garbage disposal
Galley drawers & storage cabinets
GFCI outlets x 4 (Vimar)
Large undercounter S.S. sink with single lever faucet
Overhead variable intensity LED lights
Pots-n-Pans drawer
Storage next to the oven
 Frameless windows with designer pull down pleated shades
Pilothouse

2 X Pompanette Platinum Series helm chairs with stainless steel pedestals
3 x windshield wipers with washers (Exalto with Park Position)
 Air-conditioning outlet for pilothouse windshield defrost system
AC outlets at the helm station; USB charge ports at the helm station
Air-conditioning - reverse cycle, air chilled type
Aircraft style port & starboard pilothouse doors
Built-in forward facing dinette/cruising settee and cherry table with fold out leaf
 Storage below settee and chart drawers below table mount Charting desk with granite top; upholstered chair and storage drawers Centered helm station with custom designed helm console
Custom tongue & groove pilothouse floor
Complete engine & instrumentation displays - Caterpillar engine monitors
 Curtain box for the port & starboard aircraft style pilothouse doors
Curtain box with Hunter Douglas power blinds for pilothouse windshield - (décor)
 Custom cherry & S.S. helm steering wheel
Twin Disc electronic engine controls
Electric horn remote control
Sea Fire - fire suppression system remote override control
Frameless windows in pilothouse with designer pull down pleated shades
Hydraulic power steering
Interior stairway with S.S. hatch/door leading to the fly bridge
LED lighting
ABT - TRAC digital stabilizer system control
Search light remote control
Ships system indicator panel
Fusion stereo CD / AM-FM system with speakers for the pilothouse and cockpit
Trim tab remote control
Wema brand - fuel and water tank gauges
Maxwell windlass remote control

Foyer

Curved stairway with LED courtesy lights
Washer & separate Dryer - Bosch (or similar quality)
Utility storage cabinet
 Stone inlay flooring at landing of stairs
Master Stateroom
   Full Beam owners stateroom with walk-in head and closet behind the owners berth
Custom cherry diamond pattern doors & cabinet panels with satin finish Cedar lined hanging locker
32" LED TV
Air-conditioning reverse cycle
King size bed with storage drawers underneath
Custom S.S. dual port light design with extra wide design for more light inside
 Custom fitted fabric wall panels Diesel heat outlets
Dimmer control for LED lighting
Headboard reading lights
Designer pull down pleated shades
LED overhead & indirect lighting
Port side settee with custom fabric with storage - (décor)
Starboard side vanity with storage drawers
Fusion stereo CD/DVD AM-FM player, Polk speaker surround sound system
 USB charge ports
Master Head

Air-conditioning reverse cycle
Cherry vanity with undercounter sink and Grohe single lever faucet; storage below
Custom overhead ceiling treatment with accent lighting
 Diesel heat outlet
Granite countertop - choice of colors from manufacturer's samples
Granite floor - Heated floor (when hydronic diesel heating system is in operation)
Grohe faucets for vanity and shower
LED lighting
Large FRP shower stall lined with Corian - Granite accents that vanity countertop
Opening S/S port light
Shower faucet
Shower exhaust fan
Tecma toilet
Vimar GFCI Dual outlets

VIP Stateroom

Island berth with built-in storage drawers, hinged top with storage underneath
Custom cherry diamond pattern doors & cabinet panels with satin finish Custom fitted fabric wall panels Air-conditioning reverse cycle
32" LED TV
Carpeting with underlayment
Cedar lined hanging locker
Diesel heat outlet
Drawer storage built into the base of the island bed
Headboard reading lights
LED courtesy lights
LED overhead lighting with dimmer control
Opening S/S port lights w/screens; designer pulldown pleated shades
Skylight with Ocean-Air screen
Fusion stereo AM/FM/CD/DVD player
Wrap around storage cabinets - Port & Starboard cherry wood
 USB charge ports
Forward VIP/Day Head & Mid Guest Head (2 separate heads)
   Air-conditioning reverse cycle Cherry vanity with undercounter sink and Grohe faucet
Diesel heat outlet
F.R.P. molded Shower Stall with bench seat
Granite countertop - choice of colors from manufacturer's samples
Granite floor - heated when the hydronic diesel heating systemis in operation
Grohe faucets sink vanity & shower
LED overhead lighting
Opening S/S port light w/screen
Overhead mirror in head
Shower exhaust fan
Tecma toilet
Vimar GFCI Dual outlet

Mid Guest Stateroom / 3rd

Custom bed with reading lights
Custom cherry diamond pattern doors & cabinet panels with satin finish Custom fitted fabric wall panels 24" LED TV
Air-conditioning reverse cycle & diesel heat
Cedar lined hanging locker & storage compartments
LED overhead lighting with dimmer control
Night stand with drawer
 Fusion stereo AM/FM/CD/DVD player USB charge ports
Lazarette

Aircraft style transom door
C-Charles Iso transformers - Iso Boost
2 x Glendenning 250/125V/50A cable master systems with 75' power cords
In-deck access hatch on aft deck
Fender storage - S.S rails mounted in the lazarette overhead located under aft deck settee location
Finished lazarette with built-in cabinets - painted white
FRP decking with rubber treads
LED overhead lighting
Preparation for water maker - thru hull, sea strainer, wiring
Sidepower 15HP 24V stern thruster
   Engine Room & Bilge
Stand up headroom in the engine room
Caterpillar C-12.9 1000 HP diesel engines
Electronic engine controls - 4 stations electronic controls
Twin Disc transmissions
1210 gallons fuel capacity - athwartships fuel tanks
400 gallons water capacity
120 gallon holding tank capacity
20 gallon hot water tank
Sea Torque shaft system
Bilge pumps - 4 x automatic Johnson brand
Groco bronze seacocks and sea strainers on engine raw water intakes
Color coded water lines
Color coded hydraulic lines
Parker fuel lines
Engine oil changing system (Reverso or similar quality)
 Engine automatic shutdown system - Sea Fire system
Engine room 24VDC LED lights
Engine room LED lights beneath engines
Engine room bulkhead insulated with extra sound insulation
Engine room emergency bilge pumping system - S.S.mainifold system utilizes engine RW pumps
 Engine room fans - 24 volt x 4
Engine room fire suppression - Sea Fire system
Engine room sound reduction insulation (sound down)
Fiberglass exhaust mufflers
F.R.P. non-skid floors with rubber treads
Fresh water outlet
Fuel vent filters - Racor marine version MA filters
High water bilge alarm
Manual bilge pump
Pressured fresh water system with Head Hunter pump
Racor Dual 1000FG fuel filters for each engine - Crossover system
Racor fuel filters for the generators
S.S. engine mount bracket system
 S.S. rudders and rudder posts
S.S. safety grab rails around engines
S.S. rudders
Under water exhaust system with bypass to transom
Painted bilge

Electrical System

Northern Lights 20KW/240/120V/60Hz generator with sound shield
Northern Lights 16KW/240/120V/60Hz generator with sound shield
Air/water separators mufflers for the generators
Complete AC/DC breaker/distribution panel with lighting located at pilothouse starboard side
 1 x 24V - 12V converter
1 x Master Volt MV 24/60-3 battery charger - Engine start bank
1 x 24VDC battery charger
1 x Master Volt 12/35-3 battery charger - Generators
10 X 115AH AGM batteries w/box for house bank
4 X 200AH Cat batteries w/box 2 x per engine for start bank
 2 X 100AH Generator start batteries w/box
2 X 200AH CAT batteries w/box for windlass and bow & stern thruster
4 X Bilge pumps, automatic type - Johnson brand
4kw Magnasine Inverter/120A Charger with remote panel
120VAC outlets throughout -Vimar
2X 240/120V/50A Glendenning cablemaster systems
Aft high bilge water level alarm with warning panels in P/H and F/B
Battery selection switches for the House-Engine-Generator-Inverter battery banks w/emergency switch Bonded electrical system
Camera monitoring system (GARMIN) 2 - engine room, 1 - at aft deck under hardtop
 Color coded AC & DC wiring system
Dimmer switches for pilothouse, flybridge, salon, owners and VIP staterooms
Fuel & water level indicators - Wema brand
GFCI outlets - Vimar
 Holding tank level monitor
LED overhead, courtesy & task lighting throughout
Navigation lights (Aqua signal)
Starboard pilothouse shore power inlets - 2X 240/120V/50A & 1X 125V/30A
Shore power protection system - galvanic isolator
Shore power selection switch
USB charge ports throughout

General Equipment and Options

316L Grade S.S. oval handrails on the main and flybridge decks
316L Grade S.S. for mooring cleats, chocks & anchor roller
2 x line cutters installed in front of the stabilizer fins
Air-Conditioning reverse cycle system - chilled air type (Marine Air)
Aircraft style doors in the pilothouse
Bosch Washer and Dryer (or similar quality) - located in the foyer area
Canvas covers for the pilothouse windshield
Central vacuum system with 5 outlets
Detailed owners manual with drawings
Diesel heating system - Olympia brand or similar - hydronic system
 Dockside water pressure connection
Door locksets, drawer latches & overhead light fixtures - Chrome finish
Exterior main & flybridge deck and Cockpit LED Lighting
Frameless windows
Fresh water deck wash downs at forward, aft and flybridge
HDMI Cables pre-wire for satellite
Limited five year hull structure warranty
Manufacturer's limited one year warranty on machinery and equipment
Salt deck wash downs at forward anchor locker and aft (Head Hunter pump)
Search light with 2 x remote control stations - P/H & F/B
Ship lighting & bilge pump systems indicator panel located in the Pilothouse
Stabilizers: ABT Hydraulic 7.5' Fins
Stainless steel portholes with screens
Swim platform with removable 2.5"Dia S/S guard rails
Tecma toilets
Thrusters - Side Power - Electric 24VDC 15HP S-Link Proportional Control bow & stern thrusters
 Transom door - FRP covered stainless steel aircraft style door
Trim tabs - Hynautic brand
TV/Cable & Phone inlet - Marinco PH6594 TV-SS
Underwater lights - 5X total; 3X across the transom and 1X port & stbd aft hull sides
Water maker - Prep only. Includes thru-hull/sea trainer, panel break and wiring
Electronics: See Navigation equipment list
Custom Diamond Pattern on Cabinet & Interior Doors

Canvas Package

P/H windshield cover, F/B helm cover, aft deck wind screen clear panel installed between the two stainless steel bridge support posts.
   Décor
Furnishings, soft-goods (bedding, towels & carpeting), dinnerware and installation costs.

Navigation Equipment

Electronics - Garmin 7600 series - radar, chart plotter, touch screen monitors,  autopilot, Dpt/Speed/Temp, GPS, VHF radio X 2, AIS & Magnetic Compass.
   Specifications and Price Subject to Change Without Notice.

The Hampton 650 has proven to be another very successful pilothouse from Hampton Yachts. It has garnered the attention of clients whom have admired the company’s pilothouse cruiser series, but found the 680 & 740 a bit more yacht than they needed and wanted a little more room that our 580 model. The H650 with all its great features such as the covered side & aft decks, the “Full-Beam Owner’s suite” and the spectacular open salon & pilothouse arrangement combine to make the Hampton 650 a great destination place where family and friends can join together for some great cruising and relaxation.

“Experience the Difference a Hampton Yacht Can Make in Your Life”.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

For more information on this yacht, please contact us.
