58' Hampton 580 Pilot House 2009

The boat has three staterooms with a midships master with private head and shower. The VIP forward stateroom has a queen bed and shares a head and shower with the port side guest .stateroom that has a single double berth .

Hand-laid solid fiberglass hull with Knytex

Vinylester resin for first 5 layers of hull lay-up

2 layers of Kevlar from chine to chine and 3 layers of Kevlar in the forward collision zone.

Hand-laid fiberglass deck, deckhouse, and flybridge cored with high strength Divinycell foam

Hull/deck joint through-bolted every 6?, sealed with 3M 5200 sealant, and glassed over with 3 layers of fiberglass

Longitudinal and transverse stringer system

Molded F.R.P. rub rails capped with solid stainless steel trim rails

Molded non-skid F.R.P. decks

Interior structural components all properly bonded to the hull

Cherry wood (Makore) interior with high gloss finish

Burl wood inlay in selected areas

Burl wood table top and counter top in selected areas

Carpet and pad in selected areas, salon carpet replaced in 2014

Removable padded soft vinyl headliners throughout

Halogen lights throughout, replaced in selected areas with LED

Rope lighting in selected areas

Push/Release type latches for cabinets and drawers

Custom Hunter Douglas wood blinds in salon and galley

New 42' HD Smart TV 4K

Bose surround sound system

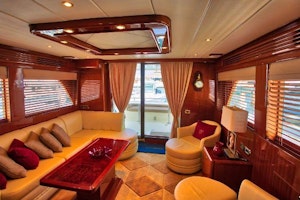

Port side chairs with leather upholstery with storage, new in 2014

Starboard side L-settee with leather upholstery with storage, new in 2014

Custom coffee table with burl top

Salon overhead decorative redwood burl ceiling treatment

Stainless steel aft sliding door with screens and shades

Frameless windows in salon (tempered glass)

Cabinet for entertainment system

Wine Chiller

Port and Starboard aft deck boarding doors

Teak covered steps from swim platform and stars up to fly bridge

Full overhang from boat deck over aft deck with back sun screen

Comfortable aft deck seating settee with cushions and cover

Corian table and two flooding chairs

Ice Maker- installed in 2017

Port and Starboard aft cameras to eliminating blind spots

20" built in TV

Port and Starboard aft deck engine controls with Bow & Stern thrusters control for easy docking

Boarding ladder storage compartment, port side

Aft deck hatch with electric lift to Lazzarete area and engine room

Full protected walk arounds to bow area

Port and Starboard transom doors with teak steps to swim platform

Stainless steel pull out swim ladder

Hot and Cold shower unit

Port and Starboard 50 Amp Glendinning shore cord reels with recessed tracks in swim platform for cords

A galley that any cook would love featuring a full size refrigerator, trash compactor, dishwasher, oven/microwave combo, and electric cook top. Corian counter tops and lots of storage in the plentiful cabinets.

Granite counter top with large double sink and garbage disposal

Full size upright Sub-Zero refrigerator/2 freezer drawers/ ice maker

GE Profile electric glass cook top

GE Profile convection microwave

GE Profile oven

Dishwasher

Quality single lever Grohe faucet

Galley exhaust blower

Granite floor with teak boarders

GFI outlets

Halogen lights replaced with LED

Stainless steel aircraft style pilothouse doors at port and starboard side with retractable screens

Quality helm chair with stainless steel pedestal with electric lift and back and forth adjustment

Electronic engine controls

Hydraulic power steering

Frame less windows in pilothouse (12mm tempered glass) with inside electric shades and outside removalable sun screens

Custom wood steering wheel

CD stereo system with speakers for salon, pilothouse, and cockpit

Wema water and fuel tank gauges

Compass

3 windshield wipers with washers

Complete engine instrumentation

Interior stairway with stainless steel hatch leading to fly bridge

Built in dinette settee with storage

Large dinette table with redwood burl table top on slides

Storage cabinets

Halogen lights replaced with LED

Queen size bed with storage under

Overhead decorative redwood burl ceiling treatment

Built in 32" HD smart TV

AM/FM radio, DVD player, and surround sound system (12 volt system)

Two cedar lined hanging lockers

Bureau and vanity cabinet

Halogen overhead lighting with dimmer controls

Opening S/S port lights with screens

Rope lighting

Master Head

Stall shower with seat lined with Corian

Tecma toilet

Grohe faucets

Corian countertop

Corian floor

Halogen overhead lighting

GFI outlets

Exhaust fan

Opening S/S port lights with screens

Island queen size berth with hinged top with storage under

Cedar lined hanging locker

Built in 20" LCD TV

AM/FM Radio and DVD player (12 volt system)

Overhead lighting with dimmer control

Opening S/S port lights

Over head opening hatch with screen and and block out shade

VIP Head

F.R.P. stall shower with Corian floor

ecma toilet

Grohe faucets

Corian countertop Corian floor

LED overhead lighting

GFI outlet

Exhaust fan

Opening S/S port lights

Double bed

Built in 15 LCD TV

AM/FM Radio and DVD player

Cedar lined hanging locker

Halogen overhead lighting with dimmer control

Opening S/S port lights

F.R.P. molded helm console

Two helm chairs, Captain chair with electric lift and for and aft adjustment

Stairway from cockpit to boat deck covered in teak with sliding hatch cover

Complete engine instrumentation

Hydraulic power steering

Electronic engine control

Stainless steel steering wheel

New Vitrifrigo refrigerator/ice maker combo

Fly bridge seating with storage

Fly bridge wet bar with sink

Fly bridge F.R.P. table

Tempered glass venturi with F.R.P. frame

Kahlenberg twin trumpet air horn

ACR search light control

Night vision camera

Full EZ2CY enclosure with custom interior removable sun screens

Air conditioning and heat (2) air handlers

12' RIGID 2016 tender with 40 HP Yamaha 4 stroke engine and blue cover

UMT 1000 lb power lift and rotate davit

Close able Hatch to lower aft deck stars

S/S Ladder to hard top and hinged anchor light

Safety rails and storage cabinet

Four lowering antennas for electronics

KVH SAT system on hard top

Twin 900 HP Yanmar Engines

Full stand up engine room with entry from aft deck or water tight door off swim platform

Under water exhaust system with bypass to transom

Tides Marine drip less packing glands with (2) spare seals on shafts

Engine room lead foam sound insulation

Engine room bulkhead insulated with extra sound insulation

Engine room blowers (24V Jabaco)

Aquamet #22-3" stainless steel shafts and 4 blade precision propellers, spare props come with boat

F.R.P. water tank, 280 gallons

Racor Dual 1000FG fuel filters for each engine and (1) Racor 500 for generator

S/S rudders and rudder posts with Tides seals

F.R.P. fuel tanks (1000 gallons total) with sight tubes

Color coded copper fuel lines

Color coded copper water lines

Color coded hydraulic fluid lines

Pressured fresh water system,(Headhunter) one 24 volt and one 120 volt

Seacocks and sea strainers on engine raw water intakes

Automatic bilge pumps with high water alarm

Manual bilge pump plus an emergency jack pump system off engine intakes

Seaward S/S 20 gallon water heater

Holding tank with macerator pump plumbed for deck side or overboard discharge (under VIP berth)

Engine room AC and DC lights

Engine oil changing system, both engines and generators

Engine room fire extinguisher with auto shut down system

Upgraded stabilizers with 6 sq ft fins

Work bench and custom storage cabinets in lazarett

Fresh water outlet to top off cooling water in engines and generators

White PU painted bilge with blue accent lighting under engines

Complete AC/DC breaker/distribution panel with back lighting for 120

Volt, 240 Volt, 12 Volt, 24 Volt and invertor zone

Kohler 20 KW/60 HZ generator with sound shield- 3462 hrs

Kohler 13 KW/60 Hz generator with sound shield-2771 hrs

3KW Inverter 100 amp 24 Volt charger with remote panel

Two Glendinning 50 amp Cable Masters with 75' cords

Charles 50amp / 24V battery charger

harles 30amp / 24V battery charger

Charles 30amp / 12V battery charger

Forward shore power connection starboard side

Battery selection switch

Shore power selection switch

Six 200 Amp AGM marine batteries w/box for house system

Two 200 Amp AGM marine batteries w/box for engine starting

Two 200 Amp AGM marine batteries w/box for windlass and bow thruster

One 120 Amp AGM marine battery w/box for generator starting

All batteries replaced NEW in 2016

Quality AC and DC lighting throughout

120V outlets throughout

Navigation lights with monitor panel in pilot house

Bonded electrical system

Color coded wiring system

Upgraded with (4) Raymarine E-125 12" touch screen multi function displays

Raystar 125 GPS antenna

Single sideband radio antenna

400G/S3G Auto pilot- two stations

Raymarine ST 60 depth sounder-two stations

Wesmar stabilization display monitor

Sirius WX SR100 weather

Seatalk VHF radios-two stations

Upgraded DSM300-G Ditgital Sonar Module

Yanmar digital engine displays

Remote panel for water maker

FLIR night vision camera

Satellite TV system upgraded to High Definition

Wesmar RS600 stabilizer system serviced and upgraded with new DSP 5000- 2018

Hydraulic boom cylinder replaced on davit 2018

New cutlass bearings replaced, shafts inspected, engine aligned 2018

Bottom paint, Seahawk Black, and all zincs replaced 2018

Yanmar engine heat-exchangers opened for inspection 2018

New windshield wiper install and washers installed 2018

Hull sides polished and waxed 2018

Steering system completely overhauled and rudders repacked 2018

Reverse cycle chilled water(2) AC system (96,000 BTU) with soft starts (2) R/W pumps installed on valves and (2) circulating pumps, one in box as spare

Side Power 13 HP bow and stern thruster-24 Volt

Maxwell VWC 2200 lbs windlass with 3 station controls

60 lbs C.Q.R. anchor and 275' anchor chain

Ship indicator panel for navigation lights, bilge pumps, high water alarms and engine over heat in pilothouse

CO2 detectors hard wired in all areas of the boat

Bocsh Washer and Bocsh Dryer

Central vacuum system

Six station intercom system

Hynautic Hydraulic Trim tabs

Deck wash downs at forward and aft decks

Dockside water pressure connection

#316 grade stainless steel for mooring cleats, chocks, anchor roller, handrails, and stanchions

TV, phone, and water inlets

Stainless steel fender racks on bow

Coast Guard safety package

Viking life raft- 8 person 2014

New props installed and a set of spares go with boat

Under water lights (5) white/blue in stern

All exterior courtesy replaced with replaced with LED white/blue

Aft deck overhead lights replaced with LED white/blue

This Hampton has a full time mate that is on the boat to clean and detail the daily and I previewed the boat and could not find any part of the boat that was not waxed, all the stainless was rust free even on the stanchion bases and the boat looks new inside and out and is what I consider to be in "pristine condition".

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
