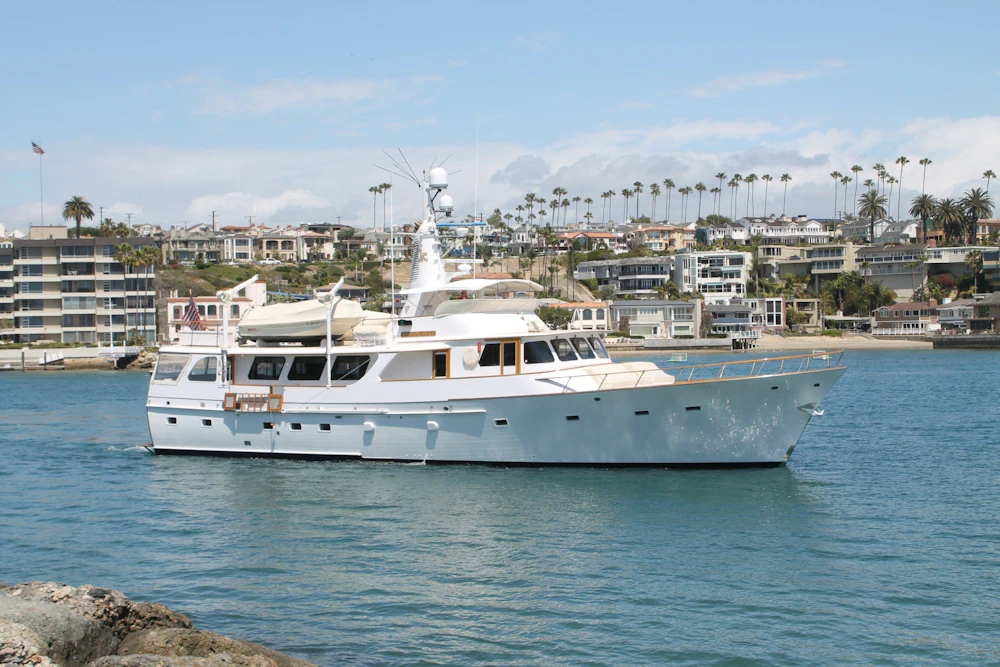

1972 Offshore Yachts Dittmar & Donaldson

Over the past decade, she has undergone a thoughtful and comprehensive refit costing over $1,000,000, blending her original character with modern systems and comforts. The result is a vessel ready to deliver another half-century of pleasure and adventure to her next owner.

From her sweeping lines and warm woodwork to the unmistakable charm of her heritage, Sapphire Sea II stands as a living testament to the artistry of traditional yacht building, a classic reborn for modern cruising.

3 Large guest cabins with dedicated heads

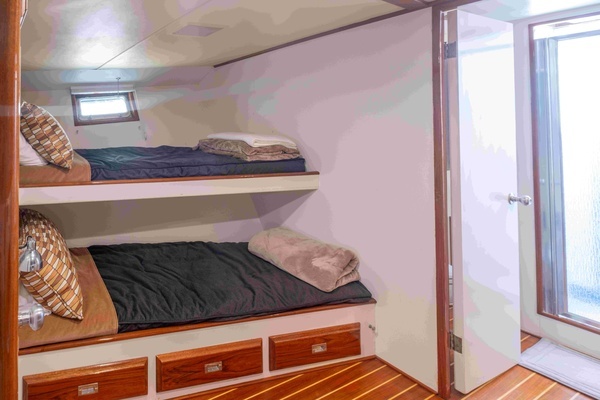

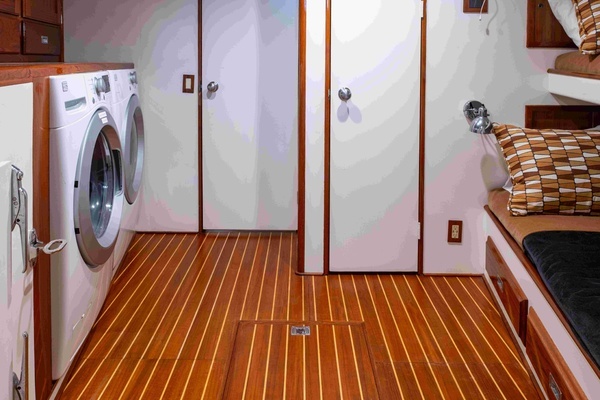

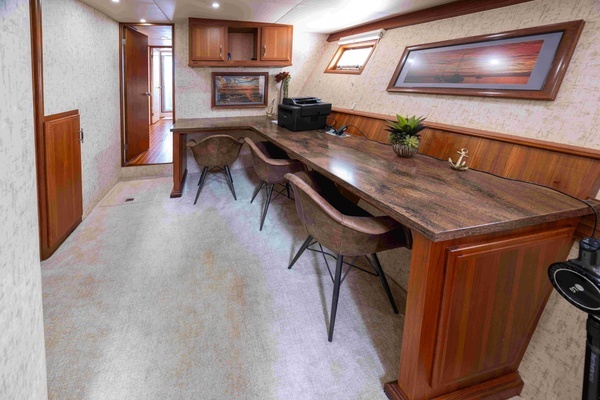

Full crew amenities with 2 spacious cabins and a large work station

Huge salon and dining area

Updated galley with new woodwork and top-name appliances.

LLC owned

Twin Cat D343A 550hp, freshwater-cooled engines

(3) Northerlights Generators (2 X 30kw, 1 X 20kw)

New Garmin electronics

Hull Design:

• Double planked Mahogany, plywood structure with diagonal 13/6" inner planking and 13/16" Carvel outer planking over sawn Mahogany frames and ribs secured with silicon bronze fasteners
• Superstructure and decks are exterior grade plywood with FRP covering
• Interior features Teak plywood bulkheads and cabinets in the salon, wheelhouse and aft cabins
• HPL covered plywood bulkeads and cabinets in the forward crews quarters and cabins

Electronics

• New Raymarine chart plotter at the PH and FB
• New Dell flush-mount computer screen
• Full new dash, gauges, and switches at the PH and FB
• Standard Horizon VHF
• Standard Horizon Hailer
• New Bow thruster with controls at the PH and FB
• New Raymarine Autopilot
• Electro-guard monitor
• Kobelt engine controls at PH and FB
• (2) HRO watermaker controls at the Pilothouse

Mechanical Equipment

• Twin Disc MG514 Reverse Gear
•  Riley evaporator type watermaker
• (2) HRO System 10 reverse osmosis watermakers (120 gal/hr/ea)
• 220V 5hp A/C compressor for all interior cabins
• 110V oil changer pump with manifolding
• Wagner hydraulic steering
• Vosper hydraulic stabilizers
• Fire Extinguishers: (10) 5lbs. Dry Chemical, (5) Halon 1211, (1) 11 lbs. Halotron Fixed system: Kidde CO2
•  Ideal 110V bow anchor windlass
• (4) 110V davit winches, stern anchor windlass
• Fortress #18 anchor
• Fortress #12 anchor
• 475' 1/2" all chain rode
• Danforth S-60 stern anchor, chain and 3/4" Dacron rode

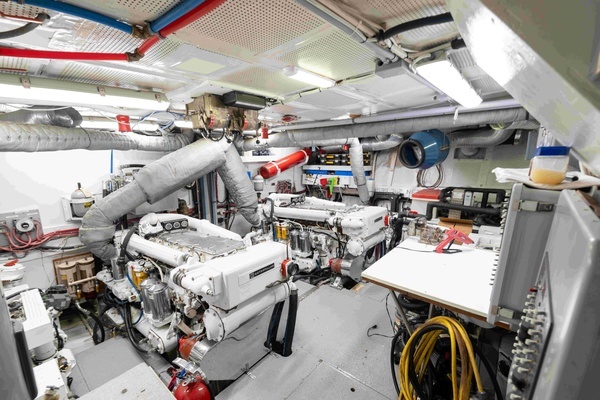

Engine Room & Bilges

• Twin D343A Caterpillar 425hp diesel engines, freshwater cooled inline 6 cylinder diesel
• Vosper Thornycroft Stabilizers
• Propeller size 34 x 24 RH & LH, 4 blades, shaft material: Monel, diameter 2.5"
• PYI dripless shaft seals
• (2) Northern Lights M964-30N 30kW diesel AC gensets
• (1) Northern Lights M964-20N 20kW diesel AC genset with transfer switches and main circuit breaker panel
• Genset Remote Panels & Controls
• (8) 8V in two Engine starting and house banks
• (2) 8D 12V genset starting and electronics banks
• (2) Dyna Plate Ground Planes
• Victron Energy 12 VDC 40amp charger
• (2) Newmar Phase Three PT 32-25W battery charger
• ACME 120X240 1.5 KVa Transformer
• ACME 120X240 10 KVa Transformer
• General Electric 120X240 10KVa Transformer
• Newmar 32/12/25 converter
• 2-Smart Regulators V2 (Alternators)
• 3-Battery Isolators
• Newmar DC-DC converter
• DC Ammeters
• (4) 50 amp 125/250 VAC Shore Power Inlets
• (2) 50 amp cords
• Spare 50 amp cord
• 32V DC on-board with master switches and main circuit breaker panel
• 12V DC on-board with master switches and main circuit breaker panel
• (3) Rule 3500 gph automatic bilge pumps
• Engine driven bilge pump
• 110V bilge pump
• High water alarm system
• (2) 110V freshwater pumps
• (2) 220V 30 gal. hot water heaters
• (2) 60 gal. plastic waste holding tanks with dual discharge
• (2) 32V waste vacuum pumps with accumulator tanks
• 32V waste discharge pump
• (9) Fuel tanks, black iron, total capacity 3400 gals. Location: (2) Amidships, (2) saddle, (5) stern.
• (5) Water tanks, galvanized iron, total capacity 1000 gals.

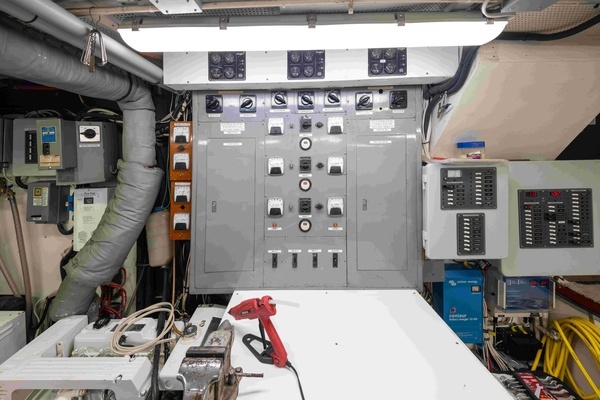

• Main AC Distribution Panel
• Hertz Meter
• 5-Battery Disconnect Switches
• Obendorfer Oil Pump
• Oxygen Cylinder
• DeVilbiss 20 Gallon Air Compressor
• Husky Air Compressor
• Refrigeration Compressor (Air Conditioning) Model: 06DH-5180 AC 0300
• 4-Solar & Palan Engine Room Exhaust Fans
• Kidde Automatic Co2 Fire Extinguisher System
• 2-Sets of Dual Racor 1000 Series Fuel Filters
• Obendorfer Transfer Fuel Pump
• Fuel Level Sight Tube
• Manual Main Engine Controls
• Work Bench with Vise
• AC Volt Meters
• Potable Water Spigot
• Acetylene Cylinder
• Zeihl-Abegg Engine Room Blower
• 90 Gallon Oil Storage Tank
• Wood Battery Boxes with Covers
• Jabsco Sump Bilge Pump
• Electro Guard #501 Corrosion Control
• Bronze Sea Strainers
• West Marine Port Runner Bike
• Miscellaneous Tools
• Delta Bench Grinder
• Delta Drill Press
• Hot Potable Water Circulation Pump
• Main Engines Drip Pans
• High Water Bilge Alarm
• Fuel Manifold
• 1-American Water Heater 30 Gallon Potable Water Heater
• VSI Central Vacuum System
• Hydraulic Oil Storage Tank
• Miscellaneous Spare Parts
• Painted Bilge
• Shop Vacuums
• Storage Lockers
• Custom Stainless Steel Main Engine Mounts
• 4-Mild Steel Fuel Tanks
• 1-Circulating Fans
• Stabilizer System PTO
• Oil Placard
• AC/DC Engine Room Lighting
• Air Conditioning System Raw Water Pump

MASTER STATEROOM BILGE:

• High Water Alarm Float Switch
• Propeller Shaft Wipers / Brushes
• 2-PSS Propeller Shaft Seals
• Portable Water Tank
• 2-Emergency Bilge Pump Inlets

FORWARD BILGE:

• 3-Refrigeration Compressors
• Raw Water Cooling Pump
• Autopilot Pump
• Bell & Gossett Hot Potable Water Circulating Pump
• Dayton AC Raw Water Washdown Pump
• Fluorescent Lights
• AC Dewatering Pump (portable)
• Miscellaneous Spare Parts
• Exhaust Fan
• Spare Hose
• Gray Water Sump Pump
• Painted Bilge

CREW GALLEY BILGE:

• 2-HRO System 10 Water Makers (Port: 869 Hours) (Starboard: 718 Hours)
• 4-Hayward Cartridge Filter Housings (Water Makers)
• 2-UV Sterilizers
• 2 AC Sealand Vacuum Pumps
• 2-HDPE Waste Holding Tanks
• 2-Dayton AC Potable Water Press Pumps
• Spare Parts, Tools
• Rule Automatic Bilge Pump
• 2-Black Water Y Valves
• Sealand T-Series Discharge Pump
• 2- 31 X 24 (4) Bladed Bronze Props (Spares)
• Painted Bilge
• Fluorescent Lights
• 3-Cuno Potable Water Filters
• Potable Water Accumulator Tank

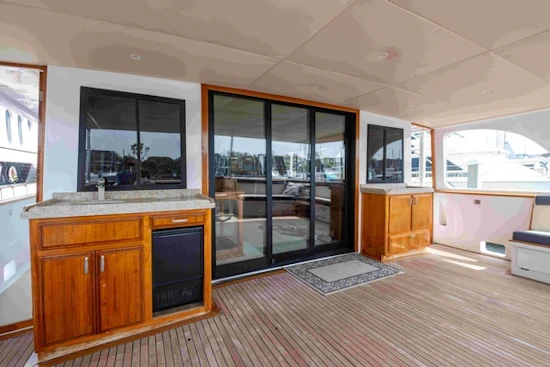

Aft Deck:

•  Aft deck under hardtop with complete enclosure
• Port bar cabinet with Jenn-Air grill
• U-Line ice maker
• Transom seating with centered door to Teak swimstep
• Time Master Chrome Clock
• Teak Deck
• Vinyl Headliner
• 2-L-Shaped Settees
• Teak Joinery
• 2-Weather Deck Doors
• 1-Electric Capstan
• Jennair Electric Grill
• Stainless Steel Sink
• Fuel tank Fills
• Cable TV / Phone Inlet
• Isinglass Enclosure
• 2-Stereo Speakers
• Dive Tank with Hookah Hose Regulator
• 2-Mooring Cleats
• Teak Boarding Ladder

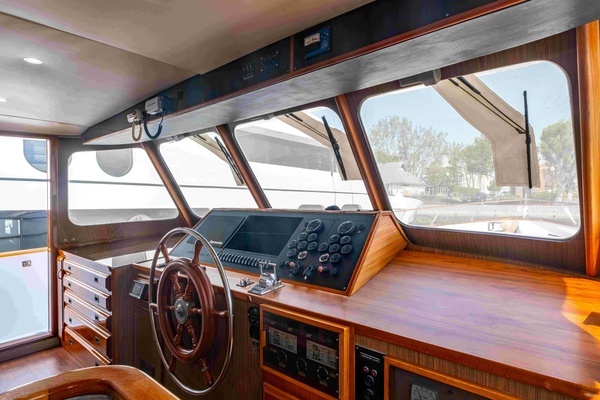

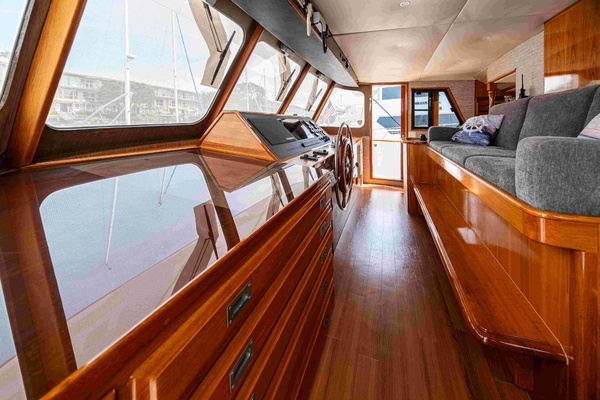

Wheelhouse:

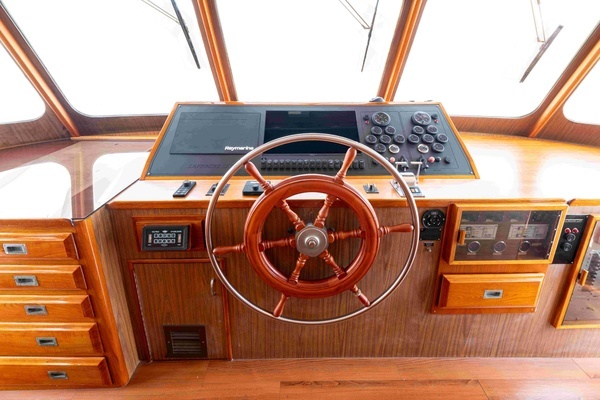

• Bridgedeck with centered helm station with complete instrumentation
• Engine controls
• Wagner hydraulic steering
• Smoke venture
• Bimini top on SS bows
• Pedestal helm seat
• Port L-shaped companion bench seating
• Centered exhaust stack with antennas
• Electro Guard 601 Corrosion Control System
• DC Electric Panel
• 3-Genset Water Temp Gauges
• Sliding Windows
• Mica Counter Tops
• 2-Stereo Speakers
• Upholstered Helms Bench Seat
• 2-Teak Sliding Weather Deck Doors
• Twin Main Engine Pyrometer
• Telcor Synchronizer Gauge
• Simulated Wood Sole
• Logitech Wireless Mouse
• Morse Cable Engine Controls
• Vinyl Head Liner
• Charts, Books
• Miscellaneous Equipment Manuals
• Samsung LCD TV
• Blaupunkt Rpd 435 Stereo
• Vosper Stabilizers Control
• Holding Tank Monitor
• 2-HRO Water Maker Alarm Controls
• Logitech Wireless Keyboard
• Teak Interior Joinery
• 3-Electric Windshield Wipers
• 34" Teak & Stainless Steel Wheel
• Chrome Clock & Barometer
• DC Volt & Ammeter
• Alternator Alarm
• DirectTV Receiver
• Dell Desktop Computer
• Brother Copier/Fax
• Chart Table
• Epson XP 400 Printer
• Thermostat & Controls

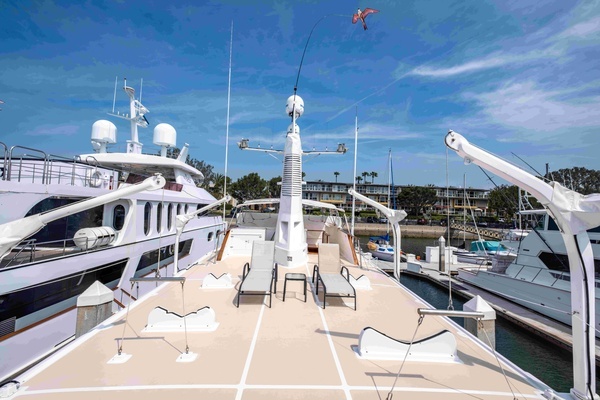

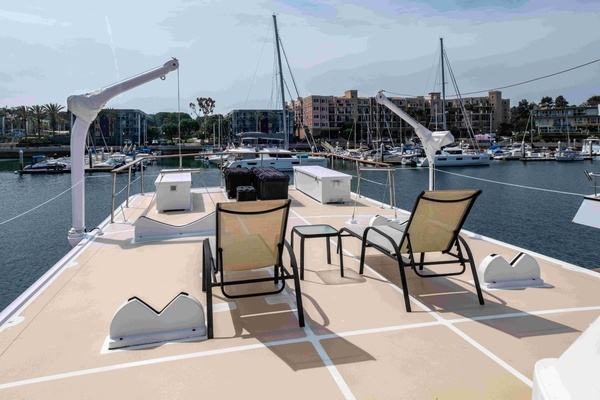

Portuguese Bridge & Boat Deck:

• Decking FRP over plywood
• Frames, size and spacing: 1 3/4" X 4 1/2" Sawn Mahogany on 17" centers
• Silicon Bronze fasteners
• Flush foredeck with raised bulwarks with Teak Caprails and Teak Taftrails on chrome brass stanchions

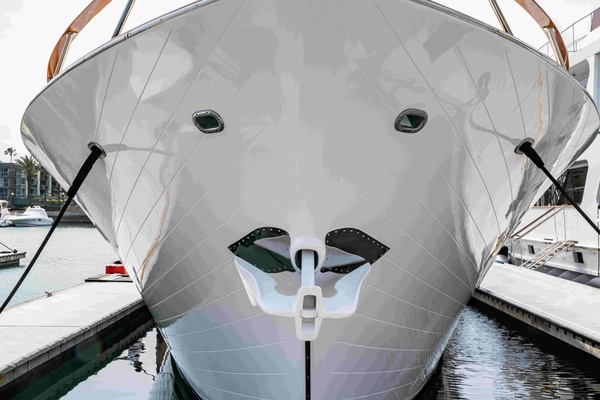

• Stem Hawse pipe with bow anchor
• Pelican dodger with centered door and bow seating with vinyl cushions
• Enclosed Wheelhouse with sliding doors to port and starboard quarterdecks
• Starboard Teak boarding ladder and dinghy stand-off
• Port & Starboard double davits with 110V winches and two tenders secured in chocks
• Starboard emergency canister life raft with automatic release (Elliot 8 person)
• (2) 24" Rings with lanyard and lights; (4) Cushions
• (2) ACR SM-2 Strobe Lights
• Aft boatdeck (2) dunnage boxes and taftrail on SS stanchions

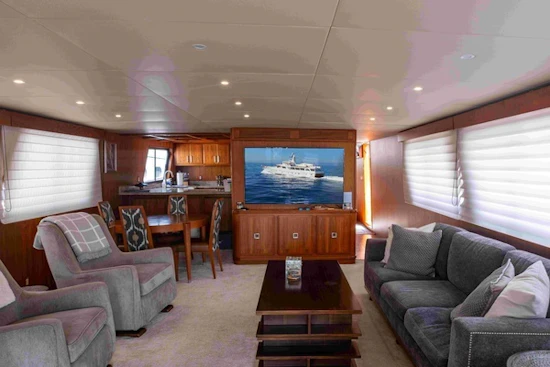

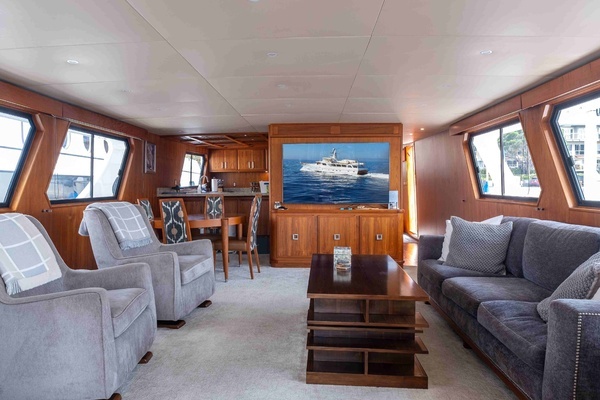

Saloon:

• Day Head
• Niles MSA-10 Speaker Selector Amplifier
• DirecTV DSS Receiver
• 5-Stereo Speakers
• Wet Bar & Two Chairs
• Carpeted Sole
• Upholstered Settee
• Wood Desk with Chair
• Wood Dining Table
• 4-Dining Chairs
• Wood Coffee Table
• 2-Upholstered Barrel Chairs
• Aluminum Sliding Windows
• Liquor Locker
• Granite Counter Top
• Halogen Overhead Lights
• Intercom Phone
• Teak Joinery
• Vac-U-Flush Toilet (Day Head)
• Exhaust Fan (Day Head)
• Custom Wall Coverings (Day Head)

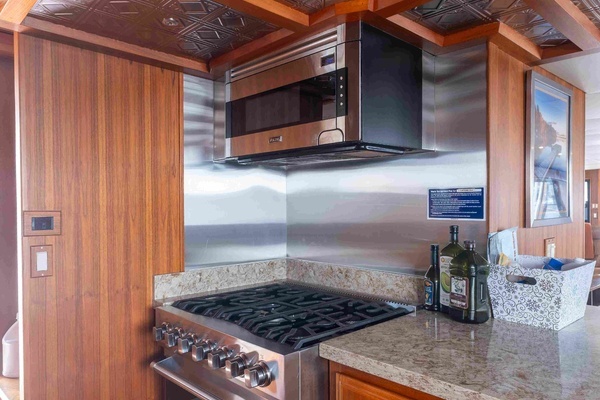

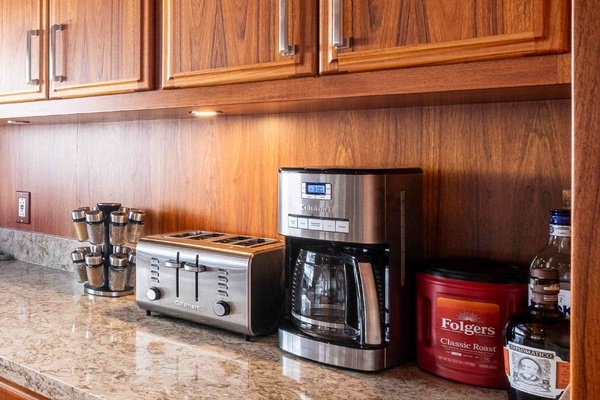

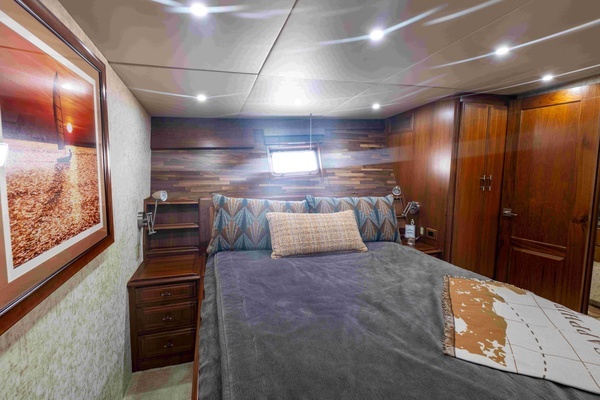

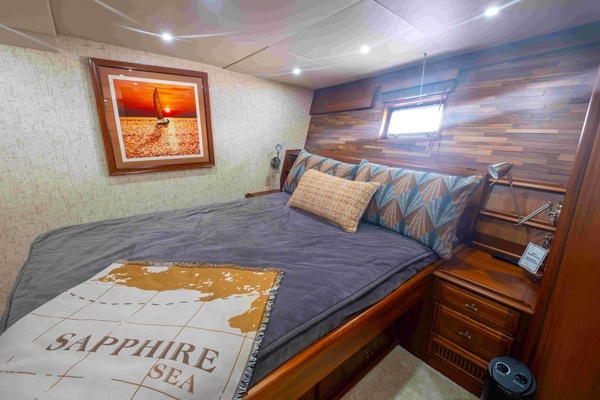

Galley: Large open galley with all new appliances and decor Master Stateroom / Heads:

• Cloth Port Light Shades
• Thermostat & Control
• Custom Bed Cover
• Custom wood Headboard
• Vinyl Headliner
• 2-Night Stands
• Cedar Lined Hanging Locker
• Carpeted Sole
• King Size Bunk
• Teak Dresser
• Vanity with Chair
• Granite Counter Top Vanity
• 4-Port Lights
• Overhead Lights
• Electric Cabin Heater
• Art deco chair

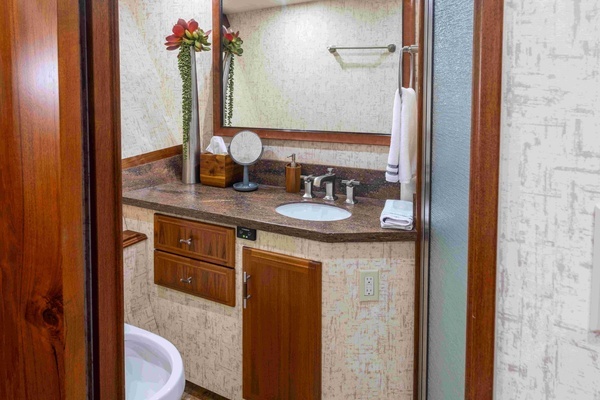

MASTER HEADS: PORT & STARBOARD:

• 2-Vac-U-Flush Toilets
• Granite Counter Tops
• 2-Port Lights
• 2-Electric Heaters
• Carpeted Sole
• Vinyl Headliner
• Overhead Lights

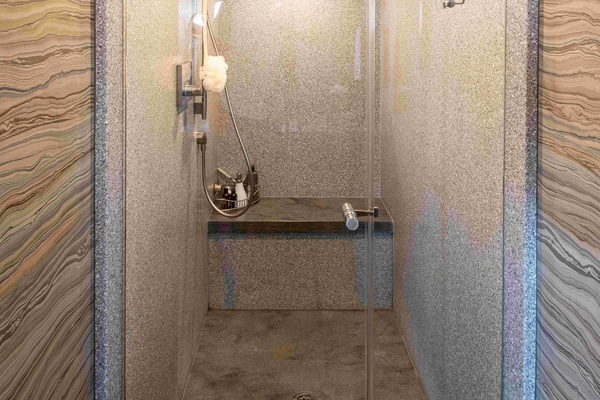

• New enlarged Shower
• 2-Exhaust Fans
• 2-Lavatory Sinks
• Upholstered Port Light Shades
• Lockers
• Teak Joinery

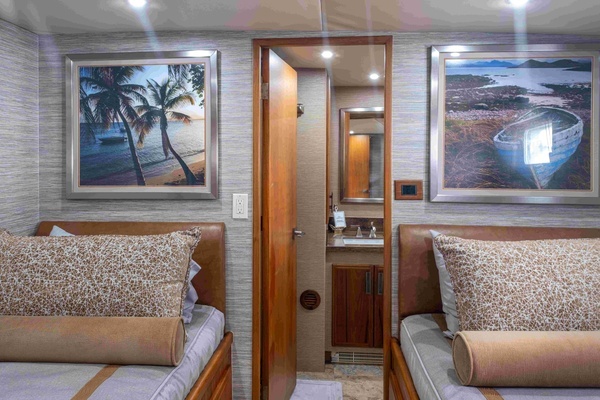

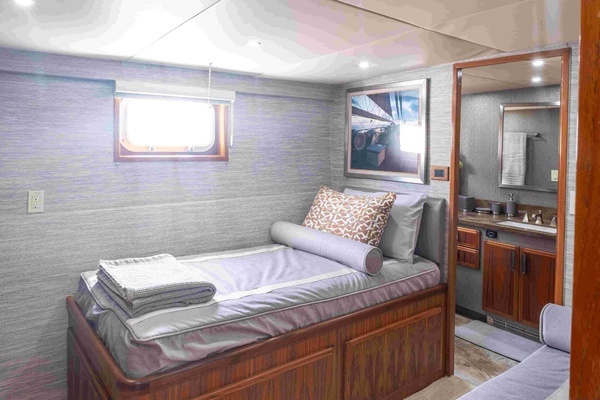

Port Guest Stateroom / Head:

• Teak Interior Trim
• Port Light
• 2-Single Berths
• Custom Bunk Covers
• 2-Stereo Speakers
• Thermostat & Controls
• Cabin Fan
• Drawers
• 2-Reading Lights
• Cedar Lined Hanging Locker
• Vinyl Headliner

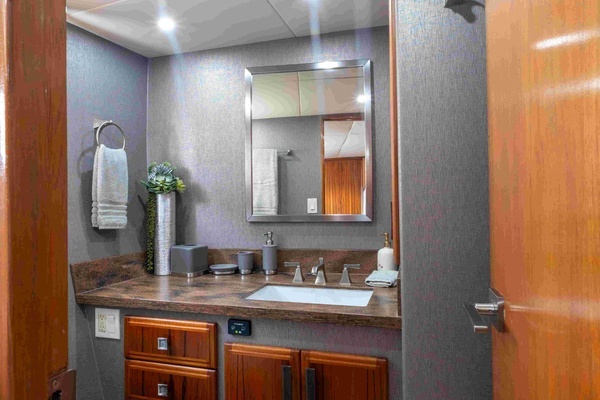

PORT GUEST HEAD:

• Vac-U-Flush Toilet
• Carpeted Sole
• Granite Counter Top
• Cedar Lined Linen Closet
• Lavatory Sink
• Stall Shower
• Teak Trim
• Towel Bar
• Exhaust Fan
• Port Light & Shade
• Painted Bulkheads
• Aluminum Shower Door
• Vinyl Headliner

Starboard Guest Stateroom / Head:

• 2-Single Berths
• Carpeted Sole
• Cabin Fan
• Port Light
• Drawers
• Hanging Locker
• Teak Interior Trim
• Granite Counter Top
• Vanity & Sink
• Thermostat & Control
• 2-Fuel Tanks
• Custom Bunk Covers

STARBOARD GUEST HEAD:

• Vac-U-Flush Toilet
• Stall Shower
• Granite Lavatory Counter Top
• Cedar Lined Lined Closet
• Port Light & Shade
• Aluminum Shower Door
• Teak Trim
• Overhead Lights
• Vinyl Headliner
• Towel Bars
• Vanity Sink
• Exhaust Fan

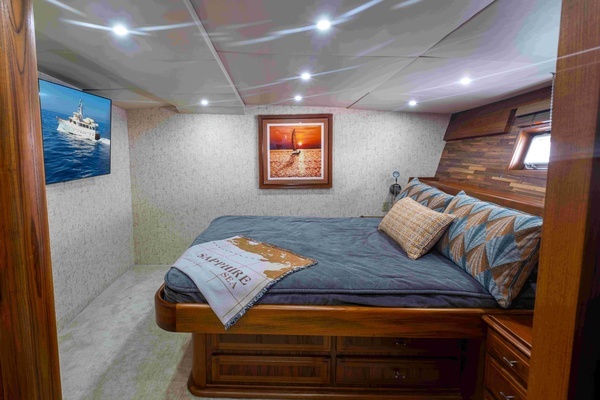

Forward Guest Stateroom / Head:

• Queen Size Berth
• Lavatory Sink
• Granite Counter Top
• Thermostat & Control
• Mahogany Wood Trim
• Carpeted Sole
• Intercom Phone
• Bunk Light
• Port Light
• Cabin Fan
• Window Shade
• Overhead Lights
• Vinyl Headliner
• Electric Cabin Heater
• Air Intake Fan
• Cedar Lined Hanging Lockers

FORWARD GUEST HEAD:

• Vac-U-Flush Toilet
• Port Light
• Carpeted Sole
• Mica Wall Coverings
• Oak Trim
• Aluminum Shower Door
• Stall Shower
• Vanity Sink
• Granite Counter Top
• Window Shade
• Towel Bars
• Vinyl Headliner

Crew Stateroom:

• Upper & Lower Single Bunks
• Vinyl Headliner
• Thermostat & Control
• Carpeted Sole
• Aluminum Sliding Window
• Electric Heater
• Stereo Speakers
• Cedar Lined Hanging Locker
• Oak Wood Trim
• Air Intake Fan
• Window Shade

Crew Cabin / Galley / Head:

• 3-Bunks
• Vizio LCD TV
• DirecTV DSS Receiver
• JVC DVD Player
• 2-Cold Plate Freezers 12 cu ft each
• 1-Cold Plate Refrigerator 12 cu ft
• Window Shades
• Mica Wall Coverings
• Cabin Fans
• 3-Bunk Lights
• Hanging Locker Cedar Lined
• Carpet Runner
• 2-Port Lights
• Thermostat & Control
• Oak Trim
• Carpeted Sole
• Vinyl Headliner
• Overhead Lights
• Brass Trident Clock

CREW GALLEY:

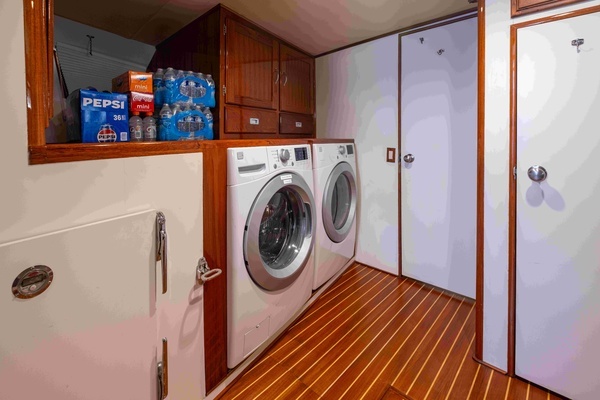

• Maytag Computer Touch Washer / Dryer
• Carpeted Sole
• Vinyl Headliner
• Ironing Board
• Mica Wall Coverings
• Engine Room Door
• Overhead Lighting
• Standard Horizon Eclipse VHF
• Dinette Table
• 2-Stereo Speaker
• 2-Port Light & Shades
• Pantry Lockers
• L-Shaped Dinette
• GE Microwave Oven
• Samsung LCD TV
• DirecTV DSS Receiver
• JVC XV-S402 DVD Player
• Oak Wood Trim
• Thermostat & Control

CREW HEAD:

• Stall Shower with Aluminum Shower Door
• Escape Hatch
• 2-Port Lights
• Lavatory Sink
• Granite Counter Top
• Electric Cabin Heater
• Towel Bar
• Vacuum Pump Indicator Lights
• Carpeted Sole
• Mica Wall Covering
• Oak Wood Trim
• Vac-U-Flush Toilet
• Miscellaneous Fishing Equipment
• Linen Storage
• Lockers

Listing MLS by Yachtr.com
