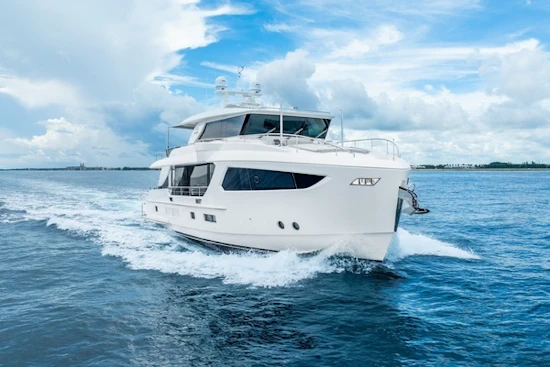

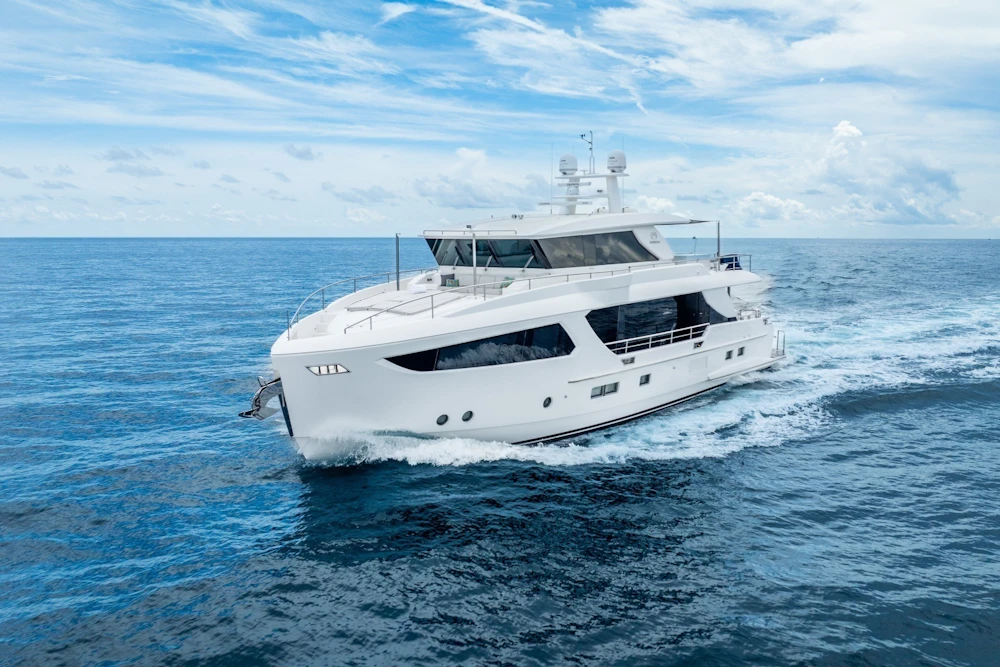

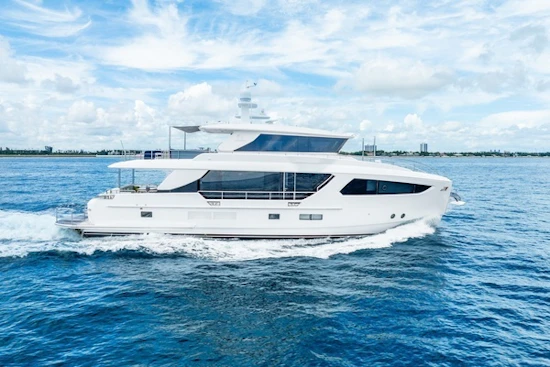

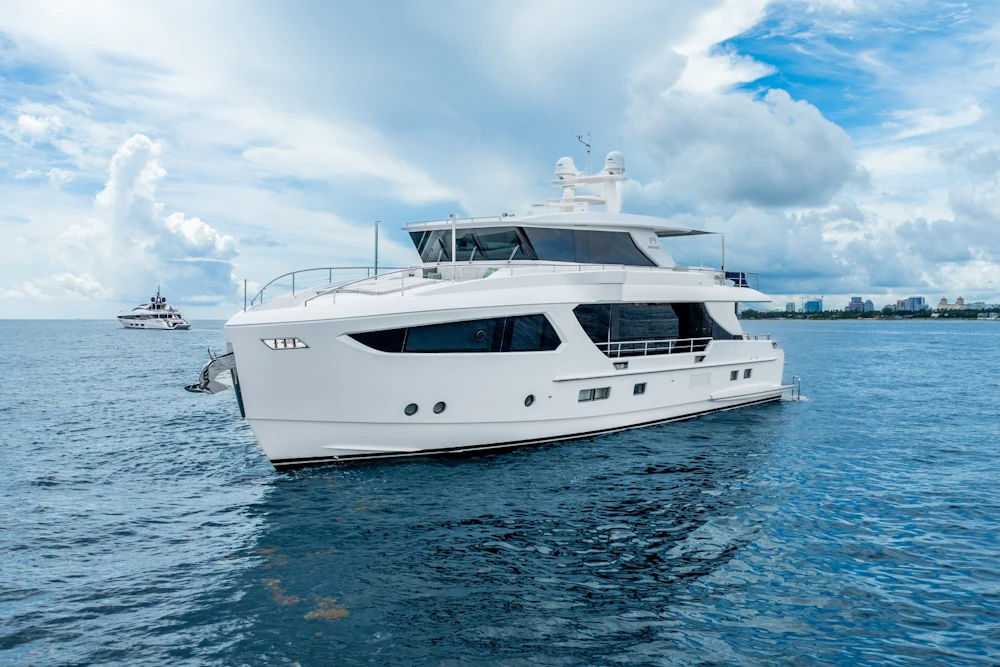

2020 Horizon FD80

SEE HER AT PBIBS - RAMP 8!

Experience luxury on the 2020 Horizon FD80, ONE MORE TIME. This 80’ yacht combines sleek design, modern comfort, and top-tier amenities. With 4 cabins for 8 guests,

expansive outdoor living spaces, a Jacuzzi, and advanced navigation, it’s perfect for unforgettable adventures. Elegance meets performance—your ultimate cruising experience awaits.

KEY FEATURES:

• Largest volume vessel in its class
• Built to US spec and US duty paid
• 4 Stateroom with on deck master stateroom
• 2 crew in transom
• Skylounge with day head
• Full 3-year Man V8 1200hp engine warranty
• Twin 29Kw Onan generators
• Zero speed stabilizers
• Bow and stern thruster
• Jacuzzi on bridge deck
• 1500lb davit on bridge deck
• Hydraulic swim platform
• Beach club with full bar and seating area
• Tidal wave waste treatment system
• Exterior main deck day head

Electronics

• Autopilot
• DVD Player
• Flat Screen TV
• GPS
• Navigation Center
• Radar
• Radio
• TV Set
• VHF
• Wi-Fi

Inside Equipment

• Dishwasher
• Electric Bilge Pump
• Electric Head
• Fresh Water Maker
• Manual Bilge Pump
• Marine Head
• Microwave Oven
• Refrigerator
• Sea Water Pump
• Stern Thruster

Additional Equipment

• Jacuzzi
• Underwater Lights
• Walk Around

Outside Equipment / Extras

• Cockpit Cushions
• Cockpit Table
• Hydraulic Bathing Platform
• Hydraulic Swim Step
• Swimming Ladder
• Teak Sidedecks

Foredeck and Aft Deck

• Frameless windows w/ clear tempered laminated low-E glass for windshield
• Frameless windows w/ tinted tempered laminated glass for side windows
• Heavy duty 1 1/2" handrail w/ 1 1/4" S/S stanchions & steel cable
• Forward and aft deck hawsers (4 total)
• Nonskid side decks and bow deck
• Foredeck accessed from starboard staircase/walk around on main deck

Deck and Exterior Features

• Foredeck built-in seating w/ folding table
• Foredeck sun pad w/ drink holders (& sun pad cushion to cover skylight)
• Sun awning
• Pop-up LED lights
• Freshwater and seawater washdown system
• 350 ft high tensile 1/2" anchor chain w/ hidden cover
• 120kg S/S anchor
• Maxwell VC3500 windlass
• Bulwark side doors aft deck for boarding
• Staircase from aft deck to flybridge
• Teak aft deck, teak swim platform and teak steps to swim platform, and stairs to flybridge
• Day head on aft deck
• Built-in aft seating w/ Hi/Lo table w/ loose chairs (can be moved closer to built-in seating; two sets of table leg sockets)
• Full-height locker + refrigerator on port side
• Glass windows on aft deck seating top for light into beach club
• Wing/weather doors to port & starboard leading to side decks
• Electric flip down Samsung 32" TV in ceiling
• Pre-wired for LED boat name on stern
• Fusion Marine stereo w/ speakers

Beach Club

• Hydraulic full-width stern door w/ pantograph door in the middle
• (2) Tinted windows
• L-shaped seating w/ storage
• Hydraulic Hi-Lo swim platform with 1500 lb. capacity
• (2) Pop-up cleats on swim platform
• Built-in shower w/ hot/cold water above swim platform
• (2) Removable corner rails w/ extra sockets on fixed platform section
• 32" Samsung LED TV
• Fusion Marine stereo w/ speakers

Skylounge and Boat Deck

• 2-person hot tub on boat deck
• Skylounge design w/ sofa, Hi/Lo table, ottomans, day head
• (2) STIDD helm chairs at helm & Samsung 49" Hi/Lo TV
• Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Super Sport magnetic compass
• Surveillance camera system (PTZ cameras for aft deck & engine room), bilge pump panel & navigational lights
• Fusion Marine stereo w/ speakers
• Non-skid boat deck
• Walk-around bridge design; port side bridge leads forward to bow deck
• Free-standing sun pad
• Refrigerator, sink & icemaker
• 24" propane BBQ w/ Hi-Lo stand and propane storage in custom cabinet
• Sun awning
• Hydraulic Steelhead davit ES1500
• Oversize drains w/ strainers on each corner w/ internal overboard drains
• (1) Hatch on hardtop w/ a ship-loose retractable ladder
• Radar arch w/ antenna bracket
• (4) Flood lights total: (2) on mast & (2) on boat deck
• (2) Search lights
• Chrome-plated air horns on top of radar arch
• Pre-wired for LED boat name on port & starboard flybridge

Engine and Propulsion Details

• Twin MAN V8 1200HP diesel engines (30 hrs.) w/ZF reduction gearboxes
• Engine mounts on S/S engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard
• Remote control (throttles, gears & thrusters) w/ plug on aft deck; extra plug at helm
• Bosch Rexroth engine controls
• S/S shafts Aqualoy 22HS
• High performance S class 5 blade propellers
• Teleflex SeaStar power steering system
• S/S emergency tiller in rudder cabin
• Underwater exhaust system for engines w/ bypass mufflers
• Main bronze strut w/ backing plate
• S/S rudders w/ zinc plates
• Shaft & rudder packing glands w/ Tides Marine seals
• ABT Zero Speed Stabilizer (300/9X)
• ABT hydraulic bow and stern thrusters, 38 HP each
• Hydro-tab trim tabs w/ full automated 4DHC NMEA control
• Delta T engine room ventilation system
• Heavy-duty insulated engine room door
• S/S grab rail on each side of engine
• Engine room LED ceiling lights
• Swan air compressor
• Pre-plumb and pre-wire for dive compressor
• ER strainer plumbing with cross over line and fresh water flush

Mechanical Systems

• 2,700-gallon (total capacity) fuel tanks w/ sight and electric gauges
• Dual Racor 75/1000 MA fuel filters/water separator, each engine
• (2) Electric fuel transfer pumps
• Reverso FPS210 fuel polishing system
• Oil change pump systems for engines, gears & generators
• (2) Racor 500 MA fuel filters
• 400-gallon FRP water tank
• Marine grade lines for fresh water system
• (2) 20-gallon water heaters
• Sea Recovery water maker, 700 gal/day
• High volume AC fresh water pressure pump & back-up DC pump
• Fresh water charcoal filters plumbed into fresh water line: fresh water pump, shore
• water inlet, galley
• Chilled water Marine Air Dometic VARC chiller & STIC AC system
• Backup A/C sea water cooling pump (ship loose)
• Hot water circulation pump
• Tecma Silence Plus toilet system
• 100 gallon holding tank w/ Y valve & deck fitting for dockside pump out
• Sump pumps system for grey water
• Electric level indicators for holding tank
• Headhunter sanitary system
• (5) Electric Rule bilge pumps
• (2) Manual bilge pumps in ER & forward staterooms
• High water level bilge pump
• Bilge exhaust ventilation fans
• Fire insulation in ER
• Fire resistant treatment for pipe penetrations
• (5) Portable fire extinguishers
• Sea-Fire fixed fire extinguishing system
• Integrated fire system in Skylounge

Electrical System

• LED lighting system throughout interior & exterior
• (2) Onan Generators 29kW (60Hz) with sound shield
• Maretron monitoring & control system
• OctoPlex multi-plexing power distribution system
• (2) Glendinning 100Amp shore power cable masters, each w/ 75’ power cable
• (2) Shore power Acme ISO boost transformers
• (4) Lifeline 255Ah start batteries for engines/generators w/ battery chargers
• (4) Lifeline 255Ah AGM batteries for ship’s DC 24V power w/ combined inverter/chargers
• GFI protection for all AC outlets in exterior, heads, galley, and engine room
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc.
• (6) Underwater lights

Interior Decor and Equipment

Guest accommodations include on-deck master stateroom, forward VIP cabin, port VIP cabin, and starboard twin guestroom, all ensuite Crew has a twin crew stateroom, full head & crew galley, w/ access from salon and transom Custom luxury interior package for interior décor & lighting Full set of Horizon logo galley tableware for 10, including dish holder, pots/pans, dishes, plates, knives, forks, glasses, etc.

Salon

• S/S folding & sliding salon entrance door, self-locking, with additional glass door
• Full-height windows in main salon aft
• Electric single-treatment curtain
• L-shaped sofa w/coffee table & stools
• Port side cabinet + folding table & chairs
• 55” Samsung LED TV, fold down from ceiling
• Bose soundbar 700 home theatre system
• Blu-Ray player
• Apple TV
• Breakfast bar design w/ 3 stools & under-counter glass storage
• Wine cooler
• Hinged opening doors to port & starboard

Galley

• Storage lockers
• Sub Zero full height refrigerator w/freezer drawers
• Pantry w/ Sub Zero freezer drawers underneath
• Miele oven & cook top
• Bosch microwave & range hood
• Miele dishwasher
• Blanco double sink w/ garbage disposal
• KitchenAid trash compactor
• Hi-Lo privacy screen between galley & salon
• Hidden doors to enclose galley for privacy

Master Stateroom

• On-deck King bed
• Walk-in closet + additional storage
• Sofa to port
• Chest of drawers w/storage to starboard
• Ensuite head w/ shower, large sink, and toilet
• Opening port holes, 1 each in large window port & starboard
• Skylight w/ electric OceanAir blind
• Electric roman blinds
• 49” Samsung LED TV
• Bose soundbar 700 home theatre system
• Blu-ray player
• Apple TV

VIP Stateroom, Bow

• Walk-around Queen bed
• Two hanging lockers, port & starboard
• Ensuite head w/ shower, sink, and toilet
• Samsung 32” LED TV
• Fusion Marine stereo w/ speakers

VIP Stateroom, Port

• Walk-around Queen Bed w/ drawers
• Large hanging closet
• Ensuite head w/ shower, sink, and toilet
• Samsung 32” LED TV
• Fusion Marine stereo w/ speakers

Guest Stateroom, Twin

• (2) Sliding twin beds
• Hanging closet
• Ensuite head w/ shower, sink, and toilet
• Samsung 32” LED TV
• Fusion Marine stereo w/ speakers

Guest Companionway

• Wood steps and flooring
• Miele stacked washer/dryer
• Linen locker
• Dyson cordless vacuum w/ built-in storage spot

Crew Quarters

• GE microwave & Kenyon cooktop
• Vitrifrigo fridge + freezer drawers
• GE stacked washer/dryer
• Storage lockers
• Twin stateroom w/ two beds & hanging locker
• Head w/ shower, toilet & sink
• Fusion Marine stereo w/ speakers
• Dyson cordless vacuum w/ built-in storage spot

Electronics

• TV antenna on top of radar arch
• (5) Panasonic PBX wireless telephones
• Exterior connector for shore phone and cable TV
• SAT TV (KVH TracVision HD7) + (1) KVH TracPhone V7-IP Empty Dome
• SAT phone pre-wire only
• Cellular router system w/ Wi-Fi onboard

Pilothouse Navigation

• (4) GPSMAP 8617 MED 17” Multifunction displays
• (1) dedicated to Maretron
• Garmin GMR 1226 72” 12KW 72nm open array radar system + GMR Fantom 4 48” solid state open array radar &pedestal
• MBB300C for inputting Maretron info into GARMIN display
• Garmin GPS 19 NMEA 2000
• Garmin Reactor 40 autopilot control unit
• Garmin instrument display w/ wind transducer; depth, speed & temp transducers
• Garmin fish finder
• Garmin weather receiver
• (2) Garmin VHF 215
• Garmin AIS 800
