2018 Sabre 66 Dirigo

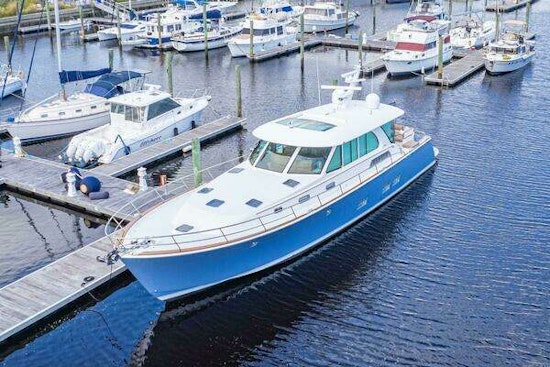

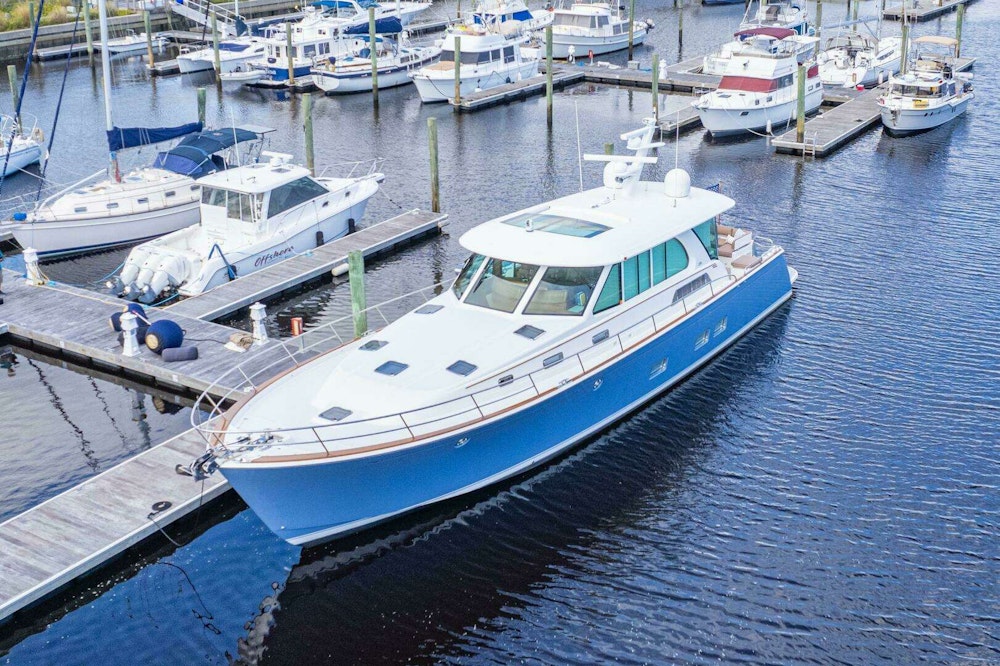

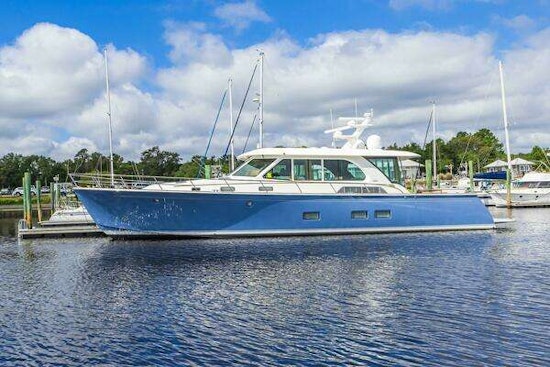

Sandcrab is a perfect example of the stunning Sabre 66 Dirigo. She showcases a combination of an elegant profile, generous accommodations, and performance.  Sandcrab is one of the few Sabre 66 Dirigos built with cherry walls, rather than wallcoverings. This custom option showcase Sabre's craftsmanship and instantly delivers a richness and warmth as you go below.

The standard equipment and option lists are long and detailed (included in the body of the listing) but some notable features and options include:

• Full beam master with king bed, sofa, walk-in closet and exceptional drawer storage, rivaling the size and amenities of a master on an 80' yacht.
• Chef's galley down with full sized subzero refrigerator, and Wolfe cooking appliances
• Mini galley aft with Subzero refrigerated drawers, Subzero freezer, wine refrigerator, storage sink and trash
• Full headroom engine space, and a very serviceable pump room forward
• Flexible salon space for dining, lounging, TV watch or entertaining
• Pigeon Blue Awlgrip
• Sureshade electric retracting cockpit awing
• Passerelle system for transom boarding
• Seakeeper 16
• Full Spectrum Underwater Lights
• Custom mast arrangement to have 6' array on bottom platform, 4' array on top

Recent Maintenance and Upgrades are Listed Below:

• July 2024Bottom paint
• Clean props
• Paint running gear
• Replace zincs
• Wax hull
• Full machinery service: engines, gen, pods
• June 2024Teak toe rail sand and varnish with 13 coats of varnish and new caulking
• May 2024New Marquipt Sea Stair Aluminum 19” wide boarding Ladder with attachment on port and starboard sides
• Dockmate Wireless Remote Control
• October 2023Fusion 770 stereo with JL Audio amp and Sonance speakers in Salon ,Galley, and cockpit
• Sentinel Marine telematics BM40 system
• Remote access computer system for remote access and programing
• Gost Security & Surveillance System
• August 2023New Cockpit Cover
• New C-Shade Cockpit Awning with 1 ½” stainless poles

Factory Options & Custom Factory Options

MECHANICAL

• Seakeeper NG16 gyro stabilizer
• Dometic SeaXchange Watermaker 50 gallons per hour
• Electric line handling winches P&S
• Install dual AC pumps with a manual switch valve between them
• Fuel polishing system
• Electric overboard discharge thruhull
• IPS Joystick in the cockpit, stbd wing on FRP wedge
• Plumb oil change intake and pump out lines into transom locker
• Raise the Charles Isoboost Transformers up to 3" for better access
• Upgrade hydraulic swim platform to 2200lb capacity
• Replace Onan generators with Northern Lights generators
• Build a platform on top of SeaKeeper and install a toolbox on top of it

ELECTRICAL

• Central vac with (3) outlets and 32 foot hose
• ACR searchlight model RCL-100D 200,000 candela
• (2) Install additional 120VAC duplex outlets, one on each side of the master berth
• Full color spectrum underwater LED lights with controller, set of 5, new full spectrum color package
• Delete the cable TV hookup from boat
• Install parallel NMEA backbone system

EXTERIOR AND DECK

• Contrasting non-skid color
• Teak decking in aft cockpit and steps
• Teak decking on swim platform
• In transom storage space build a dedicated storage area for cleaning supplies, pails, shammy mops, etc.
• Custom mast arrangement to have 6' array on bottom platform, 4' array on top
• Install a 32" television in the cockpit overhead to drop down
• EE001 style grill cabinet in cockpit with a cushion on top and propane grill
• Install Passerelle in cockpit with straight out, updown
• Piping on the cockpit settee

INTERIOR

• Satin finish on drawer pull hardware
• Beveled mirror in the master and VIP heads, guest/day head standard
• Rapid coat wood finish throughout boat
• Delete the wall tile in the VIP and Guest shower. Build shower walls out of white acrylic panels.
• Delete all wallpaper from boat. Cherry walls with cherry chair rail.
• Colorquartz Bel Air Beige in the galley, mezzanine deck, master head countertop and seat
• Replace the standard galley faucet with Kohler Purist K-7507-CP in polished chrome
• Replace the standard head faucets with Kohler Purist K-11402-4A-CP in polished chrome
• Replace the standarded shower head and hand shower in all showers with Kohler Purist K-76467-CP hand shower and Kohler Purist K-939-G-CP shower head in polished chrome

MEZZANINE DECK / MAIN SALON / HELM DECK

• Mezzanine deck sole to be teak decking.
• Install a 24" SubZero freezer to stbd in the mezzanaine deck, delete the icemaker
• Customer main salon drapery fabric, S/B Boss Tweed OD Color: Wren
• Piping on the main salon settee
• Mount the watermaker controls on an articulating arm and install in the stbd side of cabinet aft of the helm door
• Install trim in front of the main salon corner curtains to hide the track

MASTER STATEROOM & MASTER HEAD

• Stainless steel valuable safe mounted in walk-in closet
• Master head, install same style TP holder as hull 001 in brushed nickel
• Customer master berth, base standard height with slats instead of a solid platform. Keep standard drawers below berth. Customer 5.5" box spring with customer master berth. Berth platform, box spring, and berth to have square corners
• Install an undermount sink in master head
• Colorquartz Bel Air Beige in the master stateroom end tables x4
• Add S48 style arm rests on the master stateroom sette
• Redesign master stateroom seat and back rest cushions to be reversible
• Master HeadInstall customer supplied master shower port bulkhead: Onda Borgogna 24X24 M/R with Mapei Navajo grout #35
• Install customer supplied master shower forward and aft bulkheads: Borgogna 12X24 M/R with Bull Nose Borgogna 3X24 BN M/NR with Mapei Navajo grout #35
• Install owner supplied custom master head sole tile: Borgogna 12X24 M/R Mapei Navajo grout #35
• Replace standard wall mount mirror with Jerdon HL 1016CL
• Owner supplied cup holder in vanity drawer
• Custom master berth mattress: 1/2 and 1/2 - Master, from foot of bed: C4 latex on left, C2 latex on right with memory foam on the top - 10" depth, custom shape mattress with a square bottom

VIP STATEROOM & HEAD

• Install an undermount sink in the VIP head
• Colorquartz Bel Air Beige countertop in the VIP head
• Install owner supplised customer tile in the VIP head sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
• Install owner supplied customer tile in the VIP shower sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
• Replace standard reading lights in the forward cabin with Imtra St Maarten, SS w/Ocean Swirl Globe

GUEST CABIN & HEAD

• Install an undermount sink in the Day head
• Colorquartz Bel Air Beige countertop in the Day head
• Install owner supplied customer tile in the forward cabin head sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
• Install owner supplied customer tile in the forward cabin shower sole: COEM Reverso Beige Wavy Mosaic with Mapeo Ivory grout #39
• Install owner supplied cup holders on the inboard bulkhead of the sink, 7", centered on the bulkhead

Electronics

• Garmin radar; Fantom 6, 6’ array
• Garmin radar; Fantom 4, 4’ array
• Volvo Garmin 8617 Glass Cockpit (stbd screen)
• Garmin 8622 Glass Cockpit (middle two screens)
• Garmin 8617 Glass Cockpit (port screen)
• Garmin GSD25 sounder module
• Garmin GSD24 sounder module
• Garmin GXM 53 wx module
• Garmin AIS600
• (2) Garmin VHF 300, w/2 8’ ant. and hailer horn
• ACR RCL300 HID spotlight
• FLIR camera
• Garmin mast and engine room cameras
• Intellian 6 series HD system with dummy dome (5) DirecTV receivers
• ACR Epirb
• Sentinel Marine telematics BM40 system
• Gost exterior cameras

Decor

EXTERIOR

• Hull Paint Color: Pigeon Blue H5511
• Boot Top Color: Sport Yacht White
• Cove stripe: Gold
• Deck Color (Gelcoat): Sport Yacht White
• Anti Skid Color (Gelcoat): Smoke
• Swim Platform Color & Anti Skid: Sport Yacht White w/ Teak
• Cockpit Settee Fabric: U/L Cora Harmony with U/L Promessa Marine Midnight Piping
• Cockpit Grill Seat Cushion: U/L Cora Harmony with U/L Promessa Marine Midnight Piping

MEZZANINE DECK / MAIN SALON / HELM DECK

• Overhead Cloud Fabric (throughout boat):U/F Irish Lace
• Mezzanine Countertop Color: Bell Air Beige Color Quartz
• Mezzanine Deck Sole Material: Teak Decking
• Main Salon Settee Fabric: U/L Promessa Corn Flour with U/L Cora Indoor/Outdoor Harmony Piping
• Main Salon Chairs Fabric: S/B Pinacle OD Color: Denim with U/L Promessa Corn Flour (owner supplied fabric)
• Main Salon Cabin Sole Material: Sapele 4'' wide wood plank sole w/ standard maple border
• STIDD Seat Fabric: U/L Cora Indoor/Outdoor Harmony with U/F Strada Armanda Piping
• Helm Deck Settee Fabric:Seat: U/L Cora Indoor/Outdoor Harmony with self welting
• Back Rest: S/B Pinacle OD Color: Denim (owner supplied fabric)
• Helm Deck Sole Material: Maple plank sole with Cherry border
• Main Salon Curtains: S/B Boss Tweed OD Color: Wren (owner supplied fabric)

GALLEY / HALL

• Galley Countertop Material: Ball Air Beige Color Quartz
• Galley and Hallway Sole Material: Cherry and Holly
• Art Nook Shelf Material: STD High Gloss Cherry

MASTER STATEROOM & MASTER HEAD

• Master Sole Material: Sapele 4'' wide wood plank sole w/ standard maple border
• Master Stateroom End Table Top Material x4: Bell Air Beige Color Quartz
• Master Head Countertop Material: Bell Air Beige Color Quartz
• Master Head Shower Seat Material: Bell Air Beige Color Quartz
• Master Head Sole Material: Owner supplied custom head sole tile: Borgogna 12x24 M/R Mapei Navajo grout #35
• Master Shower Wall Tile: Owner supplied custom master shower tile:Master Shower Port Bulkhead: Onda Borgogna 24x24 M/R with Mapei Navajo grout #35
• Master Shower Forward & aft Bulkheads: Borgogna 12X24 M/R with Bull Nose Borgogna 3x24 BN M/NR with Mapeo Navajo grout #35
• Master Shower Sole Tile: Customer supplied tile, Grout - Mapei Navajo grout #35

VIP STATEROOM & HEAD

• VIP Cabin Sole Material: Cherry and Holly
• VIP Head Countertop: Bell Air Beige Color Quartz w/ undermounted sink
• VIP Head Sole Material: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
• VIP Shower Wall Tile: Custom Acrylic Walls
• VIP Shower Sole Tile: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39

FORWARD CABIN & DAY HEAD

• Forward Cabin Scissor Berth Fabric: S/B Dupione Galazy
• Forward Cabin Sole Material: Cherry and Holly
• Day Head Countertop: Bell Air Beige Color Quartz w/undermount sink
• Day Head Sole Material: Owner supplied COEM Reverso Beige WavyMosaic with Mapei Ivory grout #39
• Forward Cabin Shower Wall Tile: Custom Acrylic Walls
• Forward Cabin Shower Sole Tile: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39

Standard Factory Specifications

PROPULSION SYSTEM

• (2) Volvo IPS 1200 drives w/D13 900hp engines
• Volvo Interceptor automatic trim system
• Volvo DPS positioning system
• Volvo Active Corrosion Protection system
• Volvo autopilot with joystick steering
• Volvo/Garmin Glass Cockpit Engine Display (1)
• Fresh water-cooled engines
• Primary 24VDC alternators each engine for charging isolated engine start batteries
• Groco raw water intake strainers
• Oil change system services engines, drive units, and both generators
• Engine room ventilation system 24VDC
• Engine room intake ducts on cabin house side with stainless steel grills
• White gelcoated engine room
• Fully sound insulated engine room

HULL

• Premium LP Painted Topcoat Finish
• Modified “V” planing hull design
• 21 degree deadrise amidships and 16 degree deadrise at transom
• Reverse sloped transom
• ISO NPG clear gel coat w/ vinylester back-up resin
• Knitted Biaxial Structural E-Glass reinforcements
• Infused SAN Corecell foam core in hull bottom and topsides
• PVC Foam cored composite stringer system
• Hull side rubbing strakes
• White PVC rub rail with stainless steel cap
• Painted (Urethane) Double Boot Strip
• Gold Cove Stripe

DECK

• ISO NPG gelcoat
• VIP resin infused Knitted Biaxial Structural
• E-Glass Reinforcements with coring
• Molded-in anti-skid deck surfaces
• Twin anchor lockers
• Direct glazed windshield
• Sliding/opening side windows
• Port & Starboard transom gate access to cockpit
• Cockpit U-shaped settee with hi gloss table & (2) chairs
• Hydraulic submersible swim platform 900 lb. capacity for dinghy storage and handling

DECK HARDWARE

• 1 1/2" diameter type 316 stainless steel perimeter rail system
• (4) stainless steel spring cleats
• (2) stainless steel mooring cleats
• (2) stainless steel stern cleats
• Salt water wash down system forward
• Custom stainless steel dual anchor roller
• 24V Electric Windlass with controls at helm and foot switches on deck
• Flagpole holder and flagstaff
• Stainless steel hatches w/screens
• Oversized Stainless steel opening ports
• Teak cap rails port and starboard
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion
• Triple Exalto windshield wiper systems
• Dual Kahlenberg air horns
• Cockpit retractable sun awning

FUEL SYSTEM

• 975 gal. diesel fuel total
• Port & Stbd 225 gal. “day” tanks
• 525 gal. centerline diesel storage tank
• Dual redundant fuel transfer pumps
• Racor dual 75/1000MAX fuel filters for propulsion engines
• Racor 500MA fuel filters for generators
• 2” “Diesel” stainless steel deck fill plates starboard

NMEA2000 NETWORK SYSTEM

• Network monitoring of systems
• Network control of DC & AC electrical circuits
• Backup/override of all network circuit faults
• Mode controls, single one push button activation of boat wide circuits, customizable
• Onboard WiFi for network
• (2) iPad Minis with Launch Port for wireless control of network systems
• Parallel NMEA backbone for dealer installed electronics

120/240 VAC ELECTRICAL

• Twin 120/240VAC 50 amp AC shore power services with cord reels aft
• Isolation boosting transformer each shore service
• 21.5kW Onan “Quiet” generator primary
• 13.5kW Onan “Quiet” generator secondary
• Automatic AC switching system for shore & generator power
• Mastervolt 4.0kW high output inverter/charger
• Stand-alone 100A battery charger
• All accessible 120VAC outlets GFCI protected
• 120/240VAC distribution panels in engine room, adjacent to helm, and in galley.

24DC ELECTRICAL SYSTEM

• Ships battery bank (8) 6V AGM batteries
• Port & starboard isolated 24VDC engine starting battery banks, (4) Lifeline AGM 3100
• Dedicated 24VDC battery charger for engine battery banks
• Helm remote controlled battery switches with manual override
• LED Navigation lights
• High efficiency LED designer lighting throughout interior
• 24VDC distribution panels in engine room, pump room, and adjacent to helm

12VDC ELECTRICAL SYSTEM

• 12VDC battery bank (2) Lifeline AGM 24 supports generator start & 12VDC circuits
• Dedicated 12VDC battery charger
• Redundant 24VDC/12VDC converter
• 12VDC USB outlets at helm and in all cabins
• 12VDC distribution panel adjacent helm
• HDMI cables run from each TV to the area forward stbd of the master stateroom entry

WASTE DISPOSAL

• Polyethylene holding tank 120 gallon capacity
• Holding tank vent filtration
• Full time cycling pump room exhaust fan
• Tecma Silence & Dometic Freshwater MSD’s with white ceramic bowls
• Diaphragm pump on holding tank to pump overboard
• Electric motorized seavalve for holding tank pump out when at sea
• Day head ability to bypass holding tank and direct overboard discharge via locked Y-valve

FRESH WATER SYSTEM

• Water capacity approx. 300 gals.
• 24VDC Headhunter X-Caliber primary pump
• 240VAC Headhunter Mach 5 primary pump
• 26 gal. water heater
• Hot water circulation pump
• Filters on fresh water pump system and shore water inlet
• Fresh water coil hose in engine room
• Fresh water wash down at anchor locker

HELM DECK

• Electrically operated sun roof over helm & salon
• Twin Stidd helm seats with chrome finish
• Joystick steering on helm seat armrest
• Helm deck settee to port
• Door to starboard side deck
• Helm dash area finished in cherry
• Volvo/Garmin touch screen display for network operation
• Navigation switch panel
• Custom wood trimmed stainless steel wheel
• Air Conditioning/heat 12,000 BTU

MAIN SALON

• U-shaped lounge to port with custom fabrics.
• Hi-Lo table with inlays and deep epoxy finish
• Lounge chairs to starboard with 50” HD Smart television on electric lift
• Blinds on all windows
• Cherry sole with sealer finish
• Soft acoustic headliner panels
• Air Conditioning/heat 48,000 BTU total,
• 24,000 BTU each side

BAR DECK

• Stainless steel electric sliding double-acting door to cockpit with curved glass windows on corners
• Viatera countertop with bar sink and glass locker below
• Sub-Zero undercounter refrigerator

GUEST STATEROOM- Forward

• Scissor berth converts from queen island to twin bunks with storage below
• Cherry hull ceilings
• Enclosed upper shelves to port and starboard of island berth Fwd most section open shelf
• Dimmable accent lighting below shelves and berth.
• Cedar lined hanging lockers
• Bureau
• Built in 24”HD television
• Screen/Shade for hatch
• Private access to guest head/shower compartment
• Cherry and holly sole with sealer
• Soft acoustic headliner panels
• Air Conditioning/heat 12,000 BTU

GUEST/DAY HEAD- Forward

• High Gloss solid cherry vanity top with vessel sink and faucet
• Cherry and holly sole with sealer in day head
• Separate shower stall with ceramic tile floor
• Storage lockers
• Stainless steel towel bars
• Wood trimmed mirror over sink
• Ventilation blower

VIP STATEROOM – To port

• Queen island berth with drawer & storage below
• Night stands with drawers both sides
• Cedar lined hanging locker.
• Bureau
• Built in 32”HD television
• Stainless steel investment cast port lights with screens
• Round hull side deadlights
• Screen/Shade for overhead hatch
• Private access to VIP head
• Cherry and holly sole with sealer
• Soft acoustic headliner panels
• Air Conditioning/heat 10,000 BTU

VIP HEAD

• High Gloss solid cherry vanity top with vessel sink and faucet
• Cherry and holly sole with sealer
• Separate shower stall with ceramic tile sole
• Ceramic tile floor
• Storage lockers
• Stainless steel towel bars
• Wood trimmed mirror over sink
• Ventilation blower

GALLEY

• Toe kick space length of galley with courtesy lighting
• Sub-Zero full height refrigerator/freezer
• Wolf 4-element induction cook top
• Wolf convection steam oven
• Wolf microwave oven
• Fisher & Paykel tall dish drawer
• Galley exhaust fan 120VAC
• Viatera cored counter top
• Dovetailed drawers
• Stainless steel under-mount sink with designer faucet
• Pull out waste basket
• Magic corner pull out storage
• Air Conditioning/heat 10,000 BTU

UTILITY (between galley & master)

• Stacked washer and dryer
• Storage under stairs
• Entertainment electronics locker

MASTER STATEROOM (Full beam)

• King size island berth with drawers and storage below
• Night stands with drawers both sides
• Settee
• Bureau(s)
• Walk-in closet
• Hanging lockers
• Large fixed stainless steel hull port lights
• 40” HD Smart TV hidden in mirror
• iPad Mini with Launch Port for wireless control of network systems
• Cherry sole with sealer
• Soft acoustic headliner panels
• Air conditioning/heat 24,000 BTU

MASTER HEAD

• Single porcelain sink with Viatera countertop
• Solid Surface countertop
• Cherry sole with sealer
• Separate shower stall with matching Viatera seat
• Ceramic tile floor in shower
• Storage lockers
• Stainless steel towel bars
• Wood trimmed mirror over sink
• Ventilation blower

DÉCOR

• Screens and shades on opening ports and hatches
• Dovetailed maple drawer boxes throughout

SAFETY

• Fire extinguishers throughout
• Isolation transformers on shore power services
• Bronze and Marlon sea valves on all below waterline fittings.
• Bonding system to safeguard against galvanic corrosion
• Automatic fire extinguishing discharge system with override
• (4) Automatic electric bilge pumps 3700 GPH
• (4) Bilge high water alarms

Manufacturer Provided Description

The Sabre 66 Dirigo is the first American built, downeast-style motor yacht of this size to be introduced to the market. She is, as Designer Kevin Burns states “the highest expression of Sabre yet.” From her functional foredeck to her spacious and comfortable cockpit, she is every bit a Sabre. The best deck hardware, on-deck walking surfaces that are safe and secure, hand holds wherever they are needed, all speak to Sabre’s 45 year history of building boats for people who know boats, and know how they should be equipped.

Her interior is crafted by boat builders with decades of experience. Her systems are modern and functional and her performance as invigorating as boaters have come to expect from Sabre Yachts. Her vee-hull with propeller pockets is sea-worthy and dry. As standard she is fitted with Caterpillar C15 865 hp electronic Acert engines, that are linked to Twin Disc Quick Shift transmissions for smooth and powerful operation. The 54 Salon Express will cruise comfortably in the mid-twenty knot range with incredibly low sound levels of 75 db. She is also available with Volvo IPS 900 engines and pods for those seeking the efficiency, convenience and close quarter’s handling capabilities of pod drive systems. AC Electrical services aboard are provided by two 9.0 Kw Onan generators and her DC system is 24 volt. Molded steps from the aft cockpit provide easy access to her functional and well lit mechanical room.

Her interior accommodations are another world of comfort and elegance. Beautiful woodworking throughout the yacht, pleasing proportions and unusual fine points such as maple inlays and Shoji screens in the owner’s cabin doors, all create an atmosphere of luxury and warmth in this masterpiece of the boat builders craft.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
