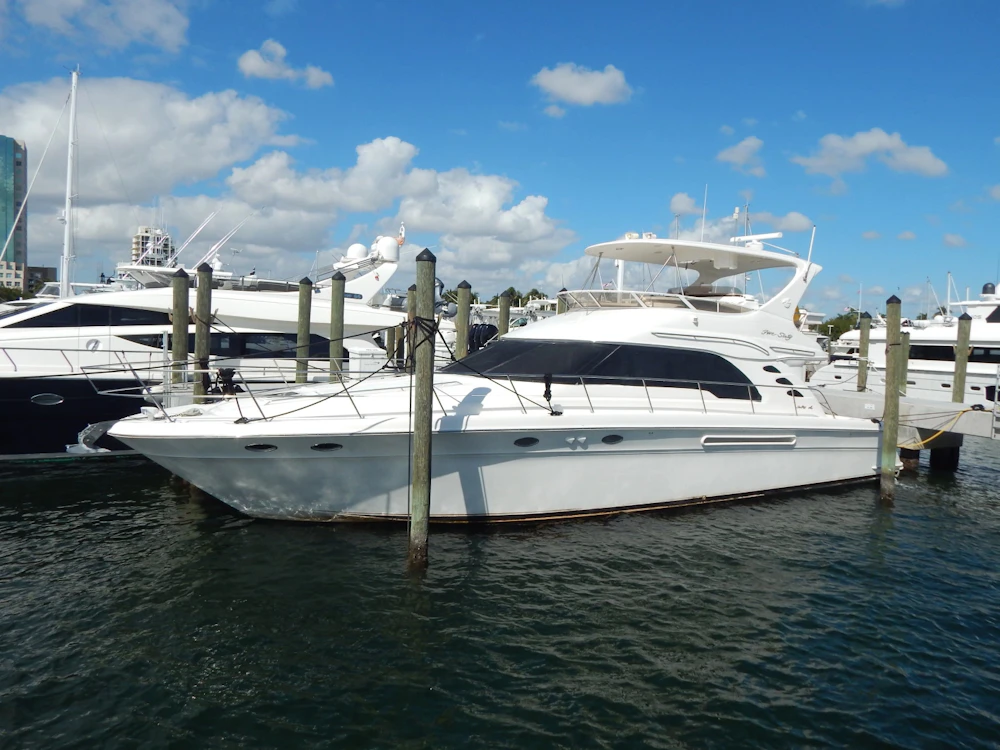

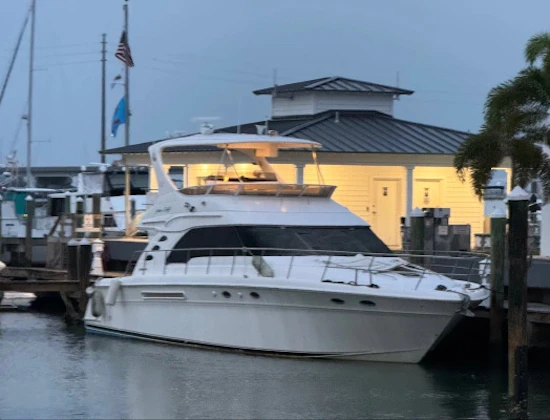

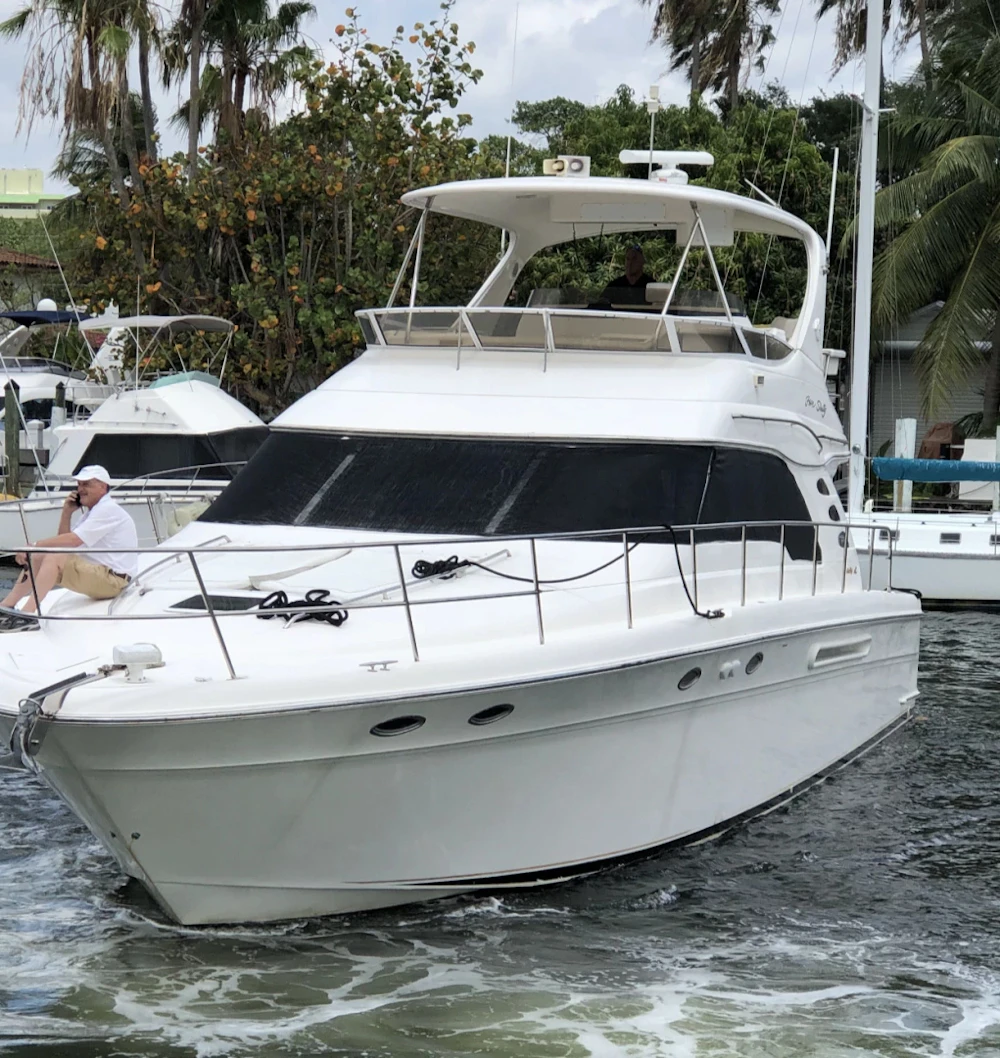

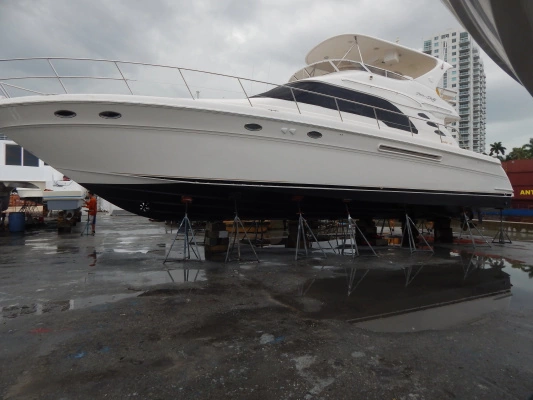

1998 Sea Ray Sedan Bridge

Sea Ray Sedan Bridge 560
Accommodations
Guest Cabins: 3
Guest Heads: 2
LOA ………. 58 ft 6 in ft
LWL……… 56 ft
Beam ……. 16 ft
Draft ………4 ft
Displacement …..50,000 lbs
Tankage .. Fuel 800 gal ( 2 tanks 400 gal ea)
Water.. 200 gal
Holding . 68 gal
Engines (2) – Detroit 8V92-TBA 735 HP (850 hours reported by owner)
Generator Westerbeke 20.0 OBEDA 20kw (730 hours)

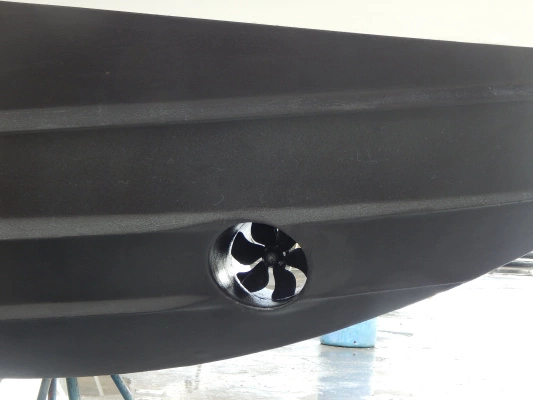

Bow Thruster – Vetus 24v EC-72 7kw (control at helm)
A/C power …. 120/240 v – shore or generator
DC power…. 24/12 v

Cruising speed 18-20 kt (1900 rpm)
Full speed – 25 kt (2200 rpm)

Recent Upgrades And Services

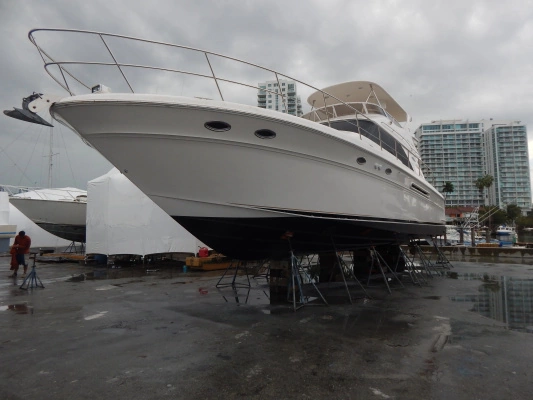

• Hull -Anti fouling painted and topsides waxed (Dec 2025)


• Complete generator service, incl heat exchanger(2024)


• New Freshwater pumps for AC units (2024)


• New I-Com radio(2023)


• New bilge pumps and switches (3) (2023)


• New engine Start battery (2023)


• New bow thruster batteries (April 2026)


• (4) NEW Wabasto air conditioning units (2022)


• Replace water heater with tankless water heater(2021)


• New flat panel TV’s(2021)


• Engines serviced incl.: All new hoses(2021)


• Topsides waxed ( March 2026)

Vessel Walkthrough

Vessel can be boarded from dockside by side deck, or cockpit, or from water from swim platform through transom door to cockpit

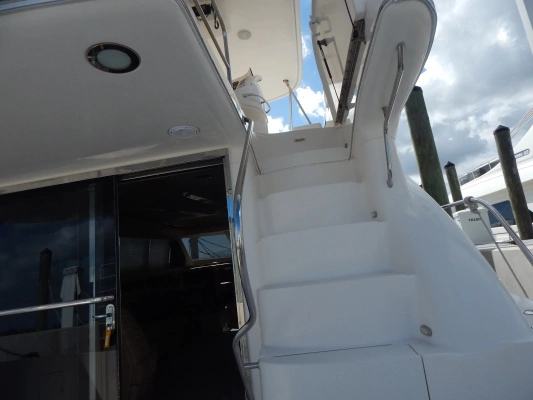

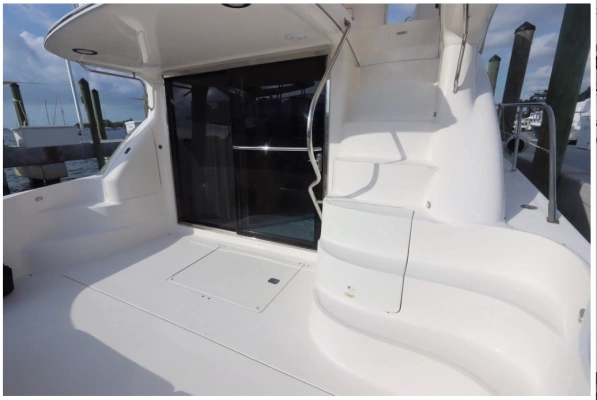

There is a molded stair on Starbd side for access to the flybridge, And access to the main cabin is by sliding glass door from cockpit.
Upon entering Salon there is an entertainment center immediately to Starbd with curved settee forward of the entertainment center
Opposite on Port side is a long L-shaped settee with breaker panel at aft end
A U-shaped Galley is forward of the Settee on Starbd with raised dinette opposite to Port
Large side windows and full forward curved window provide a light and airy feeling to the entire area

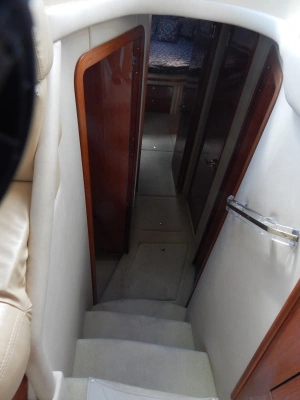

Between the dinette and Galley is a companionway leading forward to the staterooms and heads
A VIP stateroom is first on the Starbd side with large Queen berth and private access to the midships head with separate stall shower – This head also has access to the hallway and acts as a day head and also serves the second guest stateroom
Second guest stateroom is to Port with 2 lower berths
All the way forward is the master with centerline queen berth and private head and shower.

Accomidations

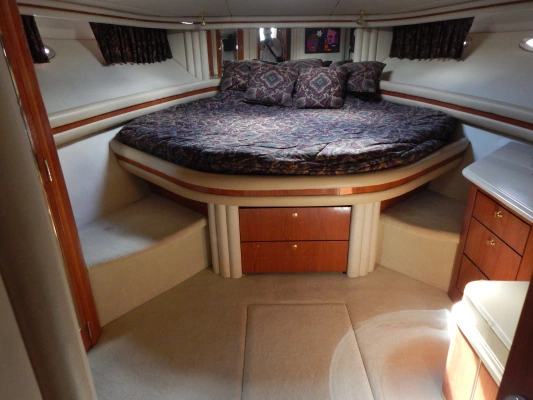

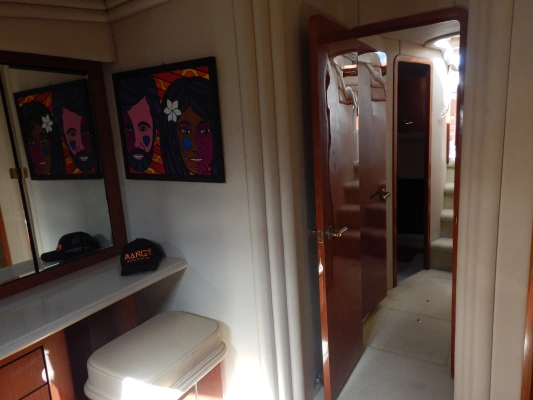

MASTER CABIN

Moving forward from down the hallway you will find the private, full beam master stateroom with en-suite at the bow. It features many comfortable attributes including the following.

The master stateroom has a queen size pedestal bed. To starboard is a lighted vanity counter with drawers underneath. The mirror opens for storage behind. To port is a cedar lined full height closet with lights and mirrors. Aft of this closet Is a Beveled Mirrored Rope Locker Bulkhead

• Cedar-Lined Full-Length Hanging Lockers w- Lights & Mirrored Doors (2)


• Floor Storage


• Privacy Door


• Queen-Size Bed w- Innerspring Mattress, Pillows (2), Sheets & Coordinated Spread w- Storage Below.


• Side Storage Shelves


• Vanity Stool - Vanity w- Beveled Mirrors


• Bose 3 Speaker System - Color TV - VCR - Radio Combo w- Antenna (120V - 60 Cycle)

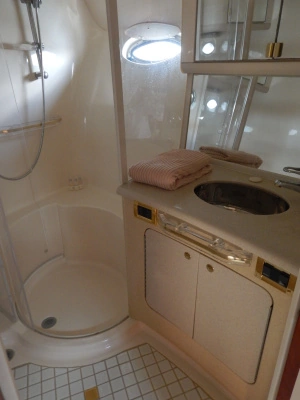

MASTER HEAD WITH SEPARATE SHOWER:

• Cultured Marble Floor


• Grohe Designer Faucet


• Holding Tank Level Indicator


• Medicine Cabinet w- Mirror - Opening Port Light - Power Vent - Privacy Door - Shower w- Seat, Adjustable Shower Wand & Acrylic Circular Door - Upper Storage Cabinet - VacuFlush Head - Vanity w-Corian Countertop, Corian Sink, Mirrors & Storage below

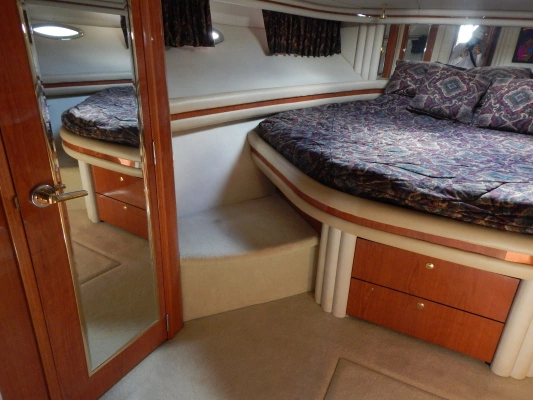

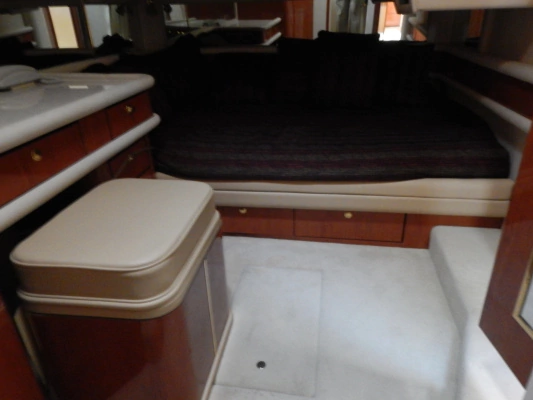

GUEST CABINS

• The VIP guest stateroom is amidships to starboard and features.


• Circular Skylight


• Color TV - VCR - Radio Combo w- Antenna (120V - 60 Cycle)


• Custom Mirror Treatment


• Floor Storage Compartment


• Full-Size Bed w- Pillows, Drawers (2) & Storage Below


• Hanging Locker w- Light & Door


• Indirect Lights


• Opening Port Light w- Curtain


• Vanity Stool - Vanity w- Corian Countertop, Mirror, Stool & Drawers

SECOND GUEST CABIN

• Across the companionway to port is the third stateroom equipped with two single bunks.


• Circular Skylight


• Floor Storage Compartment


• Hanging Locker w- Light & Door


• Opening Port Light w- Curtain - TV - VCR - Radio Combo


• Upper & Lower Bunks


• It also has a Splendide 2000 combination washer and dryer next to the door.

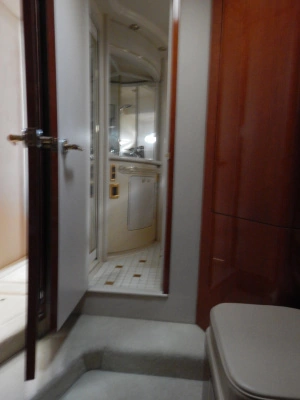

HEAD AND SHOWER

• Acrylic Accessories, Acrylic Handrails


• Cultured Marble Floor


• Grohe Designer Faucet


• Privacy Door w- Full-Length Mirror to Guest Stateroom


• Hallway Entrance Door to Head


• Holding Tank Level Indicator


• Medicine Cabinet w- Mirror


• Opening Port Light


• Power Vent


• Shower w- Seat, Adjustable Shower Wand & Acrylic Circular Door


• Sanitation - Sanitation system consist of two Sea Land vacuum freshwater flushed marine toilet. One MSD type III Dura-Cast plastic holding tank of 68 gallons capacity- Dockside Pump-Out & Level Indicator

Salon And Galley

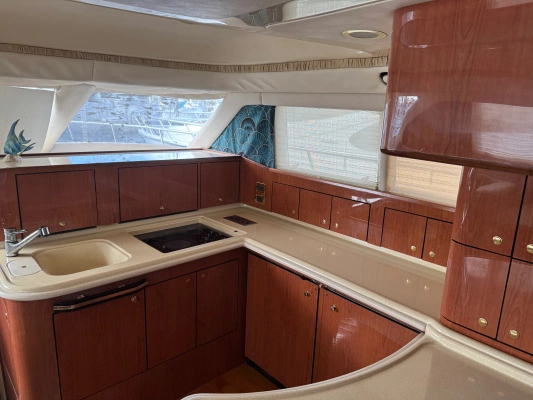

GALLEY:

• The galley is very functional and bright. Positioned in the forward salon surrounded by windows. Cherry cabinetry provides ample storage space for all of your galley needs and expansive counter space make meal prep a breeze.


• 120V Microwave - Sharp Convection Oven


• Custom-Molded Countertop w- Corian Cutting Board & Sink with Single Lever Grohe Faucet


• Flush-Mount Three-Burner Cooktop (240V Kenyon)


• Galley Storage Drawers - Cutlery Inserts


• Glass & Dish Storage


• Lower Galley Storage w- Lazy Susan


• Power Vent


• Trash Chute w- Concealed Removable Trash Can


• Under Counter 120V Freezer w- Icemaker

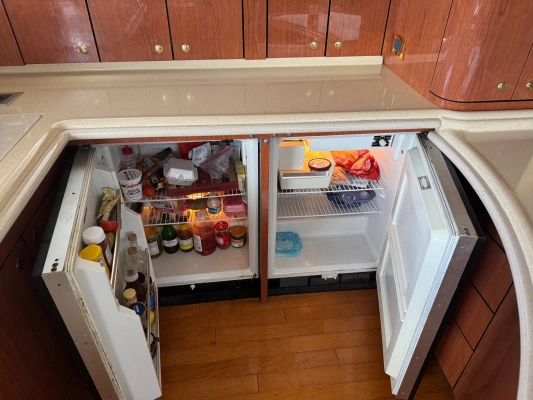

• Under Counter 120V Refrigerator


• Upper Galley Cabinet w- Storage

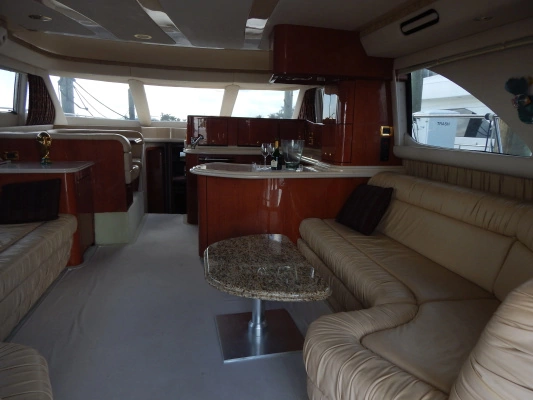

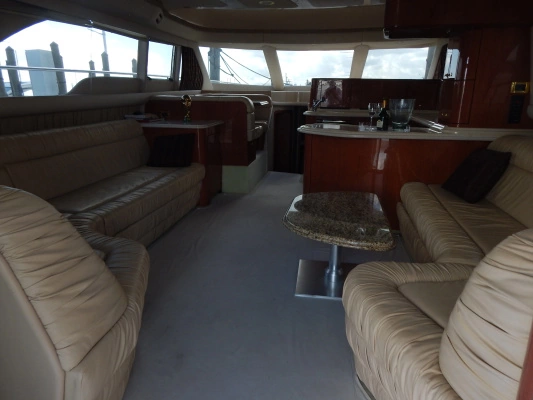

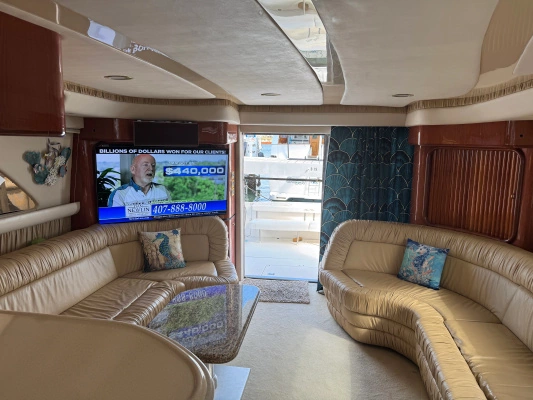

SALON:

• Integral Air Conditioner Vent System


• Wraparound facing Sofas w- Storage Below.


• Entertainment Center for Salon


• Antenna & TV Coax to Dockside


• Bose Lifestyle 20 Stereo System with four cube Speakers and LS Bass Module - CD & Tape Storage Cabinet – Flat screen Television w- Surround Sound


• Ventral vacuum system

Electrical

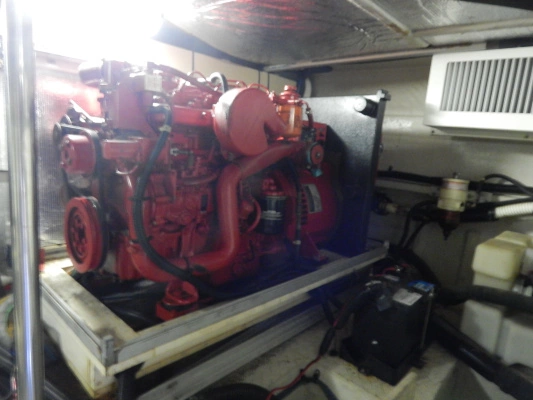

• 20.0 kW Westerbeke diesel generator


• Main DC Breaker Panel


• Mc Carron VMI International Constant Voltage Omni-Step Charger(located in the engine room forward bulkhead.)


• 12/24V DC Distribution Panel


• 12V Receptacle - 120V - 10 Amp


• 12V Converter - 120V - 40 Amp - 24V Converter - 120V - 240V Transient Voltage Surge Protection


• 12V Electronics Circuit w- Large Ground Plate - 50 Amp Battery Equalizer (2)


• 8-D Batteries w/ Boxes (4), Group 27 for Genset start (1), Group 27 for engine start (2), Group 27 for Bow thruster (2) in master stateroom


• Backlit Lexan Switch Panel w- Weatherproof Rocker Switches & Electronic Dimmer Control


• Color-Coded & Marked Wiring w- Chafe Protection.


• Bridge to interior intercom


• 24- and 12-volt electrical system powered by two groups of two 8D 12 volt lead acid batteries in series to make the 24 volt system. One 12-volt group 24 maintenance free battery for generator starting. All batteries are located in the engine room. Additional two 12-volt maintenance free batteries group 27 in series located in the forward bilge to feed the 24 volt bow thruster and windlass. All batteries are secured in acid resistant boxes with covers except for the generator starting battery. Main shut-off solenoid switches in the engine room with controls at the main electrical panel. Combined DC/AC main electrical panel located to port of companionway. Circuit monitoring is provided by battery voltage and load amp meter. All DC system and equipment are protected at main panel in the engine room and at salon panel with main solenoid and branch circuit over-current protection resettable breakers. Intermediate fuse panel at cockpit and bridge. All wires are marine grade color coded and are well routed and supported where sighted. Batteries cross over relays controlled at helm station.

Electronics

• Robertson AP300DX Autopilot


• Garman 5212 GPS plotter


• Furuno Radar – 64 nm


• ACR spotlight


• Icom M604 VHF


• Digital LCD Systems Monitor for Engine Diagnostics & Pump Monitoring


• Remote Circuit Breaker Panel Ground Fault-Protected Outlets


• Engine Synchronizer


• Engine Diagnostics - Gear Pressure Gauge (2) - Gear Temperature Gauge (2) - Oil Pressure Gauge (2) - Tachometers (2) - Water Temperature Gauge (2) Accessory Package


• Fuel Gauge (2)


• Galvanic Isolators (2)

Mechanical

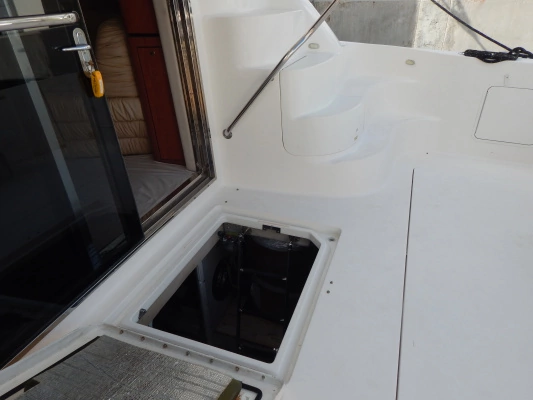

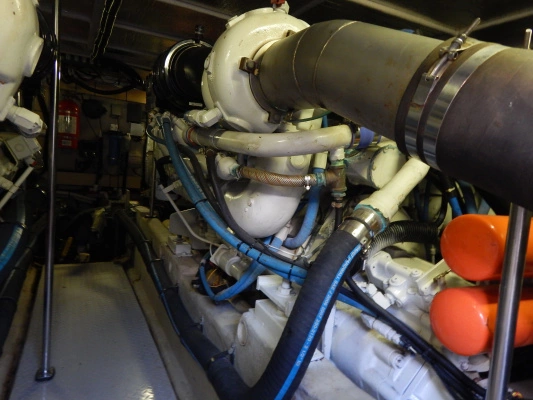

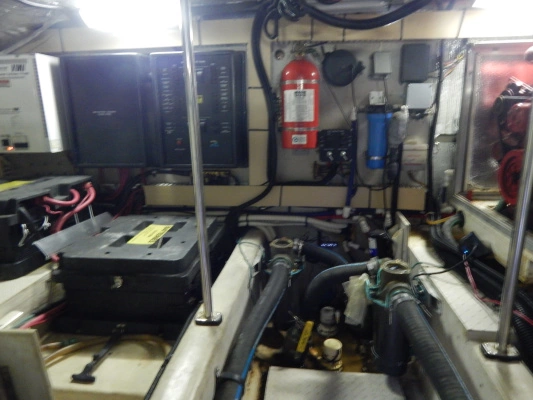

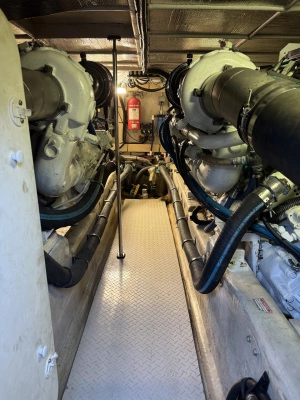

A large hatch in the cockpit sole provides access to the engines room forward and large lazarette aft. Bilges are tidy and the space is well kept.

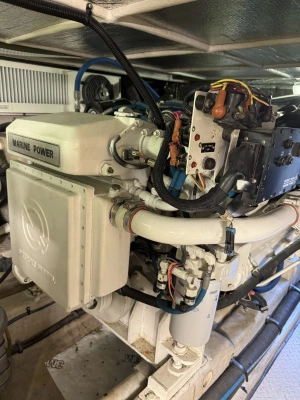

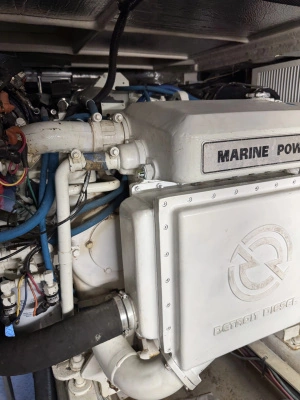

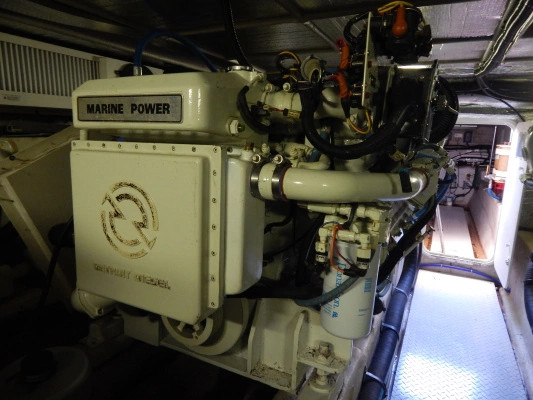

• Detroit Diesel 8V92 Engines (Full service by RPM Diesel 2019, including but not limited to removing and cleaning heat exchangers)


• Dual Hydraulic Gear Shift & Throttle Engine Controls s-ingle station – Seastar


• PROPELLER(S): Two 30" (unknow pitch) Nibral 4-blades


• Power Pac Exhaust w- Lift Mufflers & Sound Insulation


• Hydraulic Power Steering w- Tilt Wheel


• Emergency Engine Stop - Emergency Start System - Engine Drip Sumps


• Voltmeters (2) Generator - Remote Start with Muffler, Freshwater Cooling, Fuel Filter, Seacock & Seawater Strainer w- Battery - 240V - 60 Cycle.


• TRIM TABS: Bennet hydraulic trim tabs system


• Air Conditioning & Heating - 240V Reverse Cycle Split System 49,000 BTU - : Five zone cruisair split system, raw water cooled.


• 12 VOLT oil change system


• Aluminum Fuel Tanks (2) w- Electric Sending Units - Crossover Fuel System


• Lofrans Progress II Windlass (Chain) with Foot Switches


• 24V Automatic Bilge Pumps (2 - Bilge, 1 - Forward Cabin)

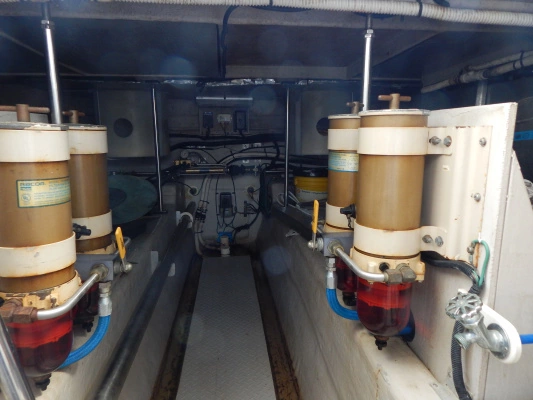

• 24 Racor Fuel Filters (3) V High Water Bilge Alarms with two Back-Up Bilge Pumps (1 - Forward Bilge & 1 - Aft Bilge) - 50 Amp


• USCG Type A-1 Fuel Lines

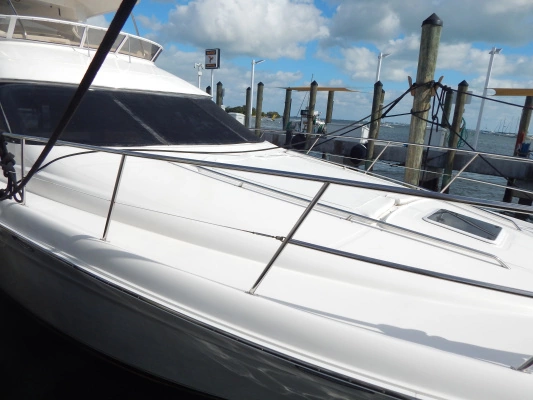

Hull And Deck

• Meets Applicable USCG & ABYC Standards - NMMA Certification


• 316 Stainless Steel Bow Rail, 316 Stainless Steel Handrails, 316 Welded Stainless Steel Deck Rails, 316 Welded Stainless Steel Stanchions


• 4-Bolt Stainless Steel Cleats (8)


• Boot Stripe


• Fiberglass Diamond Plate Flooring in Bilge and Fiberglass Stringer System - Foam-Filled Under-Floor Areas - Gel-Coated Bilge Area


• Fiberglass Swim Platform w- Concealed Stainless-Steel Ladder & Grab Handle


• Gel-Coat (Arctic White)


• High-Performance Vinyl ester Resin


• Insulated Engine Compartment


• Integrated Hull Vent System


• Navigation Lights


• PVC Rub Rail w- Stainless Steel Insert


• Rod Holders (4)


• Stainless Steel Deck Fill Plates


• Stainless Steel Hull & Deck Port Lights (4 Fixed, 4 Opening)


• Translucent Deck Vent Hatches w- Locks & Sky Screen Cover Windlass


• Anchor Rope Storage w- Hatch


• Lofrans Progress II Windlass (Chain) with Foot Switches, Stainless Steel Anchor Chute with Stainless Steel Anchor & Forward Anchor Washdown with Hose Cockpit

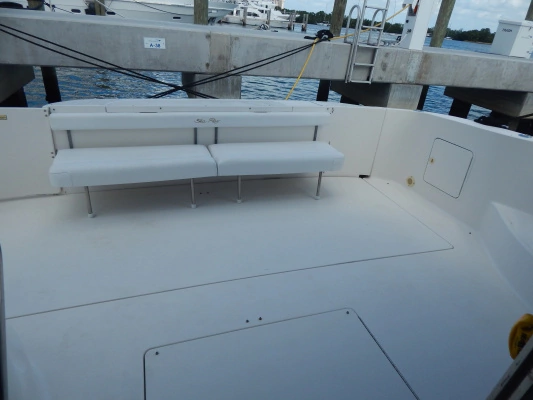

• Aft Transom Wall w- Transom Storage; Fiberglass Storage Bins & Fold-Out Aft Seat


• Aft Wall Fender Storage


• Cockpit Side Storage Areas


• Courtesy Lights


• Molded-In Cockpit Boarding Steps


• Self-Bailing Fiberglass Cockpit W/Gas-Assisted Bilge Service


• Hatch & Stainless-Steel Bilge Ladder


• Snap-In Carpet Liner


• Bilge Freshwater Hose & Spigot


• Bilge Lights (24V)


• Bilge Temperature Alarms to Systems Monitor


• Bilge Ventilation System (Delta “T”)


• Tr Freshwater Washdown w- Cockpit Shower & Dockside Water Inlet (Hot & Cold)


• Transom Door


• Storage Rack Underwater Gear – 2.5 ” Stainless Steel Prop Shaft


• 24V Hydraulic Trim Tabs - Transom-Mounted Heavy-Duty Dual Rams w- Pump


• Bonding System w- Large Zinc Hull Plate


• Dripless Shaft Logs


• Manganese-Bronze Rudders & Struts


• Propeller Modules


• Seacocks on All Underwater Fittings


• Seawater Strainers


• SS handrails secured to cabin top Pot & Starbd

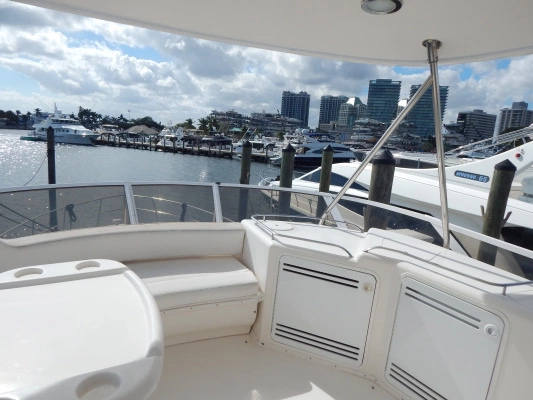

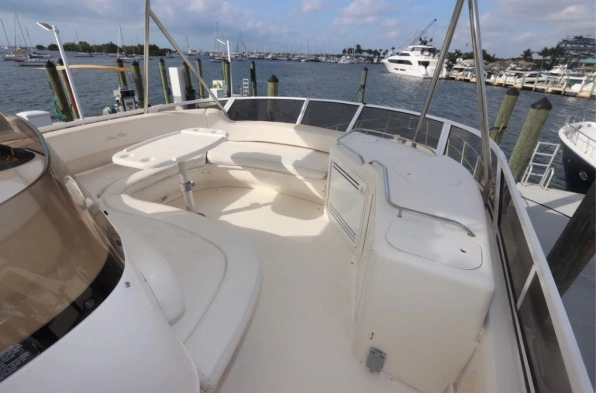

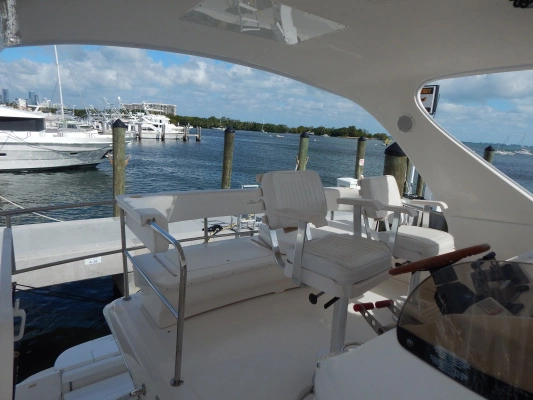

Flybridge

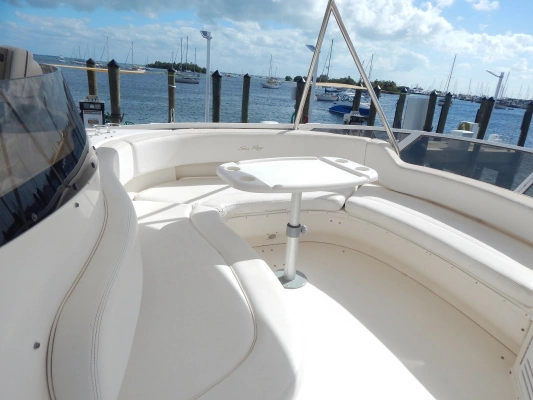

• Wrap around seating forward of the helm offers a great spot to watch the view while underway and it doubles as a fabulous place to entertain when moored. A full wet bar and teak table makes it into a cozy area to dine as well.


• Adjustable Captain's Chairs w- Armrests (2), Aft Bench Seat


• Aluminum-Framed Venturi Wind Shield


• Beverage Holders


• Bridge Control Station w- Windscreen


• Bridge Storage, Burl Instrument Panels


• Cable Outlet, Courtesy Lights


• Fiberglass Hardtop w- Full Enclosure, Electronics Box, Stainless Steel Grab Rails, Overhead Lighting with Electronic Dimmer with Red Night Lights


• Forward Curved Bench Seating w- Storage & Table

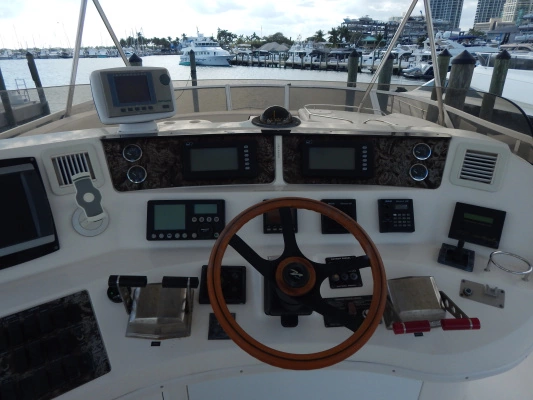

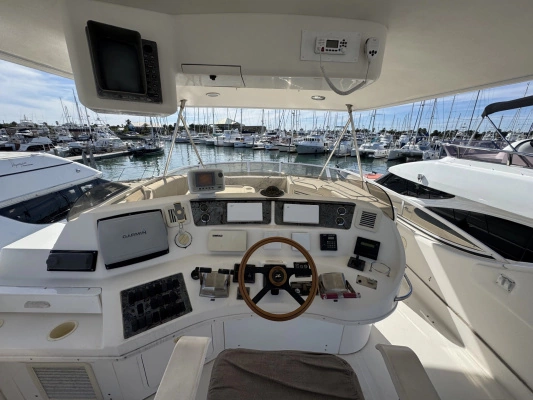

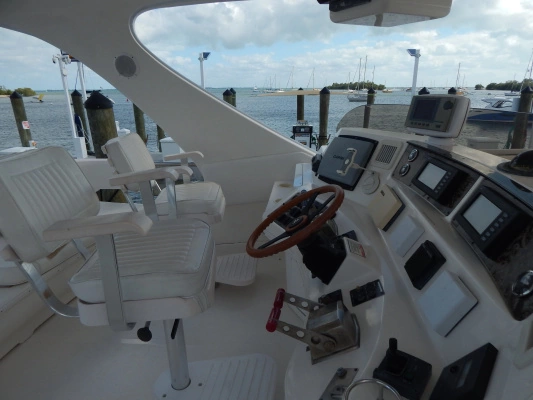

Helm:
*The helm area on the fly bridge is surprisingly large. It will accommodate all of your family and friends with two electric Stidd chairs, a cushioned bench seat overlooking the cockpit and a comfortable wrap around seating area forward that includes a fully serviced wet bar.

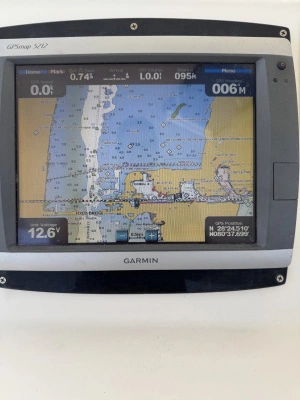

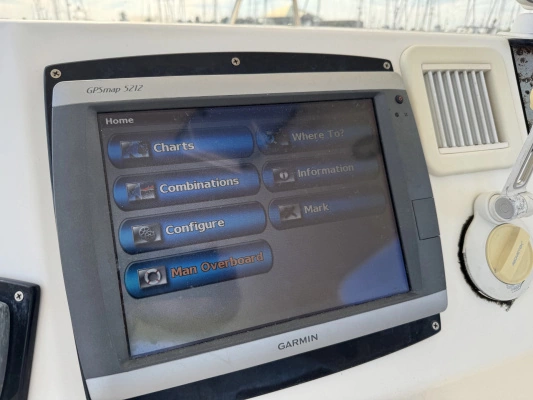

• CHART PLOTTER: Garmin 5212


• RADAR: Furuno with open array. 64 NM range *


• VHF: B&G Network and Icom IC-M604


• SPEED/DEPTH: B&G Network Quad


• FORWARD LOOKING SONAR: Interphase


• AUTOPILOT: Robertson AP300X


• COMPASS: Danforth Constellation SYSTEM MONITORING


• Sea Ray digital LCD monitor system for engine diagnostics and pump monitoring with audible reset alarm select.


• SEARCH LIGHT: ACR searchlight with RCL-100 remote control point pad at helm


• ELECTRONICS (ENTERTAINMENT) STEREO SYSTEM: Clarion with Bose sound system.


• Fusion system at helm with remote control at cockpit.
  *VCR: Panasonic VHS player


• HAILER

Additional Equipment

• Spare propellers (2)


• 24V Air Horn w- Accumulator Tank


• Dual 24V Pressure Water System w- 240V 18 Gallon Water Heater


• Dual Halon System w- Diesel Shutdown, Override & Manual Pull


• Glendenning Cablemasters w- 50 Amp - 240V - 60 Cycle & 50 Amp - 120V - 60 Cycle Dockside Power, 75 ft. Cords w- Remotes


• Macerator w- Seacock Interlock System


• Power Vents (3) Heads & Galley (24V)


• ACR Remote-Controlled Spotlight


• Antenna - Cable Television Inlet


• Oil Changer System (Engine & Transmission)


• Vacuum-Beam Dual Inlet Bilge


• Cord Fan


• Fire Extinguishers


• Fresh Water Spigot


• Reel Light


• Storage Rack Underwater Gear – 2.5” Stainless Steel Prop Shaft


• Bonding System w- Large Zinc Hull Plate


• Dripless Shaft Logs


• Underwater lights (6)

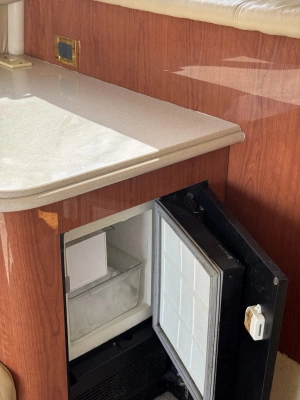

• U-line icemakers (2) at Salon and Bridge

Exclusions

• Owner’s personal effects

Manufacturer Provided Description

Fully appointed, The Sea Ray 560 Sedan Bridge has a 22-foot flybridge with a bright, open cabin, a spacious aft cockpit, and all the options imaginable.
The large cabin provides three staterooms and two head areas with privacy doors, cultured marble floors, and Corian countertops.
The master stateroom has a queen-size bed and innerspring mattress, beveled mirrors, and an entertainment center with a TV - VCR - radio combination and Bose Acoustimass three-speaker system.
The starboard guest stateroom has a full-size bed and abundant storage, plus there's an additional stateroom to port with upper and lower bunks, a washer and dryer combination, and floor storage.
Both guest staterooms feature circular skylights and TV - VCR - radio combinations.

A huge wraparound sofa dominates the salon, making it ideal for conversation or enjoying the entertainment center with surround sound TV, VCR, and a Bose Lifestyle 20 stereo system.
There's a cozy dinette opposite the galley with comfortable seating for four and a phone jack. The bright, open galley with wood flooring and cabinetry has all the latest appliances including a flush-mounted three-burner cooktop, microwave - convection oven, under-counter refrigerator and freezer, and a convenience package with coffee maker, trash compactor - even glass decanters.

Above, the flybridge control station of the Sea Ray 560 Sedan Bridge is protected by a windscreen and surrounds the captain with a full array of instrumentation and standard Raytheon electronics.
A dual hydraulic gear shift and throttle control puts the power of twin 735 horsepower Detroit diesel inboards well in hand. Everybody on board has a great view from the forward and aft bench seating.

They are also spoiled by a close-at-hand wet bar and entertainment center complete with refrigerator, ice maker and Clarion AM-FM digital cassette stereo featuring a six-disc CD changer, subwoofer, six speakers, and cockpit remote control.

The full fiberglass hardtop with enclosure and electronics box helps make sure everyone on the flybridge stays comfortable while underway, especially when the standard 24,000 BTU air conditioning system is running.
Wide, molded steps lead to the spacious aft cockpit where there's extra seating space and storage bins, as well as a transom door that opens onto an extra wide swim platform.

A fiberglass hardtop and enclosure complete the comfort. There's also easy access to the bilge area thanks to a gas-assisted hatch, and stainless-steel ladder.

Other standard features that add to the performance of the 560 Sedan Bridge include hydraulic power steering, Power Pac exhaust system with lift mufflers and sound insulation, a 20.0 kW Westerbeke diesel generator with sound box, and a complete Raytheon electronics package with VHF, GPS and Raydata.
The accessory package offers a c-phone with cell phone interface and antenna.

Disclaimer

We offer the details of this yacht in good faith but cannot guarantee the accuracy of this information or warrant the condition of any vessel listed for sale. All listings are subject to prior sale, price change, or withdrawal from the market without notice and are provided as a convenience to clients; they are not intended to convey direct representation of a specific yacht for sale.
Images displayed may be illustrative or representative rather than depictions of the actual vessel. Variations in features, options, color, condition, and engine hours may exist between images and the actual vessel. For accurate details — including whether images depict the specific vessel listed - please refer to the accompanying description or contact us directly. We encourage prospective buyers to request additional photographs of the actual vessel prior to purchase.

Listing MLS by Yachtr.com
