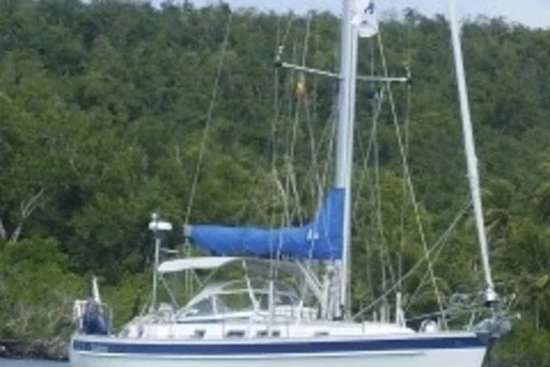

2004 Hallberg-Rassy 43

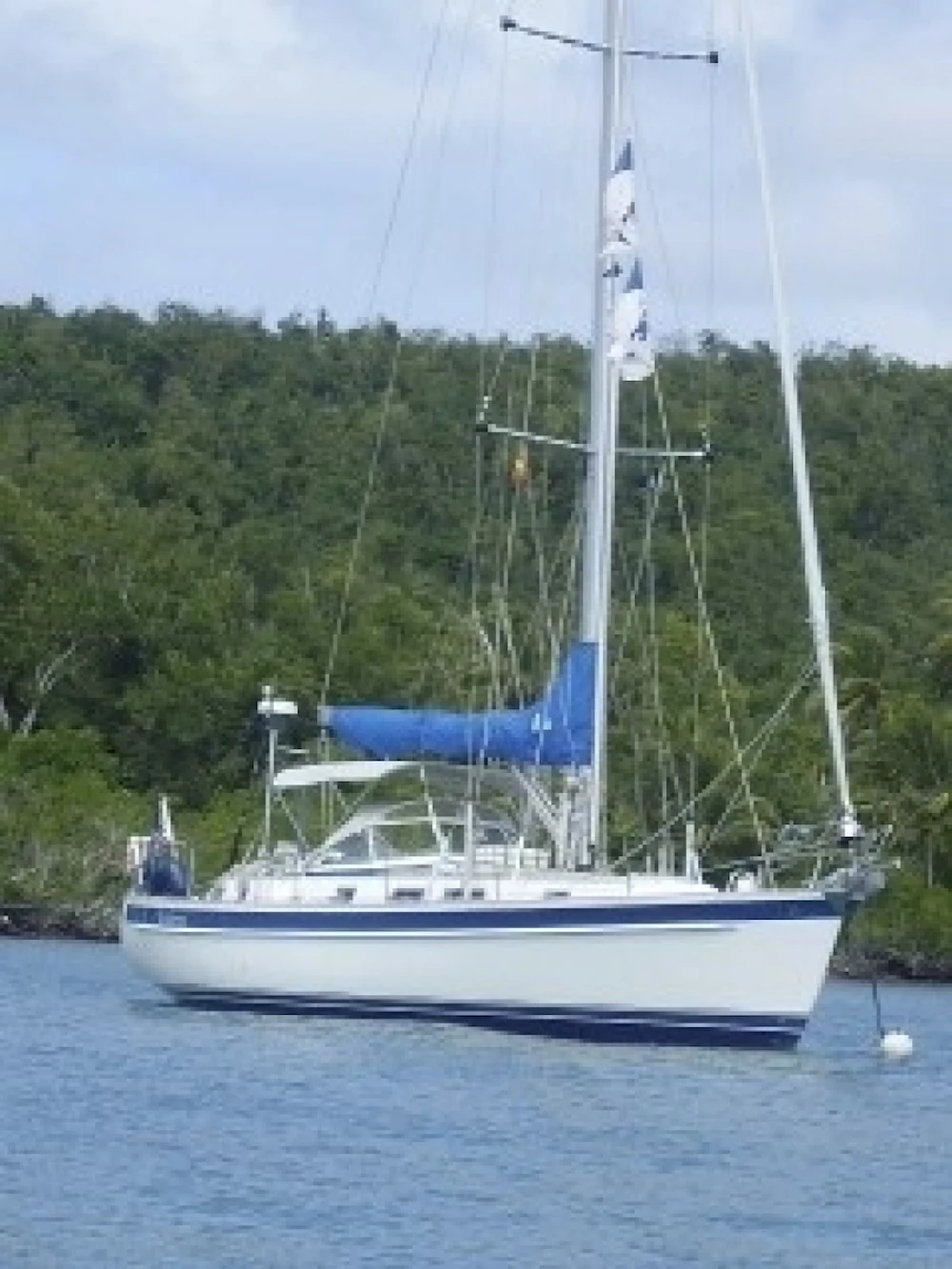

ELEUTHERIA is an exceptional Hallberg-Rassy. She benefits from having spent most of her life in the Great Lakes. She was delivered to her first owner at the Hallberg-Rassy yard in Ellos, Sweden in 2005. This owner took a year to sail from Sweden across the Atlantic to the Caribbean, and then north and west into the Great Lakes.  ELEUTHERIA was used seasonally on Lake Superior (2007 to 2020), then Lake Erie (2020 to 2022). She has since been used seasonally on Lake Ontario. Each winter she has been hauled and covered. The current owner purchase ELUETHERIA in 2017.

In 2001, Hallberg-Rassy began building the HR43; the first in a new generation of Frers-designed cruisers with a significant improvement in sailing performance over the prior generation Frers-designed Hallberg-Rassy 42. The new design benefits from extra waterline length, increased volume aft, greater form stability, more efficient keel and rudder, and increased sail area. This is most notable in light air where the increased power and easier driven hull will really be apparent to anyone who has sailed on an older Hallberg-Rassy design. Relative to the HR42F, the cockpit is larger and deeper. The aft stateroom is massive; indeed, it’s larger than on an HR46. The forward stateroom has an impressive array of storage lockers and the forward head has a huge, separate stall shower. With 150 HR 43s built between 2001 and 2008, this model is recognized as a modern offshore cruising classic. ELEUTHERIA is hull No. 109 of this model. In 2008, minor changes were made to the deck and interior of the HR43 and the design continued in production as the HR43 MkIII until 2016 when it was replaced by a new model; the Hallberg-Rassy 44.

HIGHLIGHTS:

• New Elvstrom hydranet mainsail, genoa, and storm jib
• New Raymarine electronics suite
• Spectra Catalina watermaker
• Custom Canvas full winter storage boat cover
• Mastervolt Whisper 3.5 genset with only 96 hours
• Highfield 310 aluminum RIB (new 2019) with Yamaha 9.9 hp Enduro OB
• Sirius XM Infolink weather receiver

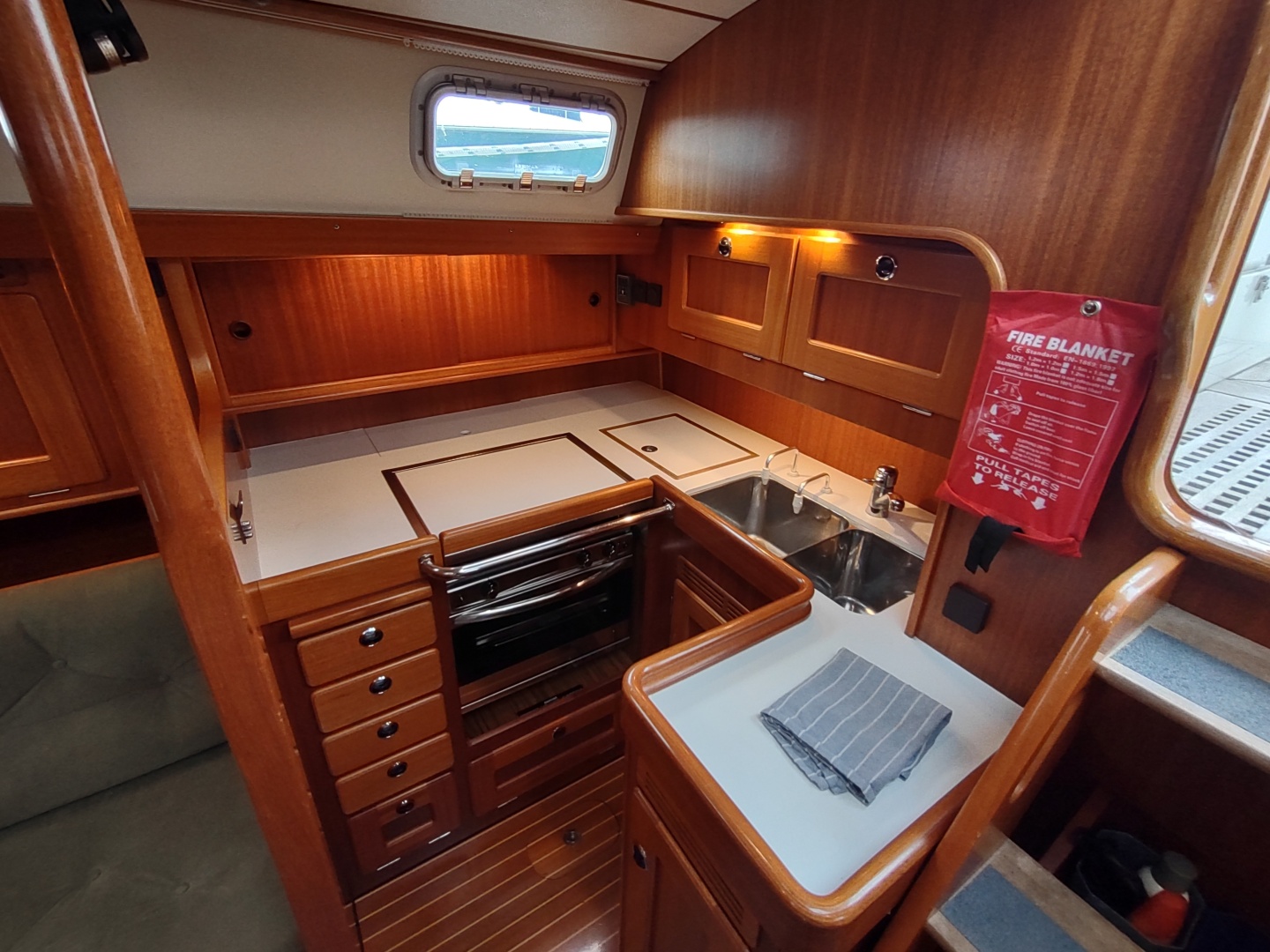

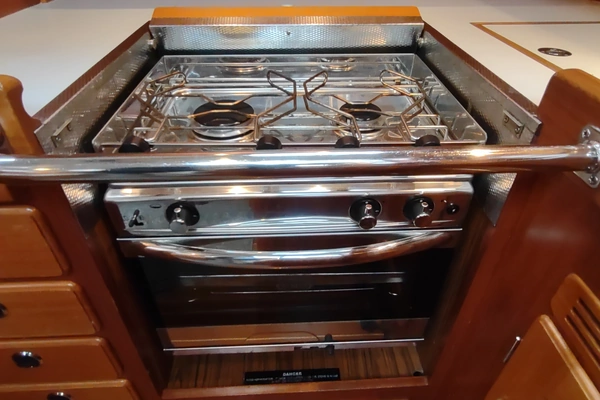

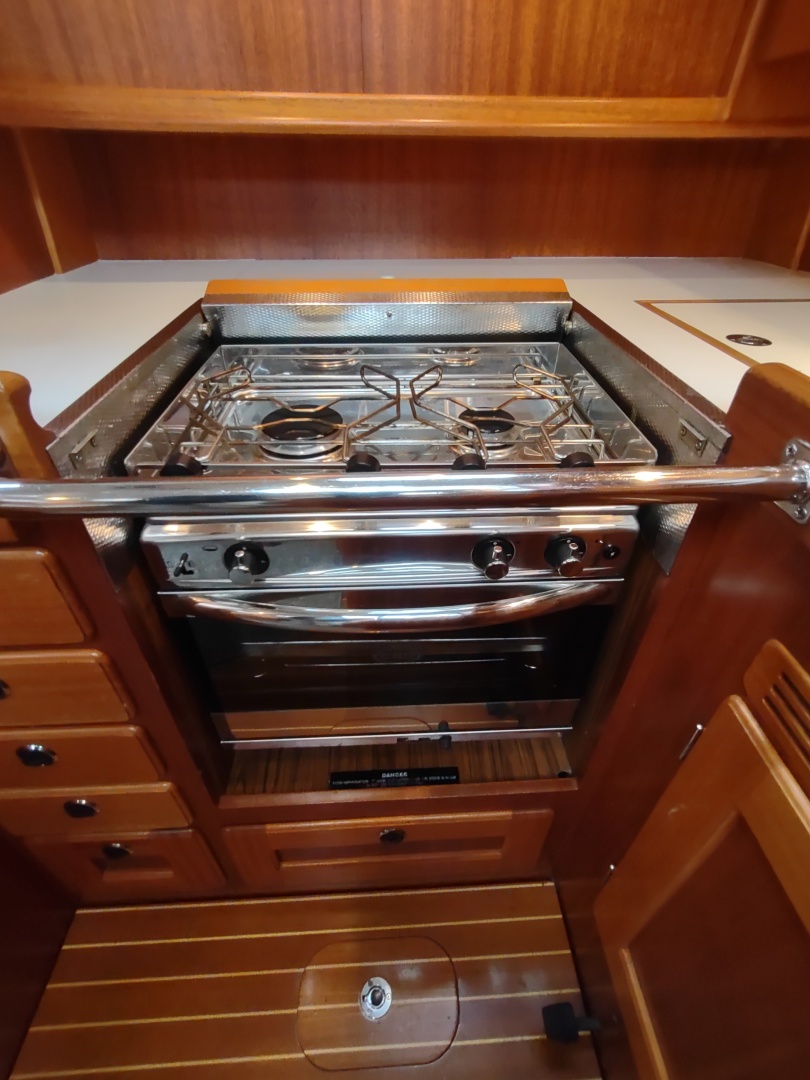

• USA propane system with Trident LPG solenoid, alarm, and new oven/stove
• New running rigging in 2020
• New dodger and new full cockpit enclosure

ACCOMMODATIONS:

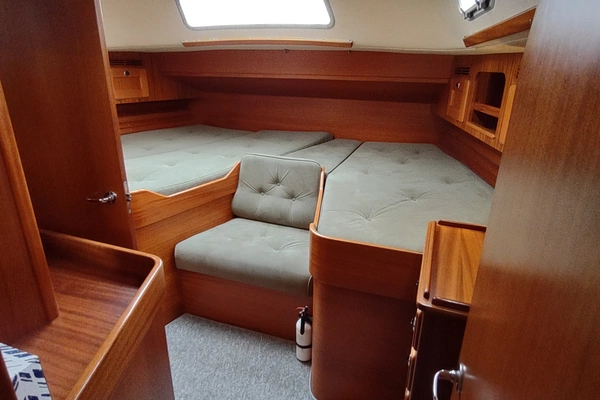

ELEUTHERIA’s joinery is mahogany and sealed with satin varnish. The cabin sole is teak with inlaid holly covered with light blue and grey carpet with a rubberized backing. The overhead is light and reflective with mahogany strips. Mahogany hand holds are throughout the boat. All locker doors are flat panel mahogany with vents above the door openings. Stainless-steel adjustable reading lights are above berths. Mood lighting is located under the main salon valance. Overhead spot lights are throughout. All interior lights are now updated to LED. Four cowl vents, twelve opening ports, four opening overhead hatches and four Hella turbo fans provide excellent ventilation. There is a Roca Polar vent in the forward head and a separate engine room blower. There are screens for all overhead hatches (except head). Beige curtains are throughout the boat and Fern Green Alcantara upholstery is in the salon and staterooms.

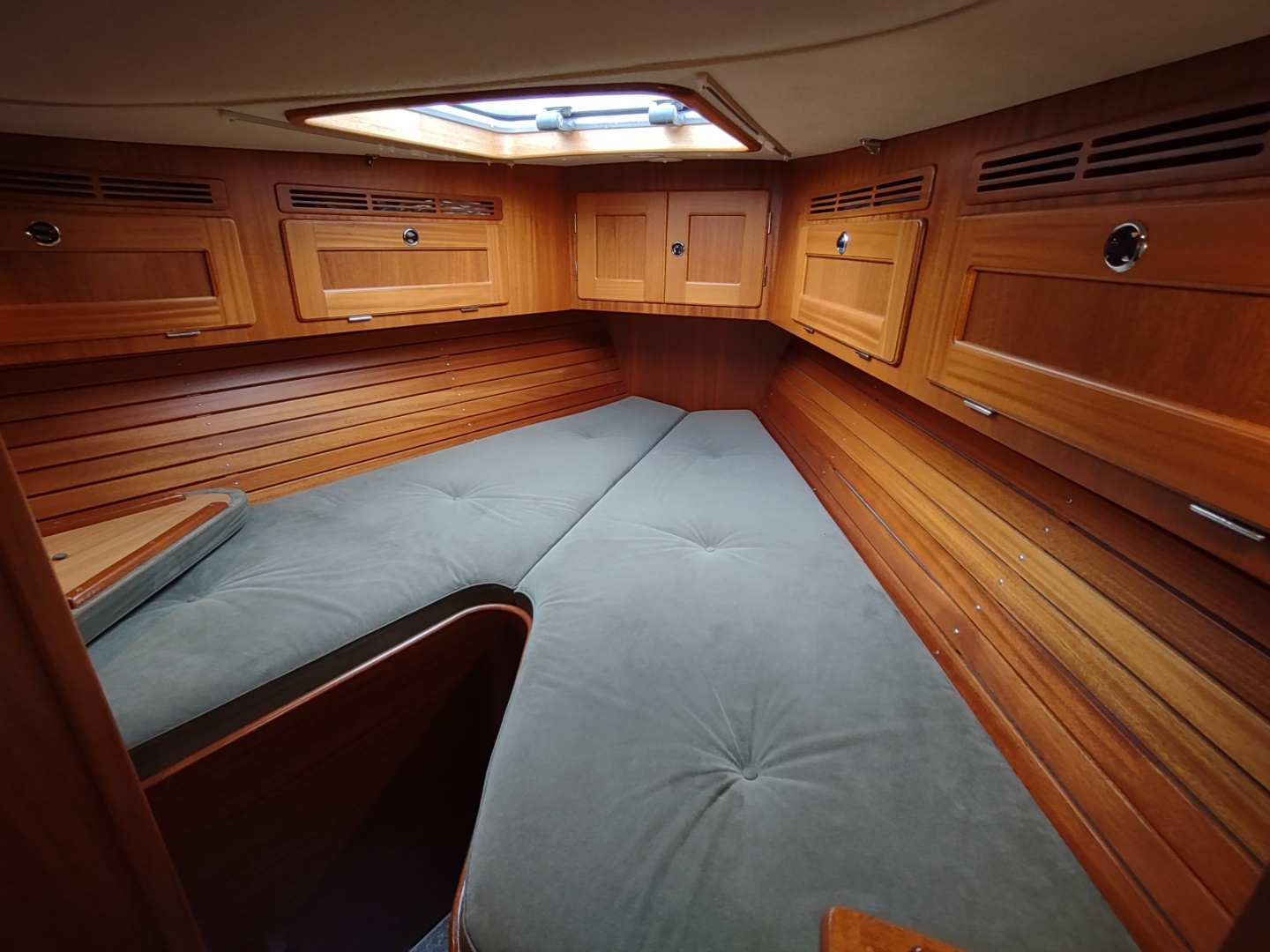

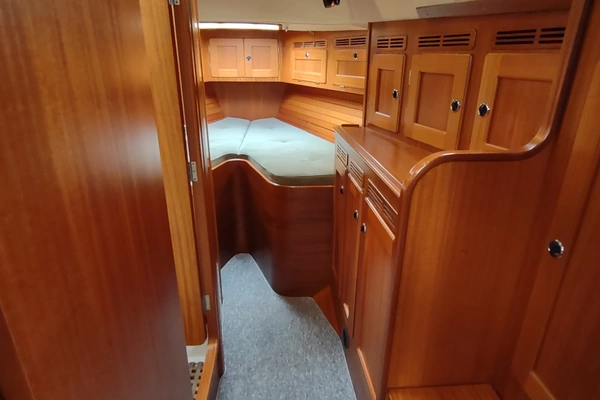

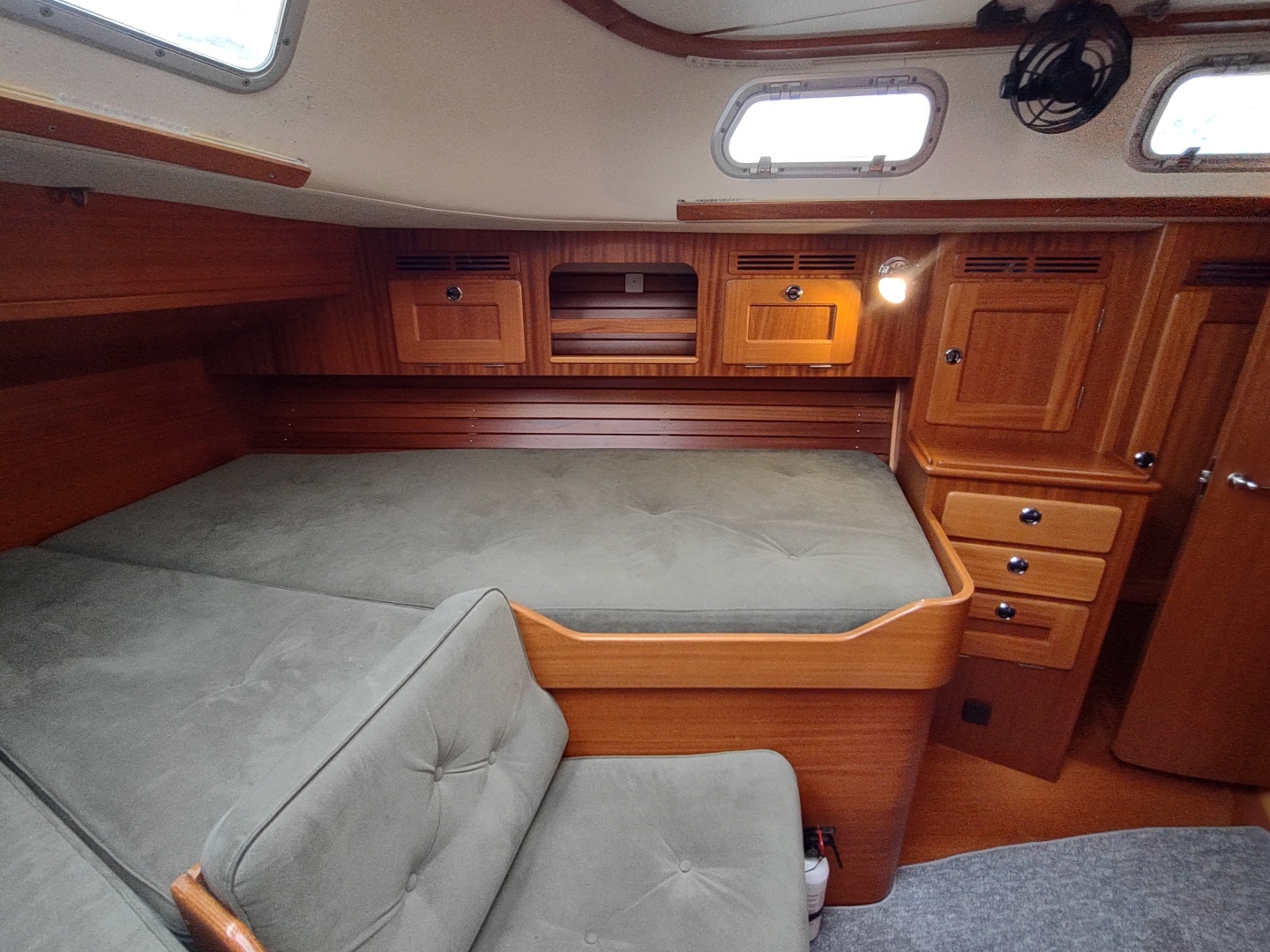

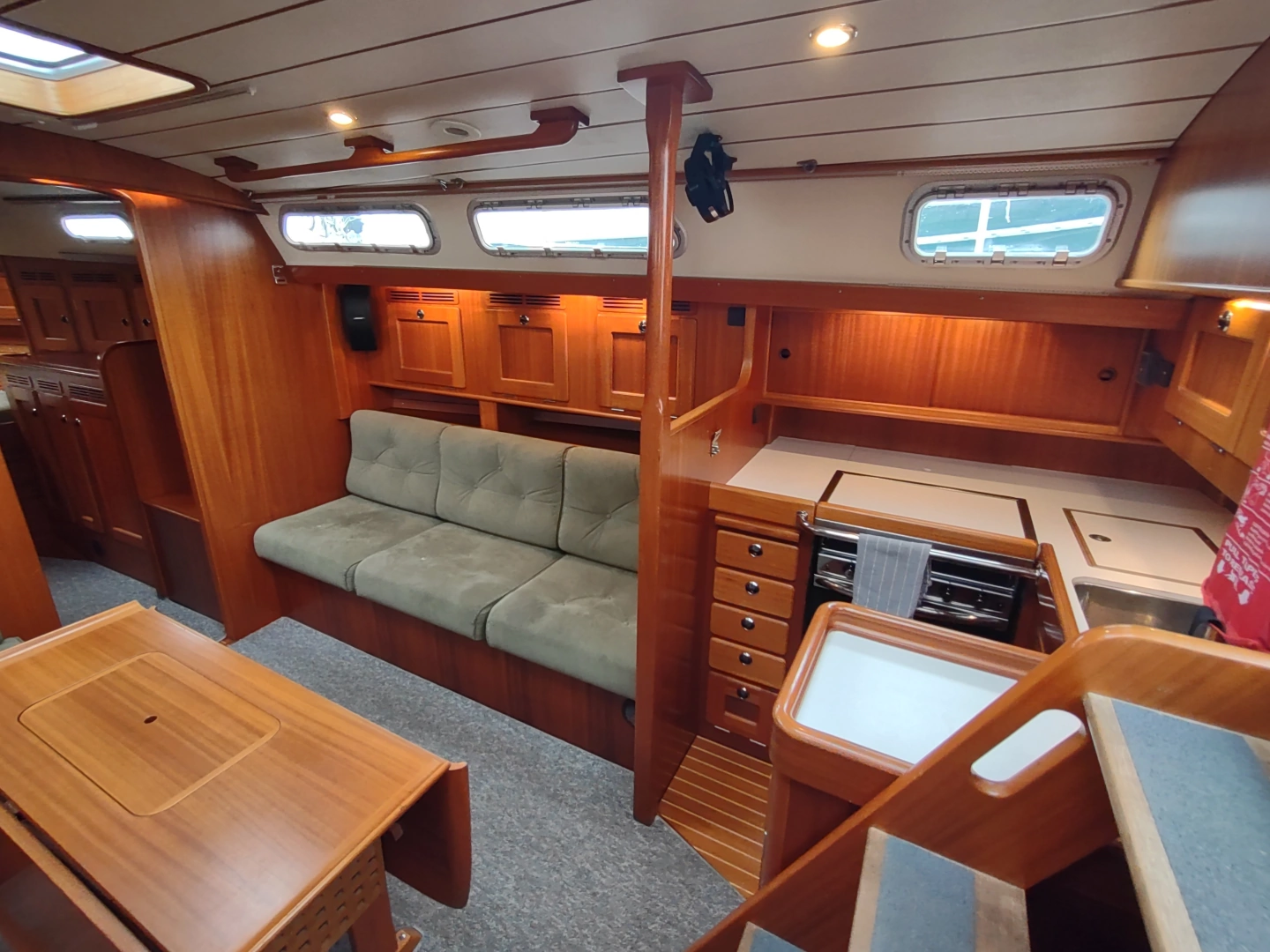

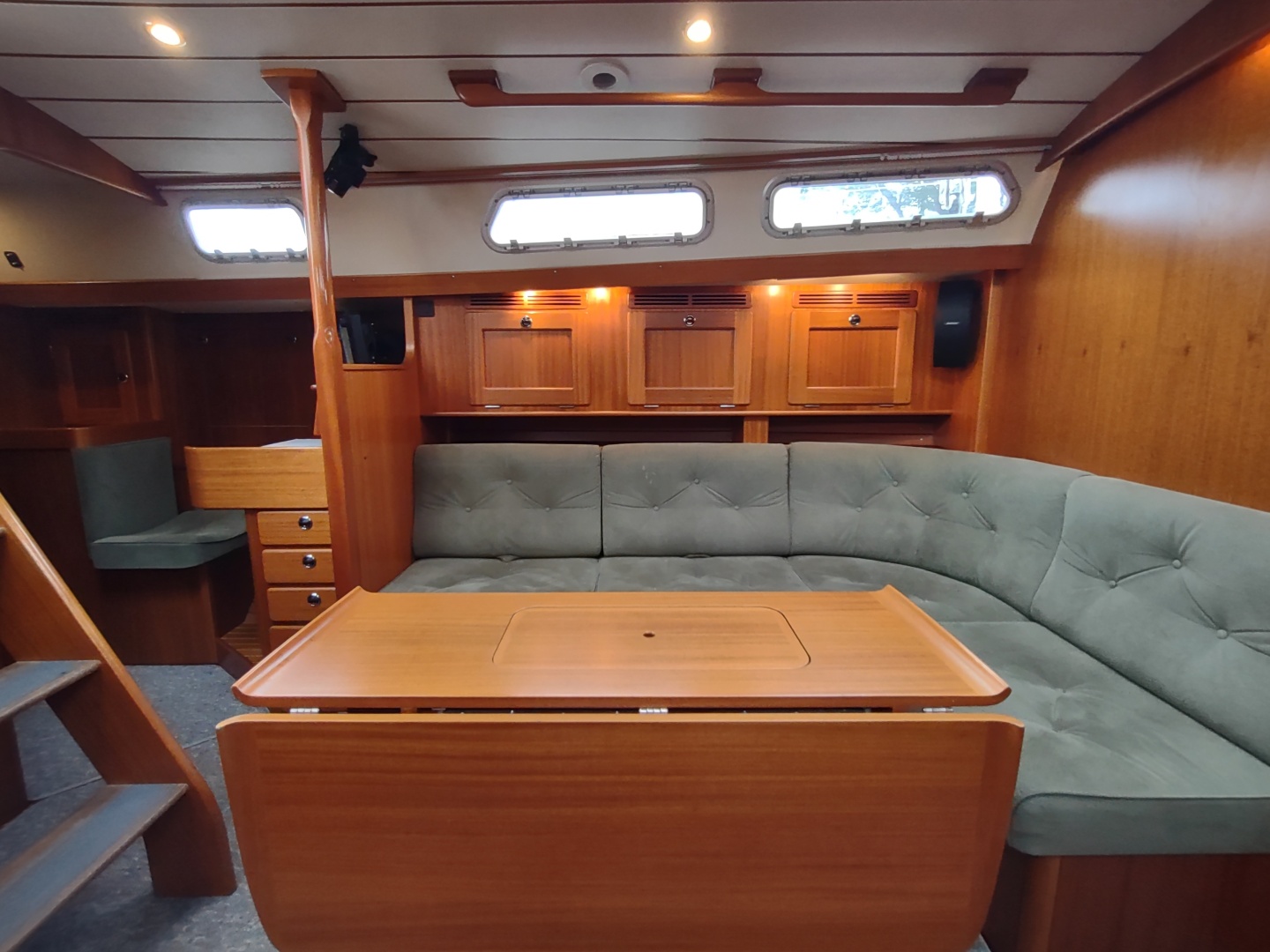

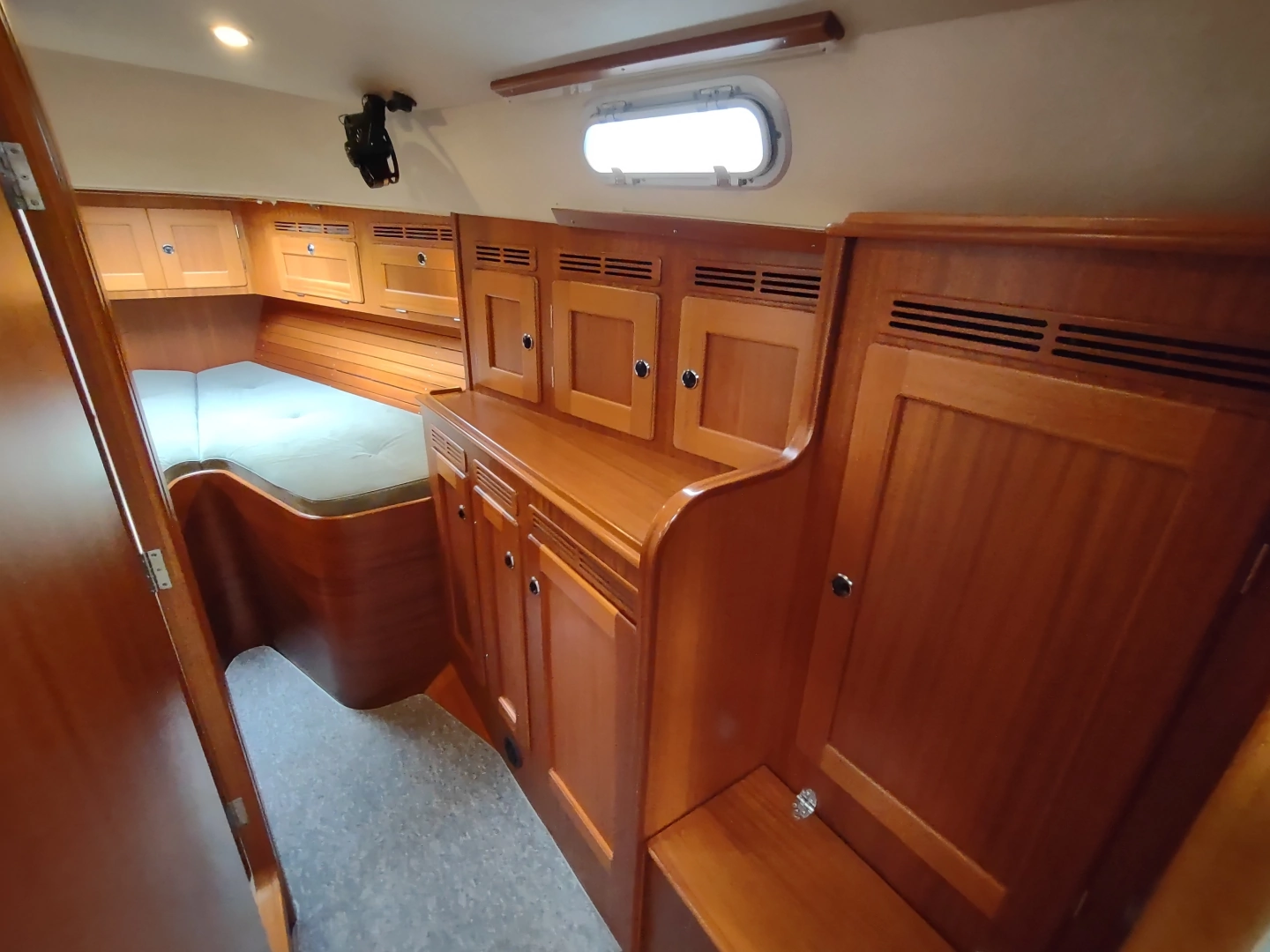

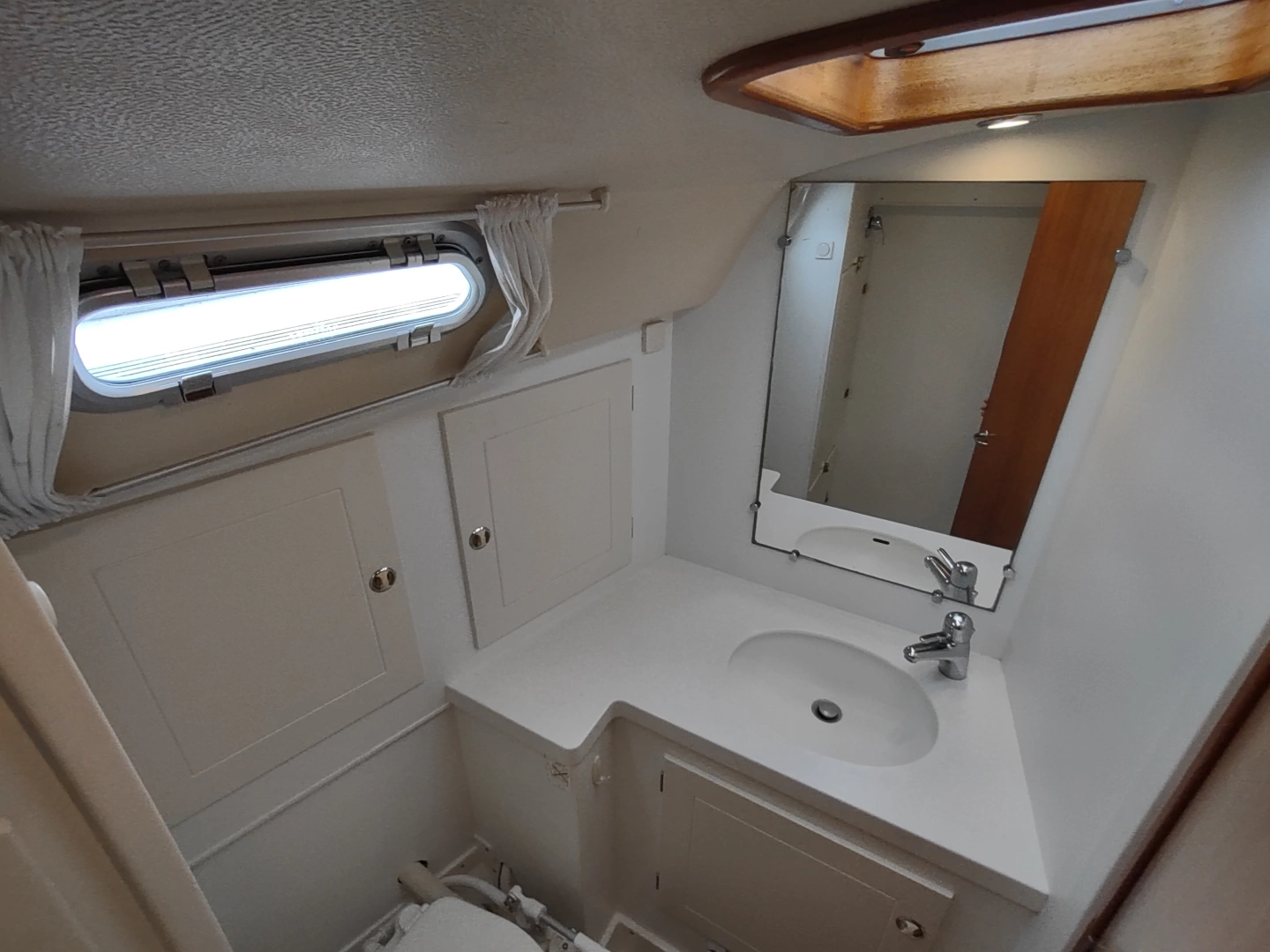

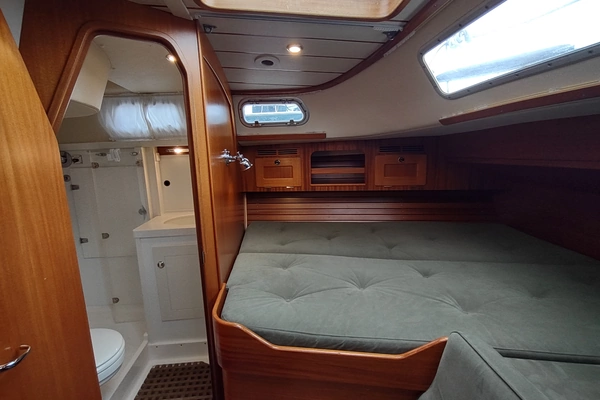

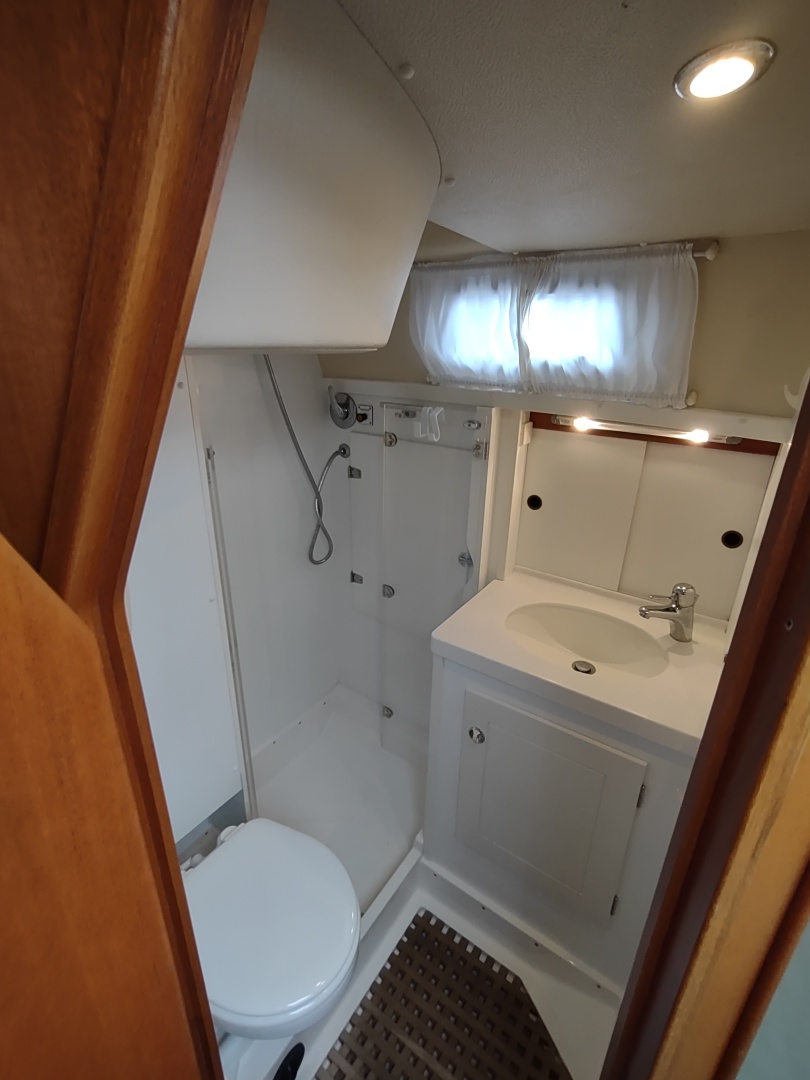

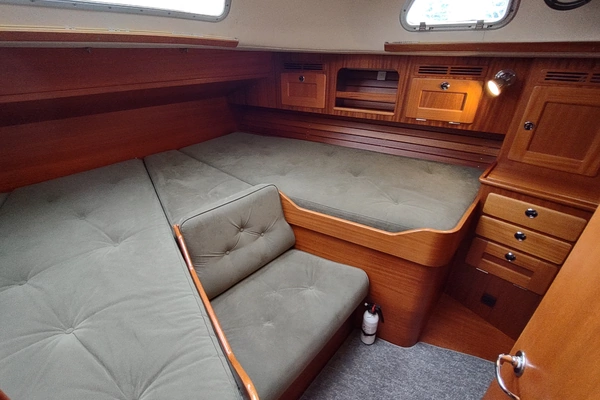

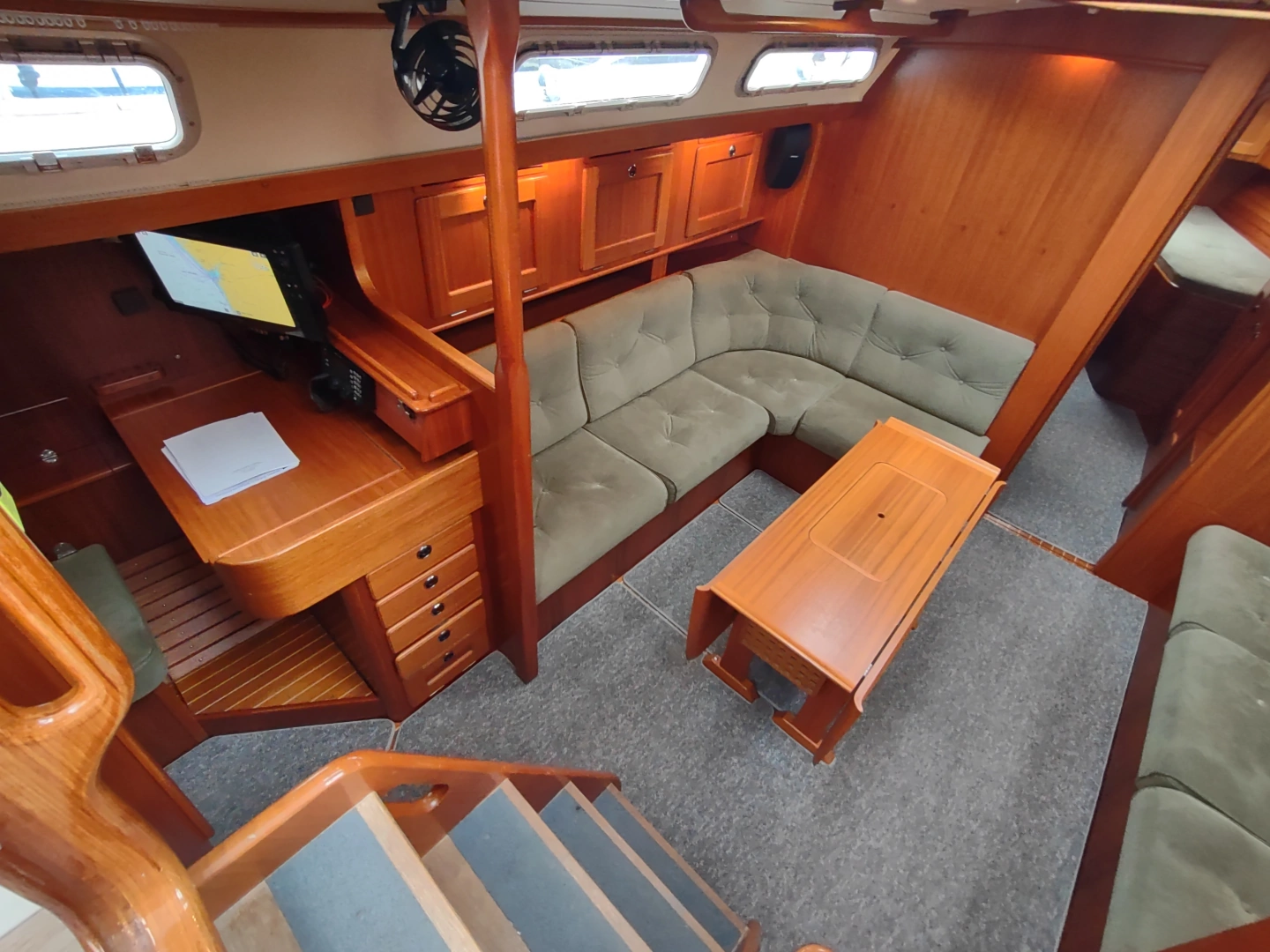

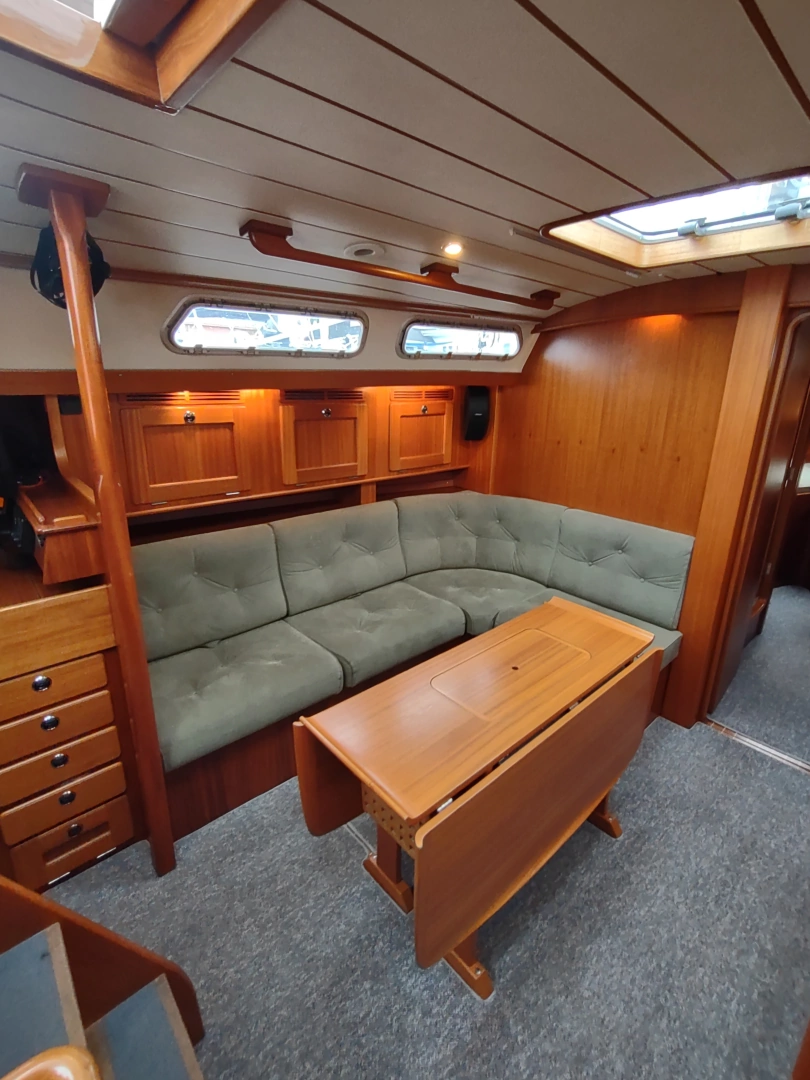

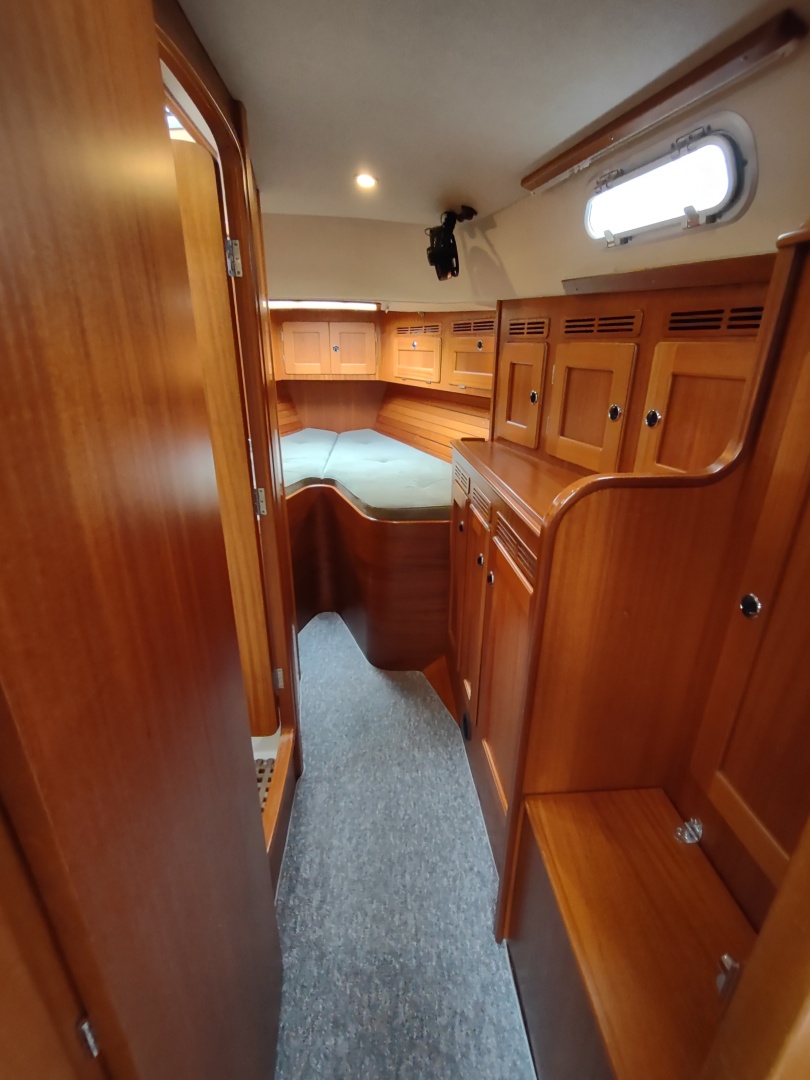

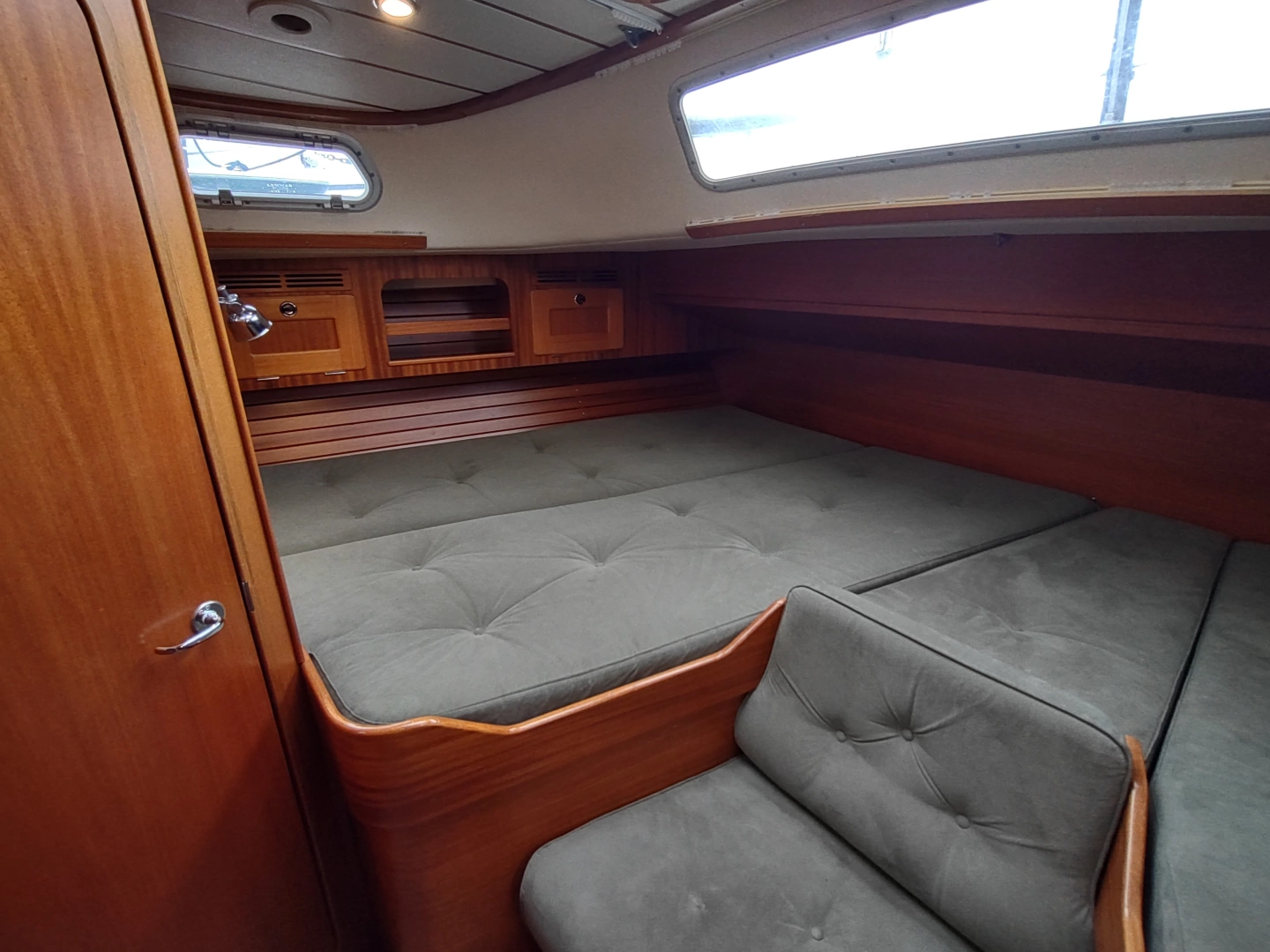

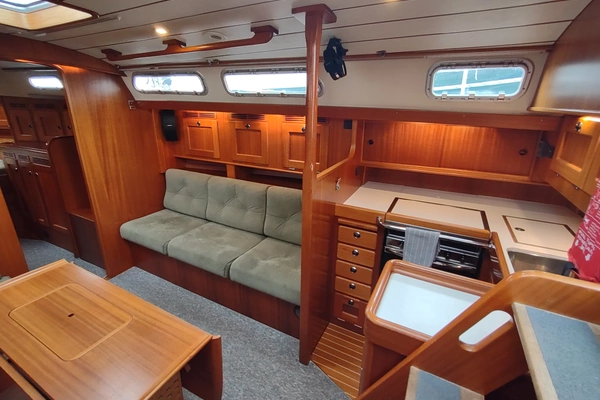

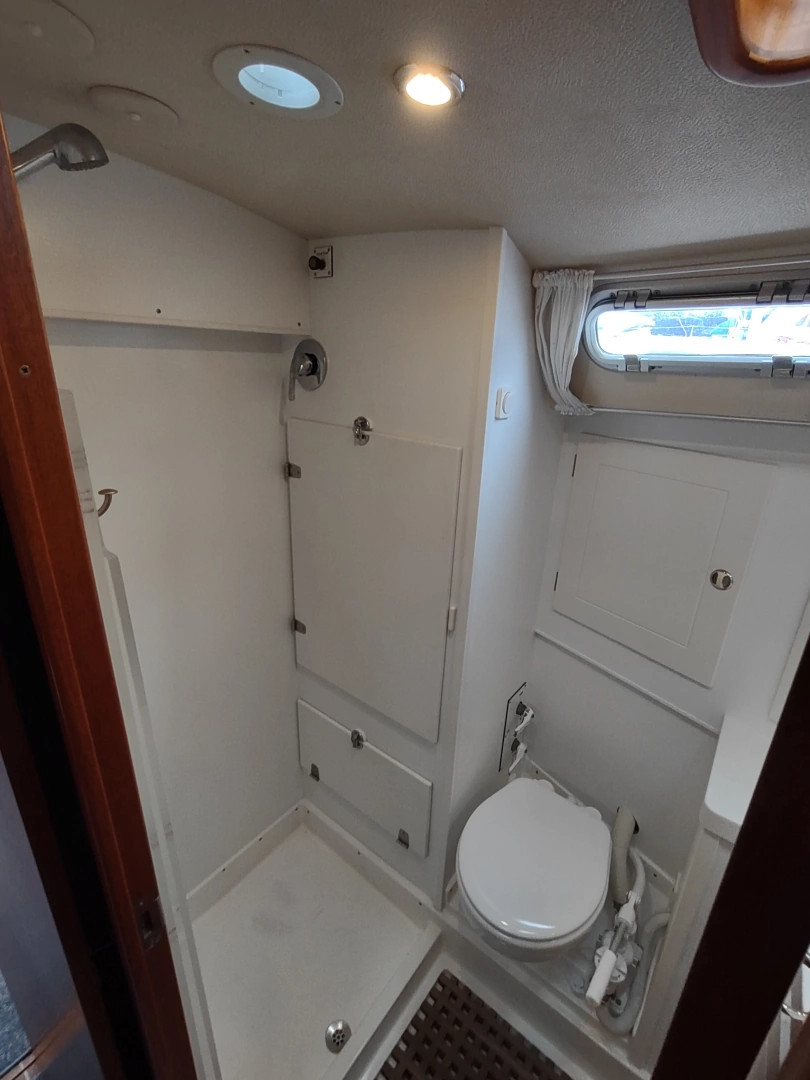

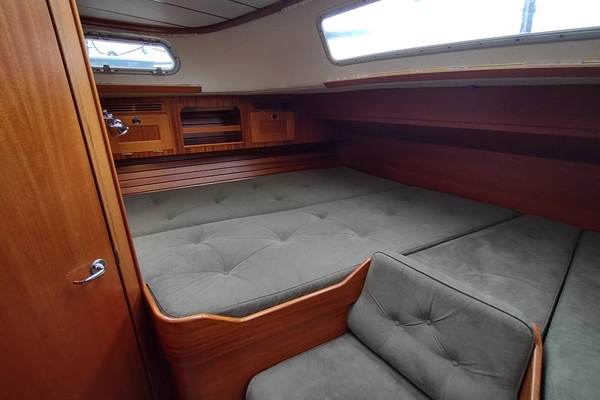

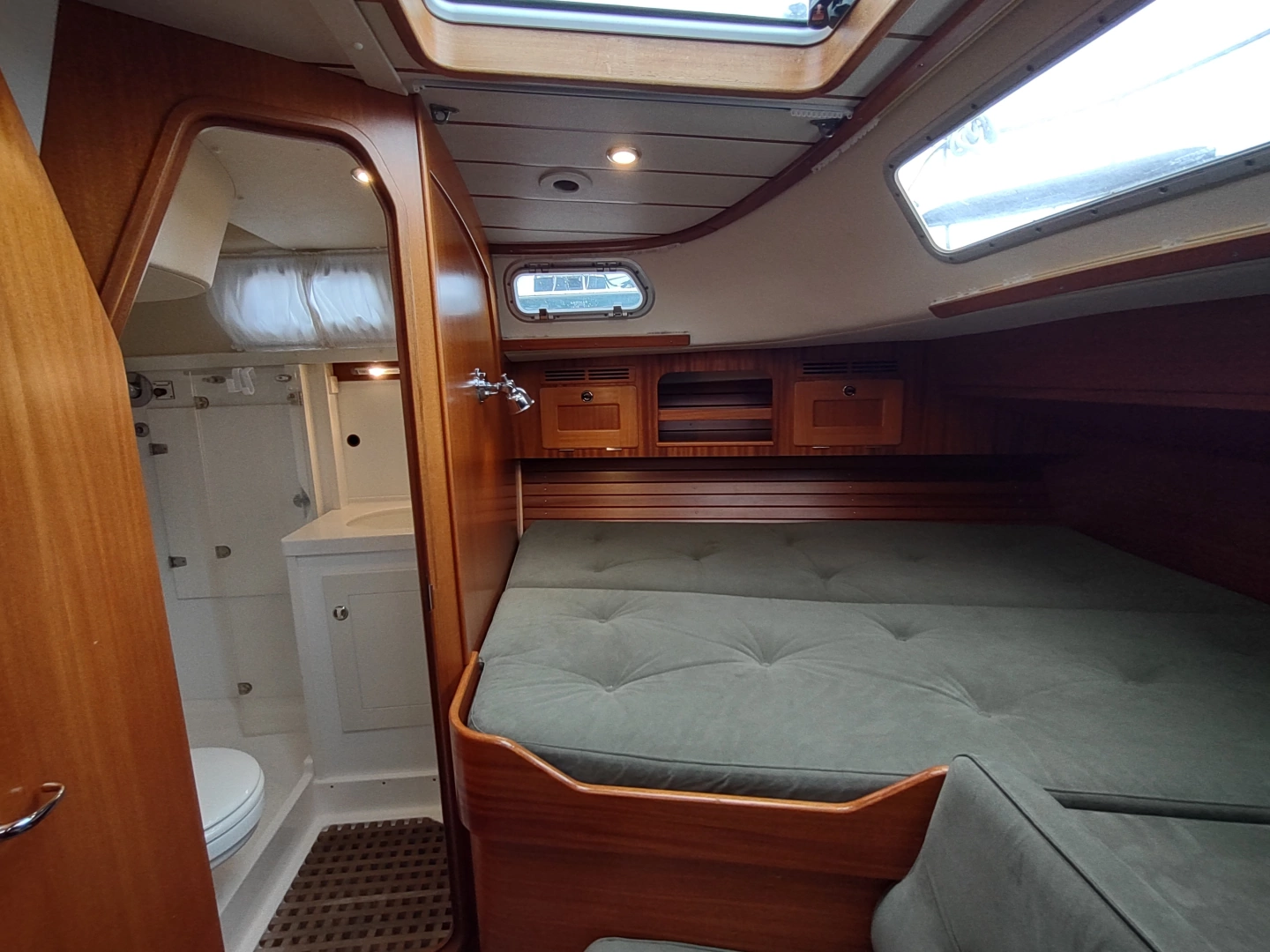

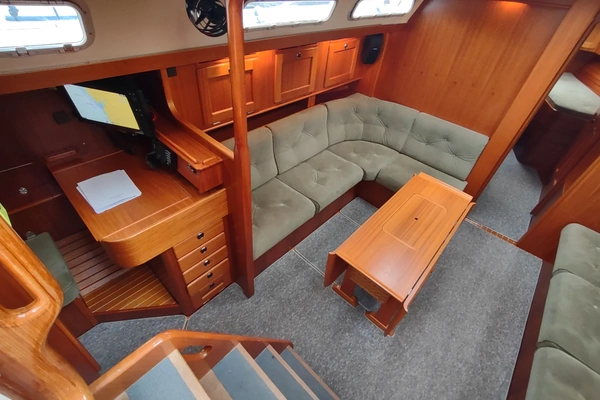

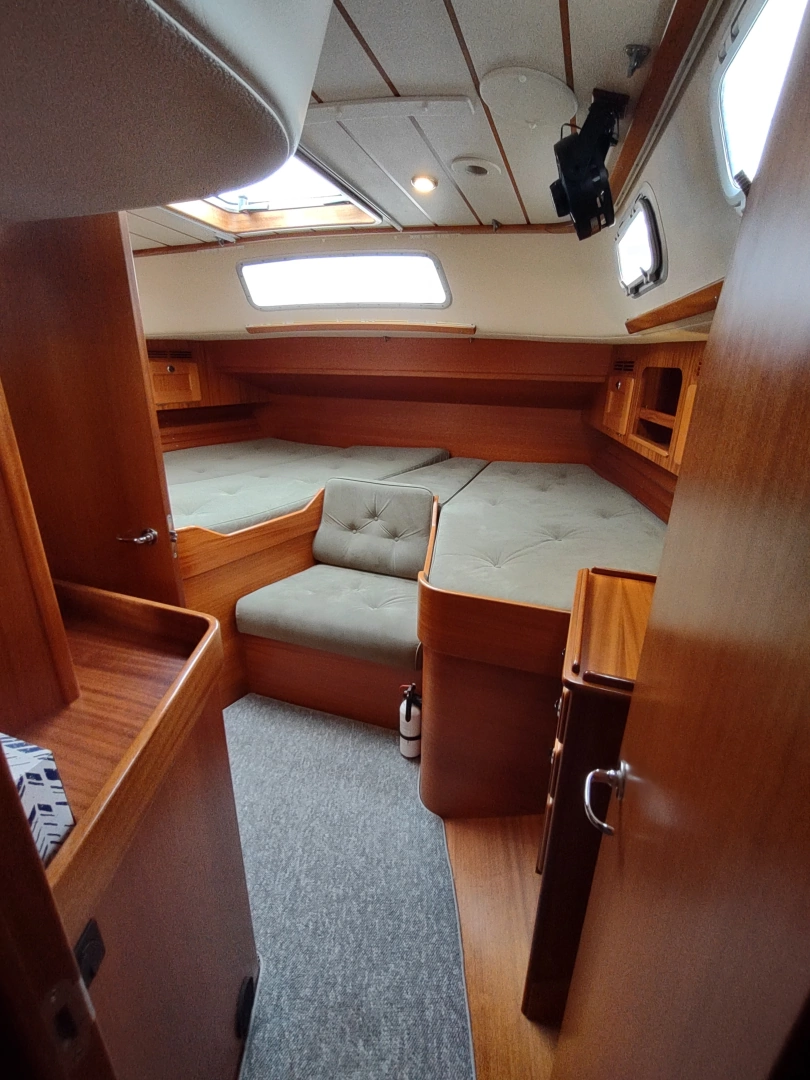

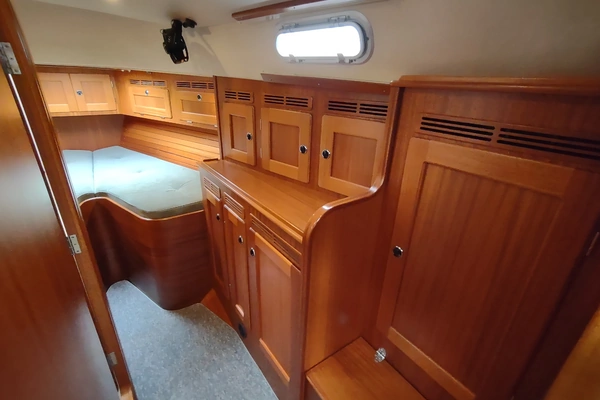

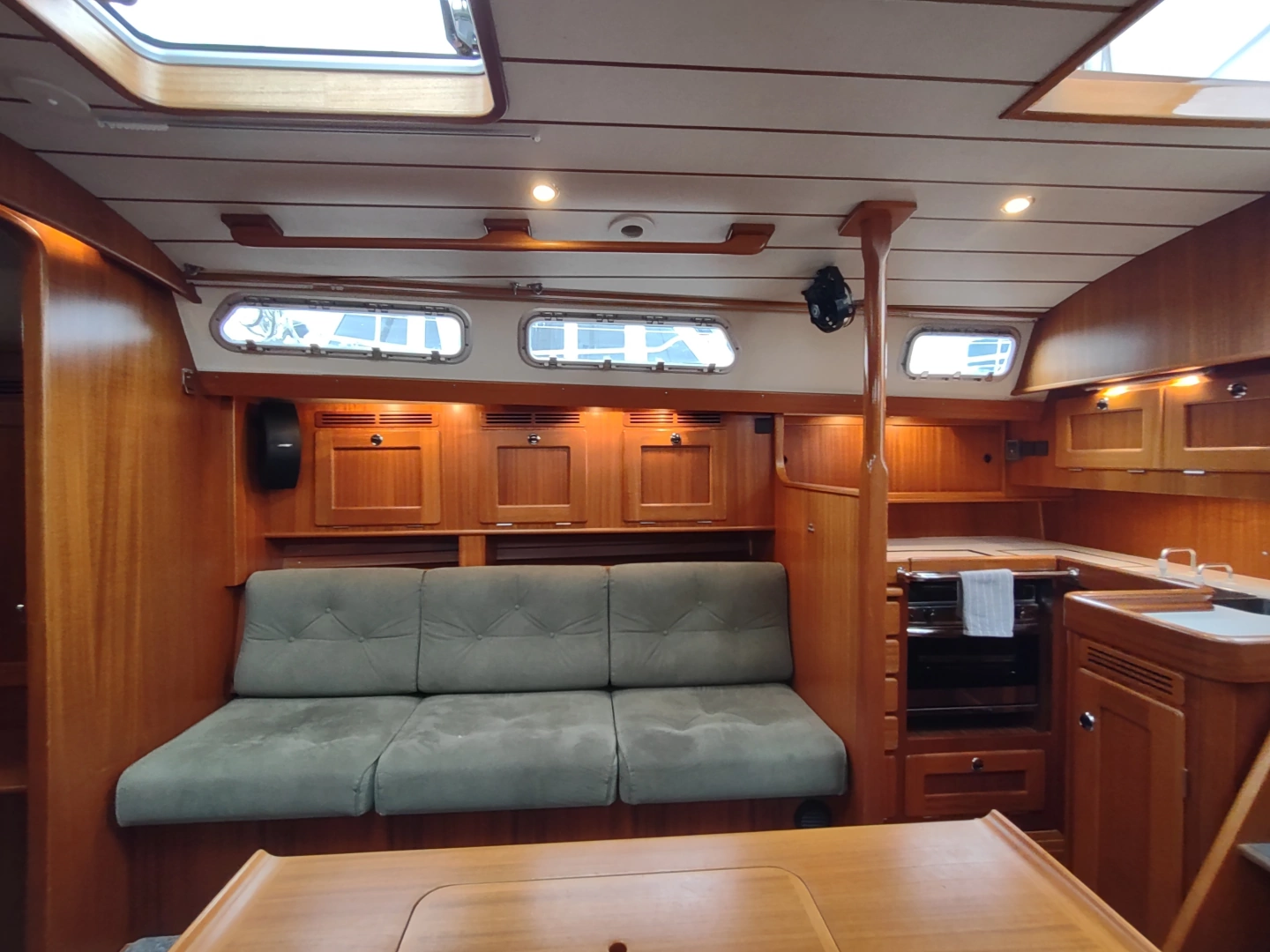

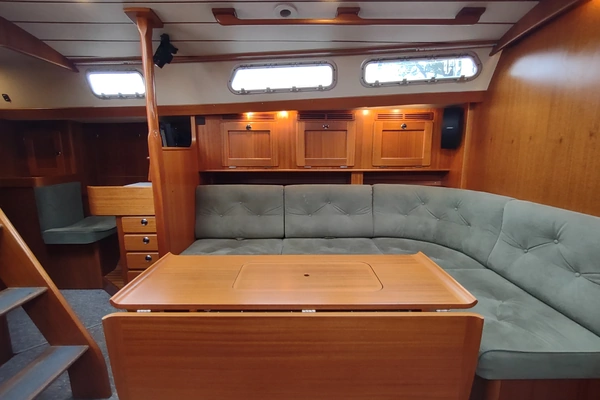

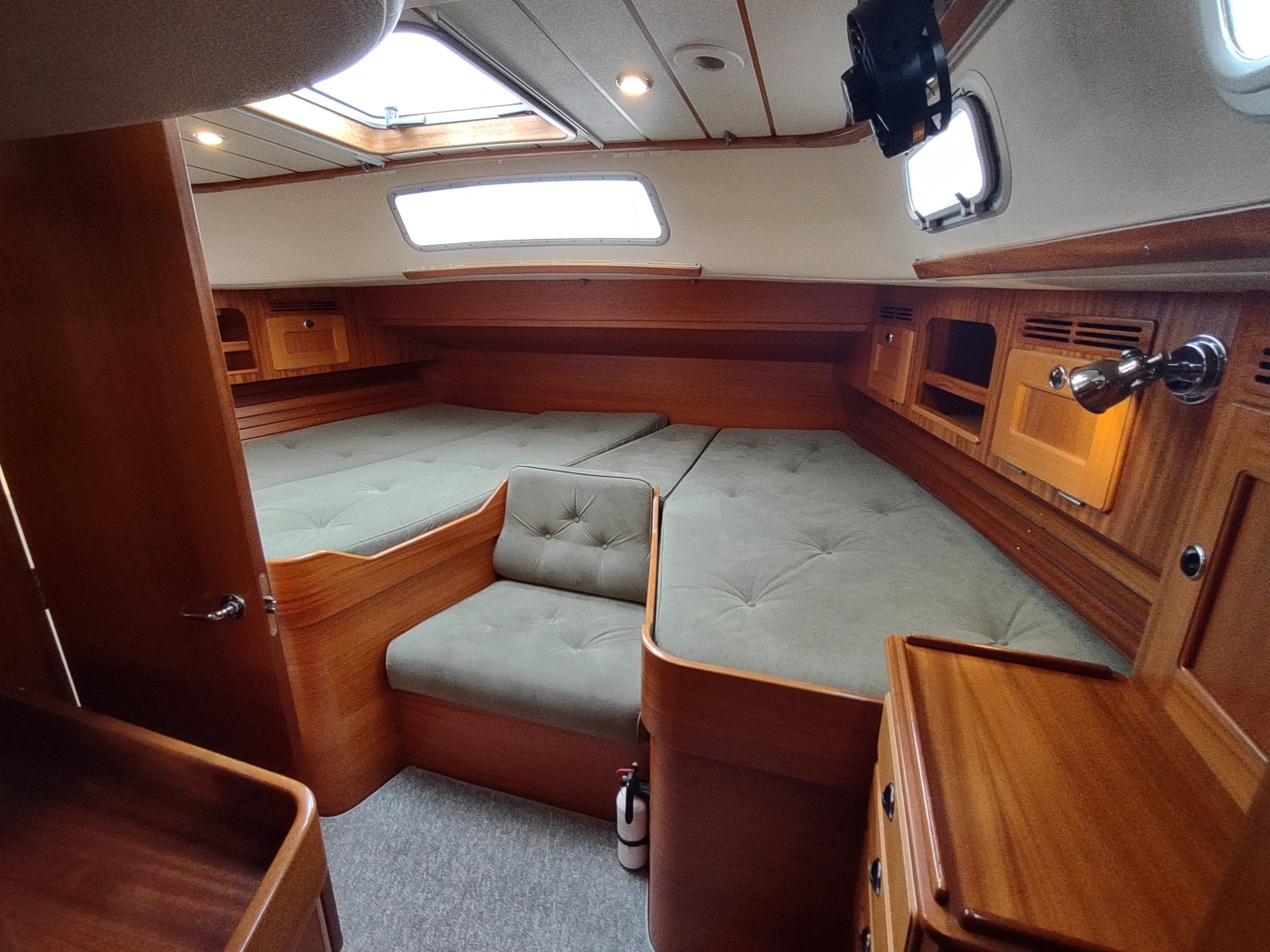

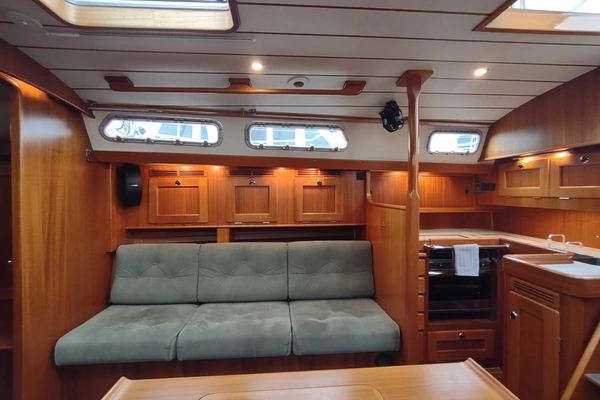

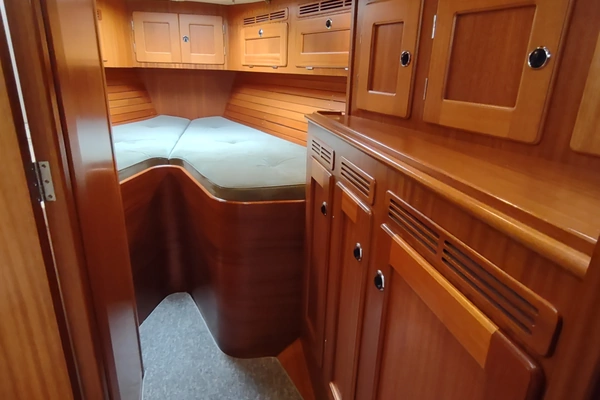

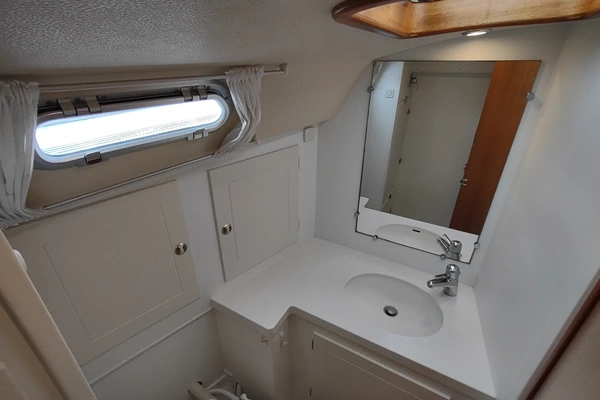

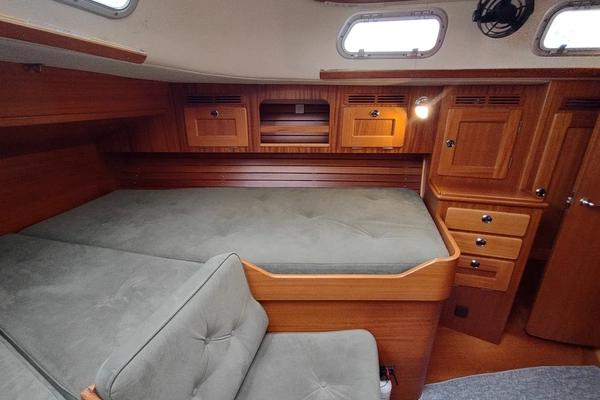

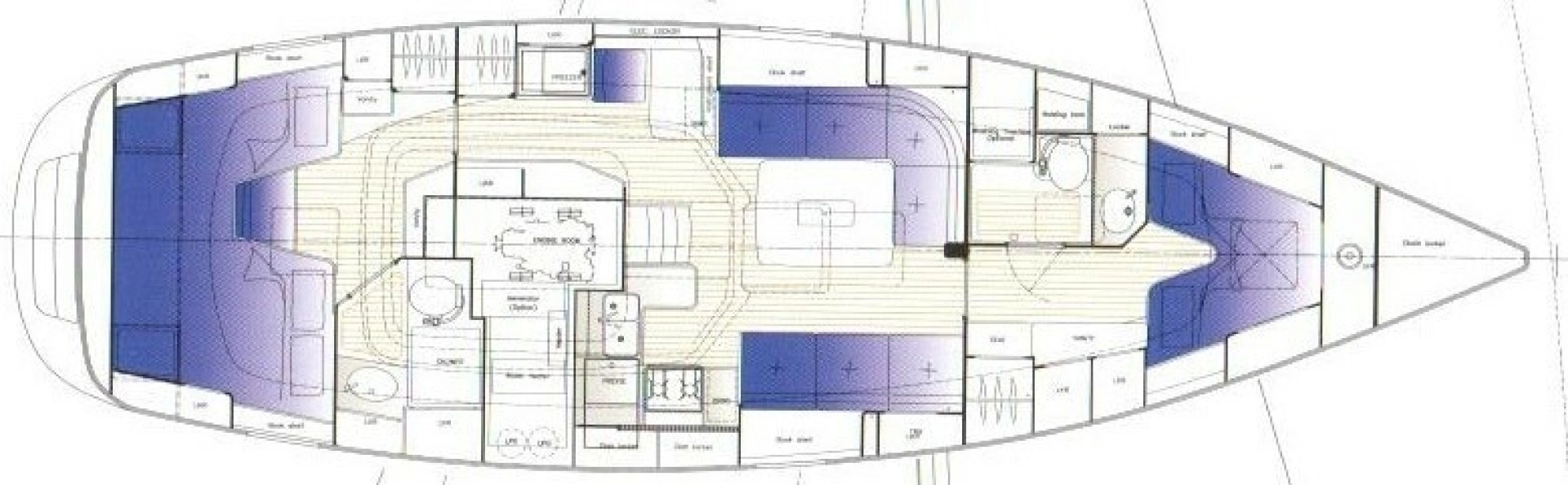

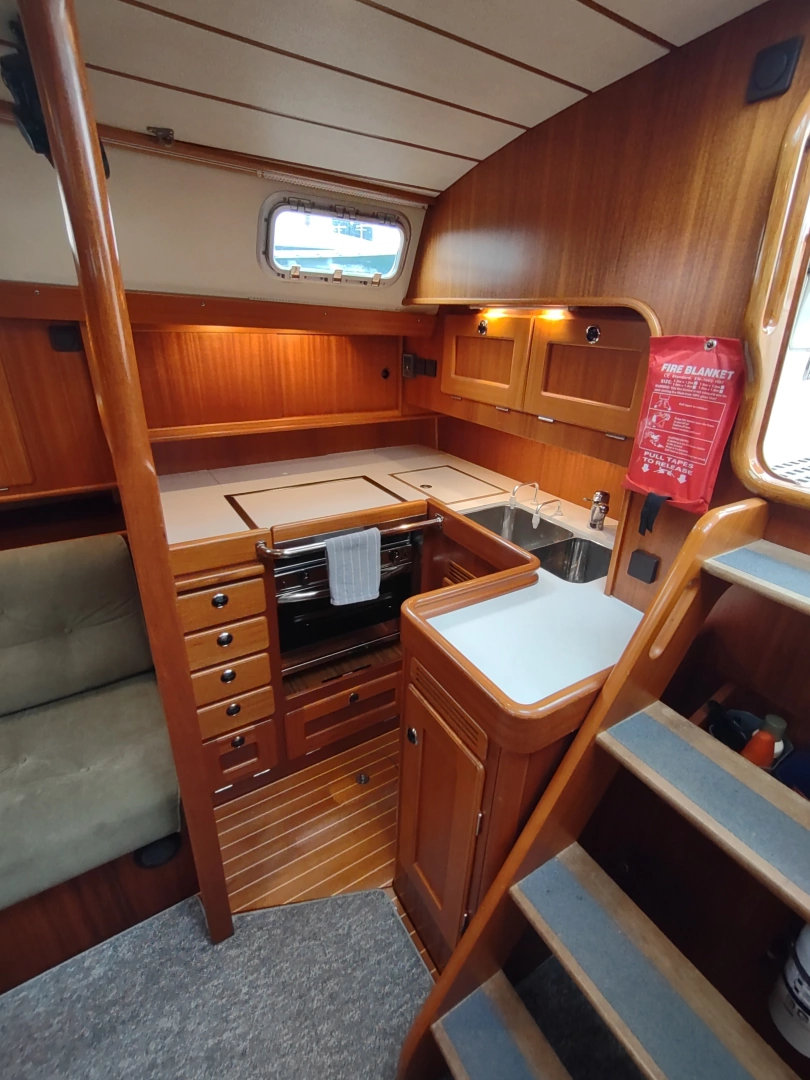

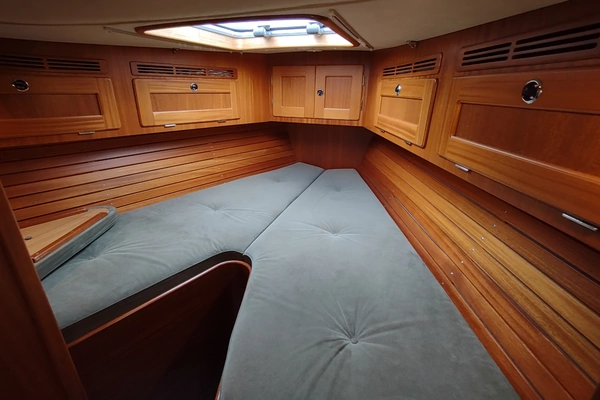

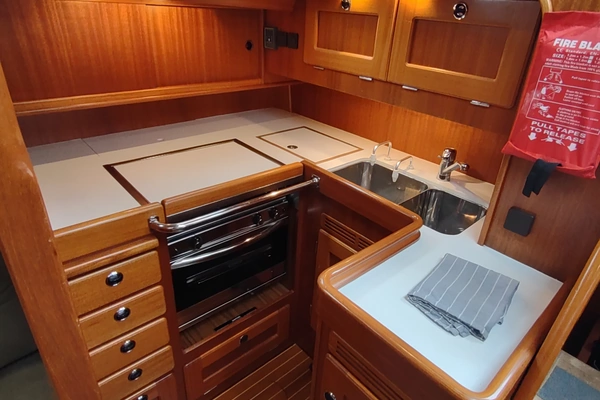

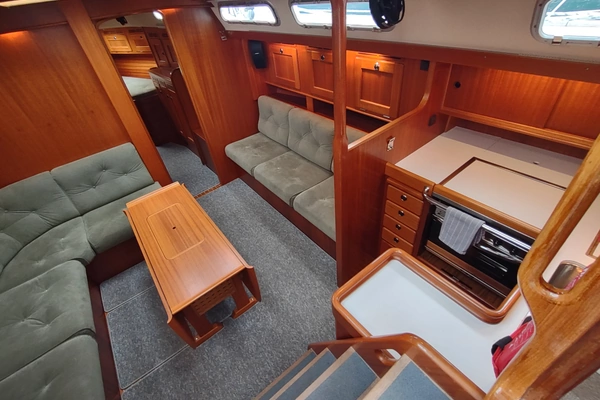

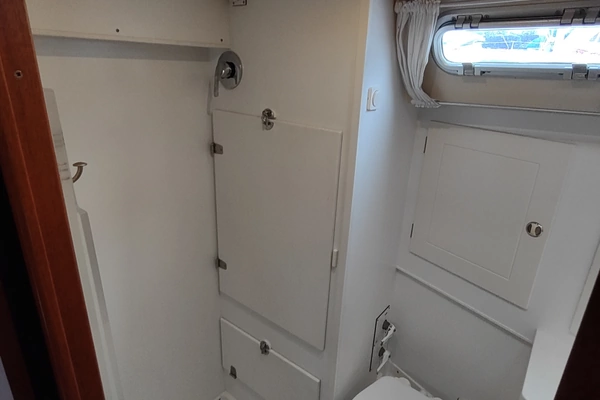

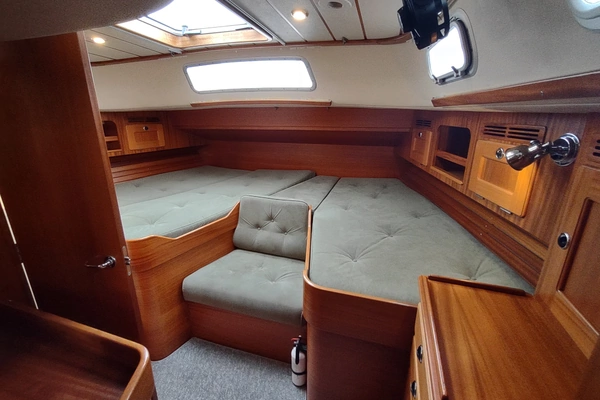

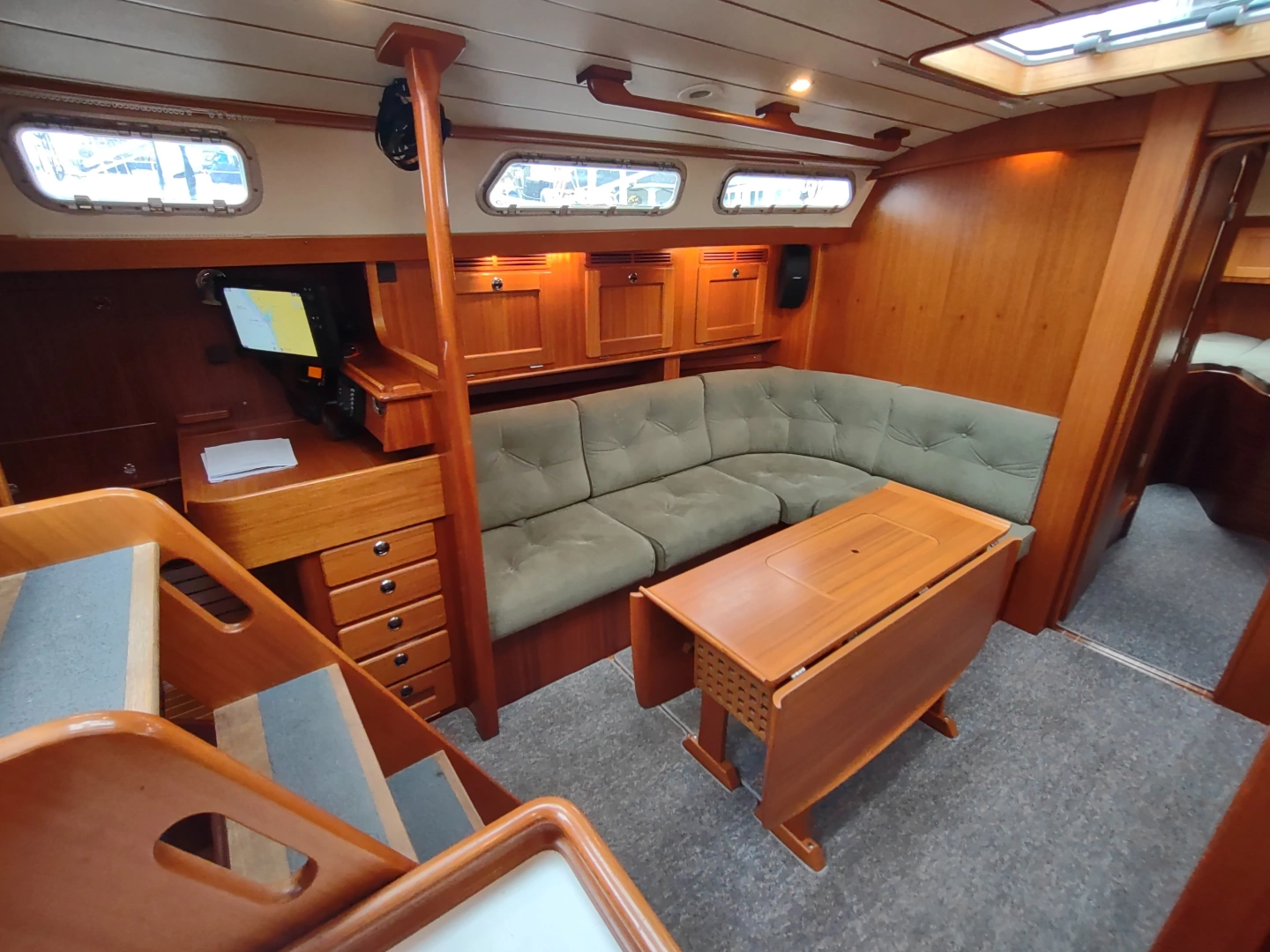

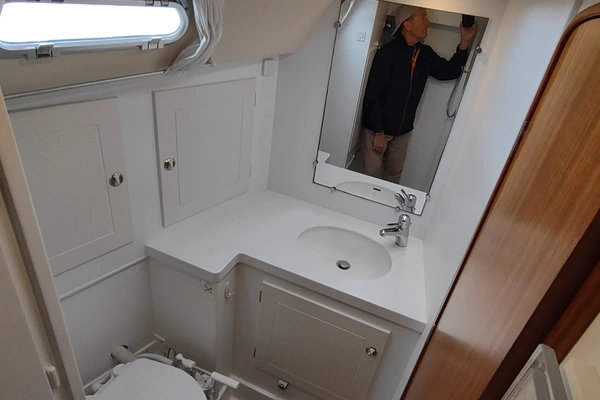

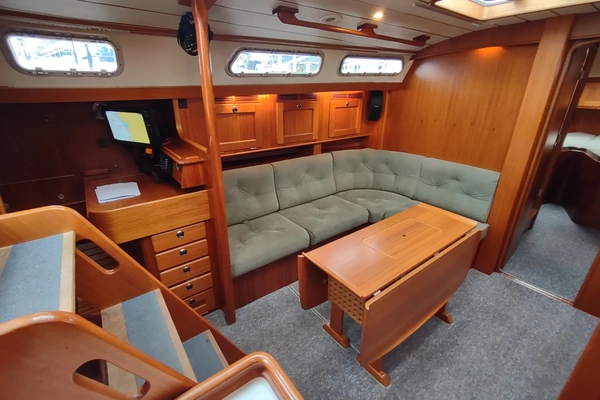

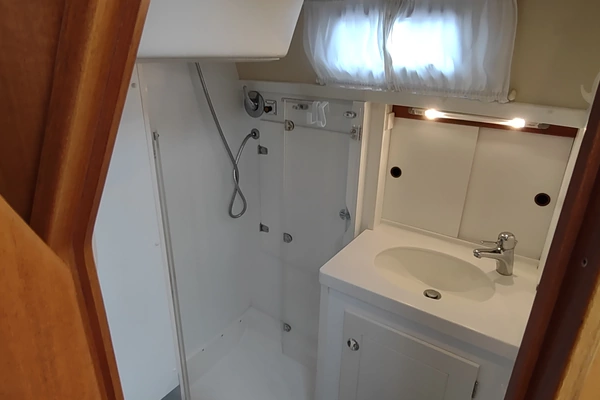

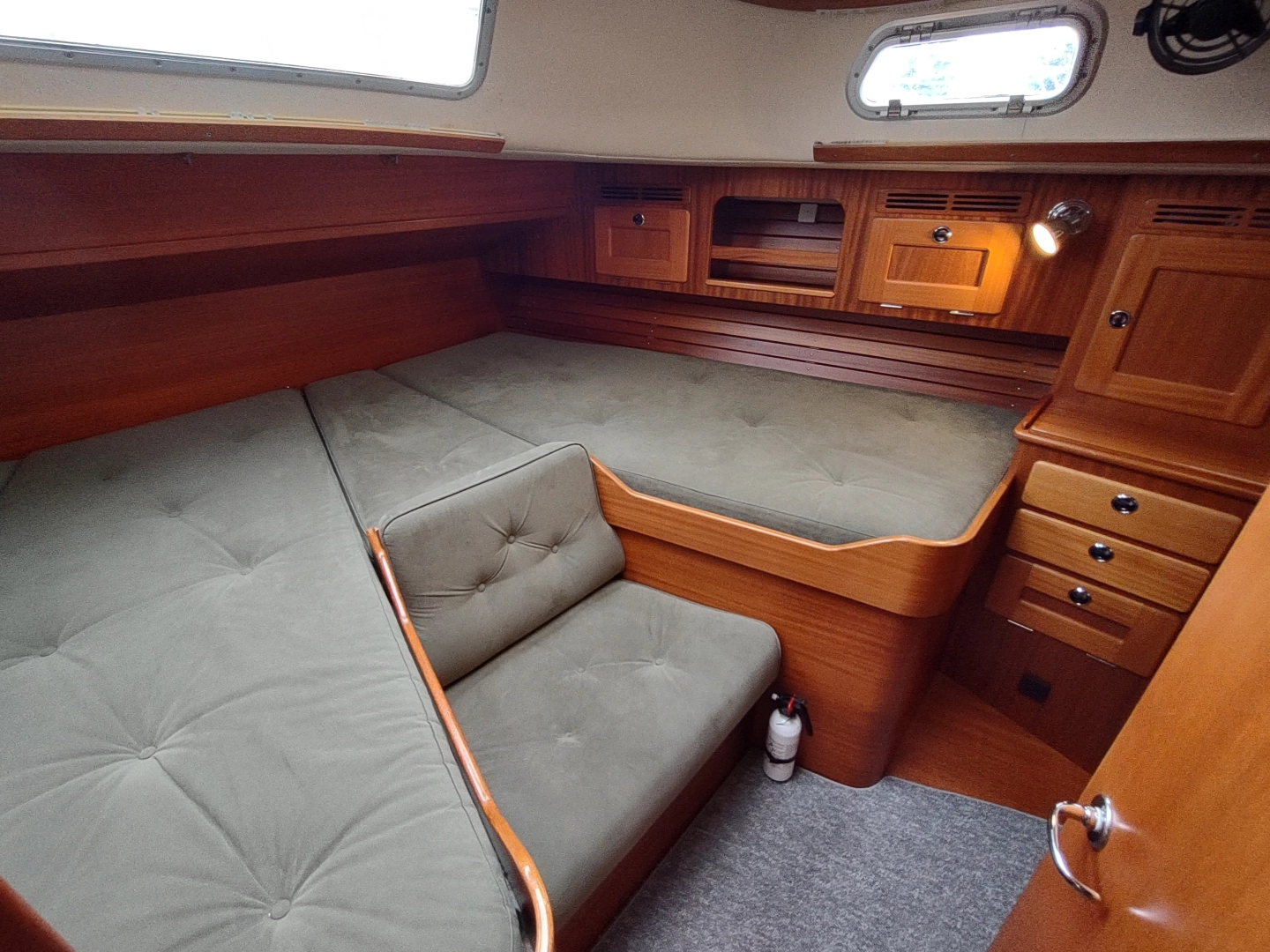

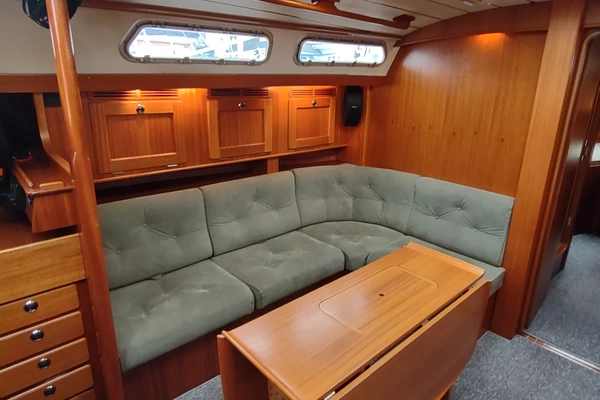

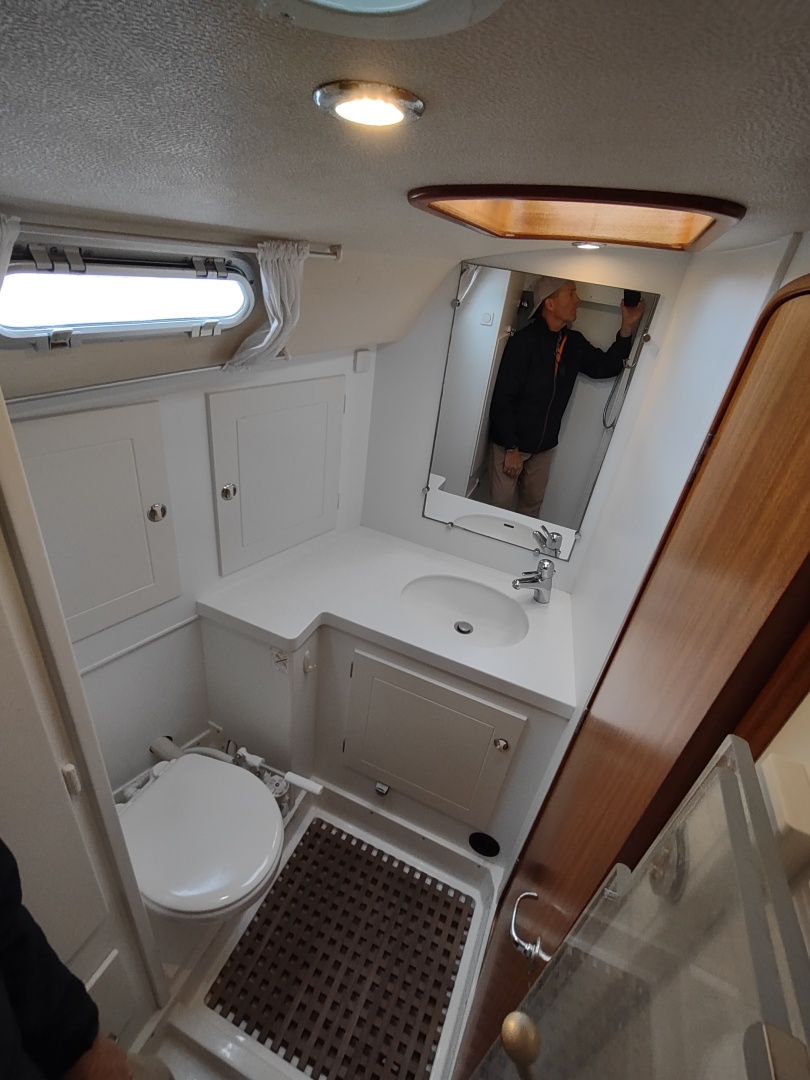

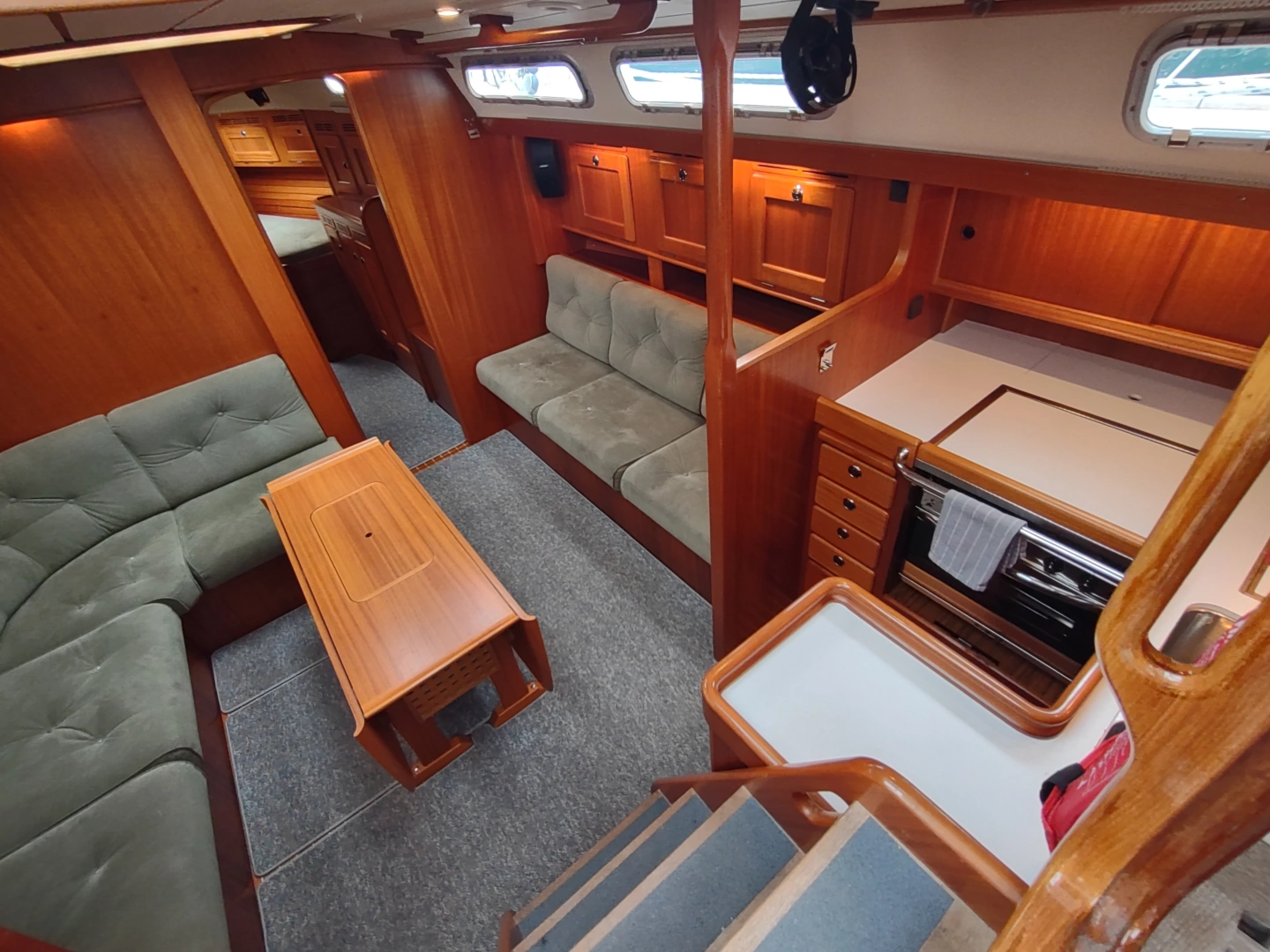

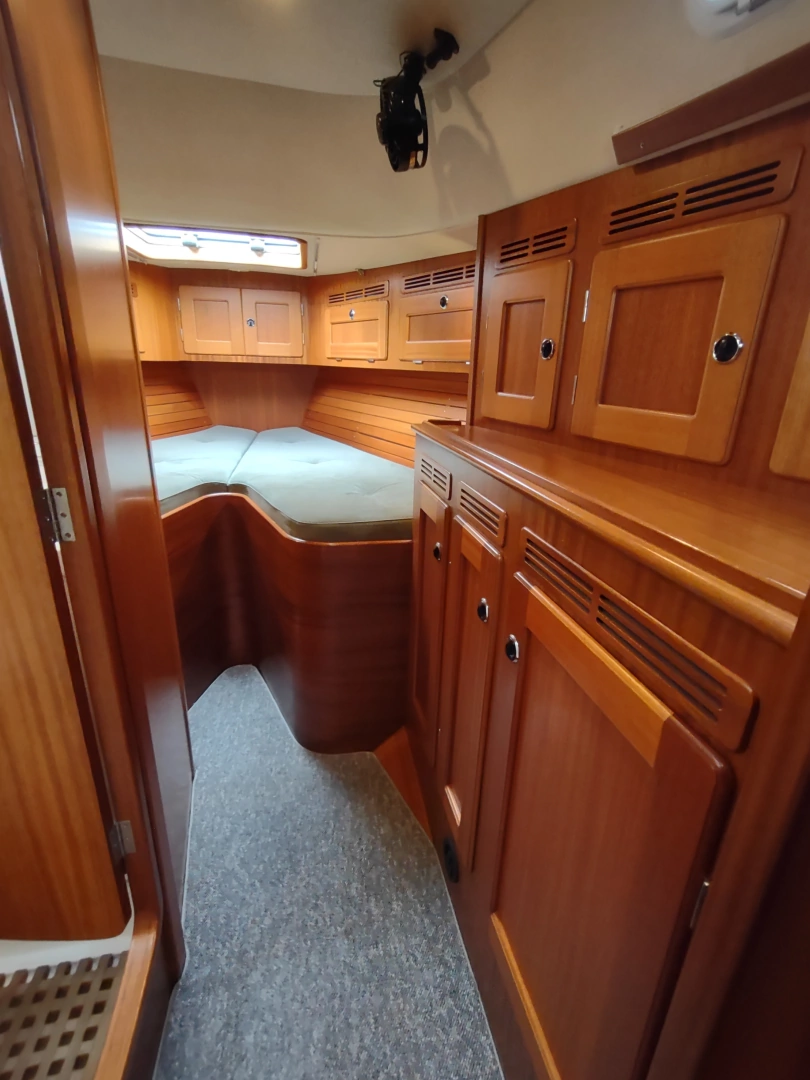

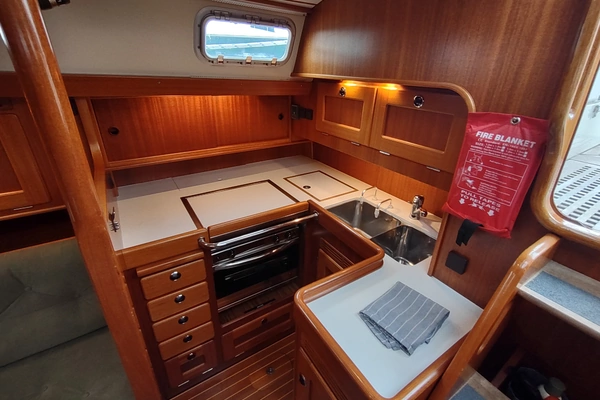

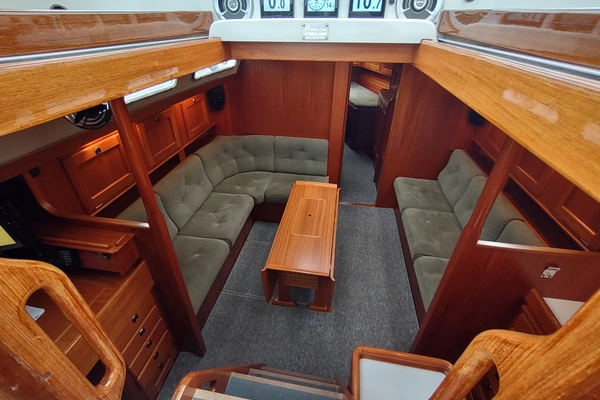

There are 5" thick cushions on all of the berths. Headroom in the main salon is 6'5" and in the passageway to the aft cabin the headroom is 6'. Starting forward is an anchor locker with large deck access and a dividing shelf. The forward stateroom has a v-berth with infill, cabinet and locker storage above and outboard. A large bin for storage of extra sails is below the v-berth. Aft of the v-berth is a bureau with lockers above and below with large hanging locker aft and dressing seat. The forward head/shower compartment to port has a china sink, mirror, white laminate wipe down surfaces, marine head(both heads replaced in 2020), a separate shower stall with a plexiglass door and teak grating. Aft of the forward cabin is the main salon with "L" shaped dinette to port surrounding a drop leaf table with spirits locker in the middle. There is easily accessible storage behind the seat cushions. A straight settee is to starboard. The seat back cushion lifts and secures as an upper berth and is fitted with a lee cloth. This opens up a wide lower berth. There are cabinets outboard and above each settee with an open narrow shelf below. The "U" shaped galley is to starboard of the companionway ladder. Galley appliances include an Isotherm top opening refrigerator box, Isotherm top opening freezer box, Eno two burner gimbaled stove with oven(new). There is a Trident electric propane shut off valve and manual freshwater foot pump. Corian counters with mahogany fiddles, deep SS double sink, breadboard with drawers for cutlery and utensils below, and large lockers with sliding doors combine to deliver a well-appointed sea-going galley. To port is a large, forward-facing navigation station. The chart table is spacious with plenty of room to spread out charts and other navigation equipment. Instruments are mounted in the aft facing shelf above the chart table. There are four drawers and a cupboard below the chart table. There is a true walk-through passageway to the aft cabin with wet locker and storage cabinets outboard. Large rubber-sealed double doors open to the engine room along the passageway providing excellent engine room access. The electrical panel and book shelves are above the engine room doors. The passageway leads to the aft cabin where one finds a double berth to starboard, a single to port, and a dressing settee between the berths. Stowage is available under the berths and there are lockers above and outboard. A bureau with locker below and mirror above is located aft of the settee bench. Hanging locker, drawers and bureau are along the port side of the aft cabin. The ensuite head is to starboard and includes a china sink, mirror, white laminate wipe down surfaces, a head, a separate shower stall with a plexiglass door and teak grating.

SAILS & RIGGING:

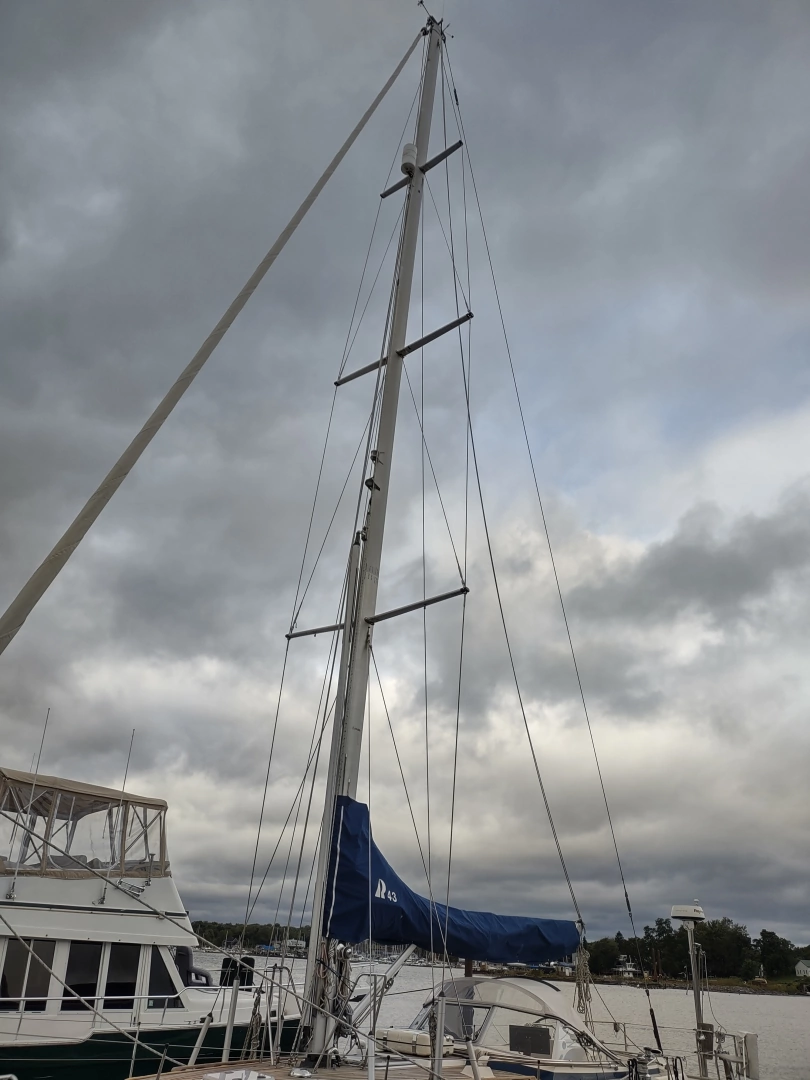

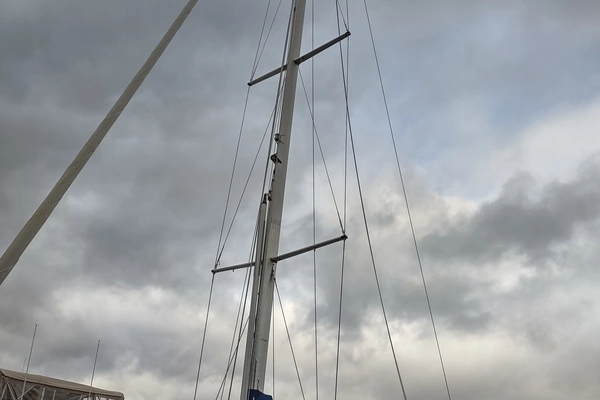

• Selden anodized deck stepped aluminum mast with triple spreaders
• Selden anodized aluminum boom
• Elvstrom offshore quality full batten HydraNet 380 mainsail (new 2021)
• Selden MDS batten car system
• Mainsail cover
• Mainsail gybe preventer lines
• EZ-jack mainsail catchment system
• Elvstrom 135% offshore quality Hydranet 380 genoa with E-flex reefing compensator and grey UV cover (new 2021)
• Elvstrom Offshore quality furling jib
• Elvstrom storm jib (new and never used)
• Spare mainsail and genoa

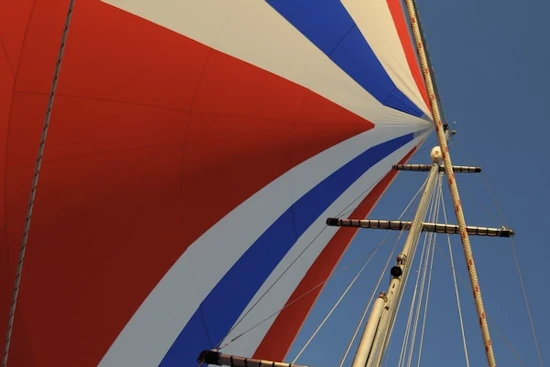

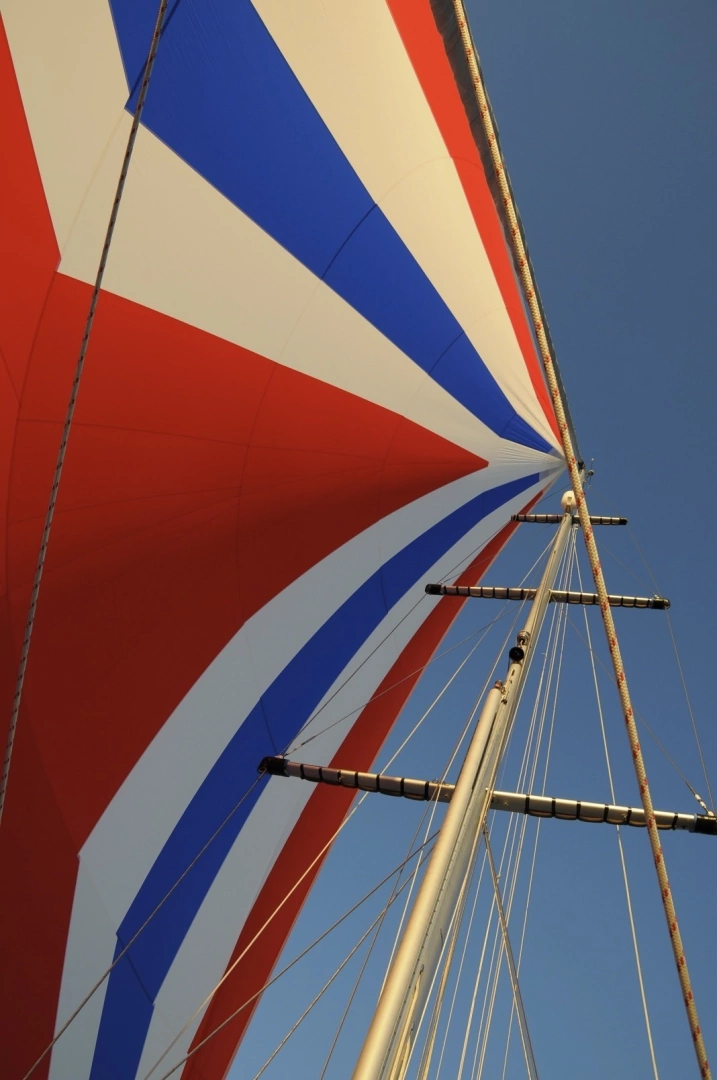

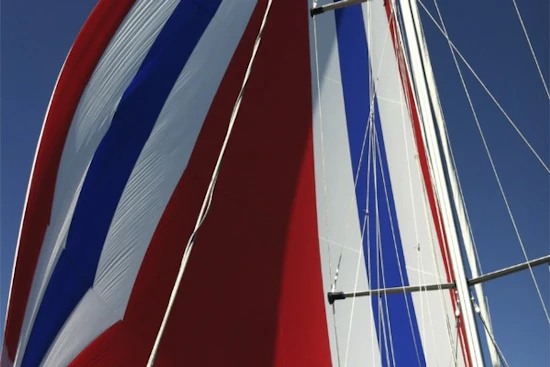

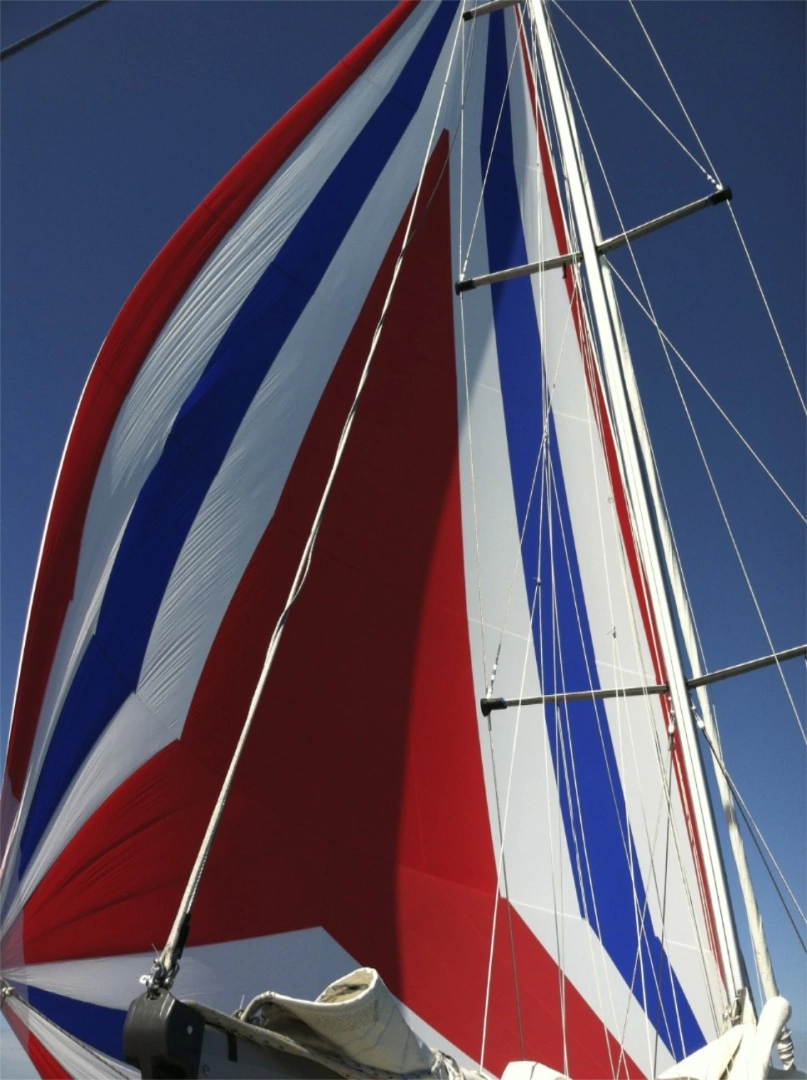

• Elvstrom red, white, and blue furling cruising spinnaker including removable stainless-steel bowsprit, sheets and
• blocks
• Removable cutterstay with halyard, running backstays and lead cars
• Navtec A 370-LE-17 hydraulic backstay tensioner
• Rodkicker solid boom vang with lifting gas spring
• Selden mast-mounted whisker pole and topping lift
• Spinnaker halyard
• Spare genoa halyard
• Halyard storage bracket in front of mast
• (2) Lewmar self-tailing winches on mast
• Reefing/outhaul winch on mast
• Lewmar 40 CST mainsheet winch
• Lewmar 54 CST primary winches
• Winch handles
• 4:1 double-ended mainsheet with sheet stoppers
• Genoa lead car pullers adjustable from cockpit
• (2) Winch handle pockets
• Masthead mounted windex wind direction indicator
• Deck light mounted on mast
• Tricolor/anchor light on masthead

DECK & HULL:

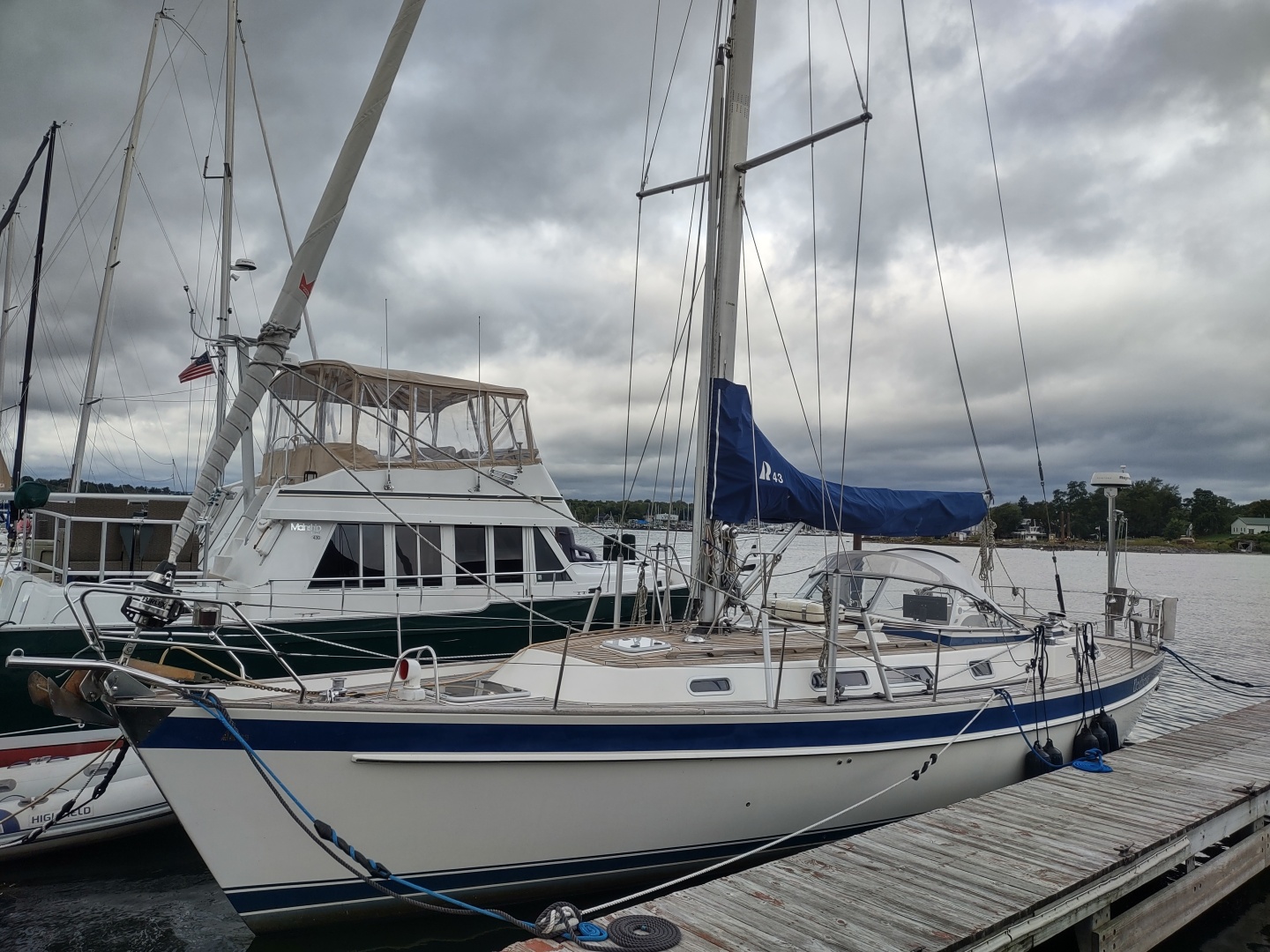

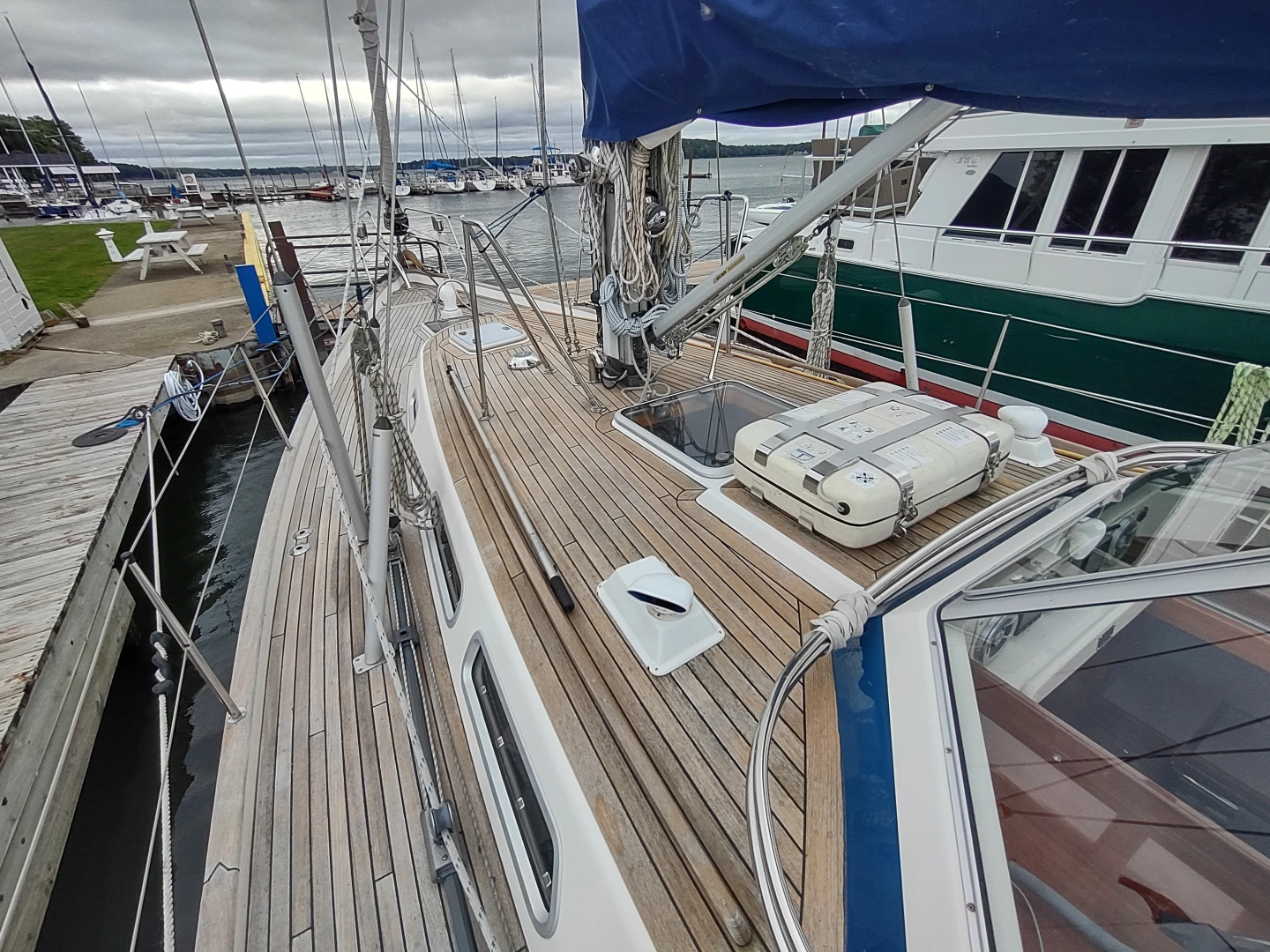

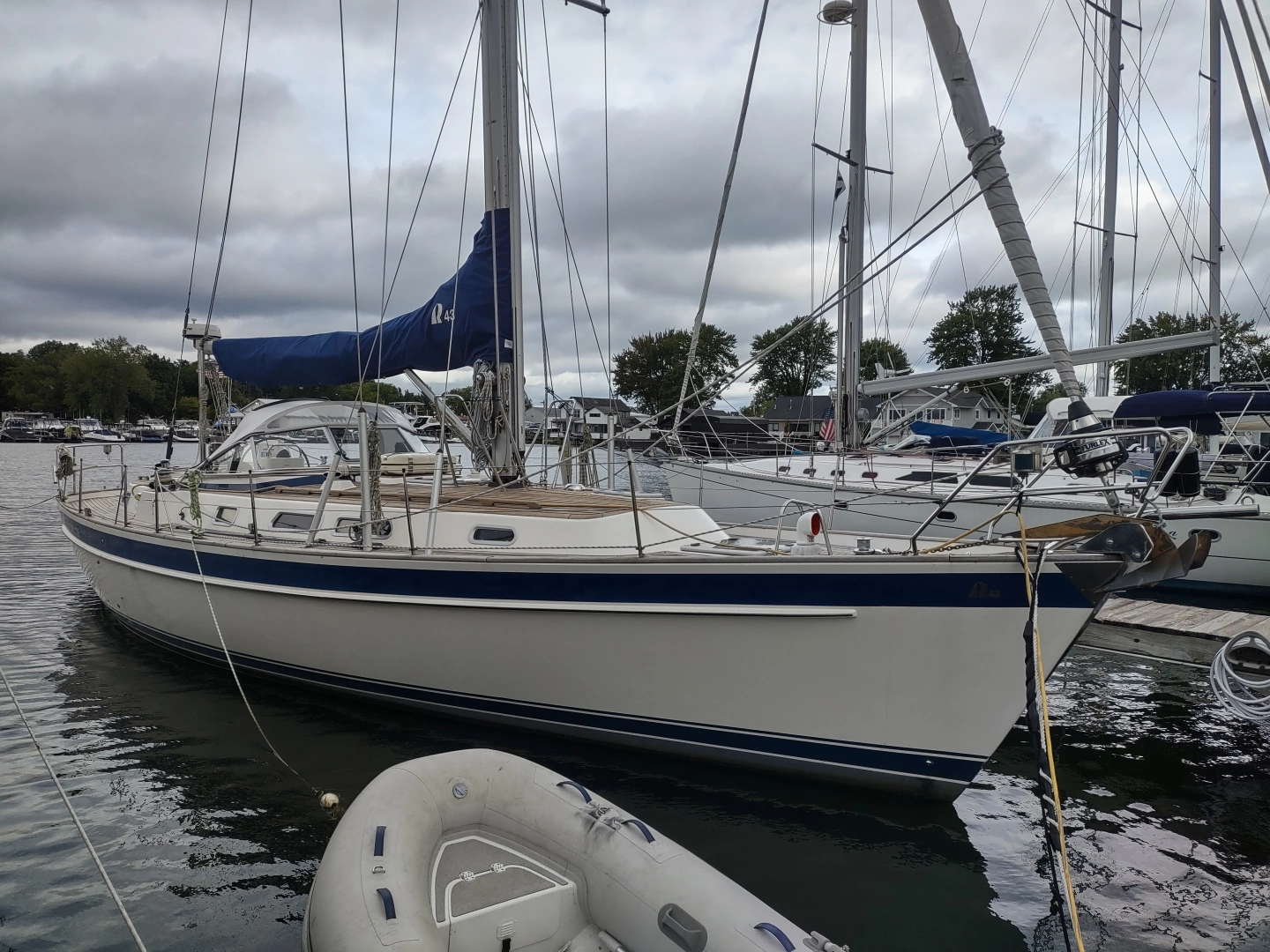

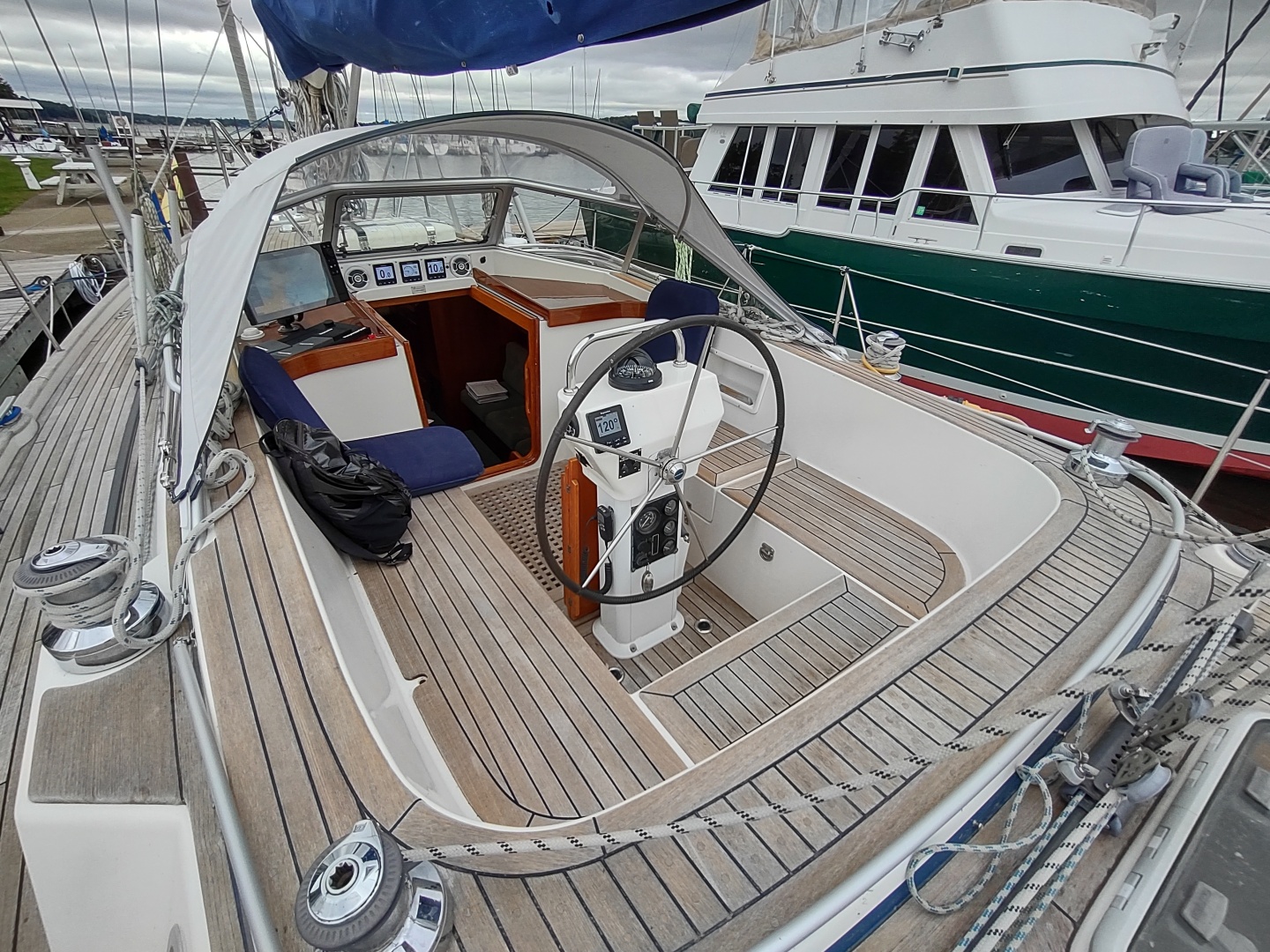

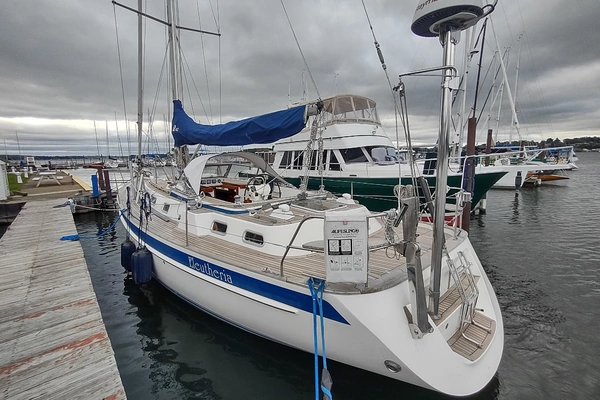

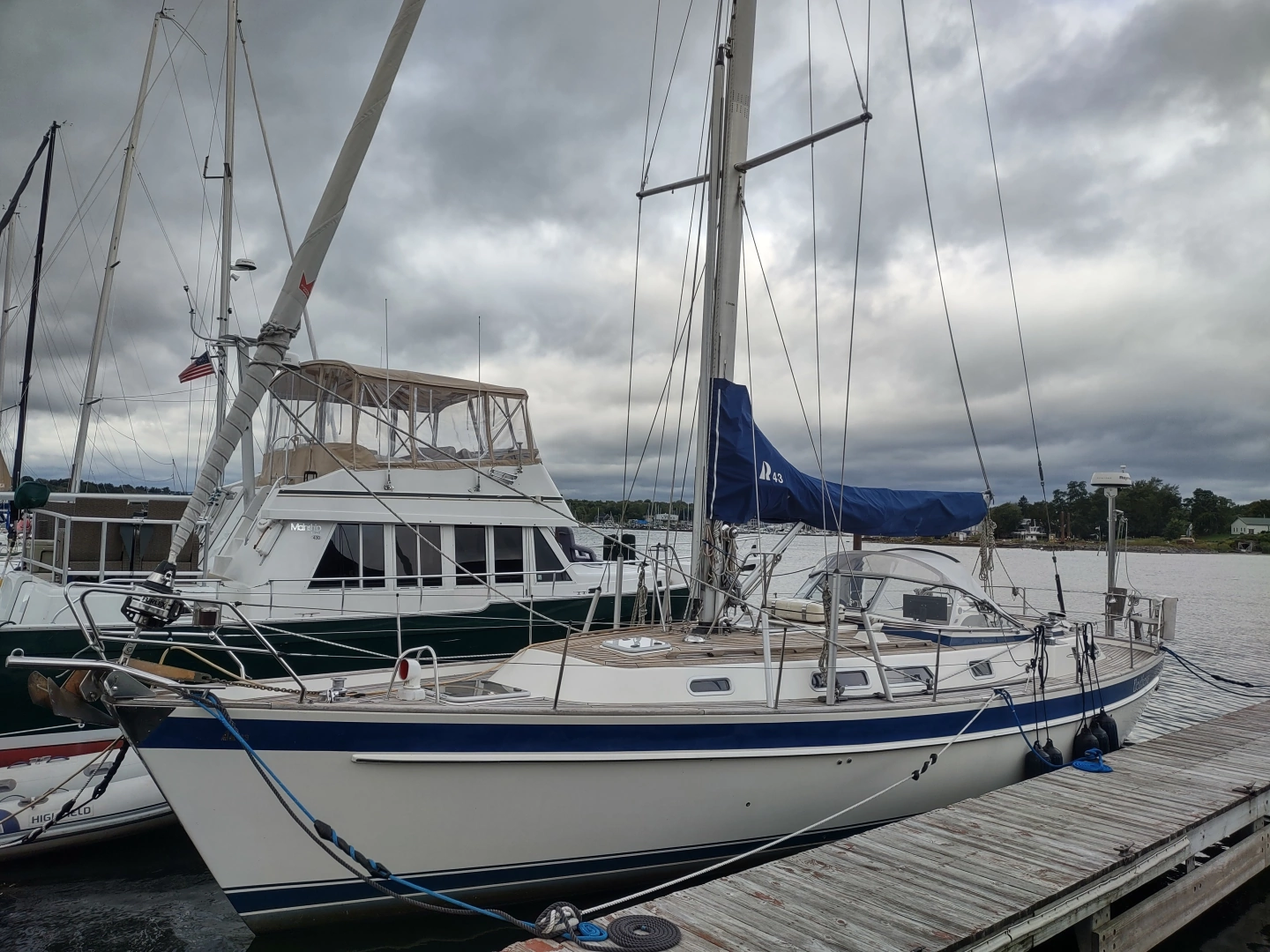

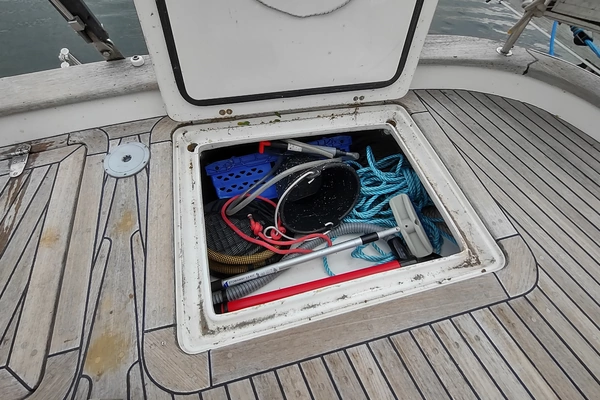

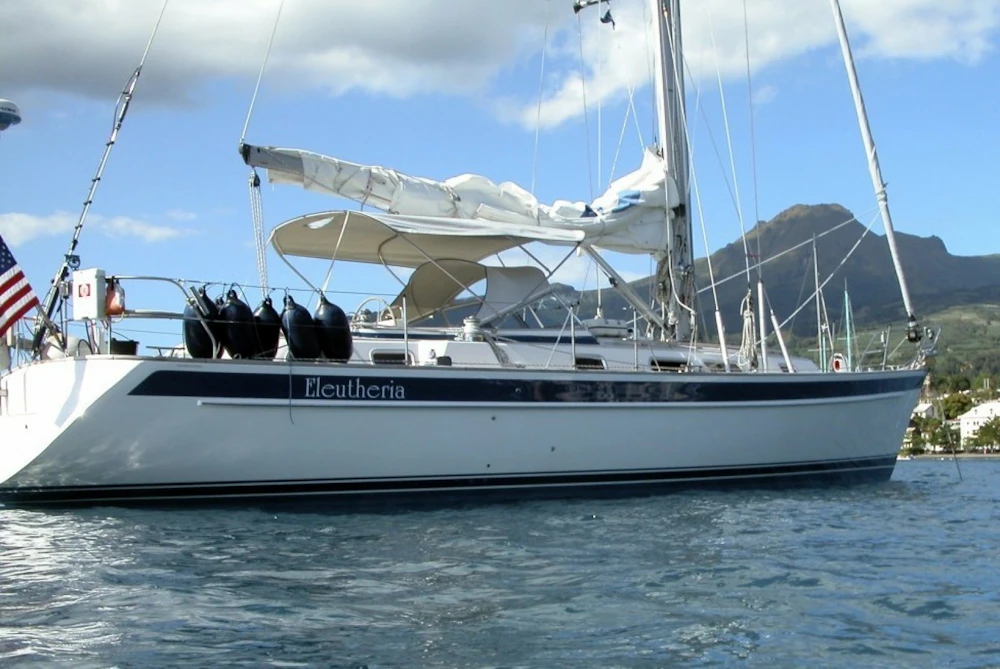

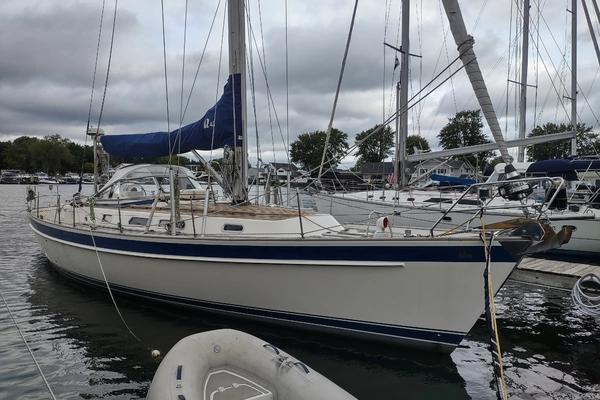

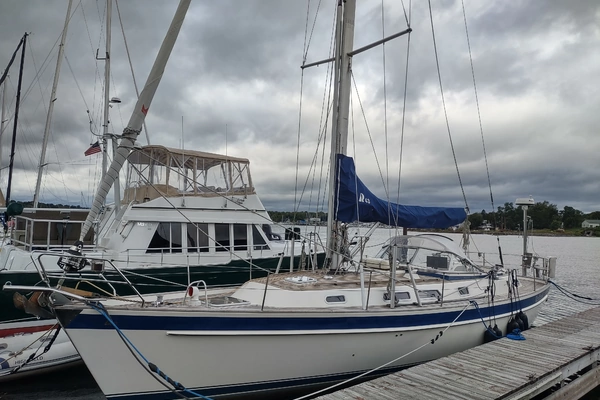

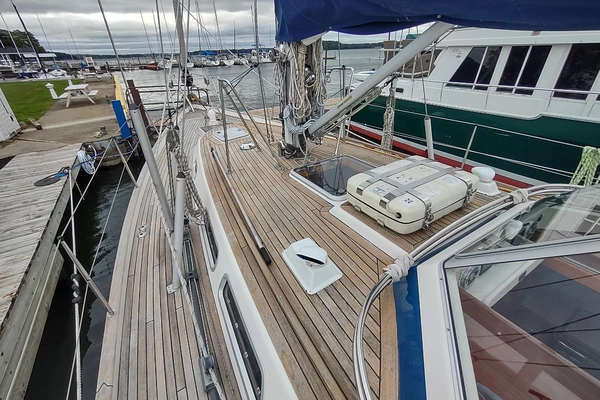

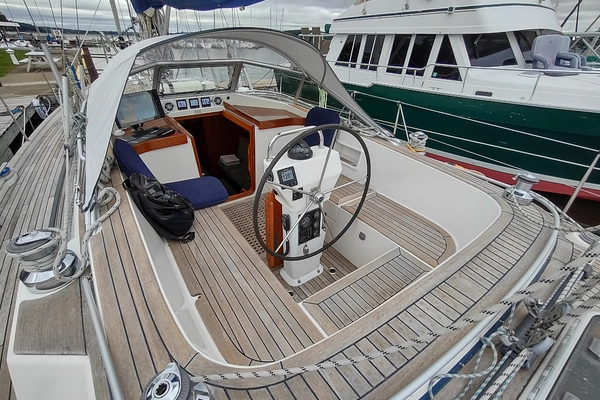

ELEUTHERIA’s hull finish is white gel coat with a white coach roof, blue sheer, boot, and coaming stripes. The keel is an external lead casting bolted to a sloped fiberglass keel stub. The hull and deck are insulated with closed cell foam. The fiberglass decks and coach roof are overlaid with teak and black rubber with a teak caprail on raised bulwark and teak handrails on the coach roof. A molded-in rub rail capped with stainless steel protects the hull on both sides. ELEUTHERIA is fitted with a factory installed windshield and soft dodger. Under the dodger are port and starboard varnished outer chart tables for navigation equipment and chart layout. There are three D-rings in the cockpit to attach to tethers. The cockpit sole is a teak grate. There are two large drains in the cockpit. Deck-accessible storage is in four lockers. A large cockpit lazarette with stowage for companionway wash boards is under the starboard cockpit settee. Forward is a top opening chain locker with shelf and room for fenders, lines and other gear. There is a large locker located in the stern accessed by two deck hatches. The propane locker is on the starboard side deck. All lockers drain overboard. Stainless-steel stanchions, pushpit and pulpit are connected by double, uncoated wire lifelines with opening gates, port, starboard and aft. There’s an integrated swim step on the transom with a stainless-steel folding swim ladder.

• Windshield with opening center window and top mounted canvas dodger
• Varnished outer chart tables and companionway washboards
• Bimini with stainless steel frame and storage cover
• Varnished teak cockpit table

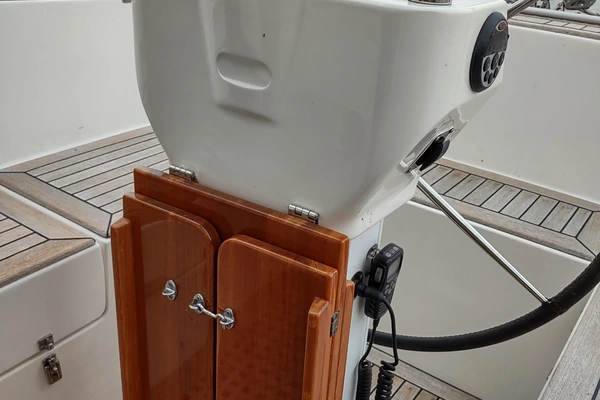

• Cover for steering pedestal and cockpit table
• Canvas full cockpit enclosure
• Leather covered steering wheel
• (3) Wichard folding “D” rings in cockpit for attaching tethers
• Lofrans Project 1000 electric anchor windlass with remote control at helm
• 25 kg Delta anchor and 250' of 9.5mm chain
• Mantus Chain hook and snubber line with Mantus chaffe cover
• Fortress FX-37 spare anchor and rode

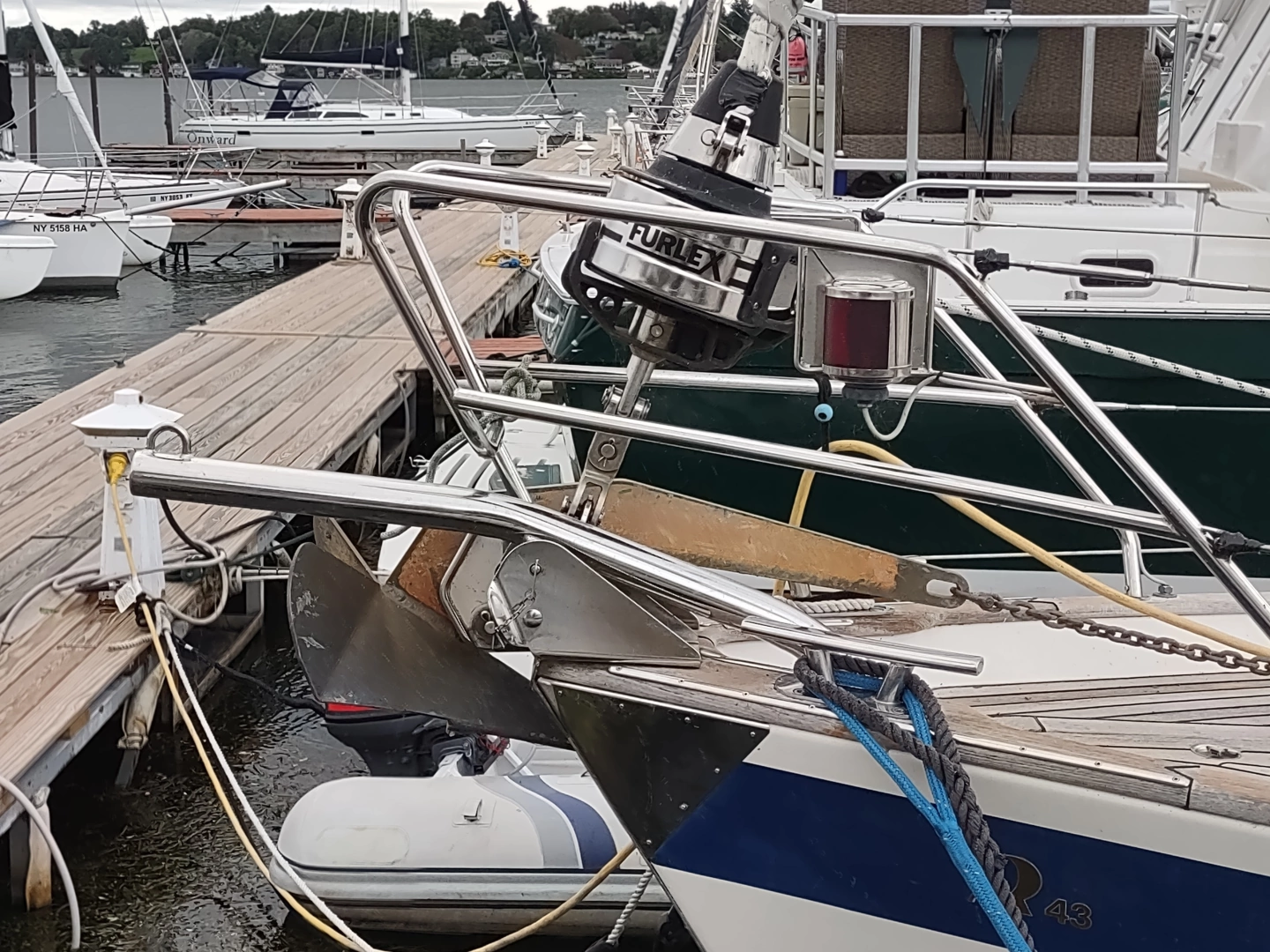

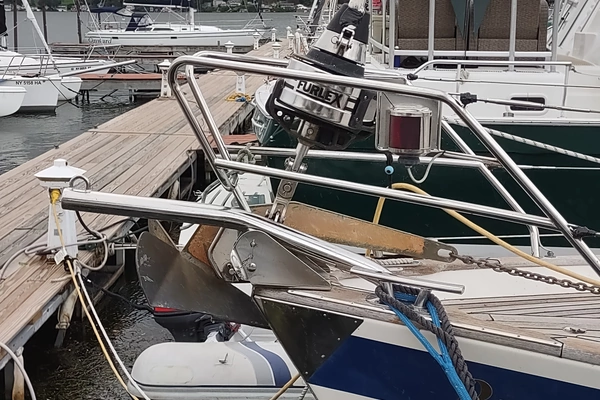

• Double bow roller
• Hinged stainless steel stern anchor roller
• Outboard lifting arm and block/tackle on stern quarter radar pole
• Outboard storage bracket on stern rail
• Teak pushpit seats
• Stainless-steel protective strips at mooring cleats
• Folding stainless steel bathing ladder on transom
• Stainless steel "granny bars" at mast base
• Boathook
• Lines and six fenders
• Varnished teak flag staff and stern holder
• Steering pedestal cover

ELECTRONICS & NAVIGATION:

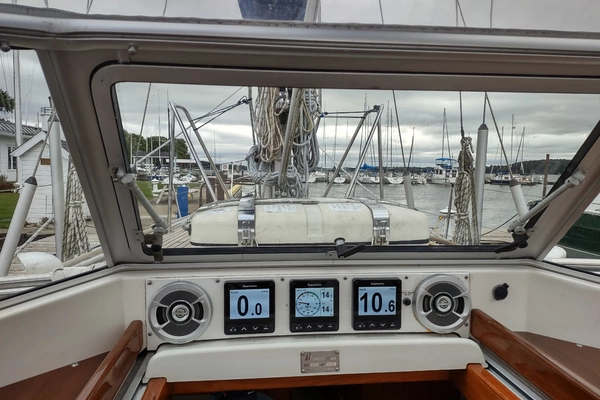

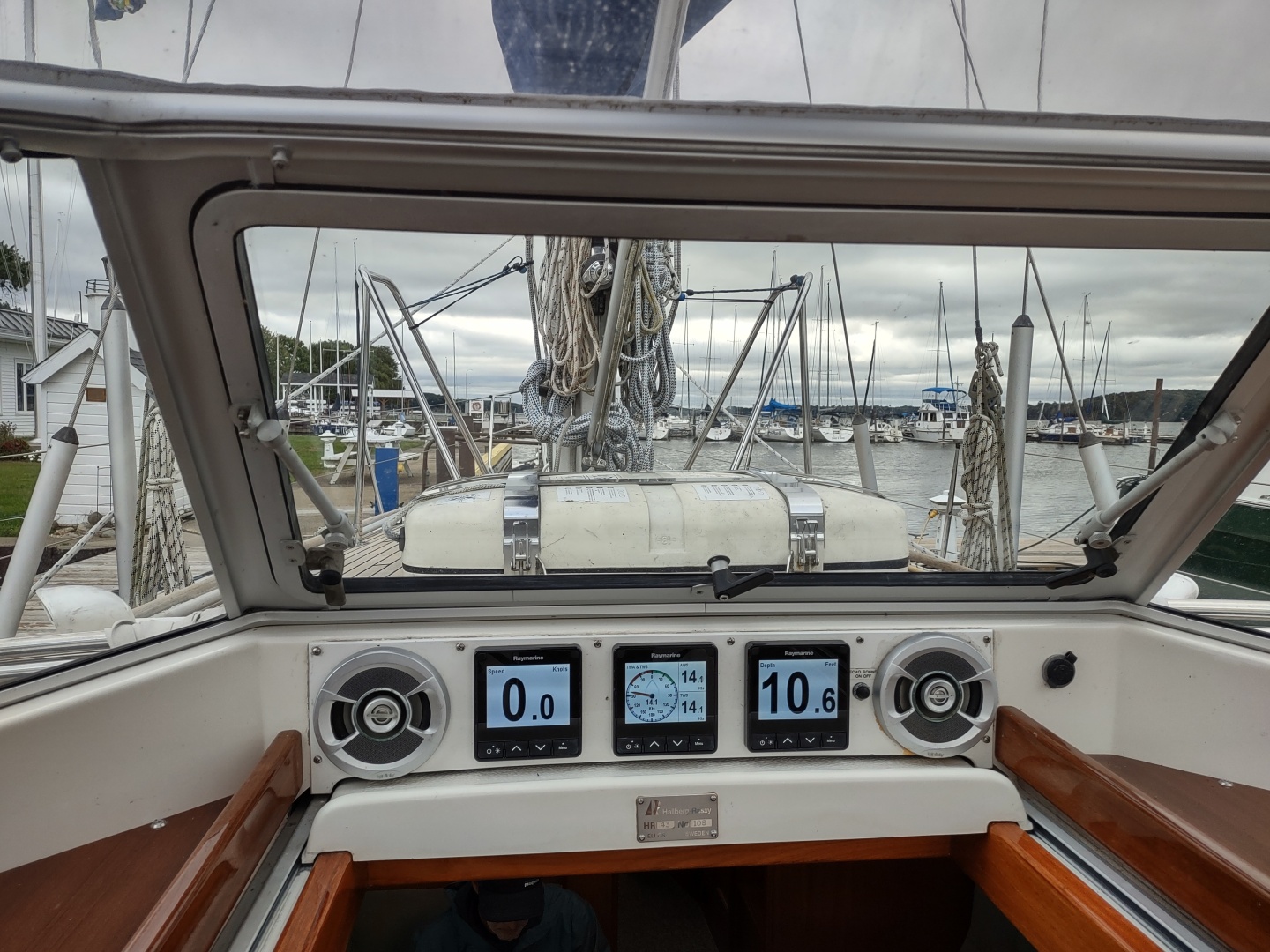

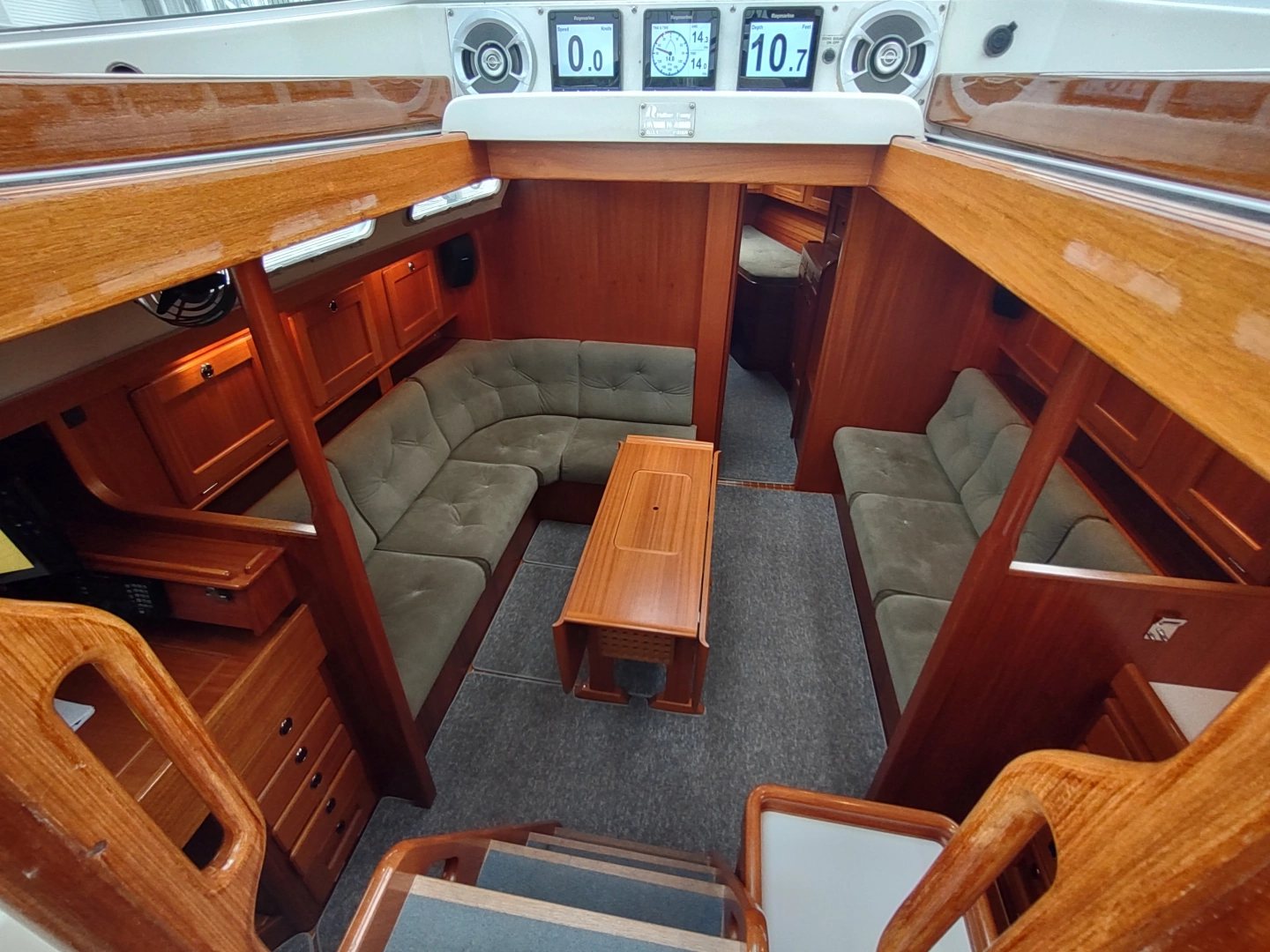

• (3) Raymarine i70 multi displays mounted over companionway (new 2020)
• Airmar speed, depth, and temperature transducer (new 2020)
• Raymarine Evolution autopilot pack(new 2020) and Whitlock engine room located rotary drive unit

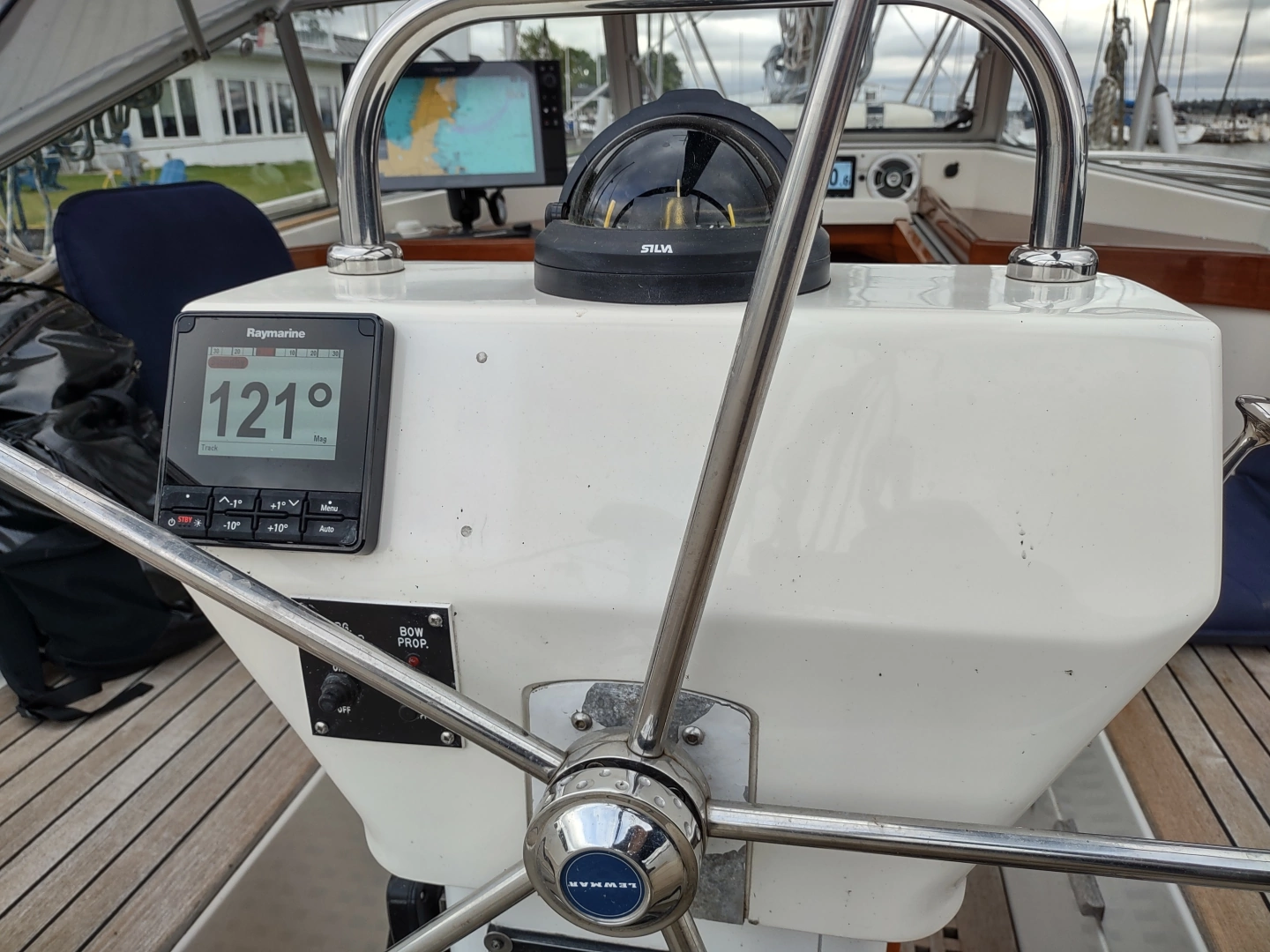

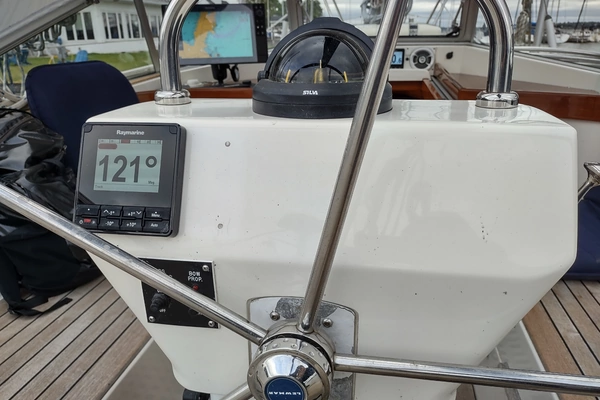

• Raymarine p70 autopilot control on steering pedestal (new 2020)

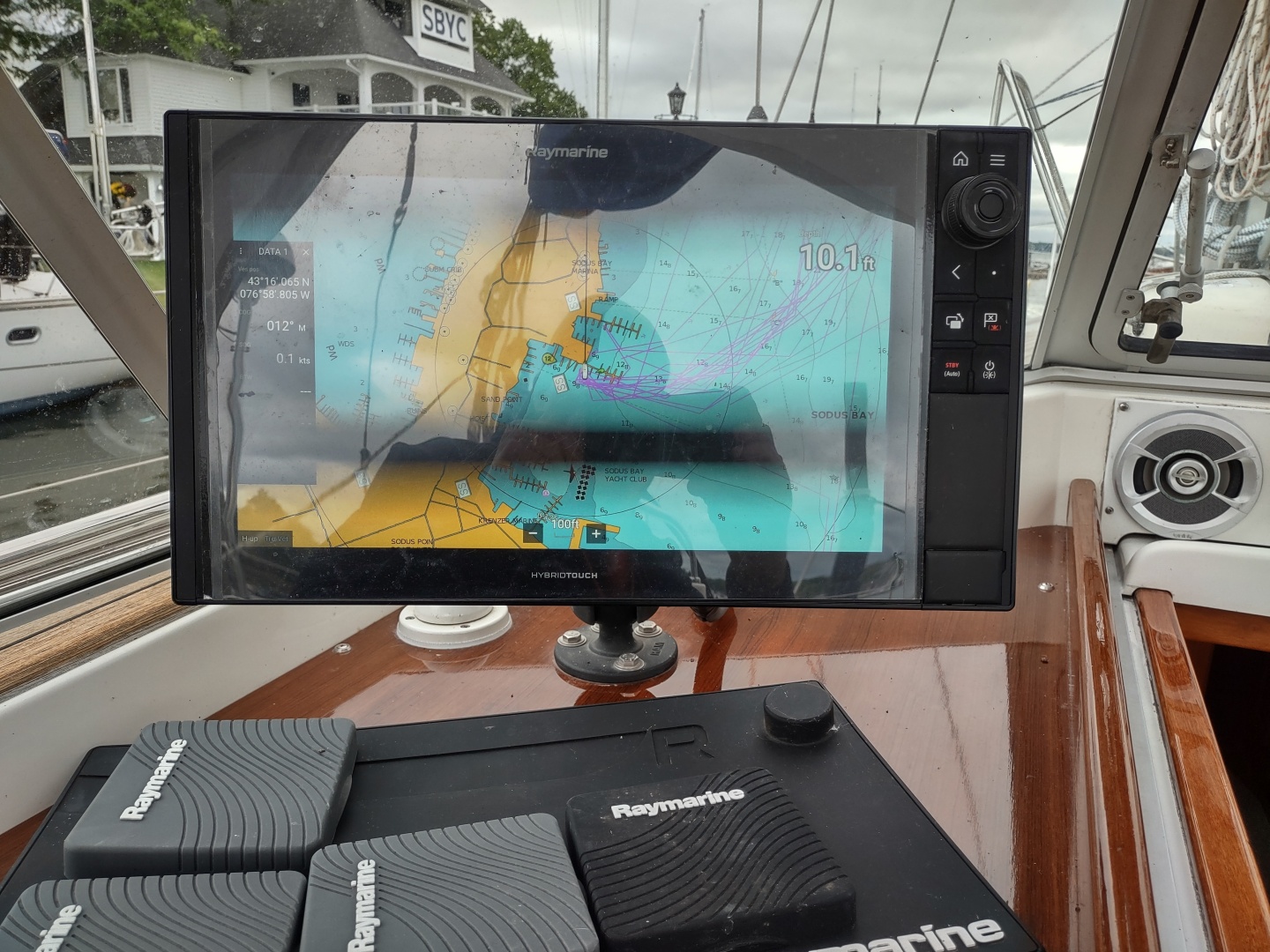

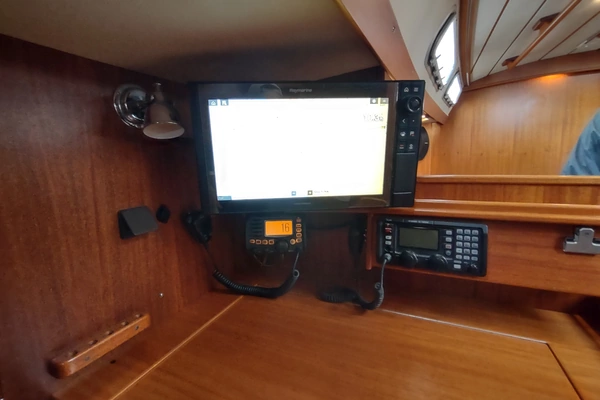

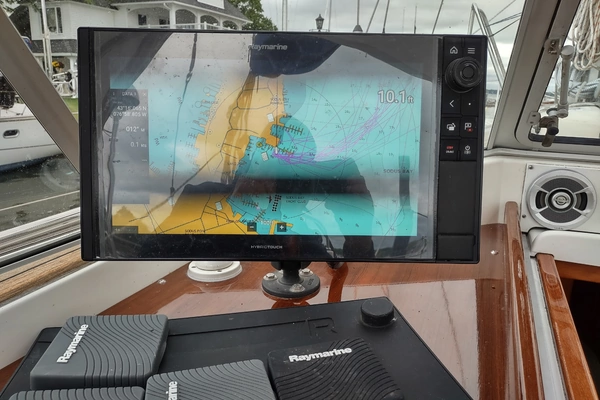

• Raymarine Axiom Pro 12” display at port outer chart table (new 2020)

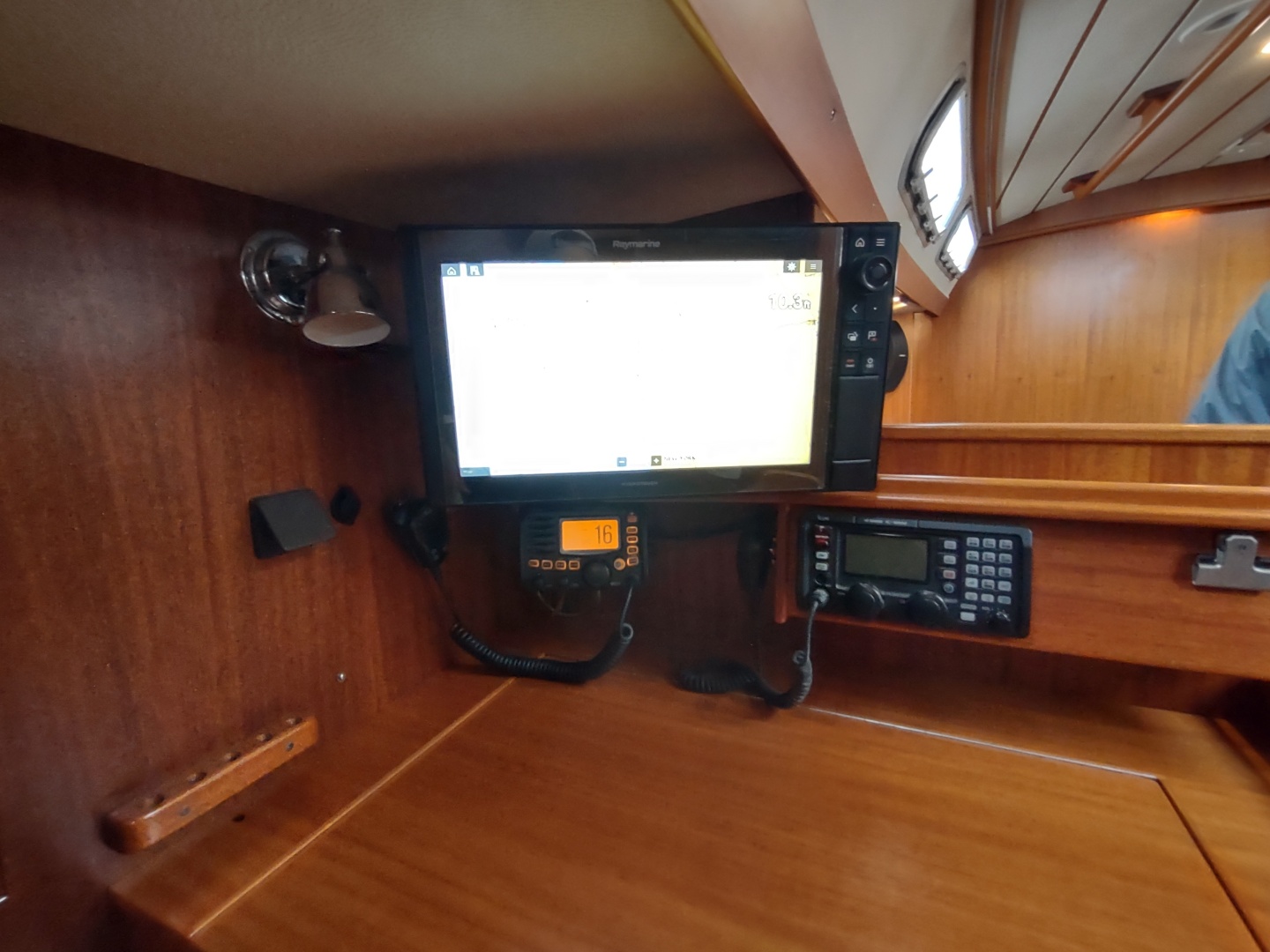

• Raymarine Axiom Pro 12” display at nav station (new 2020)

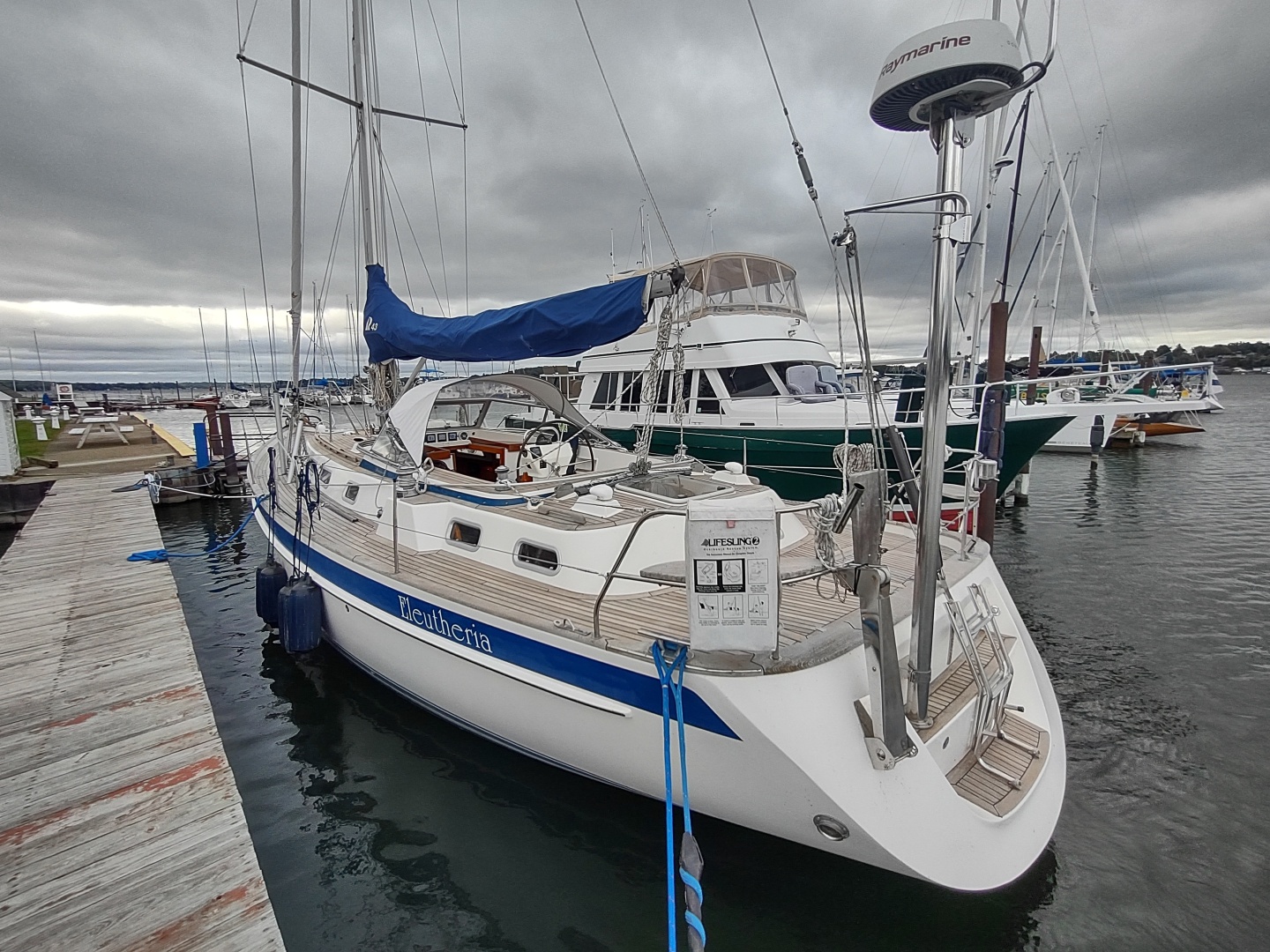

• Raymarine Quantum radome (new 2020) on stainless steel port quarter pole with leveling platform
• Sirius XM Infolink weather receiver

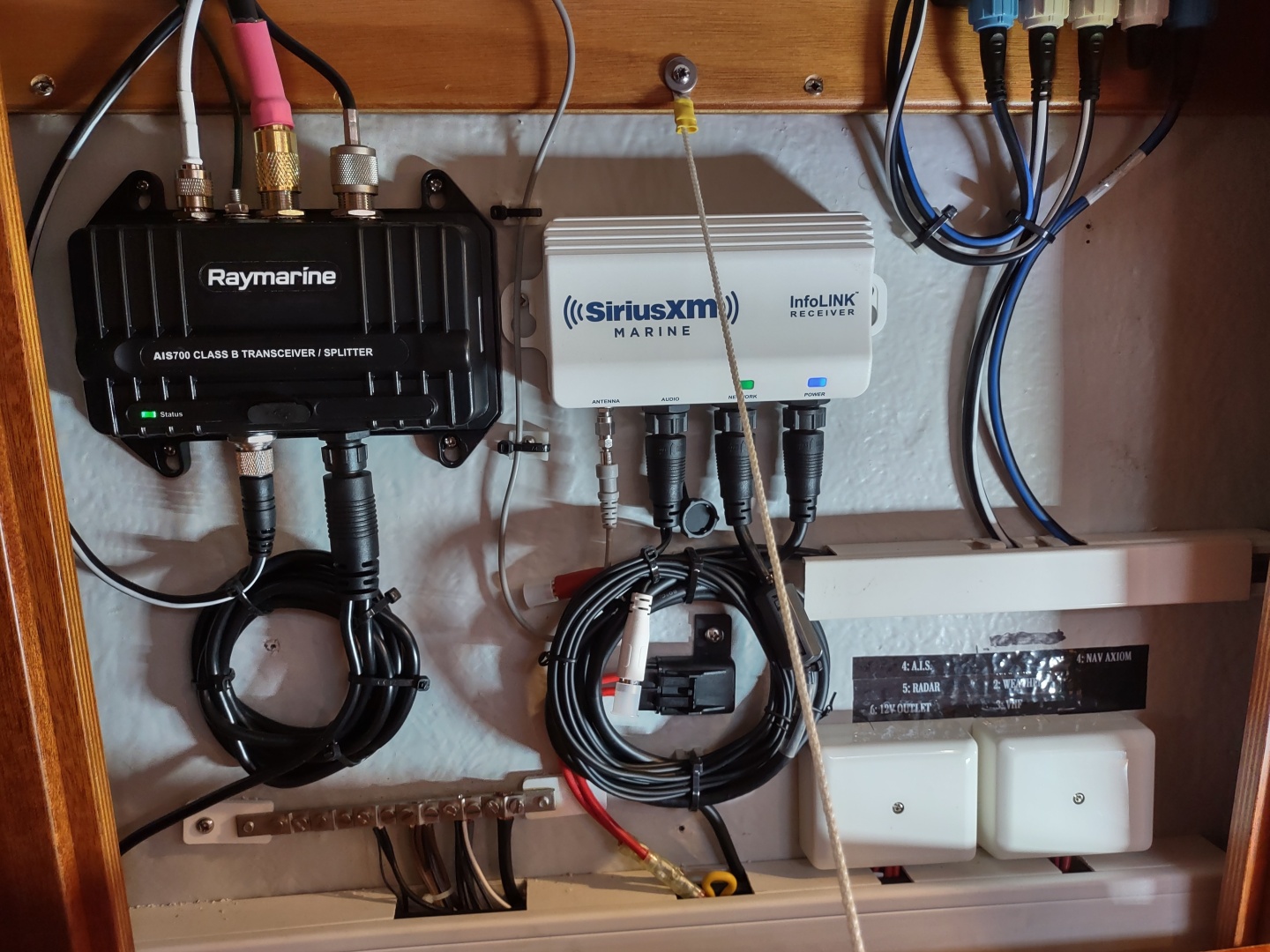

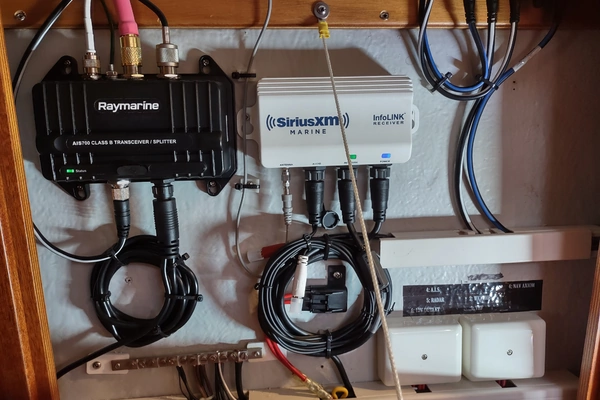

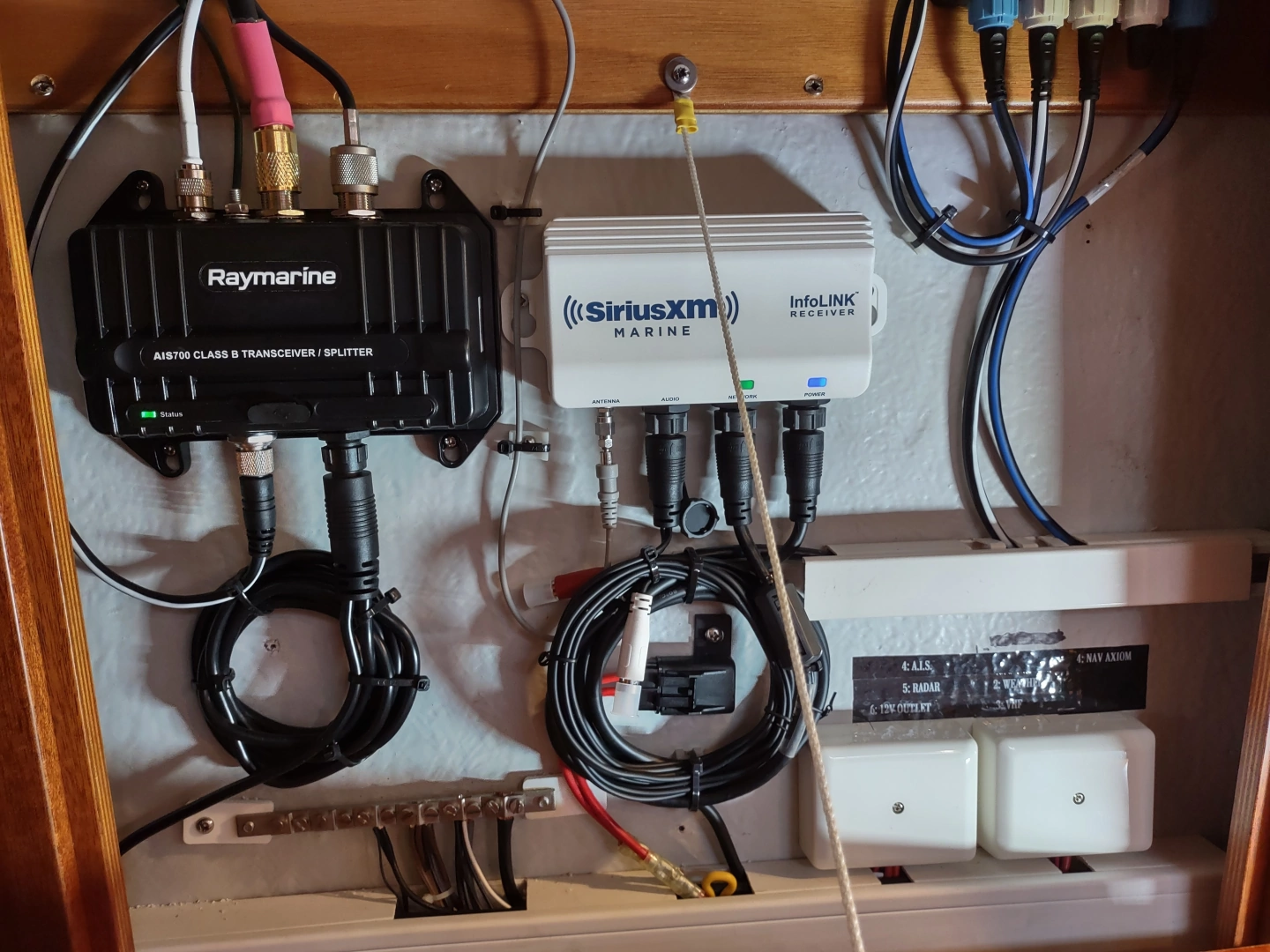

• Raymarine Class B AIS transceiver and antenna splitter
• NEMA/USB interface with cable at nav station
• Windex masthead wind indicator

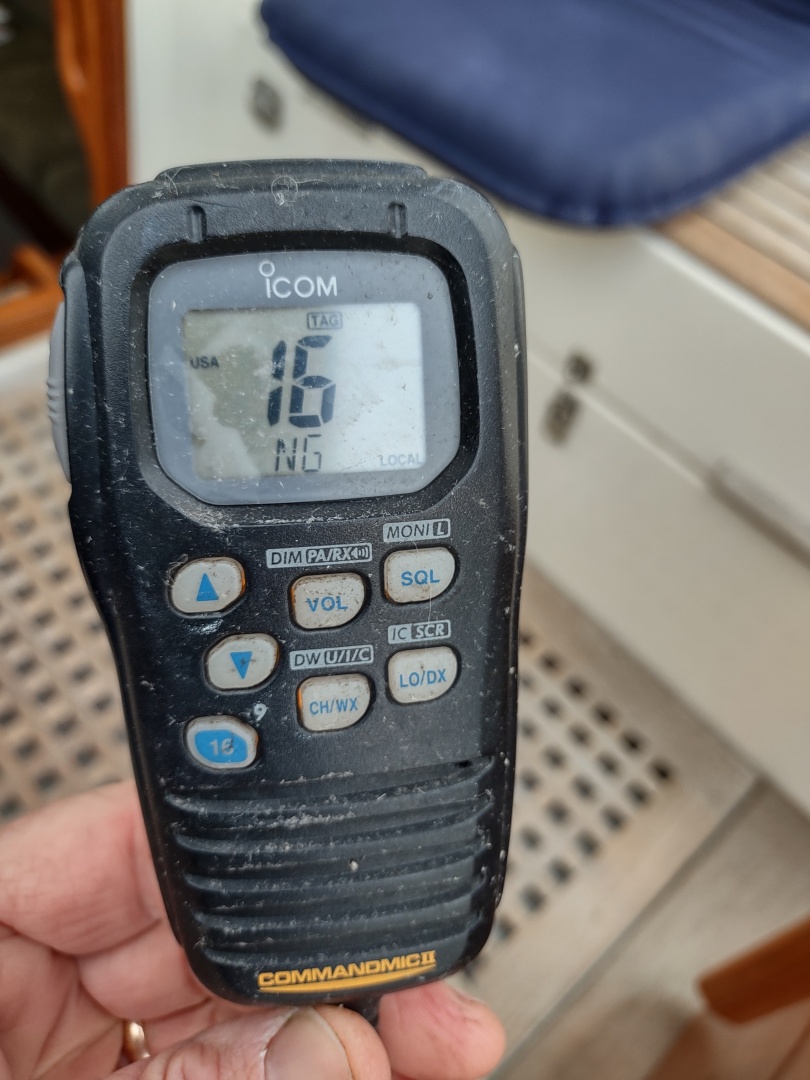

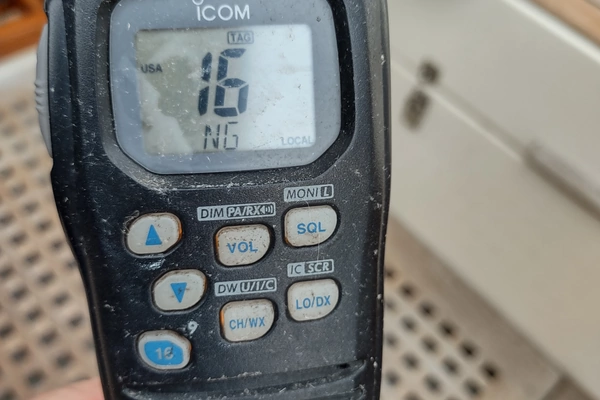

• ICOM IC-M601 VHF with DSC and HM-127B command mic (connection at steering pedestal) and masthead VHF antenna
• Icom M802 SSB with Icom AT-140 tuner, MK3 ground plates, and insulated backstay antenna (not connected)
• Pactor III SSB modem
• EchoMax 230 radar reflector on mast

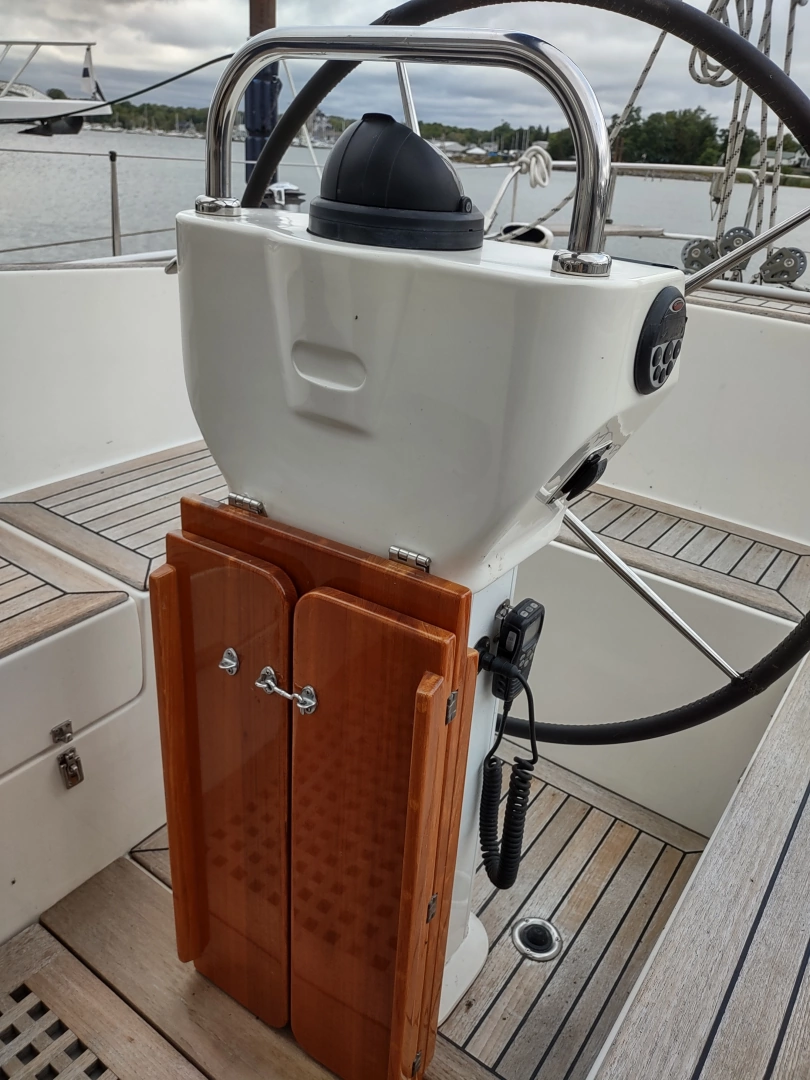

• Suunto compass with light on steering pedestal

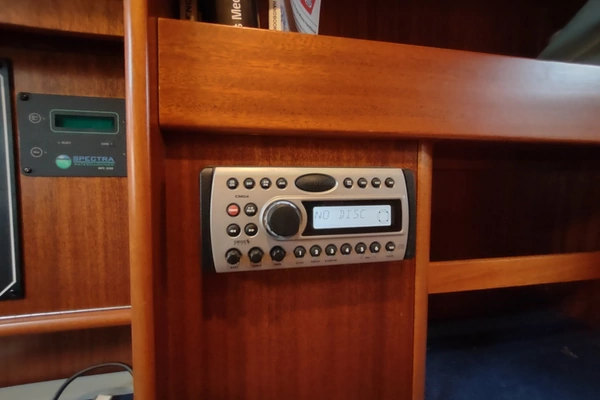

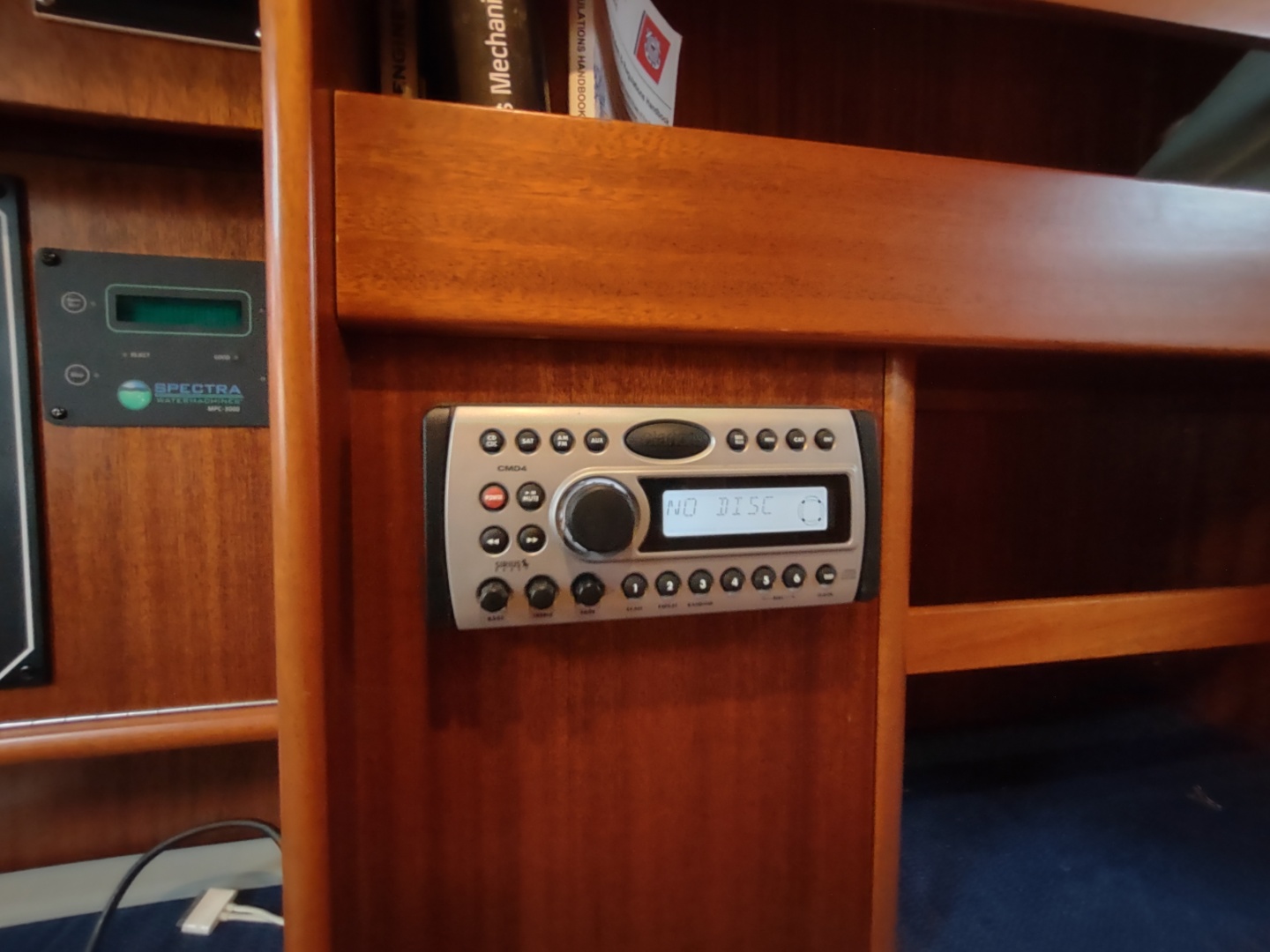

• Clarion DVD/Sat/FM/AM stereo

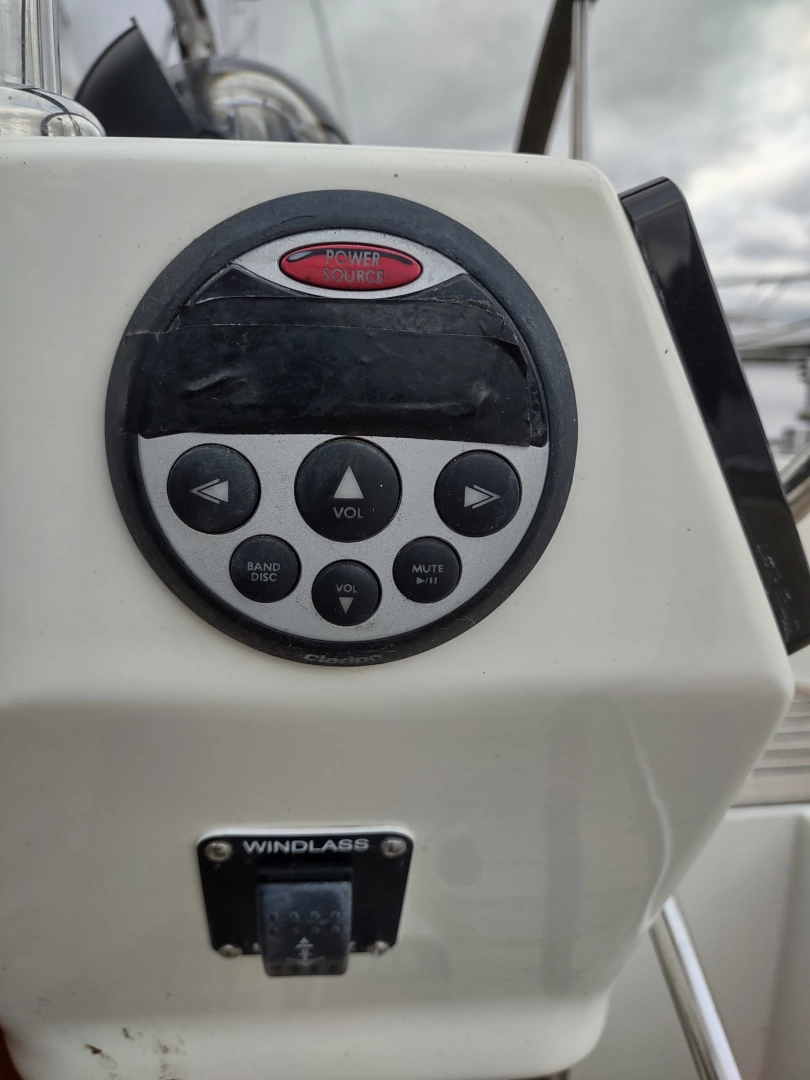

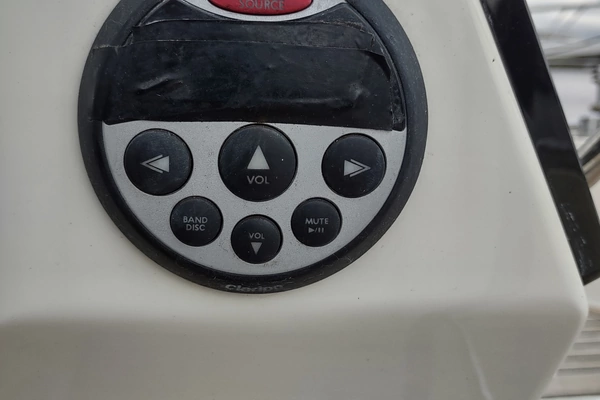

• Clarion stereo remote control on steering pedestal
• (2) Bose speakers in salon
• (2) Speakers in cockpit

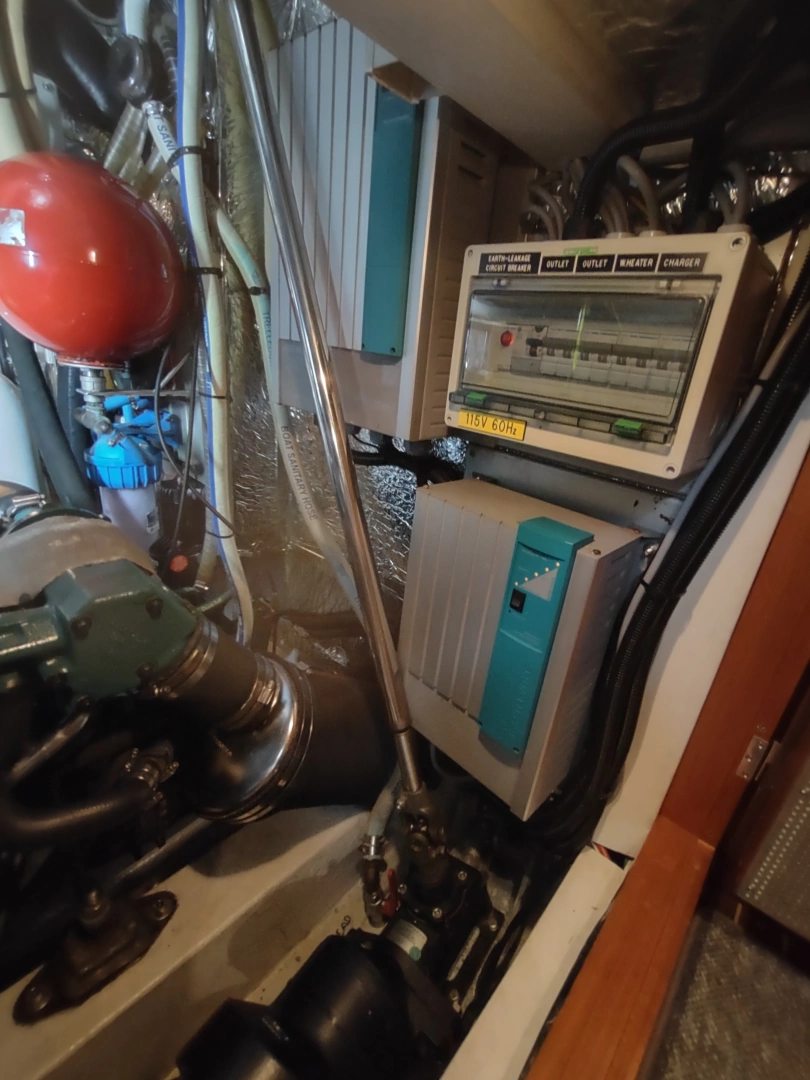

ELECTRICAL SYSTEM:

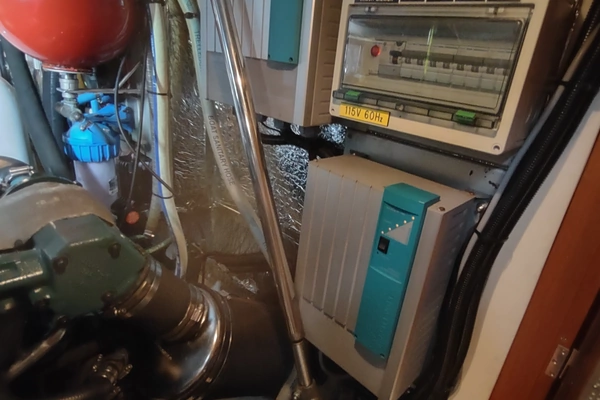

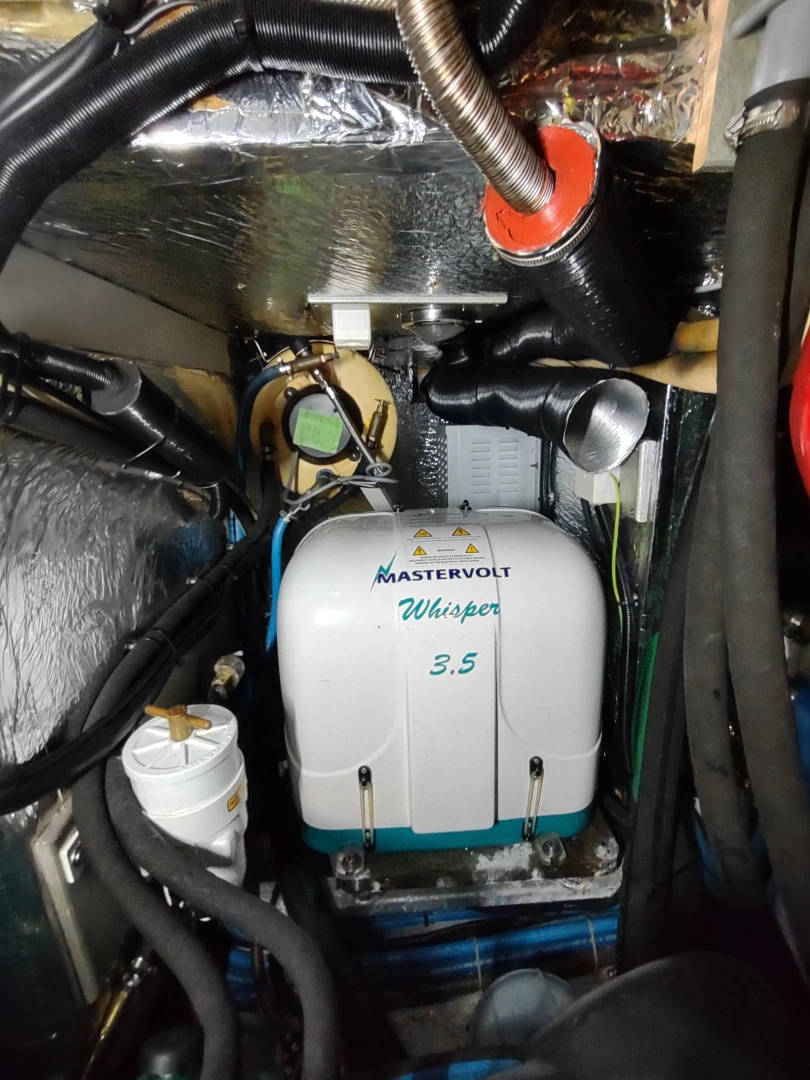

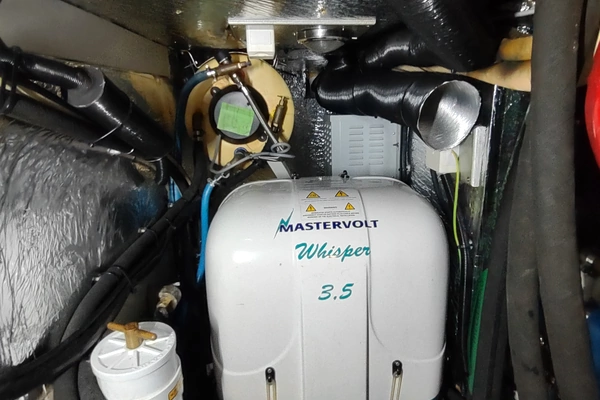

• Mastervolt Whisper 3.5 110V 3.5 kw genset with sound enclosure (96 hours)
• Mastervolt Mass Sine 2000W 12V DC to 110V/60hz AC inverter
• Mastervolt Mass 12v/80 amp battery charger

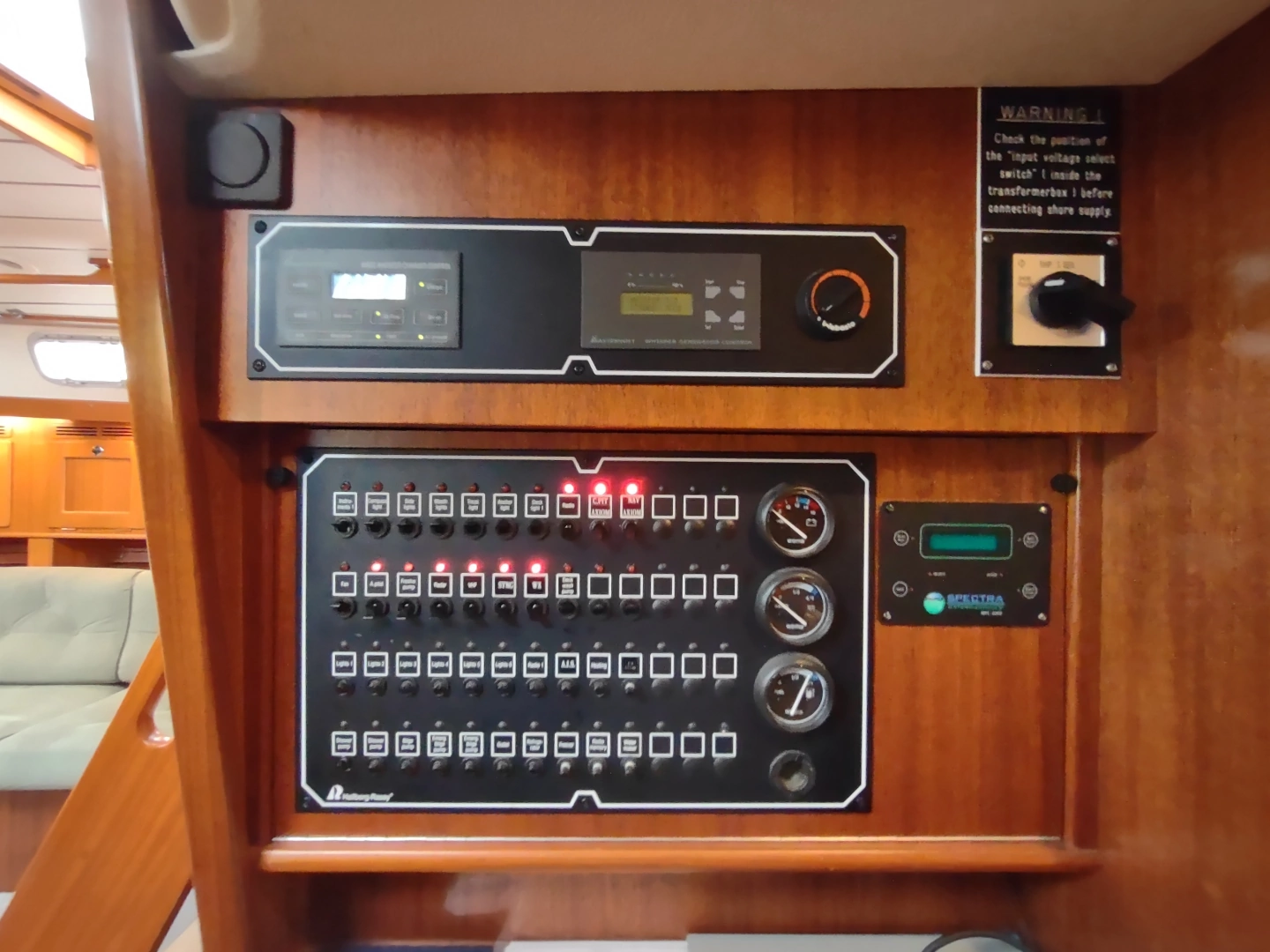

• Mastervolt MICC inverter/charger remote control panel and battery monitor
• 12V engine and genset start battery
• (6) Trojan T-125 6 volt 240 ah batteries totaling 720 12v equivalent amp hours
• Emergency house/start combiner switch
• Bosch 12v, 115 amp alternator
• Mastervolt Ivet C-16 3.5kva transformer with 220V/110V in, 110V out
• Marinco shorepower inlet and cord

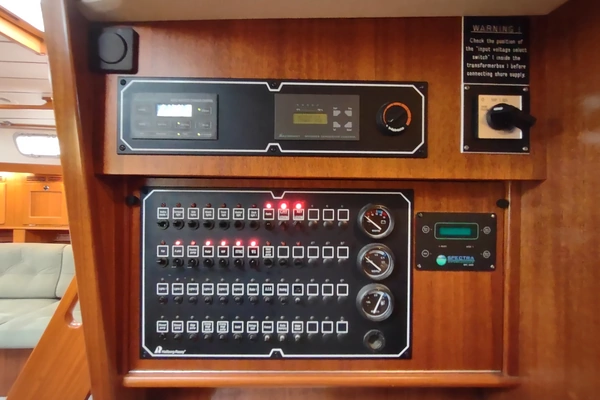

• 110V breaker panel and four sockets
• 12V shorepower switch/breaker panel
• 12V DC outlets at nav station, cockpit and at electrical panel
• Tricolor/anchor light at masthead
• Running lights and steaming light
• Foredeck light
• Additional 110V outlets in both heads, salon, nav station, and aft cabin

MECHANICAL & PLUMBING SYSTEMS:

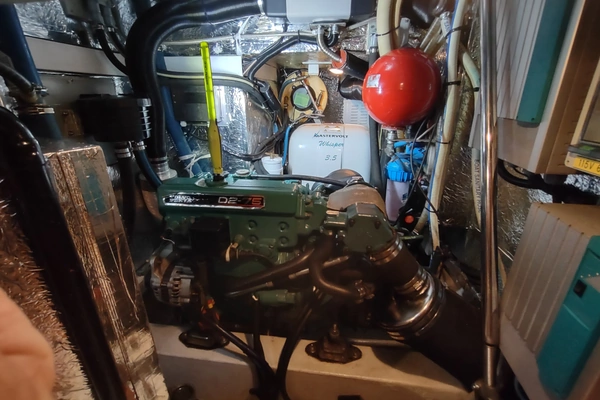

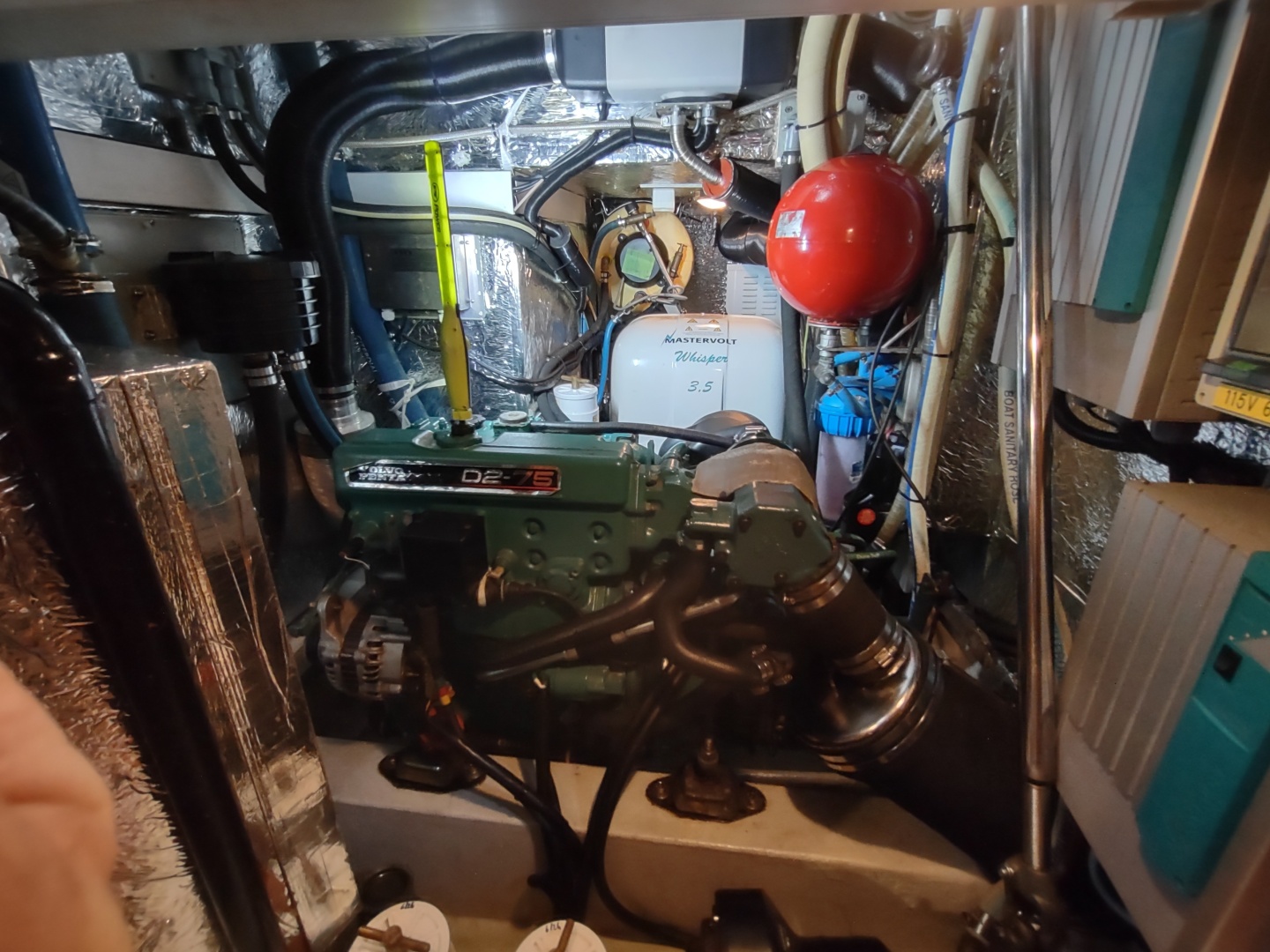

Engine and Engine Room: Engine Volvo Penta D2-75, 55 kW/75 HP 4 cylinder 2.2 Litres cylinder volume. Mounted with four rubber feet on strong foundations to avoid vibration and noise. Hydraulic transmission. Gori folding propeller. Water-cooled rubber exhaust pipe. Freshwater cooled engine. The hot freshwater circuit is led into a 40 L / 11 US gallon well insulated hot water tank. Due to the good insulation water remains hot for many hours after the engine has been run. The engine is served by a separate 12 V start battery. There is a large filter for cooling water. The bilge pump has been installed in a position where it can be cleaned even in extremely bad weather conditions.

• Volvo Penta D2 75hp engine (3365 hours)
• Volvo instrument panel on steering pedestal with tachometer, water temperature, oil pressure, and voltmeter
• Manual engine shutdown cable to steering pedestal
• Volvo dripless shaft seal (replaced 2021)
• Gori three blade folding propeller
• Thermal and acoustic insulation in engine room
• Double Racor primary fuel filters
• Racor filter for genset
• 8hp Sidepower bowthruster with foot switches at helm
• Whitlock wheel steering with Cardan linked rod
• Webasto Airtop 5000 diesel heater with five outlets, digital thermostat and aft cabin on/off switch
• Insulated water heater, 40 liters, 110V and engine heated
• Hot and cold pressure water system with filter cartridge and accumulator tank
• Whale Gulper 220 shower waste pumps to both showers
• Flojet 12V 13 lt/minute deck washdown pump
• Manual bilge pump
• Emergency high water, large capacity bilge pump with alarm
• (2) Top opening Isotherm SP keel cooled refrigeration and freezer with Danfoss 12v compressors
• Trident LPG solenoid, switch, and alarm and USA propane hose
• Trident 150000 BTU/HR auto change over propane regulator with gages
• (2) Aluminum propane tanks
• Hot/cold fresh water stern shower
• Seawater foot pump in galley
• Holding tanks for both heads with deck pump outs and gravity overboard discharge
• Analog fuel and water tank meters
• Spectra Catalina 12V 300 gpd watermaker with MPC -3000 remote control panel

MISCELLANEOUS

• Lifesling2 in soft case
• Emergency tiller
• BFA Hard valise 6 person life raft with stainless steel storage cradle (needs inspection)
• Boathook
• Wooden bungs for plugging each underwater through hull

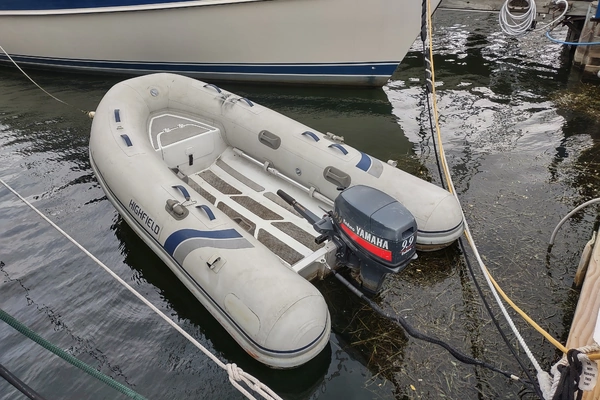

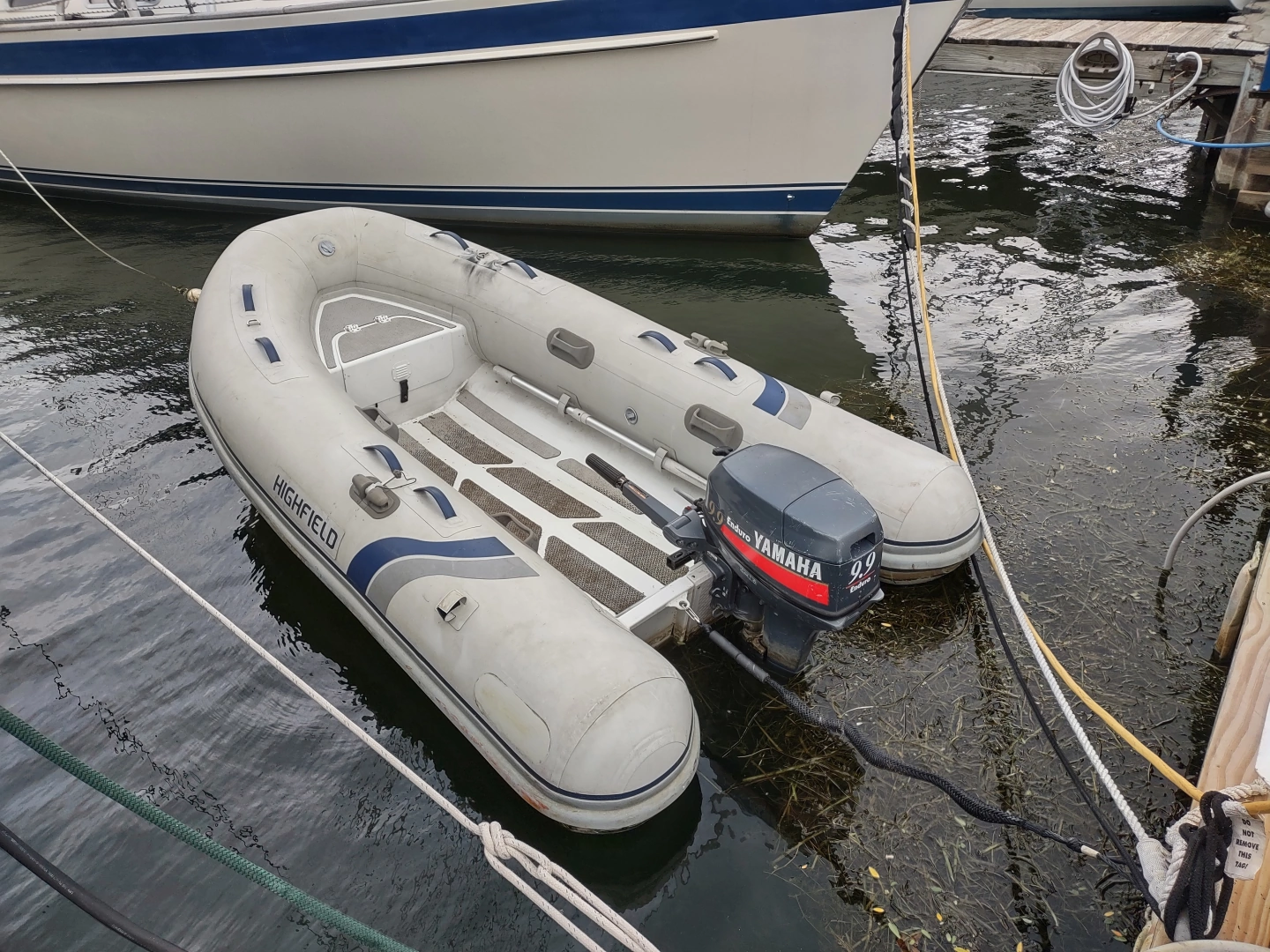

• 10’ Highfield Model CL310PVC aluminum RIB (new 2019)
• Yamaha 9.9hp Enduro outboard engine
• Custom Canvas winter storage full boat cover
