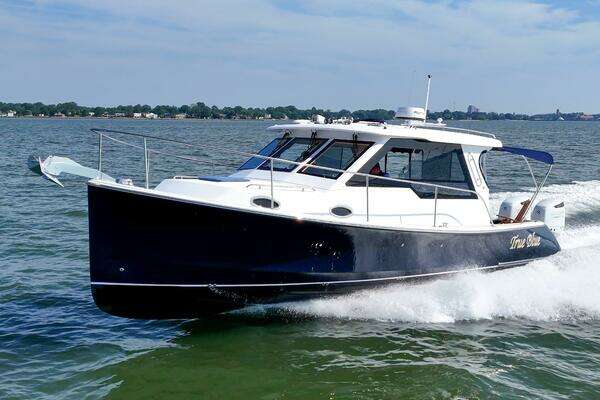

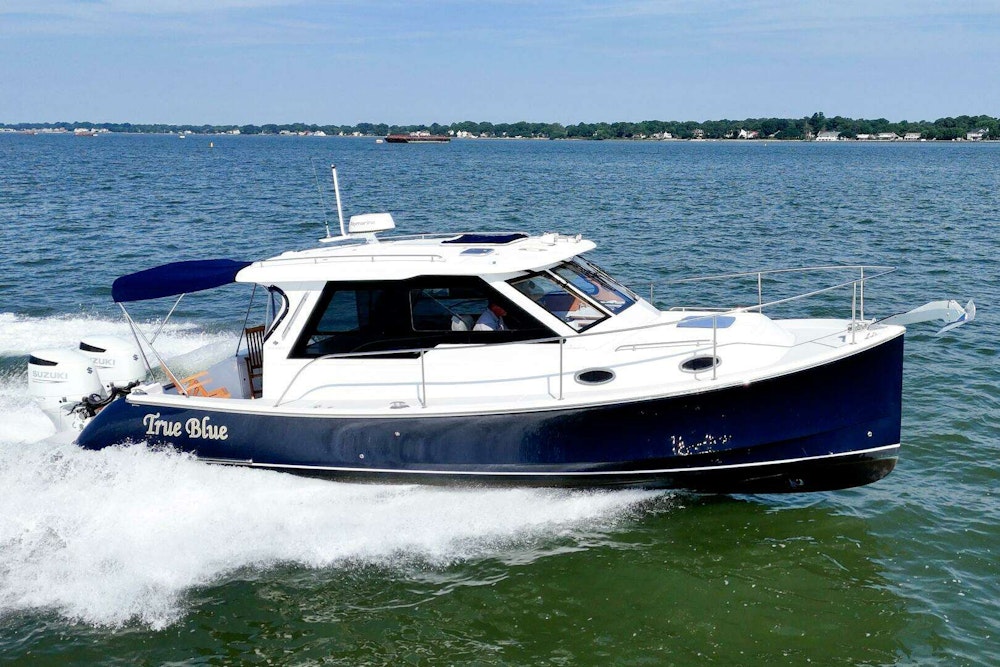

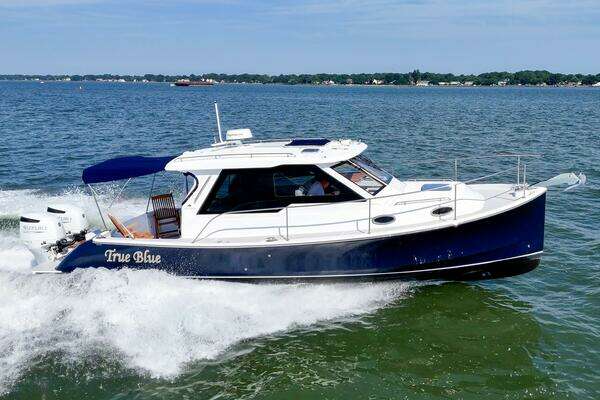

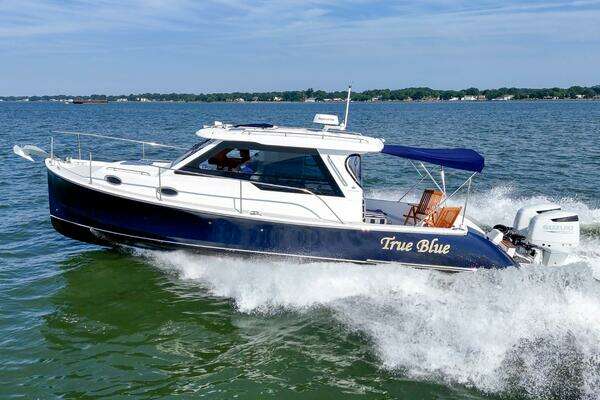

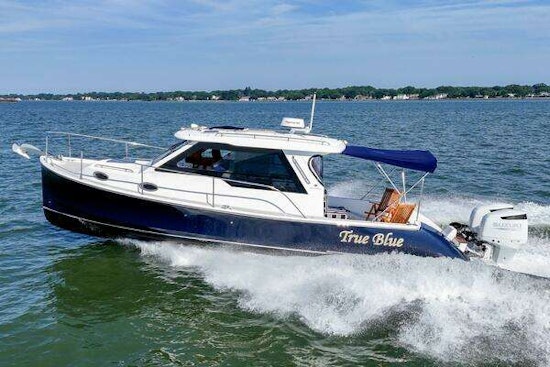

2022 True North 34 OE

The True North 34OE by Catalina Yachts is built utilizing the knowledge and talent of more than 50 years of boat building experience and more than 85,000 hulls built and delivered.

The highlights begin with a vinylester skin coat on the entire hull for blister resistance. The structure continues with low shrink DCPD resin and biaxial, triaxial, and quadraxial fibers in an optimized lamination schedules that meets both ABS and CE ISO specifications for strength. Above the waterline, balsa core is employed for stiffness and weight savings. While below the waterline the hull is solid quadraxial fiberglass for bulletproof strength and impact resistance.

A full composite grid is created with taylored cores with variable densities as needed. The transom is reinforced with structural urethane core, commonly referred to as "Transom Board", a high density, glas fiber composite panel. The decks and other molded parts follow similar lamination techniques with adjustments for strength, lightness and stiffness as required.

The engineering goal of True North is to create a vessel of exceptional quality, durability and value: and to continue a well-earned reputation for being able to handle even the roughest sea conditions. The new True North is a modern composite yacht with a structure optimized for s safe cruising vessel that a couple or family can enjoy for years to come.

Vessel Walkthrough

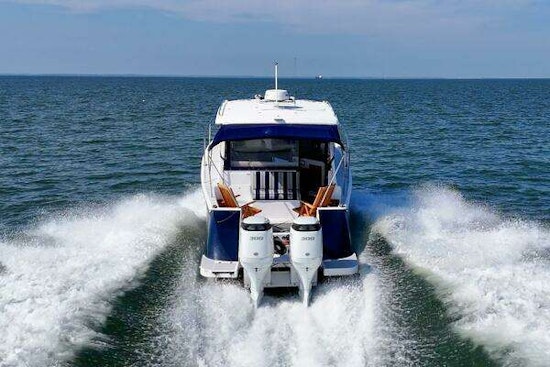

TRANSOM AND COCKPIT

• Solid Fiberglass bottom with vinylester resin for Blister Resistance
• Pull-out swim ladder, port stern

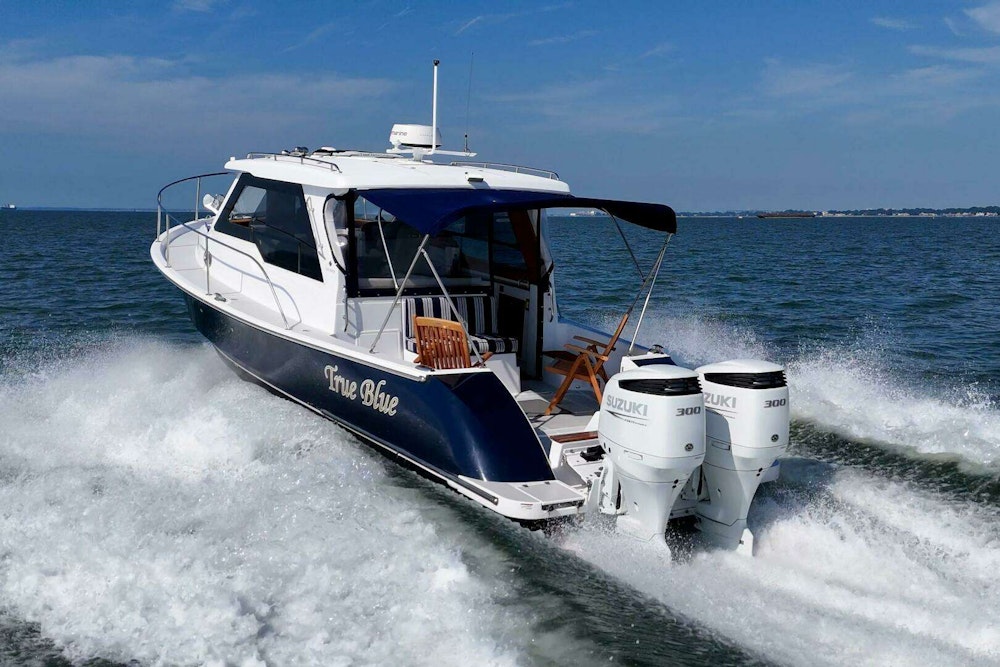

• Twin 300 hp Suzuki 4 stroke motors, 90 hrs with engine service records.
• Suzuki engine warranty until 10/1/2027
• Counter rotating engines with 3 bladed stainless-steel propellers
• Transom jack plate, capable of raising the engines completely out of the water
• Reverso freshwater engine flushing system
• Folding transom "tailgate" to open the cockpit for very easy engine access and dock access
• Twin 30-amp shore power connections (SmartPlug connections)
• Aft bilge access including automatic bilge pumps
• Large aft cockpit with non-skid deck and in deck storage
• Custom Cockpit Bimini top (Sunbrella Captains Navy)
• Aft facing cockpit seat with removable cushion and backrest, storage beneath
• Cockpit storage compartment
• Fresh water cockpit shower
• Raw water washdown
• Dockside freshwater connection
• Molded inside deck access from both sides of the cockpit

PILOTHOUSE/SALON/HELM DECK/GALLEY

• drop down canvas rear curtain with heavy gauge Strata Glass, snap on insulated privacy curtains
• Zip-up, roll-up stbd side door
• The pilothouse is comfortable, tall and quite well lit. Teak accents warm the interior

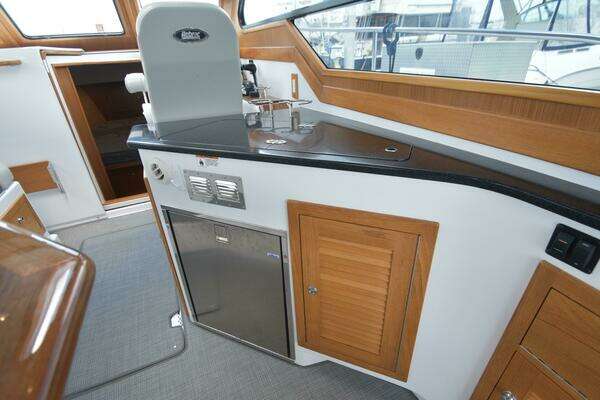

• Stbd side galley with Microwave Oven, Sink, Kenyon single burner electric stove, galley storage compartments
• Reverse Cycle Heat/Air Conditioning system for the helm/Pilothouse
• Isotherm refrigerator/freezer

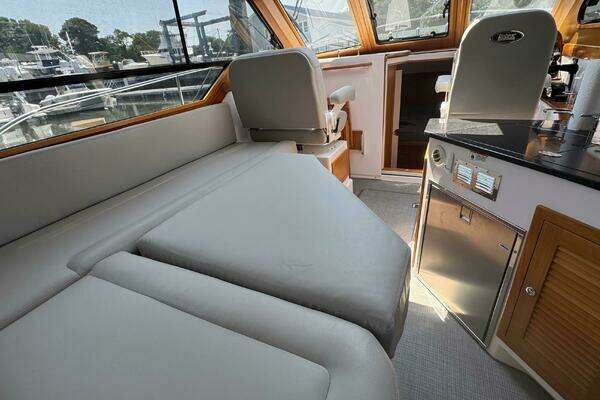

• L-shaped Passenger lounge sofa along the rear and port side of the Pilothouse
• High gloss dining table
• Custom cushion top for table, and hi-low pedestal turn this area into a comfortable sleeper
• Overhead lighting and hatches for fresh air and natural lighting
• (3) sided Pilothouse with sliding side windows
• (3) windshield wipers across the front windshield, each with washer
• center windshield opens for fresh air
• Custom black mesh privacy curtains snap on all 3 sides of the pilothouse
• Port side Double wide LeBroc passenger seat
• Stbd side single LeBroc helm chair, can swivel to face the table
• Lockable, sliding teak door to the lower cabin

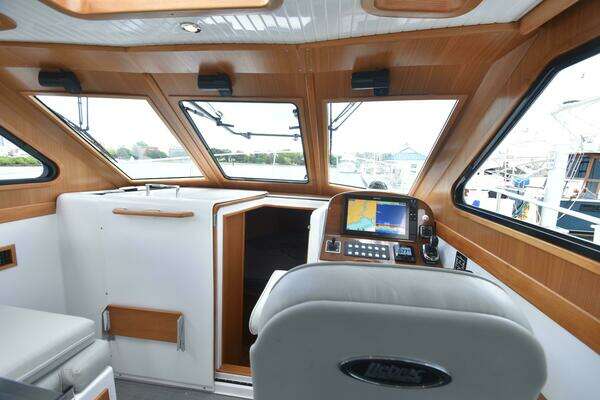

HELM STATION

• Stbd side with LeBroc pedestal helm chair, multi-function with folding footrest
• Teak dash with flush mounted electronics
• Stbd side electronic engine controls
• Anchor Windlass controls
• Engine JackPlate controls
• Roca (3) pane wiper/washer controls
• Suzuki digital engine monitor gauges
• SeaStar trim tabs controller
• Optimus steering gauge
• Optimus Joystick control
• BocaTech switch panel for lights, pumps, horn, etc
• Bow Thruster
• RayMarine autopilot with rudder position indicator
• 16 inch RayMarine hybridtouch, full color MFD with fish finder, color GPS Plotter, Doppler Radar, AIS and engine gauges
• RayMarine blackbox VHF Radio with AIS and aux speaker
• Ritchie magnetic compass
• Go-Light LED Remote spotlight
• High water alarm
• Excellent Visibility, easy handling

LOWER CABIN

• Stbd side electronics panel with AC and DC switches/breakers
• Inverter/charger control panel
• Heat/Air Conditioning controls for Pilothouse and Lower Cabin (2 zones)
• Fusion Stereo head unit (AM/FM/SXM/Bluetooth)
• Storage for safety equipment
• Teak and holly flooring
• Teak cabinetry
• Hereshoff style interior trim work
• (4) port lights with removable screens
• Overhead heck hatch with screen and custom canvas cover
• Island style Pedestal bed with custom mattress
• Drawer storage space beneath the bed
• Overhead lighting
• Port side enclosed with Jabsco electric toilet, sink, mirror, pull-out shower head
• shower sump

SIDE DECKS AND FOREDECK

• Non-skid side decks are quite wide for easy access up to the bow for docking and anchoring
• Pull-upside deck cleats
• Ample grab rails along the sides of the pilothouse and on top of the trunk cabin
• Stainless steel bow railing
• Stainless steel anchor chute
• Lewmar stainless steel anchor windlass
• Raw water washdown
• Deck cleats with bow line chocks
• Tie Down D-rings on hardtop for Paddleboards/kayaks etc
• Radar Mast for Dome Radar antenna, radio antennas, GPS antenna and Anchor light
